  • Page 1 ETX-CV User’s Manual Manual Revision: 2.03 Revision Date: May 7, 2015 Part Number: 50-1J041-1030...
  • Page 2 Revision History Revision Date Change(s) 2.00 2013/09/02 Initial release 2.01 2013/10/25 Update LVDS resolution spec 2.02 2014/11/14 Remove FDD support 2.03 2015/05/07 Correct Ethernet chip Page 2 ETX-CV User’s Manual...

  • Page 3: Table Of Contents

    Table of Contents Preface ..........................5 1 Introduction ....................... 7 Description ..........................7 2 Specifications ......................8 General ..........................8 Integrated Video ........................8 Audio ............................. 9 LAN ............................9 Multi I/O ..........................9 Super I/O ..........................9 TPM (Trusted Platform Module) .................... 9 Power Specifications ......................
  • Page 4 PCI Interrupt Routing Map ....................36 System Management Bus (I2C-compatible)................ 36 8 BIOS Setup Utility ....................37 Starting the BIOS ........................ 37 Main Setup .......................... 42 Advanced BIOS Setup ......................43 Chipset Configuration ......................61 Boot Setup .......................... 65 Security Setup ........................68 Save &...

  • Page 5: Preface

    Preface Copyright 2013-15 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 6 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. Information to prevent minor physical injury, component damage, data loss, and/or program corruption when trying to complete a task.

  • Page 7: Introduction

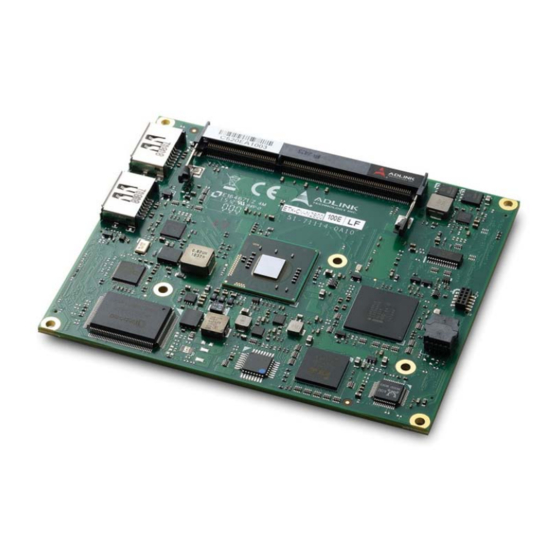

    1 Introduction 1.1 Description The ETX-CV is an ETX v3.02 compliant module specially designed to facilitate speedy development of semi custom designs. ETX is an open standard that targets the market for embedded OEM projects. An ETX core combined with a custom made carrier board represents a value solution that allows OEM customers to get to the market fast.

  • Page 8: Specifications

    2 Specifications 2.1 General CPU: Intel® Atom™ N2600 1.66GHz with 1MB L2 cache, 3.5W Intel® Atom™ N2800 1.83GHz with 1MB L2 cache, 6.5W Intel® Atom™ D2550 1.86GHz with 1MB L2 cache, 10W - On-die primary 32-kB instructions cache and 24-kB write back data cache - Intel®...

  • Page 9: Audio

    2.3 Audio Audio Codec: Realtek ALC262 HDA 2.4 LAN Chipset: Realtek RTL8111E Interface: 10/100 Mbps with Wake-on-LAN and Alert on LAN support 2.5 Multi I/O IDE (PATA): Two channels IDE with UDMA 100 support SATA: Two channels SATA 3Gb/s with connectors on module USB: Supports up to four ports USB 2.0 2.6 Super I/O Chipset: W83627DHG-PT...

  • Page 10: Power Specifications

    2.8 Power Specifications Input Power: AT mode and ATX mode Power Management: ACPI 3.0 compliant with battery support Power States: supports S0, S1, S3, S4, S5 Test Configuration Function Configuration Memory Transcend 4GB DDR3 1333 SODIMM (I) (SEC 107 HCH9K4B260846C) Graphics Intel®...

  • Page 11: Operating Systems Support

    2.9 Operating Systems Support Standard Support - Windows 7 32-bit - Windows Embedded Compact 7 - Linux 2.8 Extended Support (BSP) - Embedded XP BSP - WinCE 6.0 BSP - Linux 2.6.x BSP Libraries, API support - AIDI I2C Library for Win32, WinCE and Linux 2.10 Mechanical and Environmental Form factor and Type: ETX rev 3.02 Dimensions: 95 x 114 mm...

  • Page 12: Function Diagram

    3 Function Diagram SODIMM DDR3 Memory Intel® Atom™ DDR3 1066 MHz DP to LVDS Controller Chrontel N2600 CH7511 N2800 D2550 LAN PHY Realtek Analog VGA RTL8111E Graphics Core 640 MHz DP/HDMI PCI / ISA PATA IT8888G IDE0/IDE1 PCIe-to-PATA Marvell 2.5 GT/s DMI 88SE6101 PCIe-to-PATA Marvell...

  • Page 13: Mechanical Dimensions

    4 Mechanical Dimensions Connector on bottom side tolerances ± 0.05 mm Other tolerances ± 0.2 mm ETX-CV User’s Manual Page 13 ETX-CV User’s Manual Page 13...

  • Page 14: Embedded Functions

    5 Embedded Functions All embedded board functions on ADLINK’s Computer on Modules are supported at the operating system level using the ADLINK Intelligent Device Interface (AIDI) library. The AIDI API programming interface is compatible and identical across all supported ADLINK Computer on Modules and all supported operating systems.

  • Page 15: Hardware Monitoring

    5.2 Hardware Monitoring To ensure system health of your embedded system ADLINK’s Computer on Modules come with built in support for monitoring of CPU temperatures and critical module voltage levels. The AIDI Library provides simple APIs at the application level to support these functions and adds alarm functions when voltage or temperature levels exceeds the upper or lower limit set by the user.

  • Page 16: Pin-Out And Signal Descriptions

    6 Pin-out and Signal Descriptions 6.1 Connector Locations - Ethernet - IDE1/IDE2 - Power Signals - Speaker, Battery C & SMB bus - ISA bus ETX-CV (top view) - 32-bit PCI bus - VGA/LCD/Video - USB - COM1/COM2 - Audio - LPT1 - IrDA - Mouse...

  • Page 17: Pin Definitions

    6.3 Pin Definitions X1: PCI-bus, USB, & Audio Signal Signal Signal Signal 5VCC 5VCC PCICLK3 PCICLK4 SERR# GPERR PCICLK1 PCICLK2 PME# USB2- REQ3# GNT3# LOCK# DEVSEL# GNT2# TRDY# USB3- REQ2# GNT1# IRDY# STOP# REQ1# FRAME# USB2+ GNT0# 5VCC 5VCC AD16 CBE2# SERIRQ REQ0#...
  • Page 18 X2: ISA Bus Signal Signal Signal Signal 5VCC 5VCC SD14 SD15 IRQ5 SD13 MASTER# IRQ6 SD12 DREQ7 IRQ7 SD11 DACK7# SYSCLK SD10 DREQ6 SA10 REFSH# DACK6# SA11 DREQ1 DREQ5 SA12 DACK1# MEMW# DACK5# MEMR# DREQ0 SA13 DREQ3 LA17 DACK0# SA14 DACK3# LA18 IRQ14...
  • Page 19 X3: CRT, LCD (LVDS), & Video Signal Signal First LVDS Channel Signal LVDS Signal LCD0 Txout 0- DDCK LCD1 Txout 0+ DDDA LCD2 Txout 1- LCD16 LCD18 LCD3 Txout 1+ LCD17 LCD19 LCD4 Txout 2- LCD5 Txout 2+ LCD13 LCD15 LCD6 Txclk - LCD12...
  • Page 20 X3: COM1/2, LPT1, IrDA, Mouse, & Keyboard Signal LPT/FLPY# RESERVED 5VCC STB# AFD# RESERVED IRRX ERR# IRTX RXD2 INIT# RTS2# DTR2# SLIN# DCD2# DSR2# CTS2# TXD2 RI2# 5VCC 5VCC RXD1 ACK# RTS1# BUSY DTR1# DCD1# SLCT# DSR1# MSCLK CTS1# MSDAT TXD1 KBCLK RI1#...
  • Page 21 X4: IDE1, IDE2, Ethernet, & Miscellaneous Signal Signal Signal Signal S_IOW# P_IOR# 5V_SB PWGIN S_DRQ P_IOW# PS_ON SPEAKER S_D15 P_DRQ PWRBTN# BATT S_D0 P_D15 KBINH LILED# S_D14 P_D0 RSMRST# ACTLED# S_D1 P_D14 ROMKBCS# SPDLED# S_D13 P_D1 EXT_PRG I2CLK 5VCC 5VCC S_D2 P_D13 OVCR#...

  • Page 22: Signal Descriptions

    6.4 Signal Descriptions Signal De scription Type PU/PD Comme nt Ground Ground PCICLK3 PCI Clock Slot 3 O-3,3 PCICLK4 PCI Clock Slot 4 O-3,3 Ground Ground PCICLK1 PCI Clock Slot 1 O-3,3 PCICLK2 PCI Clock Slot 2 O-3,3 REQ3# PCI Bus Request 3 I-3,3 PU 8k2 3,3V GNT3#...
  • Page 23 Signal Descriptions (cont’d) Signal Description Type PU/PD Comment 5VCC Power +5V 5VCC Power +5V PCI Bus Parity IO-3,3 SERR# PCI Bus System Error IO-3,3 PU 8k2 3,3V GPERR# PCI Bus Grant Error IO-3,3 PU 8k2 3,3V Reserved PME# PCI Power Management Event IO-3,3 int.
  • Page 24 Signal Descriptions (cont’d) Signal Description Type PU/PD Comment Ground Ground SD14 ISA Data Bus IO-5 PU 4k7 5V int. PU 50k 5V in SD15 ISA Data Bus IO-5 PU 4k7 5V int. PU 50k 5V in SD13 ISA Data Bus IO-5 PU 4k7 5V int.
  • Page 25 Signal Descriptions (cont’d) Signal Description Type PU/PD Comment 5VCC Power +5V 5VCC Power +5V ISA Address Bus PU 4k7 5V IRQ5 ISA Interrupt Request 5 IO-5 PU 4k7 5V int. PU 50k 5V in ISA Address Bus PU 4k7 5V IRQ6 ISA Interrupt Request 6 IO-5...
  • Page 26 Signal Descriptions (cont’d) Signal Description Type PU/PD Comment Ground Ground Analog Video Out RGB - Red Channel PD 150R Analog Video Out RGB - Blue Channel PD 150R Horizontal Synchronization Pulse O-3,3 Analog Video Out RGB - Green Channel PD 150R Vertical Synchronization Pulse O-3,3 DDCK...
  • Page 27 Signal Descriptions (cont’d) Signal Description Type PU/PD Comment LPT | FLPY# LPT / Floppy Interface Select IO-3,3 PU 10k 3,3V 5VCC Power +5V Ground STB# | RSV LPT Strobe Signal AFD# | DENSEL LPT Automatic Feed / Floppy Density Select PD7 | RSV LPT Data Bus D7 IO-5...
  • Page 28 Signal Descriptions (cont’d) Signal Description Type PU/PD Comment Ground Ground 5V_SB Supply of internal suspend Circuit PWGIN Power Good / Reset Input I-3,3 PS_ON Power Supply On PU 4k7 3,3VSB SPEAKER Speaker Output PU 1k 5V PWRBTN# Power Button PU 10k 3,3VSB BATT Battery Supply KBINH...
  • Page 29 Signal Descriptions (cont’d) Signal Description Type PU/PD Comment S_IOW# Secondary IDE IO Write O-3,3 P_IOR# Primary IDE IO Read O-3,3 S_DRQ Secondary IDE DMA Request I-3,3 P_IOW# Primary IDE IO Write O-3,3 S_D15 Secondary IDE Data Bus P_DRQ Primary IDE DMA Request I-3,3 S_D0 Secondary IDE Data Bus...
  • Page 30 Signal Descriptions (cont’d) Signal Type Legend IO-2,5 Bi-directional 2,5 V Input/Output IO-3,3 Bi-directional 3,3 V Input/Output IO-5 Bi-directional 5 V Input/Output I-3,3 3,3 V Input 5 V Input O-2,5 2,5 V Output O-3,3 3,3 V Output 5 V Output Input/Output Analog Output I/O - DP Differential Pair Input/Output...

  • Page 31: System Resources

    7 System Resources System Memory Map Address Range (decimal) Address Range (hex) Size Description (4GB-2MB) FFE00000 - FFFFFFFF 2 MB High BIOS Area (4GB-18MB)-(4GB-17MB-1) FEE00000 - FEEFFFFF 1 MB FSB Interrupt Memory Space (4GB-20MB)-(4GB-19MB-1) FEC00000 – FECFFFFF 1 MB APIC Configuration Space 960 K - 1024 K F0000 - FFFFF 64 KB...

  • Page 32: I/O Address Map

    I/O Address Map Address (hex) Size Description 0000 – 001F 32 bytes DMA controller 0020 – 0021 2 bytes Interrupt controller 0024 – 0025 2 bytes Interrupt controller 0028 – 0029 2 bytes Interrupt controller 002C – 002D 2 bytes Interrupt controller 002E - 002F 2 bytes...
  • Page 33 I/O Address Map (cont’d) Address (hex) Size Description 02F8 – 02FF 8 bytes COM2 0376 – 0377 2 bytes Secondary IDE controller 0378 – 037F 8 bytes LPT1 03B0 – 03BB 12 bytes Video (monochrome) 03BC – 03BF 4 bytes LPT3 03C0 –...

  • Page 34: Interrupt Request (Irq) Lines

    Interrupt Request (IRQ) Lines PIC Mode IRQ# Typical Interrupt Resource Connected to Pin Available Counter 0 Keyboard controller Cascade interrupt from slave PIC Serial Port 2 (COM2) / PCI IRQ3 via SERIRQ Note (1) Serial Port 1 (COM1) / PCI IRQ4 via SERIRQ Note (1) Parallel Port 2 (LPT2) / PCI...

  • Page 35: Pci Configuration Space Map

    APIC Mode (cont’d) IRQ# Typical Interrupt Resource Connected to Pin Available Secondary IDE controller / PCI IRQ15 via SERIRQ Note (1) PCI Slot INT A, USB, VGA controller, Audio controller, IDE controller PCI Slot INT B, USB PCI Slot INT C PCI Slot INT D, USB controller EHCI, USB (1) These IRQs can be used for PCI devices when an onboard device is disabled.

  • Page 36: Pci Interrupt Routing Map

    PCI Interrupt Routing Map PIRQ INT Line INTA INTB INTC INTD UHCI 1 UHCI 2 UHCI 3 UHCI 4 EHCI SATA SMBus Audio PCI Slot1 INTA INTB INTC INTD PCI Slot2 INTB INTC INTD INTA PCI Slot3 INTC INTD INTA INTB PCI Slot4 INTD...

  • Page 37: Bios Setup Utility

    8 BIOS Setup Utility The following chapter describes basic navigation for the AMI EFI BIOS setup utility. 8.1 Starting the BIOS To enter the setup screen, follow these steps: 1. Power on the motherboard 2. Press the < Delete > key on your keyboard when you see the following text prompt: <...
  • Page 38 8.1.1 Main Setup Menu The main BIOS setup menu is the first screen that you can navigate. Each main BIOS setup menu option is described in this user’s guide. The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured.
  • Page 39 8.1.2 Navigation The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. These keys include < F1 >, < F10 >, < Enter >, < ESC >, < Arrow > keys, and so on. There is a hot key legend located in the right frame on most setup screens.
  • Page 40 Hot Key Description Enter The < Enter > key allows you to display or change the setup option listed for a particular setup item. The < Enter > key can also allow you to display the setup sub-screens. The < F1 > key allows you to display the General Help screen. Press the < F1 > key to open the General Help screen.
  • Page 41 The < F4 > key allows you to save any changes you have made and exit Setup. Press the < F4 > key to save your changes. The following screen will appear: Press the < Enter > key to save the configuration and exit. You can also use the < Arrow > key to select Cancel and then press the <...

  • Page 42: Main Setup

    8.2 Main Setup When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below. 8.2.1 System Time/System Date Use this option to change the system time and date.

  • Page 43: Advanced Bios Setup

    8.3 Advanced BIOS Setup Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as SuperIO Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <...
  • Page 44 8.3.1 PCI Subsystem Settings You can use this screen to select options for the PCI Subsystem Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 45 8.3.2 ACPI Settings You can use this screen to select options for the ACPI configuration settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 46 ACPI Sleep State S1 only (CPU Stop Clock) CPU Stop Clock - Under this setting the system enters a low power state instead of being completely shut off. This allows the computer system to boot up in a few seconds. S3 only (Suspend) Suspend to RAM - Under this setting the system enters a low power state instead of being completely shut off.
  • Page 47 8.3.3 Trusted Computing You can use this screen to select options for the Trusted Computing settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 48 8.3.4 CPU Configuration You can use this screen to select options for the CPU Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 49 When Enabled, the processor will limit the maximum CPUID input value to 03h when queried, even if the processor supports a higher CPUID input value. When Disabled, the processor will return the actual maximum CPUID input value of the processor when queried. 8.3.5 Thermal Configuration You can use this screen to select options for the Thermal Configuration settings.
  • Page 50 Platform Thermal DTS SMM Enabled ACPI thermal management uses DTS SMM mechanism to obtain CPU temperature values. CPU Temperature Display current CPU temperature. Critical Trip Point This value controls the temperature of the ACPI Critical Trip Point - the point in which the OS will shut the system off.
  • Page 51 8.3.6 IDE Configuration You can use this screen to select options for the IDE Configuration settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 52 Configure SATA as “AHCI” Port0/1 Speed Limit Select Port0/1 AHCI Speed Limit. SATA Port 0/1 Enable or Disable SATA Port 0/1. SATA Port 0/1 Hot Plug Designates this port 0/1 as hot pluggable. Page 52 ETX-CV User’s Manual...
  • Page 53 8.3.7 USB Configuration Legacy USB Support Enables legacy USB support. Auto option disables legacy support if no USB devices are connected. Disable option will keep USB devices available only for EFI applications. Set this value to Enabled/Disabled/Auto. EHCI Hand-off This is a workaround for OS without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.
  • Page 54 8.3.8 W83627DHG Super IO Configuration You can use this screen to select options for the Super IO settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. The settings are described on the following pages.
  • Page 55 Parallel Port Set Parameters of Parallel Port. Set this value to Enable/Disable. Change Settings This option specifies the base I/O port address and interrupt request address of parallel port. Options shown below. Device Mode Change the printer port mode. ETX-CV User’s Manual Page 55 ETX-CV User’s Manual Page 55...
  • Page 56 8.3.9 H/W Monitor Use this screen to check system health status. Page 56 ETX-CV User’s Manual...
  • Page 57 8.3.10 Serial Port Console Redirection Console Redirection Set this value to enable/disable console redirection. Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. ETX-CV User’s Manual Page 57 ETX-CV User’s Manual...
  • Page 58 Terminal Type VT100+ is the preferred terminal type for out-of-band management. Configuration options: VT100, VT100+, VT-UTF8 , ANSI. Bits per second Select the bits per second you want the serial port to use for console redirection. The options are 115200, 57600, 38400, 19200, 9600. Data Bits Select the data bits you want the serial port to use for console redirection.
  • Page 59 Putty KeyPad Select Function Key and KeyPad on Putty. Redirection After BIOS POST The Settings specify if BootLoader is selected than Legacy console redirection is disabled before booting to Legacy OS. Default value is Always Enable which means Legacy console Redirection is enabled for Legacy OS.
  • Page 60 8.3.11 PPM Configuration EIST It’s allow the clock speed of the processor to be dynamically changed. Set this value to Enable/Disable. C-States Enable or Disable C2 and above. Set this value to Enable/Disable. Page 60 ETX-CV User’s Manual...

  • Page 61: Chipset Configuration

    8.4 Chipset Configuration Select the Chipset tab from the setup screen to enter the Chipset BIOS Setup screen. You can select any of Chipset BIOS Setup options by highlighting it using the < Arrow > keys. The Chipset BIOS Setup screen is shown below. ETX-CV User’s Manual Page 61 ETX-CV User’s Manual...
  • Page 62 8.4.1 Host Bridge IGFX- Type – Boot Type Select the boot display device. Set this value to CRT, LFP, CRT+LFP. LCD Panel Type When LVDS is selected from Boot Display Device, this option allows you to select resolution settings as below: Active LFP Select the boot display device.
  • Page 63 8.4.2 South Bridge TPT Device Enable/Disable Intel IO Controller Hub Device. ETX-CV User’s Manual Page 63 ETX-CV User’s Manual Page 63...
  • Page 64 Azalia Controller The audio controller. Set this value to Disable/HD Auto. UHCI #1-2 Controller The UHCI controller. Set this value to Enabled/Disabled/Auto. USB2.0 Controller The EHCI controller. Set this value to EnabledDisabled. SMBus Controller The SMBus controller. Set this value to Enabled/Disabled. PCI Express Ports Configuration The PCI Express Ports in the chipset.

  • Page 65: Boot Setup

    8.5 Boot Setup Select the Boot tab from the setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Device Priority, to go to the sub menu for that item.
  • Page 66 8.5.1 CSM Parameters Launch CSM This option controls if CSM will be launched. Boot Option Filter This option controls what devices system can boot to. Page 66 ETX-CV User’s Manual...
  • Page 67 Launch PXE OpROM policy This Controls the execution of UEFI and Legacy PXE OpROM. Launch storage OpROM This Controls the execution of UEFI and Legacy PXE OpROM. Launch video OpROM policy This Controls the execution of UEFI and Legacy PXE OpROM. Other PCI device ROM For PCI devices other than Network, Mass storage or Video defines which OpROM to launch.

  • Page 68: Security Setup

    8.6 Security Setup Administrator/User Password If only the administrator’s password is set, then this only limits access to setup and is only asked for when entering setup. If only the user’s password is set, then this is a power on password and must be entered to boot or enter setup.

  • Page 69: Save & Exit

    8.7 Save & Exit Save Changes and Exit When you have completed the system configuration changes, select this option to save changes and continue booting the system. New configuration parameters will take effect after the next system restart. Discard Changes and Exit Select this option to quit Setup without saving changes to the system configuration and continue booting.
  • Page 70 Save Changes When you have completed the system configuration changes, select this option to save your system configuration and continue. For some of the options it required to reset the system to take effect. Select YES to Save Changes and continue. Discard Changes Discard any unsaved changes Restore Defaults...

  • Page 71: Bios Checkpoints, Beep Codes

    9 BIOS Checkpoints, Beep Codes This section of this document lists checkpoints and beep codes generated by AMIBIOS. The checkpoints defined in this document are inherent to the AMIBIOS generic core, and do not include any chipset or board specific checkpoint definitions. Checkpoints and Beep Codes Definition A checkpoint is either a byte or word value output to I/O port 80h.

  • Page 72: Status Code Ranges

    9.1 Status Code Ranges Status Code Range Description 0x01 – 0x0F SEC Status Codes & Errors 0x10 – 0x2F PEI execution up to and including memory detection 0x30 – 0x4F PEI execution after memory detection 0x50 – 0x5F PEI errors 0x60 –...
  • Page 73 PEI Status Codes Status Code Description Not used Progress Codes 0x10 PEI Core is started 0x11 Pre-memory CPU initialization is started 0x12 Pre-memory CPU initialization (CPU module specific) 0x13 Pre-memory CPU initialization (CPU module specific) 0x14 Pre-memory CPU initialization (CPU module specific) 0x15 Pre-memory North Bridge initialization is started 0x16...
  • Page 74 PEI Status Codes (cont’d) PEI Error Codes 0x50 Memory initialization error. Invalid memory type or incompatible memory speed 0x51 Memory initialization error. SPD reading has failed 0x52 Memory initialization error. Invalid memory size or memory modules do not match. 0x53 Memory initialization error.
  • Page 75 PEI Beep Codes # of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Reset PPI is not available Recovery failed S3 Resume failed DXE Status Codes Status Code...
  • Page 76 DXE Status Codes (cont’d) Status Code Description 0x92 PCI Bus initialization is started 0x93 PCI Bus Hot Plug Controller Initialization 0x94 PCI Bus Enumeration 0x95 PCI Bus Request Resources 0x96 PCI Bus Assign Resources 0x97 Console Output devices connect 0x98 Console input devices connect 0x99 Super IO Initialization...
  • Page 77 DXE Status Codes (cont’d) DXE Error Codes 0xD0 CPU initialization error 0xD1 North Bridge initialization error 0xD2 South Bridge initialization error 0xD3 Some of the Architectural Protocols are not available 0xD4 PCI resource allocation error. Out of Resources 0xD5 No Space for Legacy Option ROM 0xD6 No Console Output Devices are found 0xD7...

  • Page 78: Oem-Reserved Status Code Ranges

    9.3 OEM-Reserved Status Code Ranges Status Code Description OEM SEC initialization before microcode loading OEM SEC initialization after microcode loading 0x1D – 0x2A OEM pre-memory initialization codes 0x3F – 0x4E OEM PEI post memory initialization codes 0x80 – 0x8F OEM DXE initialization codes 0xC0 –...

  • Page 79: Appendix A: Connectors And Mounting

    Appendix A: Connectors and Mounting A.1 Carrier Board ETX Connecter Heights (Hirose FX8/FX8C Receptacles) For different stacking heights, the receptacles for ETX carrier boards are available in two heights, 3 mm and 9.5 mm. When 3 mm receptacles are chosen, the carrier board should be free of components.

  • Page 80: Mounting Procedures

    A.3 Mounting Procedures There are several standard ways to mount an ETX board with heatspreader on a carrier board. ETX boards may be mounted with 9.5 mm ETX connectors on the carrier board or standard 3 mm connectors. There are also two different types of heatspreaders to choose from: heatspreaders with threaded standoffs which require inserting screws from under the carrier, or top mounting heatspreaders using through-hole heatspreader standoffs and threaded carrier board standoffs.

  • Page 81: Standoff Types - Carrier Board

    A.4 Standoff Types - Carrier Board For different mounting procedures there are different standoffs available for the carrier board. Note that threaded standoffs are both DIP and SMT type and the through-hole types are all SMT type. Other types not listed can be made available upon request. 33-72000-0030 3 mm through-hole standoff (SMT type) for HTS-EAT-B with 3 mm Hirose carrier...

  • Page 82: Important Safety Instructions

    Important Safety Instructions For user safety, please read and follow all instructions, warnings, cautions, and notes marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference. Read the specifications section of this manual for detailed information on the operating environment of this equipment.
  • Page 83 Equipment must be serviced by authorized technicians when: - The power cord or plug is damaged; - Liquid has penetrated the equipment; - It has been exposed to high humidity/moisture; - It is not functioning or does not function according to the user’s manual; - It has been dropped and/or damaged;...

  • Page 84: Getting Service

    San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
  • Page 85 84 Genting Lane #07-02A, Cityneon Design Centre Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office) Address: #50-56, First Floor, Spearhead Towers Margosa Main Road (between 16th/17th Cross) Malleswaram, Bangalore - 560 055, India Tel: +91-80-65605817, +91-80-42246107 Fax:...
