- Page 1 NuPRO-760 Full-Size Socket 370 PICMG SBC User’s Guide Recycled Paper...
- Page 3 Trademarks NuPRO is a registered trademark of ADLINK Technology Inc., Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies.
- Page 4 Getting Service from ADLINK Customer Satisfaction is top priority for ADLINK TECHNOLOGY INC. If you need any help or service, please contact us. ADLINK TECHNOLOGY INC. Web Site http://www.adlinktech.com Sales & Service Service@adlinktech.com +886-2-82265877 +886-2-82265717 Address 9F, No. 166, Jian Yi Road, Chungho City, Taipei, 235 Taiwan Please email or FAX your detailed information for prompt, satisfactory, and consistent service.
-
Page 5: Table Of Contents
Specifications ................. 4 Intelligence ..................7 PCB Layout Drawing ..............8 Mechanical Drawing ..............8 Chapter 2 Jumpers and Connectors ..........9 Connectors on the NuPRO-760 ............ 10 2.1.1 CN1,CN4 : IDE Pin Headers............11 2.1.2 CN2 : FDD Pin Header ..............12 2.1.3... - Page 6 Chapter 4 VIA PLE133T Chipset Hardware and VGA Driver .25 Hardware Configuration File Installation........26 VGA Driver Installation ............... 29 Chapter 5 Realtek RTL8139C LAN Driver Installation.....31 Software and Drivers Support ............31 Driver Installation on Windows 2000 .......... 32 Driver Installation on Windows 98 ..........
- Page 7 How to Use This Guide This manual is designed to help you to use the NuPRO-760 series. Chapter 1, “Introduction” gives an overview of the product features and specifications. Chapter 2, “Jumpers and Connectors” describes how to install the SBC. The PCB layout, jumper setting and connector pin assignments are shown.
-
Page 9: Chapter 1 Introduction
Introduction This manual is designed to give you information on the NuPRO-760 series CPU card. The information inside this user’s manual can be applied to NuPRO-760 series if without specified. The topics covered in this chapter are as follows: •... -
Page 10: Checklist

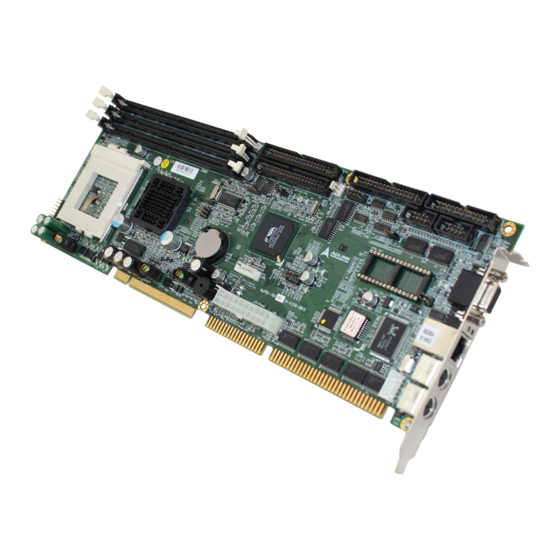

Description The NuPRO-760 is a single-CPU PICMG form factor, industrial computer mainboard. The NuPRO-760 is based on the Intel PGA370 socket processor with the VIA APOLLO PLE133T and VT82C686B chipset. It accommodates single Intel Pentium III (Coppermine/Tualatin), Celeron and VIA C3 processor. -
Page 11: Features
Features • Single Pentium III (Coppermine/Tualatin) / Celeron (FC-PGA, FC-PGA2) / VIA C3 processor with auto-selection of core voltages. The Front Side Bus (FSB) frequency can be 66/100/133MHz • VIA Apollo PLE133T (VT8601T) North Bridge Controller • VIA VT82C686B super South Bridge Controller •... -
Page 12: Specifications
Specifications ♦ Processor Socket: Socket-370 connector ♦ Processor: Intel Celeron and Pentium III (FC-PGA & FC-PGA2), VIA C3 CPU ♦ Secondary Cache: built in CPU ♦ Bus Speed: 66/100/133MHz ♦ Chipset: VIA PLE133T (VT8601T + VT82C686B) ♦ Memory Sockets: • Three 168-pin DIMM sockets •... - Page 13 • Supports IEEE 802.3x 100Base-TX flow control • Reserved with pin-header for Ethernet’s LED for user’s applications • Support Wake-On-LAN function and remote wake-up ♦ Enhanced IDE: Bus Master IDE controller, two EIDE interfaces support up to four IDE devices, including HDD, LS-120 and ATAPI CD-ROM drives.
- Page 14 –12V 1. Without FAN current. 2. When power-off and using ATX power supply System configuration : NuPRO-760, Intel Pentium III/1GB (133MHz FSB), 1.5GB SDRAM (256MB PC-133 SDRAM x 3). Note: The above values are the maximum power requirement for SBC with CPU and RAM only, the CPU is running under full loading.
-
Page 15: Intelligence
Intelligence Socket 370 Socket 370 (PIII, Celeron or (PIII, Celeron or Selectable FSB Selectable FSB Tualatin ) Tualatin ) 66/100/133 66/100/133 x DIMM x DIMM 66/100/133 66/100/133 VIA APOLLO VIA APOLLO Generator Generator Generator PLE133T (ICS9248 PLE133T (ICS9248 (ICS9248 -39) (VT8601T) (VT8601T) PCI BUS... -
Page 16: Pcb Layout Drawing
PCB Layout Drawing Mechanical Drawing 8 • Introduction... -
Page 17: Chapter 2 Jumpers And Connectors
Jumpers and Connectors The connectors on the NuPRO-760 allow you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following subsections specify the pin assignments for the connectors and jumper blocks on NuPRO-760. -
Page 18: Connectors On The Nupro-760
• CN19: SMBus connector • FN1,FN2: CPU fan connector • LED1: LAN Activity Indicators Connectors on the NuPRO-760 CN17 CN19 CN4: CN18 LED1 CN10 CN12 CN16: CN11 CN15: CN13 CN14 10 • Jumpers and Connectors... -
Page 19: Cn1,Cn4 : Ide Pin Headers
2.1.1 CN1,CN4 : IDE Pin Headers CN1: Primary IDE Connector, CN4: Secondary IDE Connector Signal Name Pin # Pin # Signal Name Reset IDE Ground Host data 7 Host data 8 Host data 6 Host data 9 Host data 5 Host data 10 Host data 4 Host data 11... -
Page 20: Cn2 : Fdd Pin Header
2.1.2 CN2 : FDD Pin Header Signal Name Pin # Pin # Signal Name Ground Drive density selection Ground No connect Ground Drive density selection Ground Index Ground Motor enable 0 Ground Drive select 1 Ground Drive select 0 Ground Motor enable 1 Ground Direction... -
Page 21: Cn5 : Ac'97 Link Pin Header
2.1.4 CN5 : AC’97 Link PIN Header Signal Name Pin# Pin# Signal Name AC_CLK AC_SDIN0 AC_SDOUT AC_SDIN1 AC_SYNC AC_RSTJ 2.1.5 CN6,CN7 : COM1,2 Serial Ports pin headers CN7: COM1 Connector, CN6: COM2 Connector Pin # RS-232 DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready... -
Page 22: Cn9 : Usb Pin Header
2.1.7 CN9 : USB pin header Pin # Pin # Signal Name USB0- / USB1- USB0+ / USB1+ Ground 2.1.8 CN10 : Ethernet (RJ-45) Connector Pin # Signal Name 2.1.9 CN11 : IrDA interface Connector Pin # Signal Name +3.3V IrRXD IrTXD +3.3V No connect IrRXD... -
Page 23: Cn13 : General Purpose System Signals
2.1.11 CN13 : General Purpose System Signals Power Speaker Reset Switch Power ATX Power Pin # ATX Power Interface Signals PS_ON 5V SB (standby +5V) • Power LED: Pins 1 - 3 The power LED indicates the status of the main power switch. •... -
Page 24: Cn15 : External Keyboard Connector
This 2-pin connector is an “ATX Power Supply On/Off Switch” on the system that connects to the power switch on the case. When pressed, the power switch will force the system to power on. When pressed it for 4 seconds, it will force the system to power off. 2.1.12 CN15 : External keyboard connector Pin # Signal Name... -
Page 25: Led1 : Lan Activity Indicators
2.1.15 LED1 : LAN Activity Indicators Location LED Status Description Yellow Yellow LED 100 Mbps Speed Status 10 Mbps Link Green LED: Off line Link Status Green Blinking Data transfer in progress 2.1.16 CN17 : Case Open Connector Shorted Open Case Closed Case Open The signal is connected to the limit switch sensor of the chassis to detect the... -
Page 26: Jumpers On Nupro-760
Jumpers on NuPRO-760 JP2,JP3 18 • Jumpers and Connectors... -
Page 27: Jp1 : Diskonchip (Md2200) Address Select
2.2.1 JP1 : DiskOnChip (MD2200) address select The flash memory within DiskOnChip 2000 is accessed through a 8KB window in the CPU’s memory. The Disk On Chip MD2200 can be mapped to any free 8KB memory space. When used in a PC-compatible architecture, the DiskOnChip 2000 is allocated an 8KB memory window in the BIOS expansion memory range, D8000H~DFFFFH or D0000H~D7FFFH. -
Page 28: Jp2,3 : Cpu Host Bus Frequency Setting (Fsb)
2.2.2 JP2,3 : CPU host BUS frequency setting (FSB) Jumper Setting Frequency JP2 JP3 66 MHz JP2 JP3 100 MHz (Default) JP2 JP3 Reserved JP2 JP3 133MHz The default sets CPU Speed as 100MHz FSB. SDRAM frequency can set slower, equal, or faster than CPU FSB than 33MHz in BIOS setting. 20 •... -
Page 29: Jp4 : Clear Cmos Rtc (Real Time Clock) Ram
The RTC RAM data containing the date / time and password information, is powered by the onboard button cell battery. To erase the RTC data: (1)unplug the NuPRO-760 (2)short the JP4 Pin 2,3 instead of Pin 1,2 about 5 seconds (3) Re-plug the cap to pin 1,2. -
Page 31: Chapter 3 Watchdog Programming Guide
Watchdog Programming Guide The NuPRO-760 implements a watchdog timer by the use of PLD, EPM7032. It contains a one-second resolution down counter. Once setup a value to WDT, the timer begins to count down. The Watchdog output is connected to “reset”... - Page 32 Watchdog Time Out Table Timer Time Time Time Out Time Out Time Out Value Value Value None 8sec. 1sec. 9sec. 2sec. 10sec. 3sec. 11sec. 4sec. 12sec. 5sec. 13sec. 6sec. 14sec. 7sec. 15sec. 255 sec. Example : <Enable Watchdog Timer :> mov dx , 440h mov al, <0~255>...
-
Page 33: Chapter 4 Via Ple133T Chipset Hardware And Vga Driver
This chapter describes the installation procedure of VIA Apollo PLE 133T (VIA 8601T) chipset Device Driver for Windows 95/98/2000. Before installing Windows 95/98/ME onto NuPRO-760, an important issue must be taken care when using maximum size of memory. If a system that is... -
Page 34: Hardware Configuration File Installation
Hardware Configuration File Installation This section describes system requirements of VIA Apollo PLE 133T (VIA 8601T) chipset Device Driver. This driver has been designed for and tested with Windows 98/95. The system must contain a supported Intel Socket 370 processor and chipset configuration. - Page 35 Installing Hardware Configuration File This subsection describes how to install the hardware configuration file on a system where Windows 98/95 is installed. Note: Record the location of the Windows 95/98/2000 directory before installing the driver. Check the System Requirements. Windows 95/98/2000 must be fully installed and running on the system prior to running this software.
- Page 36 12. Follow the screen instructions and use default settings to complete the setup when Windows 95/98/2000 is re-started. Upon re-start, Windows 95/98/2000 will display that it has found many hardware and is installing driver for them. If one New Hardware Found dialog box is displayed requesting the location of the drivers, use the mouse to click on the scrollbar and click on the <Windows 95/98/2000 directory>.
-
Page 37: Vga Driver Installation
VGA Driver Installation This section provides information on how to install the VGA driver that come in the Compact Disk with the package. Please follow the instructions set forth in this section carefully. Please note that there must be relevant software installed in your system before you could proceed to install the VGA driver. - Page 38 Windows NT 4.0 will prompt you to restart computer. Click Yes for the new settings to take effect. Follow the screen instructions and use default settings to complete the setup when Windows NT 4.0 is re-started. 30 • VIA PLE133T Chipset Hardware and VGA Driver...
-
Page 39: Chapter 5 Realtek Rtl8139C Lan Driver Installation
Realtek RTL8139C LAN Driver Installation This chapter describes LAN driver installation for the onboard Ethernet controller RTL8139C. The relative drivers are under the following ADLINK CD directory: X:\CHIPDRV\LAN\RTL8139c, where X: is the location of the CD-ROM drive. Software and Drivers Support The RTL8139C drivers support the following OS or platforms: Windows 98, Windows ME, Windows 2000, Windows NT. -
Page 40: Driver Installation On Windows 2000
Driver Installation on Windows 2000 The Windows 2000 may install the LAN driver. We recommend you to manually installed the most updated LAN driver, which shipped with ADLINK CD to guarantee the compatibility. After installing the Windows 2000, please update the new drivers by the following procedures. Boot Windows 2000, Click Start. -
Page 41: Driver Installation On Windows 98
Driver Installation on Windows 98 The Windows 98 will install the LAN driver automatically. We recommend you to manually updated the LAN, which on the ADLINK CD to guarantee the compatibility. After installing Windows 98, please update the new drivers by the following procedures. -
Page 42: Driver Installation On Windows Nt
Driver Installation on Windows NT Before install the LAN driver on Windows NT, please copy the LAN driver in the CD to a floppy diskette. You have to put a new disk into drive A, then type the following batch command under DOS environment to copy the relative NT drivers. -
Page 43: Product Warranty/Service • 35
Warranty Policy Thank you for choosing ADLINK. To understand your rights and enjoy all the after-sales services we offer, please read the following carefully: Before using ADLINK’s products please read the user manual and follow the instructions exactly. When sending in damaged products for repair, please attach an RMA application form.
