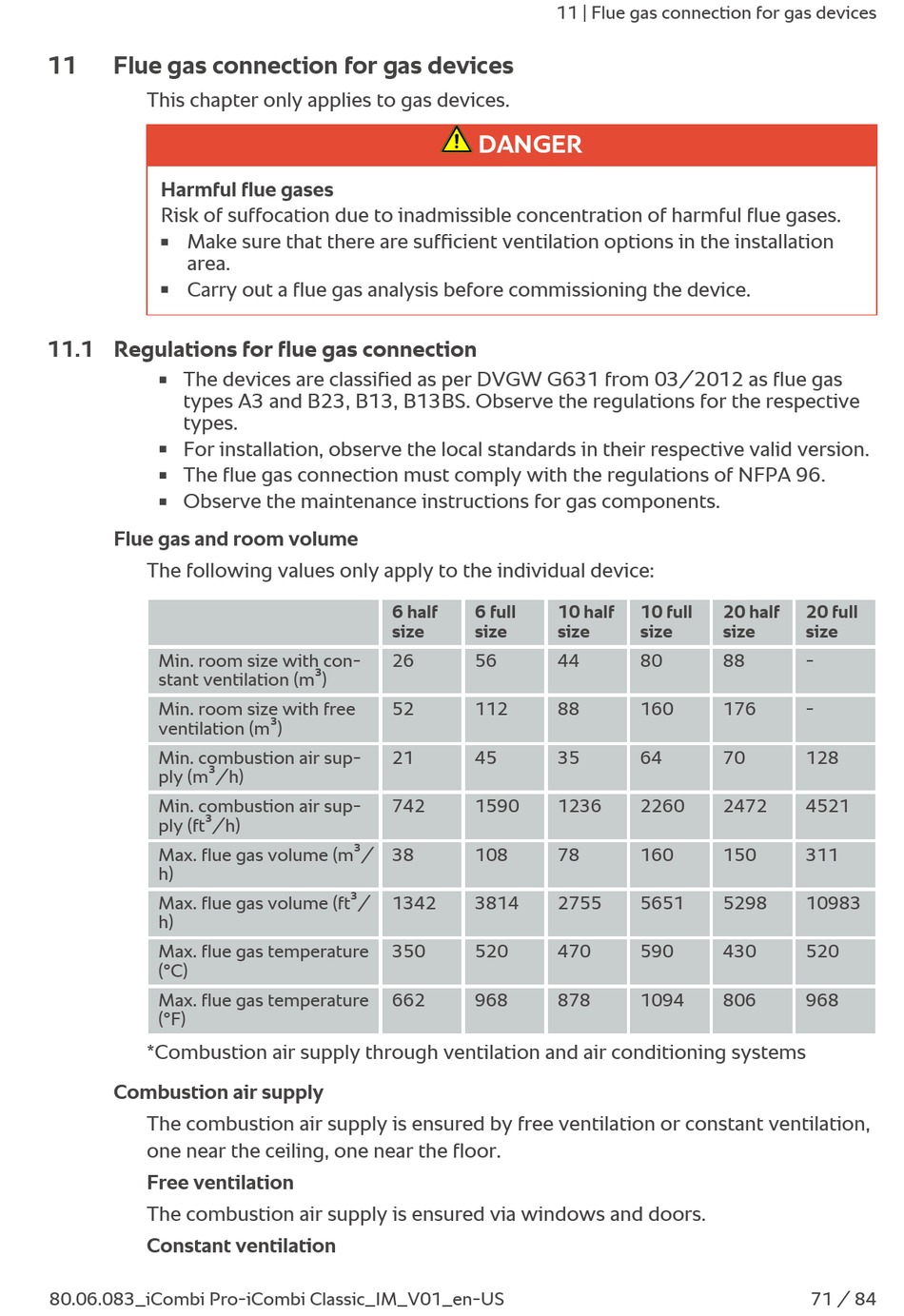

Flue gas connection for gas devices

This chapter only applies to gas devices.
Harmful flue gases
Risk of suffocation due to inadmissible concentration of harmful flue gases.
Make sure that there are sufficient ventilation options in the installation
n
area.
Carry out a flue gas analysis before commissioning the device.
n

11.1 Regulations for flue gas connection

The devices are classified as per DVGW G631 from 03/2012 as flue gas
n
types A3 and B23, B13, B13BS. Observe the regulations for the respective
types.
For installation, observe the local standards in their respective valid version.
n
The flue gas connection must comply with the regulations of NFPA 96.
n
Observe the maintenance instructions for gas components.
n
Flue gas and room volume
The following values only apply to the individual device:
Min. room size with con-
stant ventilation (m³)
Min. room size with free
ventilation (m³)
Min. combustion air sup-
ply (m³/h)
Min. combustion air sup-
ply (ft³/h)
Max. flue gas volume (m³/
h)
Max. flue gas volume (ft³/
h)
Max. flue gas temperature
(°C)
Max. flue gas temperature
(°F)
*Combustion air supply through ventilation and air conditioning systems
Combustion air supply
The combustion air supply is ensured by free ventilation or constant ventilation,
one near the ceiling, one near the floor.
Free ventilation
The combustion air supply is ensured via windows and doors.
Constant ventilation
