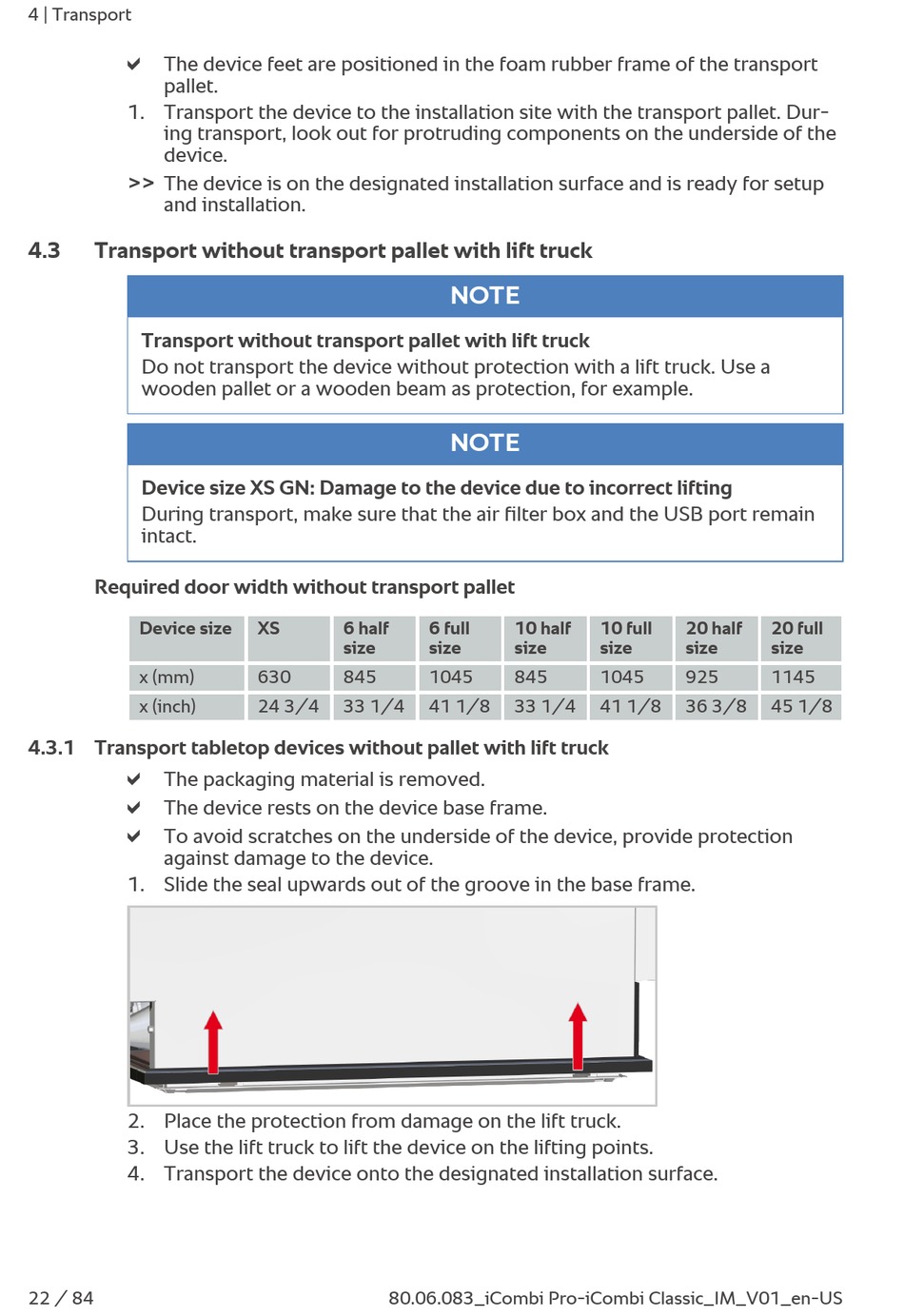

4 | Transport
a
The device feet are positioned in the foam rubber frame of the transport
pallet.
1. Transport the device to the installation site with the transport pallet. Dur-
ing transport, look out for protruding components on the underside of the
device.
>>
The device is on the designated installation surface and is ready for setup
and installation.
4.3

Transport without transport pallet with lift truck

Transport without transport pallet with lift truck
Do not transport the device without protection with a lift truck. Use a
wooden pallet or a wooden beam as protection, for example.
Device size XS GN: Damage to the device due to incorrect lifting
During transport, make sure that the air filter box and the USB port remain
intact.
Required door width without transport pallet
Device size
x (mm)
x (inch)

4.3.1 Transport tabletop devices without pallet with lift truck

a
The packaging material is removed.
a
The device rests on the device base frame.
a
To avoid scratches on the underside of the device, provide protection
against damage to the device.
1. Slide the seal upwards out of the groove in the base frame.
2. Place the protection from damage on the lift truck.
3. Use the lift truck to lift the device on the lifting points.
4. Transport the device onto the designated installation surface.
22 / 84
XS
6 half
size
630
845
24 3/4
33 1/4
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US
NOTE
NOTE
6 full
10 half
size
size
1045
845
41 1/8
33 1/4
10 full
20 half
size
size
1045
925
41 1/8
36 3/8
20 full
size
1145
45 1/8
