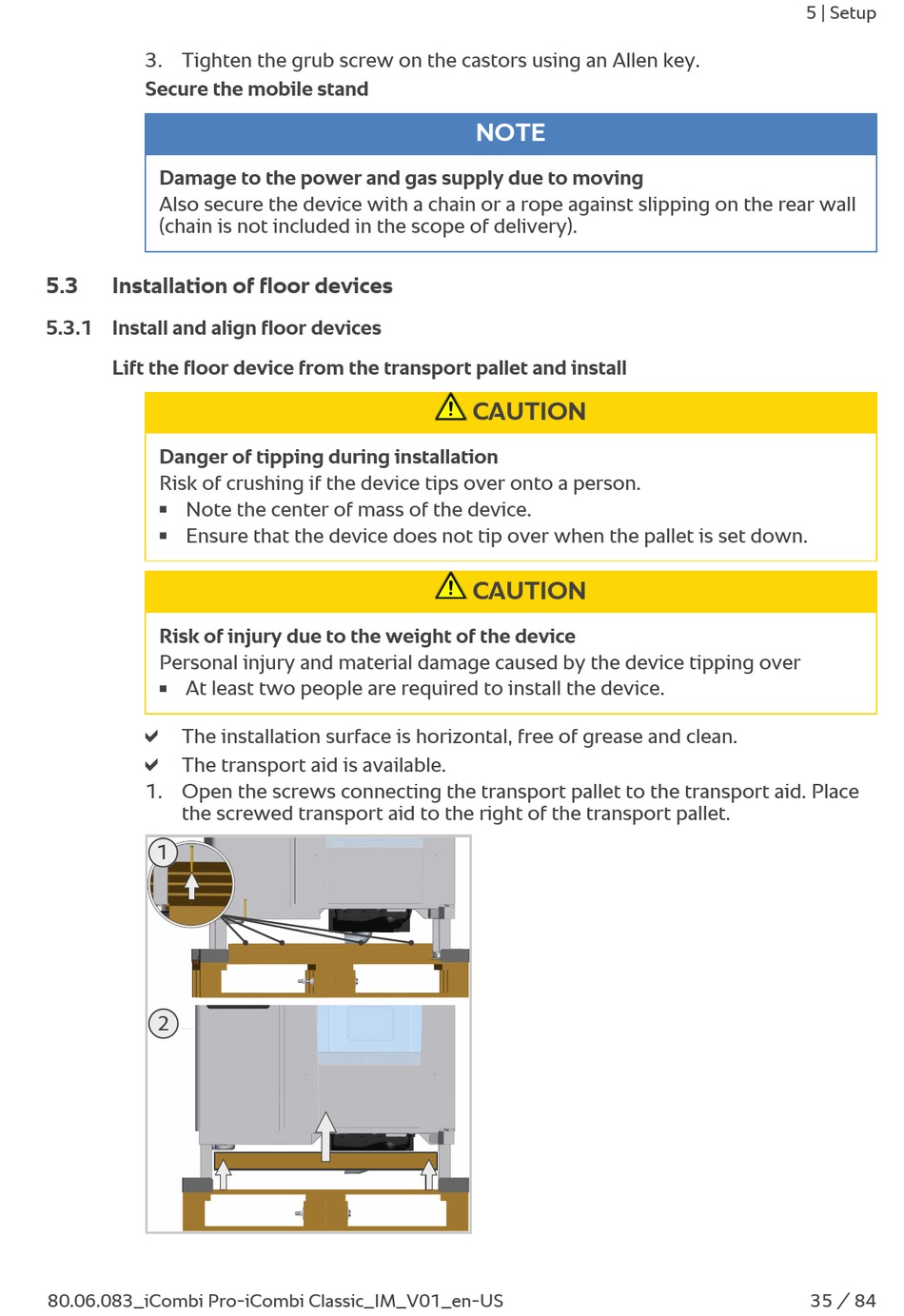

Installation Of Floor Devices; Install And Align Floor Devices - Rational iCombi Pro Original Installation Instructions

3. Tighten the grub screw on the castors using an Allen key.
Secure the mobile stand
Damage to the power and gas supply due to moving
Also secure the device with a chain or a rope against slipping on the rear wall
(chain is not included in the scope of delivery).
5.3

Installation of floor devices

5.3.1 Install and align floor devices

Lift the floor device from the transport pallet and install
Danger of tipping during installation
Risk of crushing if the device tips over onto a person.
Note the center of mass of the device.
n
Ensure that the device does not tip over when the pallet is set down.
n
Risk of injury due to the weight of the device
Personal injury and material damage caused by the device tipping over
At least two people are required to install the device.
n
a
The installation surface is horizontal, free of grease and clean.
a
The transport aid is available.
1. Open the screws connecting the transport pallet to the transport aid. Place
the screwed transport aid to the right of the transport pallet.
1
2
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US
NOTE
CAUTION
CAUTION
5 | Setup
35 / 84
