Height adjustment by means of device feet or leveling frame
Danger of burns during operation when loaded on rack rails over 1600 mm
[63 inch].
Attach the enclosed safety sticker to the device.
n
Inform the end user about the danger of the raised rack rails.
n
Contamination of the device due to broken sealing tape
Sealing tape is attached to the underside of the device to seal it at the
installation location. The sealing tape prevents dirt from getting under the
device. When moving the device, make sure that the seal is not destroyed.
Requirements
When setting up the device on a stand or floor unit, ensure that only gen-
n
uine stands or floor units from the device manufacturer are used.
Only install the device on a horizontal surface. Any unevenness must not
n
exceed 1 mm [0.04 inch] in relation to the device width.
If the installation surface is not level, use a leveling frame to level the un-
n
evenness.
The installation surface is free of grease and clean.
n

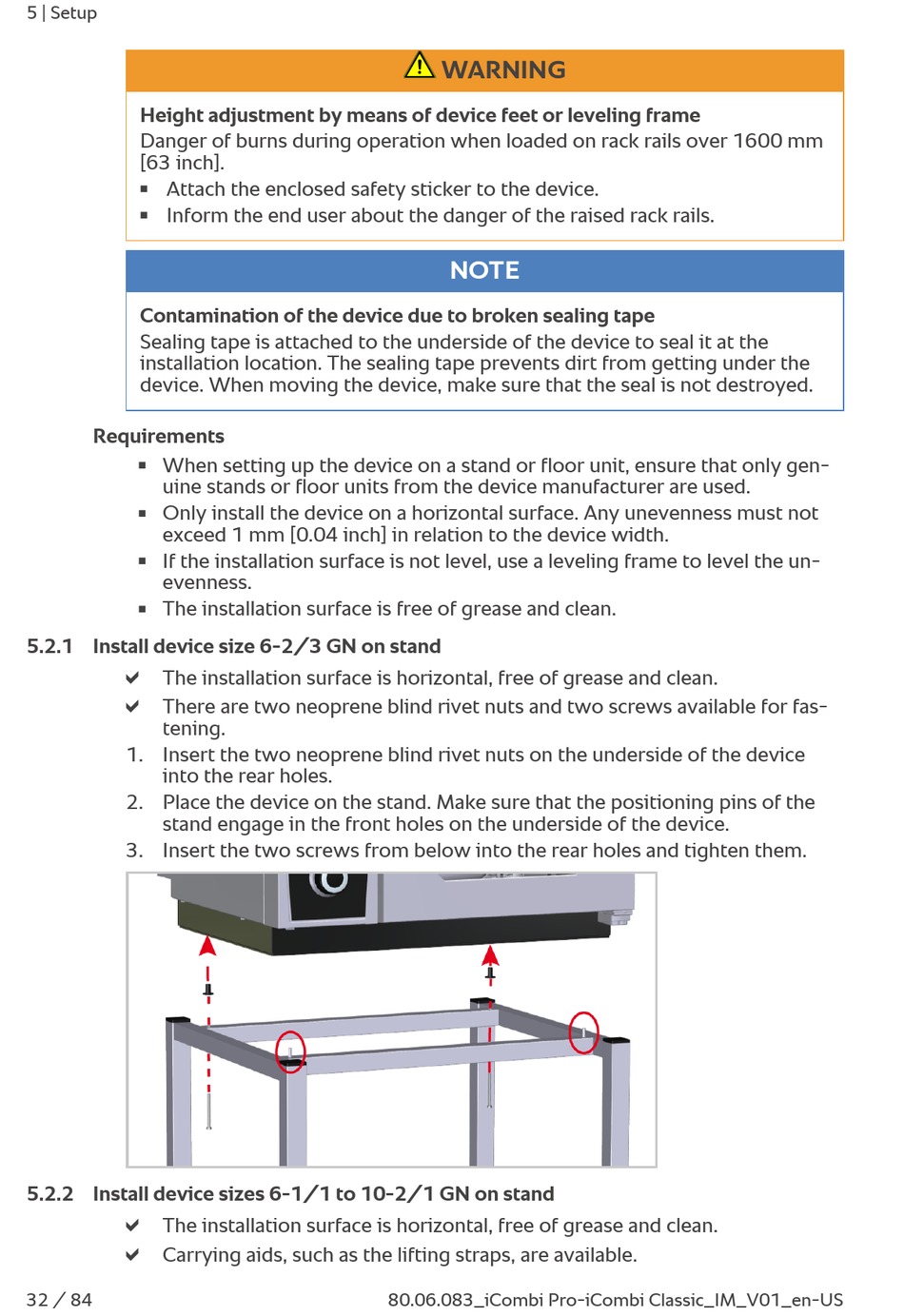

5.2.1 Install device size 6-2/3 GN on stand

a
The installation surface is horizontal, free of grease and clean.
a
There are two neoprene blind rivet nuts and two screws available for fas-
tening.
1. Insert the two neoprene blind rivet nuts on the underside of the device
into the rear holes.
2. Place the device on the stand. Make sure that the positioning pins of the
stand engage in the front holes on the underside of the device.
3. Insert the two screws from below into the rear holes and tighten them.

5.2.2 Install device sizes 6-1/1 to 10-2/1 GN on stand

a
The installation surface is horizontal, free of grease and clean.
a
Carrying aids, such as the lifting straps, are available.
