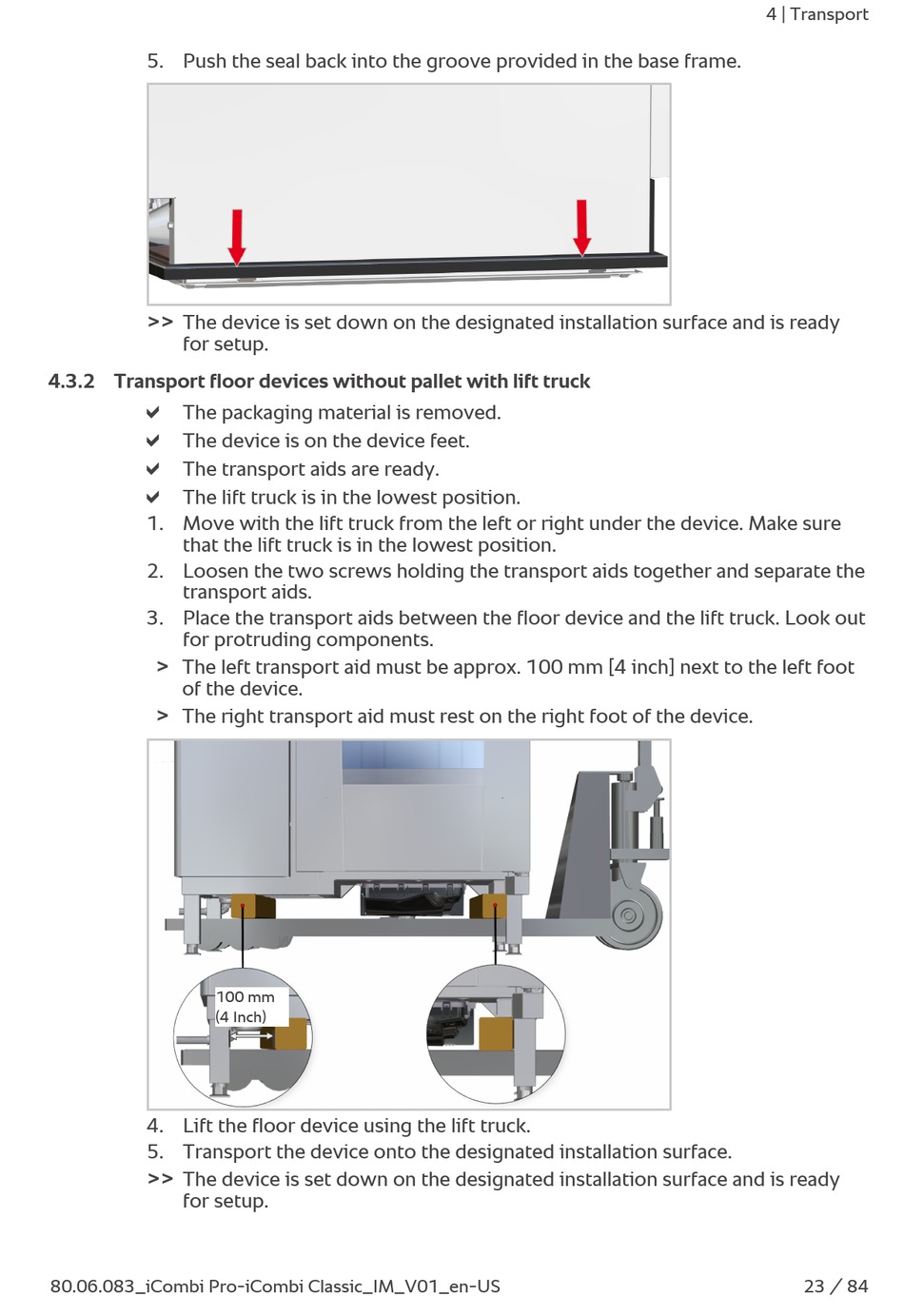

5. Push the seal back into the groove provided in the base frame.
>>
The device is set down on the designated installation surface and is ready
for setup.

4.3.2 Transport floor devices without pallet with lift truck

a
The packaging material is removed.
a
The device is on the device feet.
a
The transport aids are ready.
a
The lift truck is in the lowest position.
1. Move with the lift truck from the left or right under the device. Make sure
that the lift truck is in the lowest position.
2. Loosen the two screws holding the transport aids together and separate the
transport aids.
3. Place the transport aids between the floor device and the lift truck. Look out
for protruding components.
>
The left transport aid must be approx. 100 mm [4 inch] next to the left foot
of the device.
>
The right transport aid must rest on the right foot of the device.
100 mm
(4 Inch)
4. Lift the floor device using the lift truck.
5. Transport the device onto the designated installation surface.
>>
The device is set down on the designated installation surface and is ready
for setup.
