6 | Electrical connection

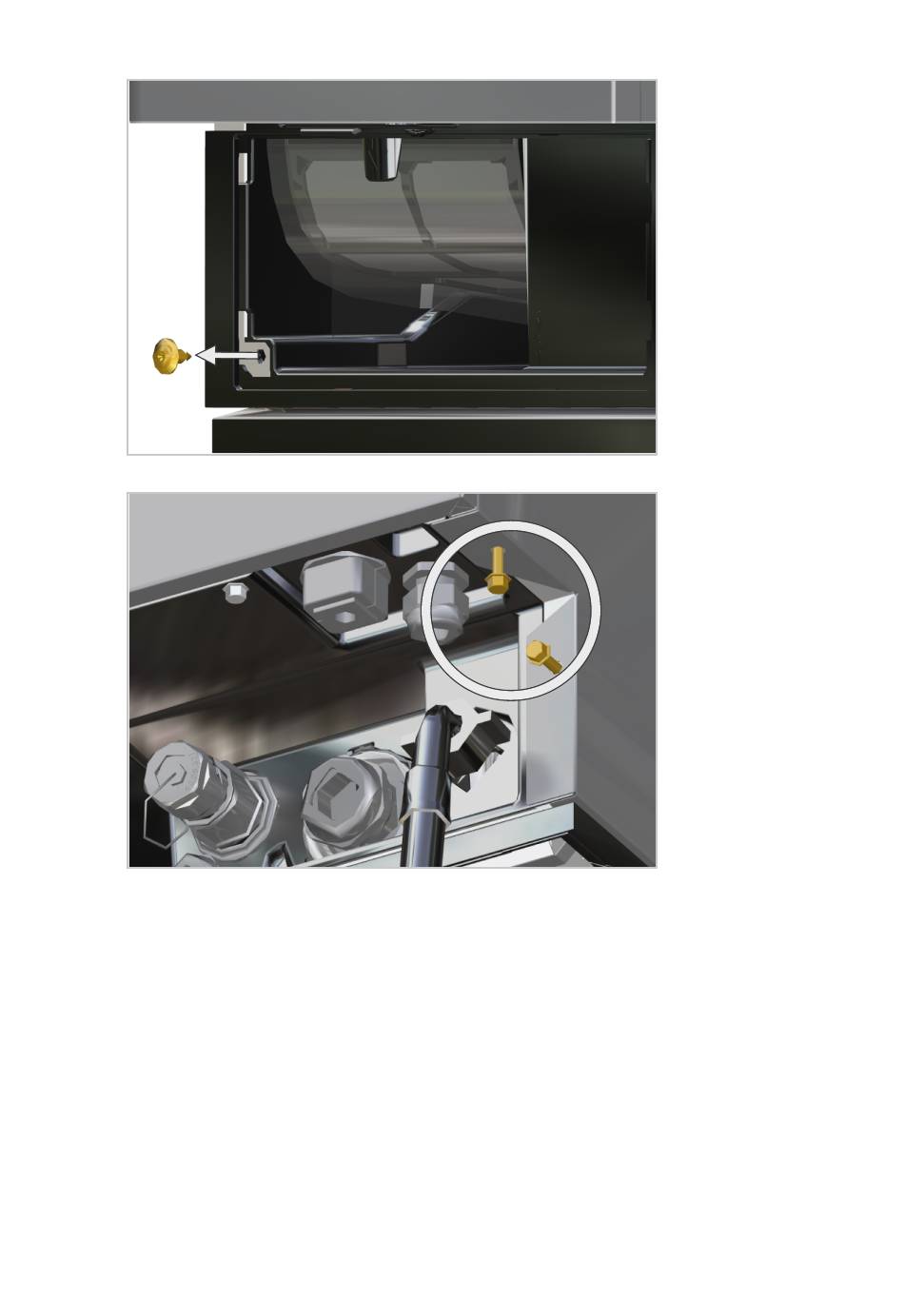

2. Unscrew the blind rivets in the lower left corner.
3. Loosen two screws in the recess of the side wall of the device.
4. Pull the left side wall downwards away from the device.
5. Remove the side wall.
>>
The electrical compartment is open.
46 / 84
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US
