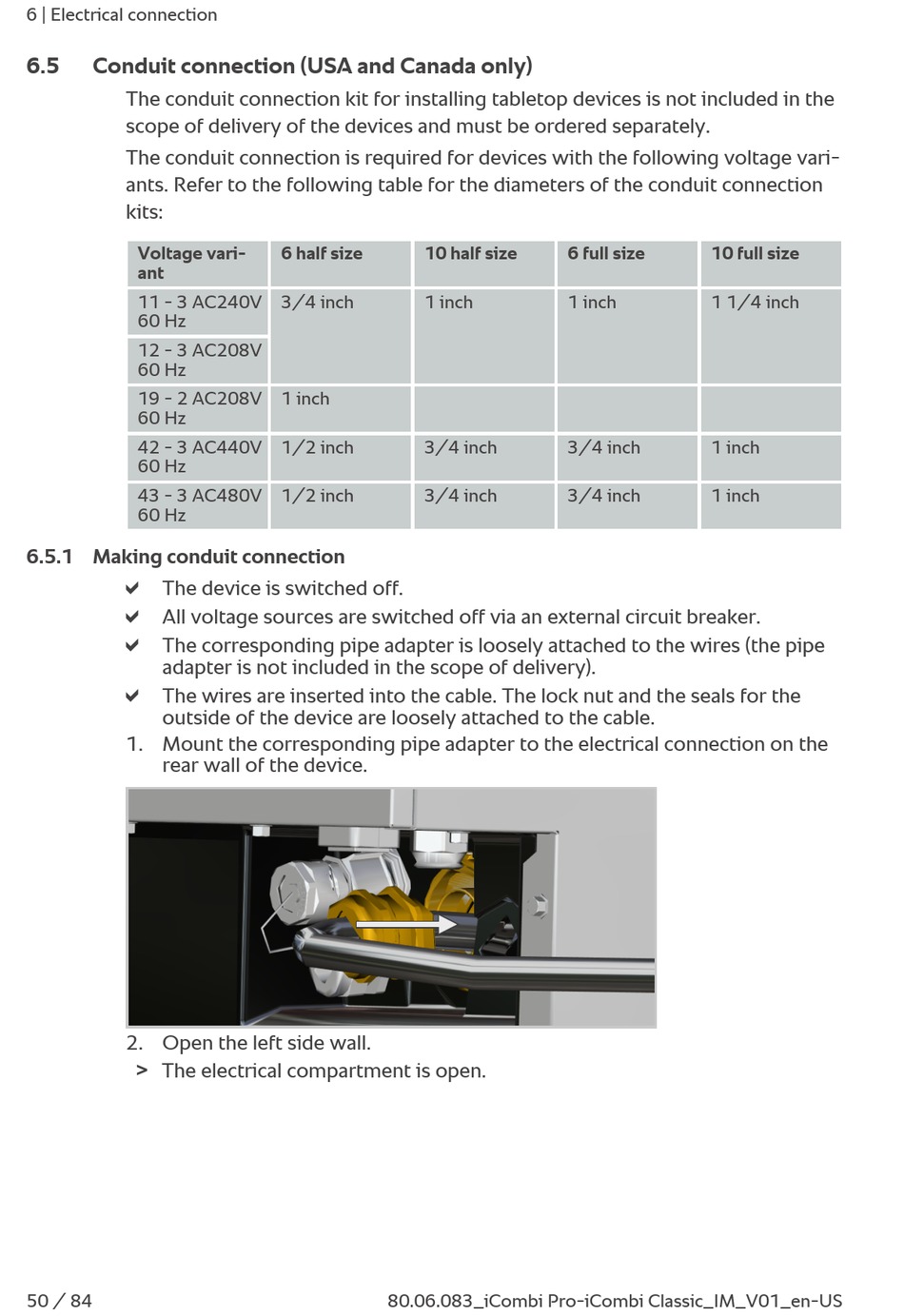

Conduit connection (USA and Canada only)

The conduit connection kit for installing tabletop devices is not included in the
scope of delivery of the devices and must be ordered separately.
The conduit connection is required for devices with the following voltage vari-
ants. Refer to the following table for the diameters of the conduit connection
kits:
Voltage vari-
ant
11 - 3 AC240V
60 Hz
12 - 3 AC208V
60 Hz
19 - 2 AC208V
60 Hz
42 - 3 AC440V
60 Hz
43 - 3 AC480V
60 Hz

6.5.1 Making conduit connection

a
The device is switched off.
a
All voltage sources are switched off via an external circuit breaker.
a
The corresponding pipe adapter is loosely attached to the wires (the pipe
adapter is not included in the scope of delivery).
a
The wires are inserted into the cable. The lock nut and the seals for the
outside of the device are loosely attached to the cable.
1. Mount the corresponding pipe adapter to the electrical connection on the
rear wall of the device.
2. Open the left side wall.
>
The electrical compartment is open.
50 / 84
6 half size 10 half size
3/4 inch 1 inch
1 inch
1/2 inch 3/4 inch
1/2 inch 3/4 inch
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US
6 full size 10 full size
1 inch 1 1/4 inch
3/4 inch 1 inch
3/4 inch 1 inch
