10

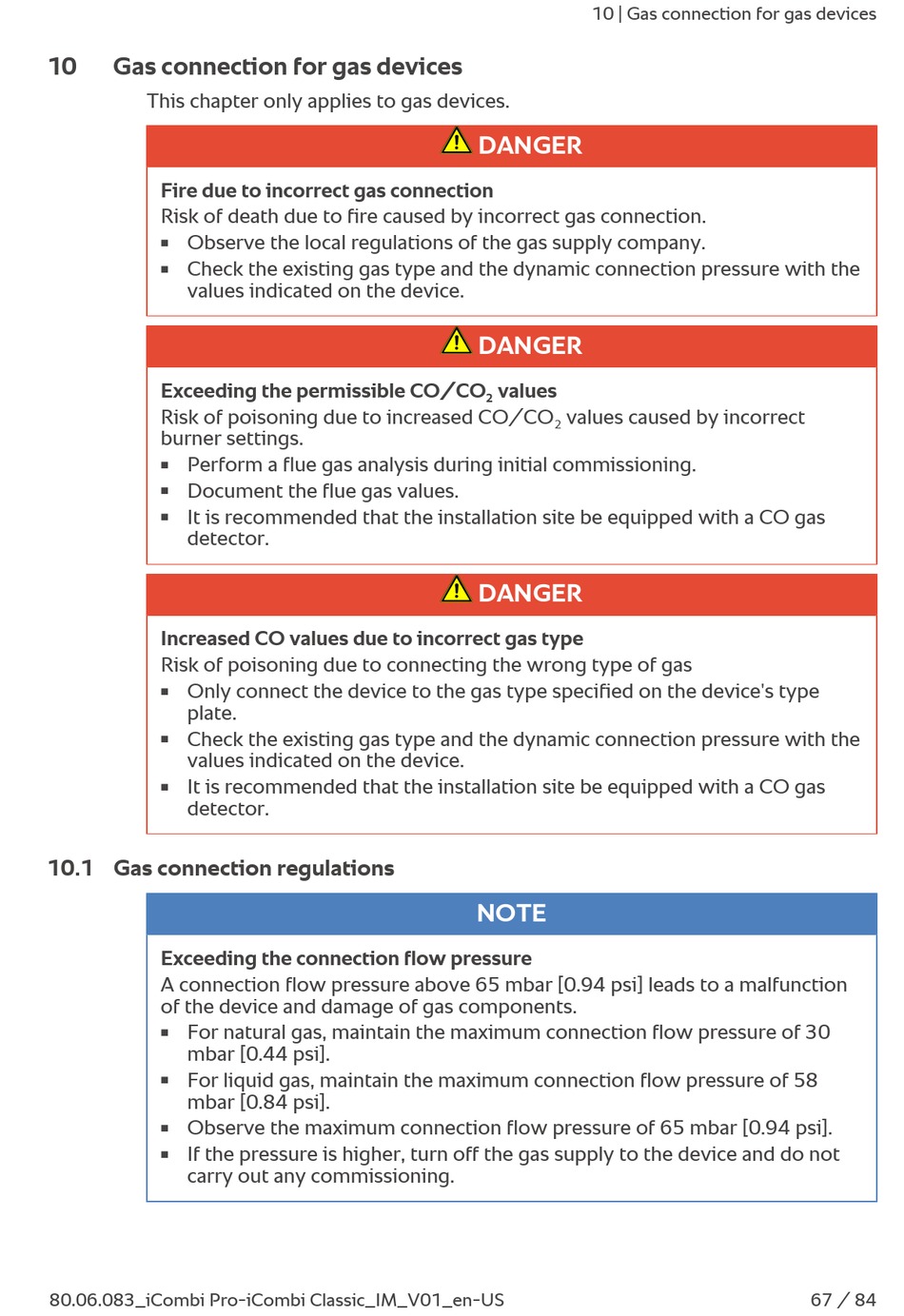

Gas connection for gas devices

This chapter only applies to gas devices.
Fire due to incorrect gas connection
Risk of death due to fire caused by incorrect gas connection.
Observe the local regulations of the gas supply company.
n
Check the existing gas type and the dynamic connection pressure with the
n
values indicated on the device.
Exceeding the permissible CO/CO
Risk of poisoning due to increased CO/CO
burner settings.
Perform a flue gas analysis during initial commissioning.
n
Document the flue gas values.
n
It is recommended that the installation site be equipped with a CO gas
n
detector.
Increased CO values due to incorrect gas type
Risk of poisoning due to connecting the wrong type of gas
Only connect the device to the gas type specified on the device's type
n
plate.
Check the existing gas type and the dynamic connection pressure with the
n
values indicated on the device.
It is recommended that the installation site be equipped with a CO gas
n
detector.

10.1 Gas connection regulations

Exceeding the connection flow pressure
A connection flow pressure above 65 mbar [0.94 psi] leads to a malfunction
of the device and damage of gas components.
For natural gas, maintain the maximum connection flow pressure of 30
n
mbar [0.44 psi].
For liquid gas, maintain the maximum connection flow pressure of 58
n
mbar [0.84 psi].
Observe the maximum connection flow pressure of 65 mbar [0.94 psi].
n
If the pressure is higher, turn off the gas supply to the device and do not
n
carry out any commissioning.
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US
10 | Gas connection for gas devices
DANGER
DANGER
values
2
values caused by incorrect
2
DANGER
NOTE
67 / 84
