Icx35-2 Configuration; End Device Configuration - ProSoft ICX35-HWC User Manual

ICX35-HWC Tech Notes (Example Configurations)
User Manual

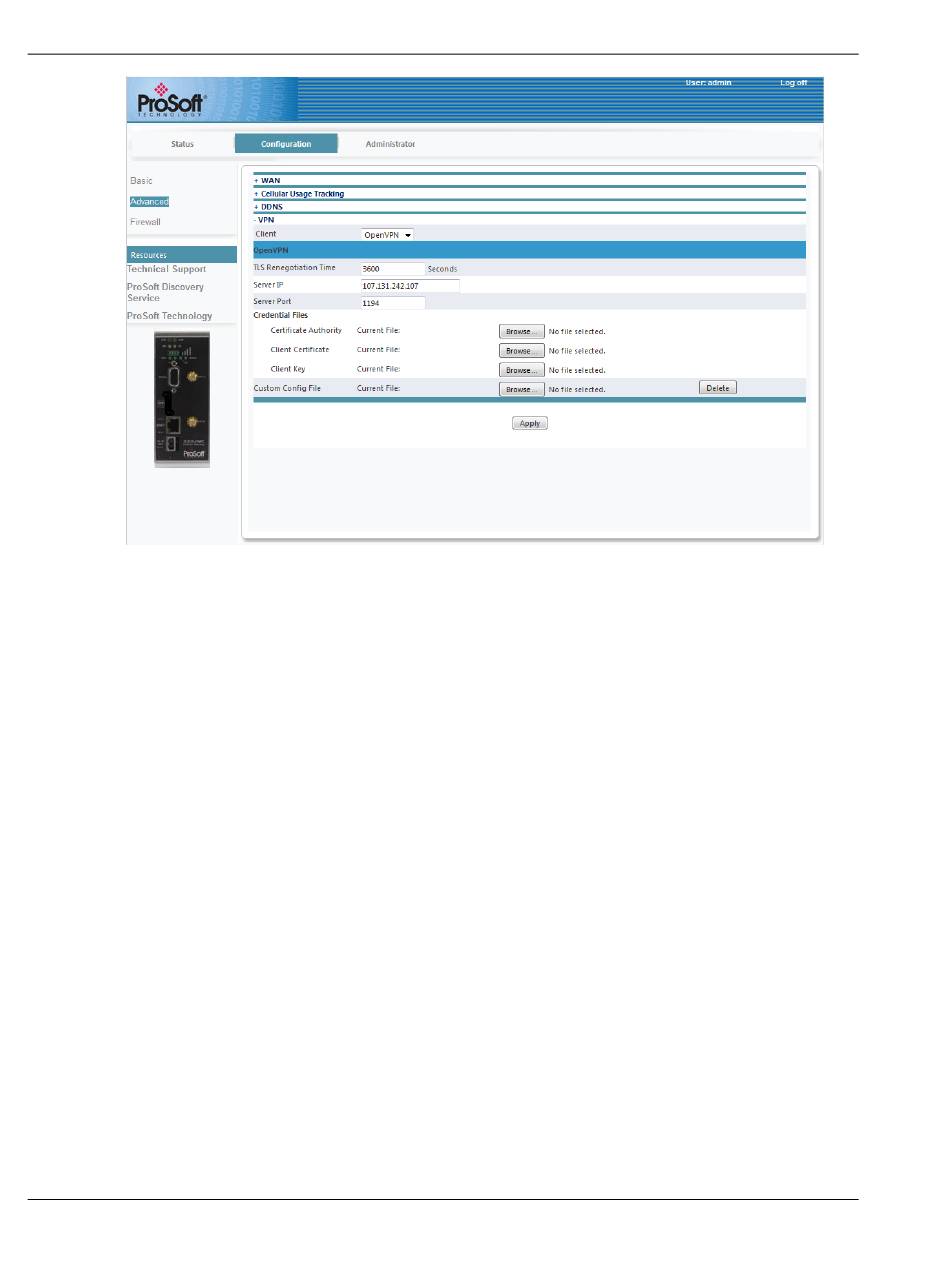

12 Enter the TLS Renegotiation Time in the appropriate field (see TLS).
13 Enter the OpenVPN server's IP address in Server IP.
14 Enter the Server Port shown.
15 Choose and upload the Credential Files. Your Server Administrator will
provide you with the certificate files and location.
16 Click Apply.

6.3.2 ICX35-2 Configuration

The ICX35-2 is configured using the exact same procedure as the ICX35-1 in this
example. Use the diagram as a guide to fill in the appropriate fields as described.

6.3.3 End Device Configuration

End devices must be configured based on the DHCP assignments. The Gateway
settings must match the LAN IP of the ICX35-HWC. This must be done on both
ICX35-HWC radios.
When setting up Ethernet Bridges, set the IP address to the DHCP assigned
addresses.
Page 74 of 79
ICX35-HWC ♦ Industrial Cellular Gateway
ProSoft Technology, Inc.
April 21, 2016
3G/4G LTE
