This section describes example configurations of the ICX35-HWC using:

Pass-thru (End Device to End Device) mode

VPN OpenVPN in End Device to End Device mode

VPN OpenVPN in DHCP mode
This chapter does not go into End Device configuration procedures since it is
assumed the user knows how to configure End Devices. However, examples are
provided to show how the End Device is configured along with the ICX35-HWC.
6.1

Pass-Thru Mode (End Device to End Device)

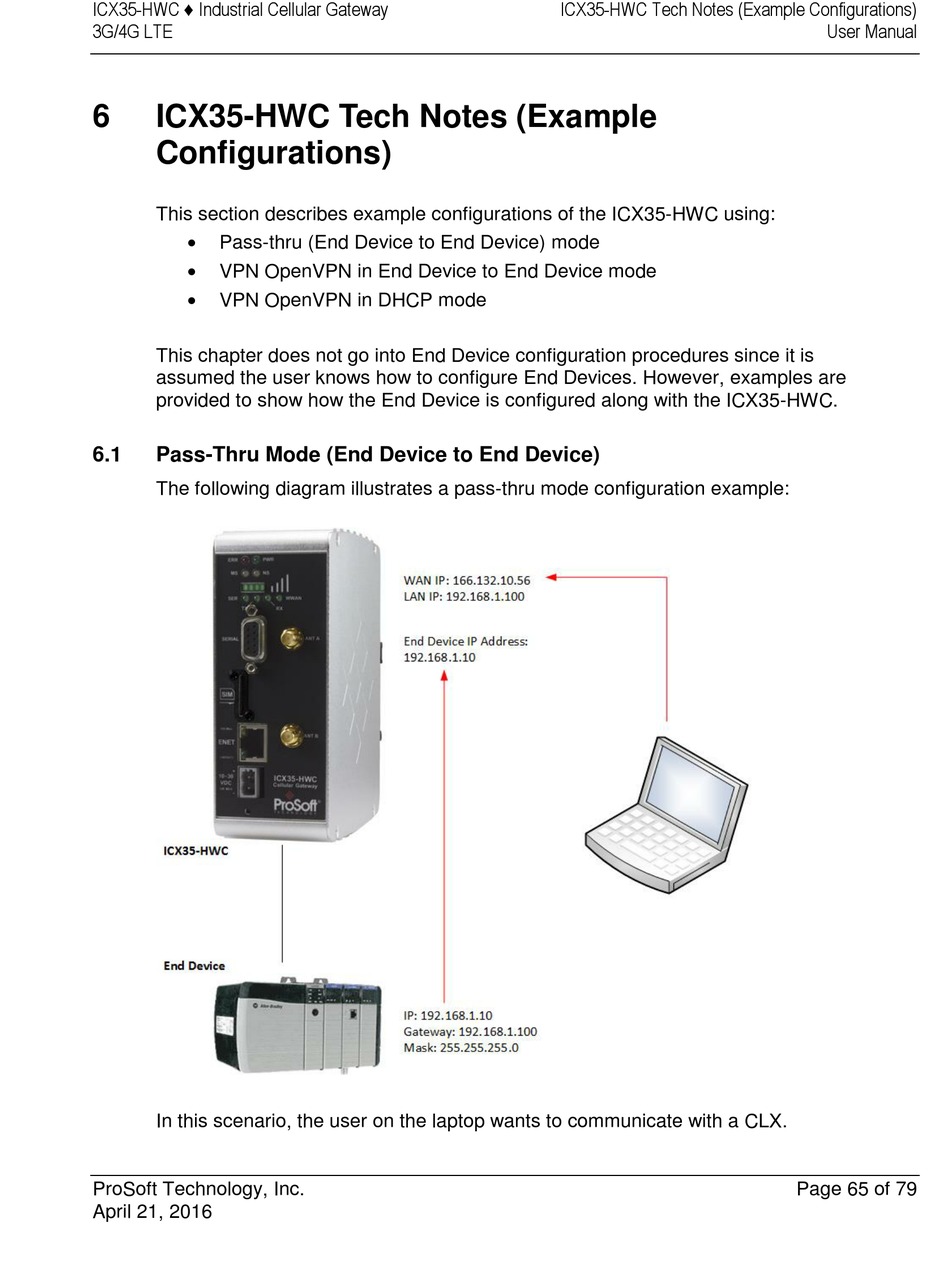

The following diagram illustrates a pass-thru mode configuration example:
In this scenario, the user on the laptop wants to communicate with a CLX.
