ICX35-HWC ♦ Industrial Cellular Gateway
3G/4G LTE

6.1.2 End Device Parameters

When configuring the end device, keep the following points in mind:

The IP Address of the end device must match the end device IP Address
configured on the ICX35-HWC.

The Gateway Address on the end device must point to the LAN IP
Address/Subnet Mask address of the ICX35-HWC.

6.1.3 Obtaining Data from the End Device

A user trying to reach the end device through the ICX35-HWC must address the
WAN ID (in this case, 166.132.10.56 provided by the cellular provider).
6.2

Pass-Thru and OpenVPN Example

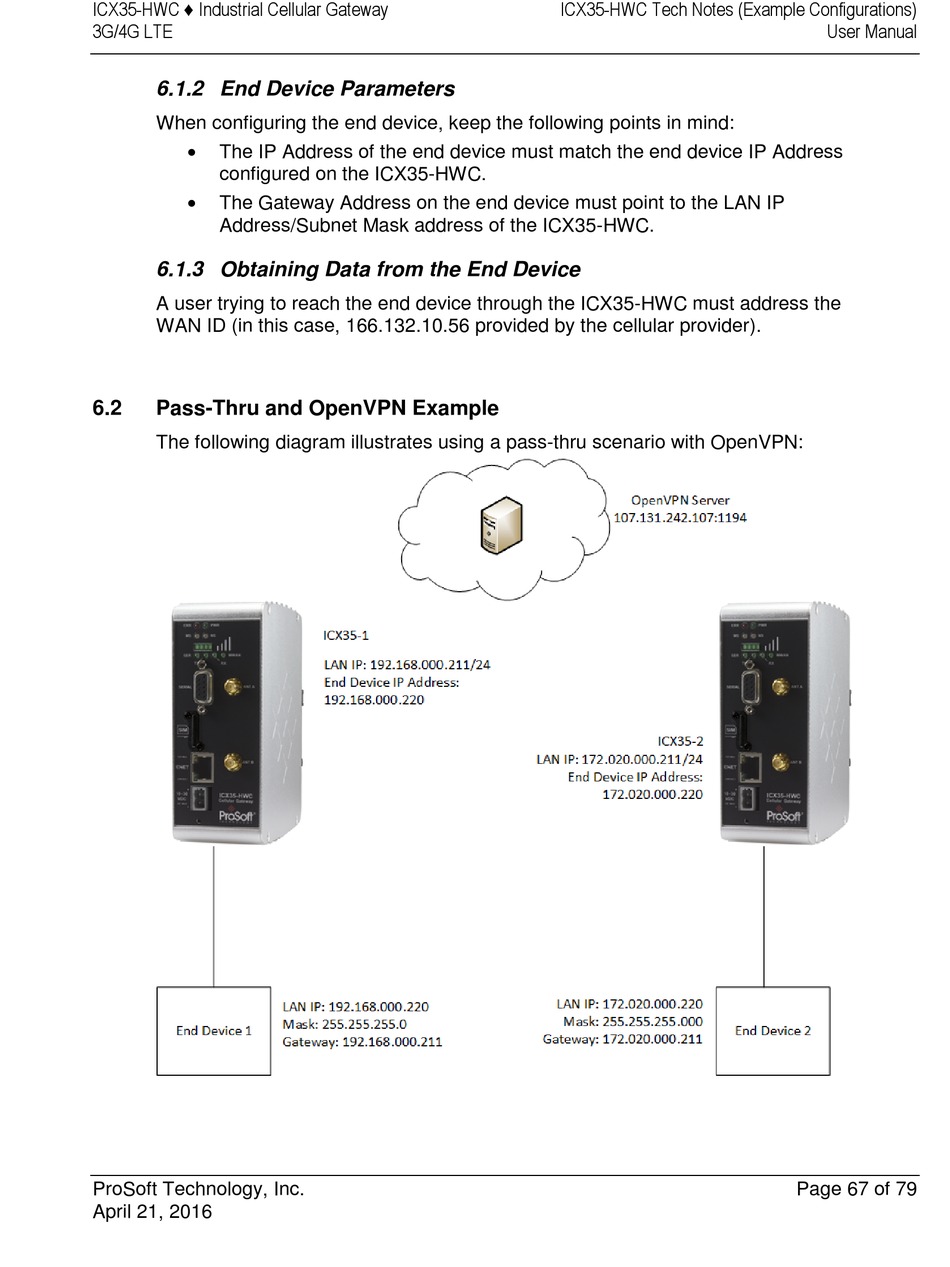

The following diagram illustrates using a pass-thru scenario with OpenVPN:
ProSoft Technology, Inc.
April 21, 2016
ICX35-HWC Tech Notes (Example Configurations)
User Manual
Page 67 of 79
