ICX35-HWC ♦ Industrial Cellular Gateway
3G/4G LTE
RS-485 Application Port(s)

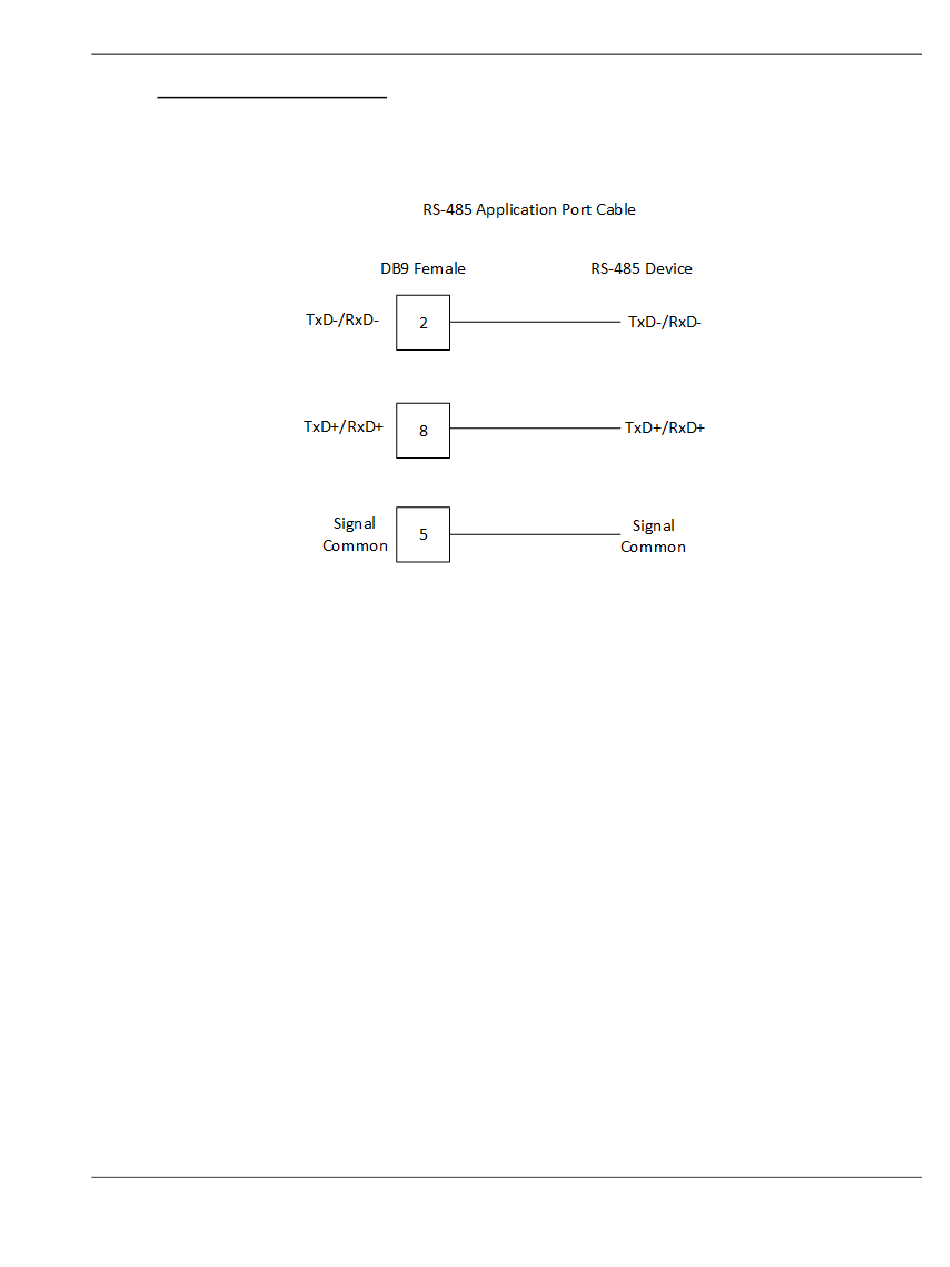

The RS-485 interface requires a single two or three wire cable. The Common
connection is optional, depending on the RS-485 network devices used. The
cable required for this instance is shown in the following diagram:
ProSoft Technology, Inc.
April 21, 2016
Hardware Installation
User Manual
Page 61 of 79
