ProSoft ICX35-HWC User Manual page 30

ICX35-HWC Webpage
User Manual
LAN Device #1 (Connected to ICX35 #1)
IP Address
Gateway
Preferred DNS (if applicable)
ICX35 #2 "East"
Name
WAN IP
LAN IP
Local Identifier
Remote IP
Remote Identifier
Remote Subnet
Preshared Key
End Device
LAN Device #2 (Connected to ICX35 #2)
IP Address
Gateway
Verification

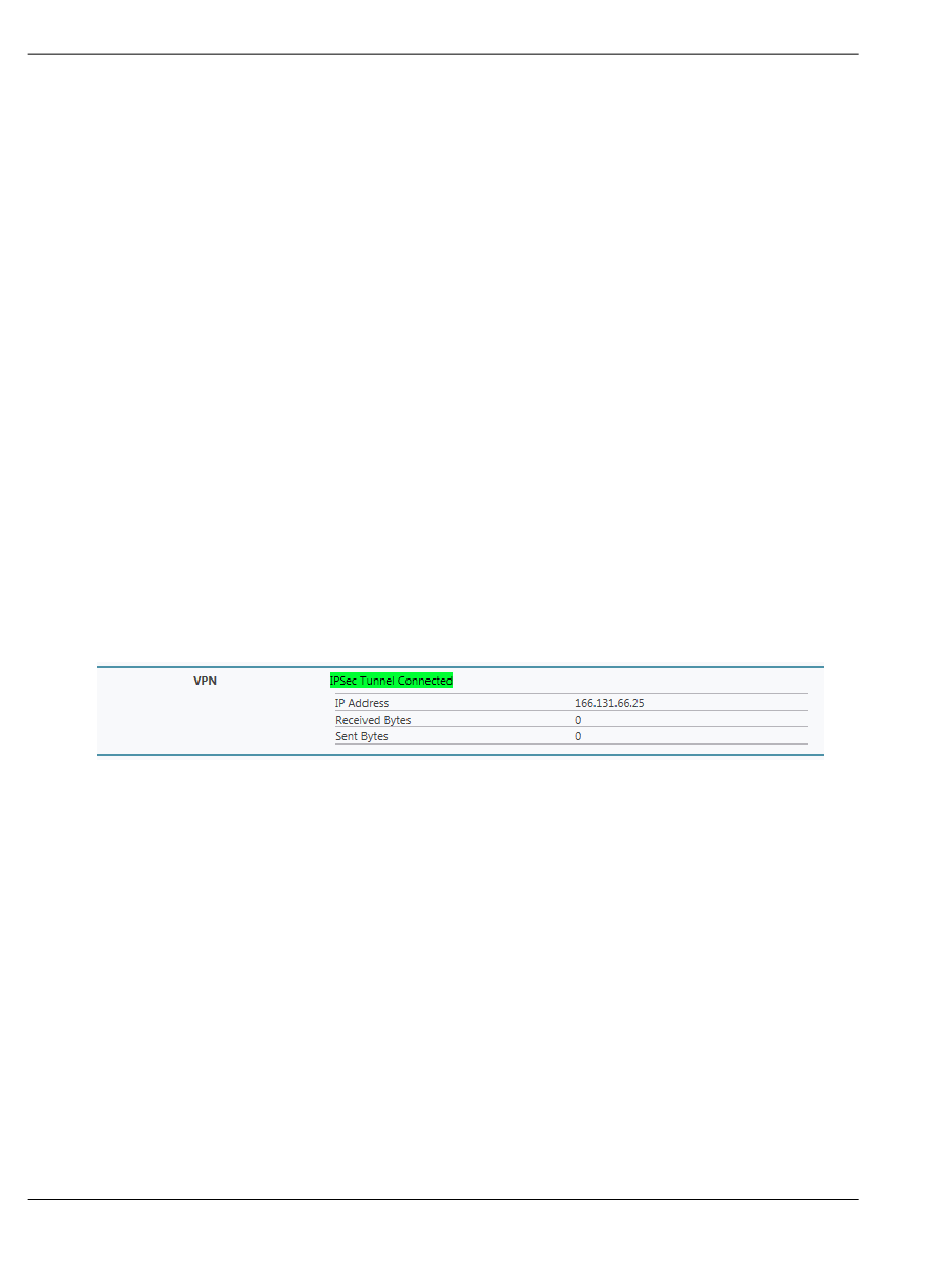

Once all four devices are configured, the status web page in both of the ICX35s
will indicated that an IPSec VPN connection is made.
You can ping from one LAN device to the other to further verify that the
connection is made.
Page 30 of 79
ICX35-HWC ♦ Industrial Cellular Gateway
192.168.1.155 (ICX35 #1 end device IP address
192.168.1.150 (ICX35 #1 LAN IP address
192.168.1.150 (ICX35 #1 LAN IP Address
ICX35 #2 East
WAN IP address of ICX35 #2
192.160.0.230
@East
WAN IP address of ICX35 #1
@West
192.168.1.0/24
presharedkey (this can be any string)
192.168.0.30 (IP address of LAN Device #2)
192.168.0.30 (ICX35s end device IP address)
192.168.0.230 (ICX35s LAN IP address)
ProSoft Technology, Inc.
3G/4G LTE
April 21, 2016
