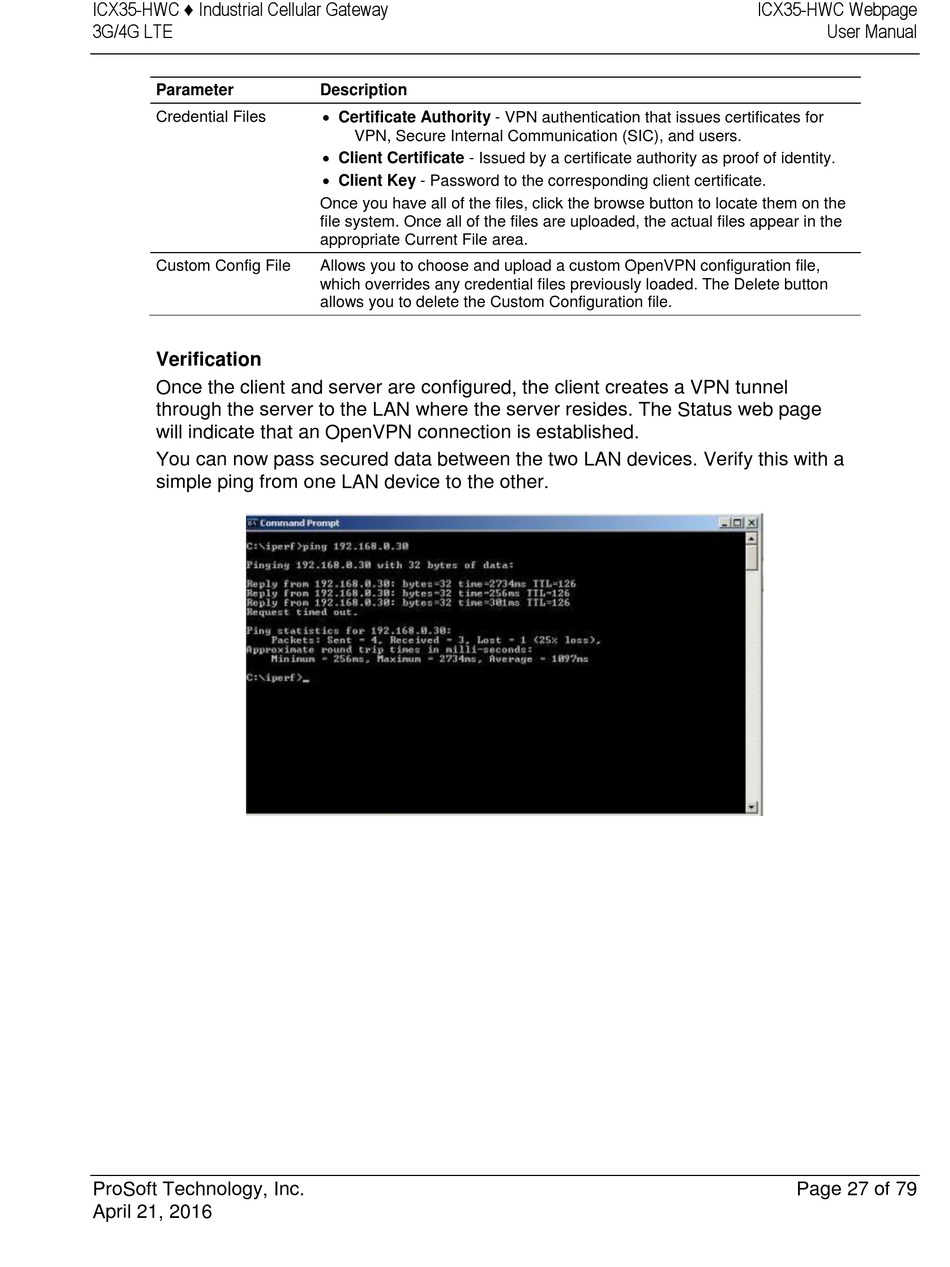

ProSoft ICX35-HWC User Manual page 27

ICX35-HWC ♦ Industrial Cellular Gateway
3G/4G LTE
Parameter
Credential Files
Custom Config File
Verification
Once the client and server are configured, the client creates a VPN tunnel
through the server to the LAN where the server resides. The Status web page
will indicate that an OpenVPN connection is established.
You can now pass secured data between the two LAN devices. Verify this with a
simple ping from one LAN device to the other.
ProSoft Technology, Inc.
April 21, 2016
Description
 Certificate Authority - VPN authentication that issues certificates for
VPN, Secure Internal Communication (SIC), and users.
 Client Certificate - Issued by a certificate authority as proof of identity.
 Client Key - Password to the corresponding client certificate.
Once you have all of the files, click the browse button to locate them on the
file system. Once all of the files are uploaded, the actual files appear in the
appropriate Current File area.
Allows you to choose and upload a custom OpenVPN configuration file,
which overrides any credential files previously loaded. The Delete button
allows you to delete the Custom Configuration file.
ICX35-HWC Webpage
User Manual
Page 27 of 79
