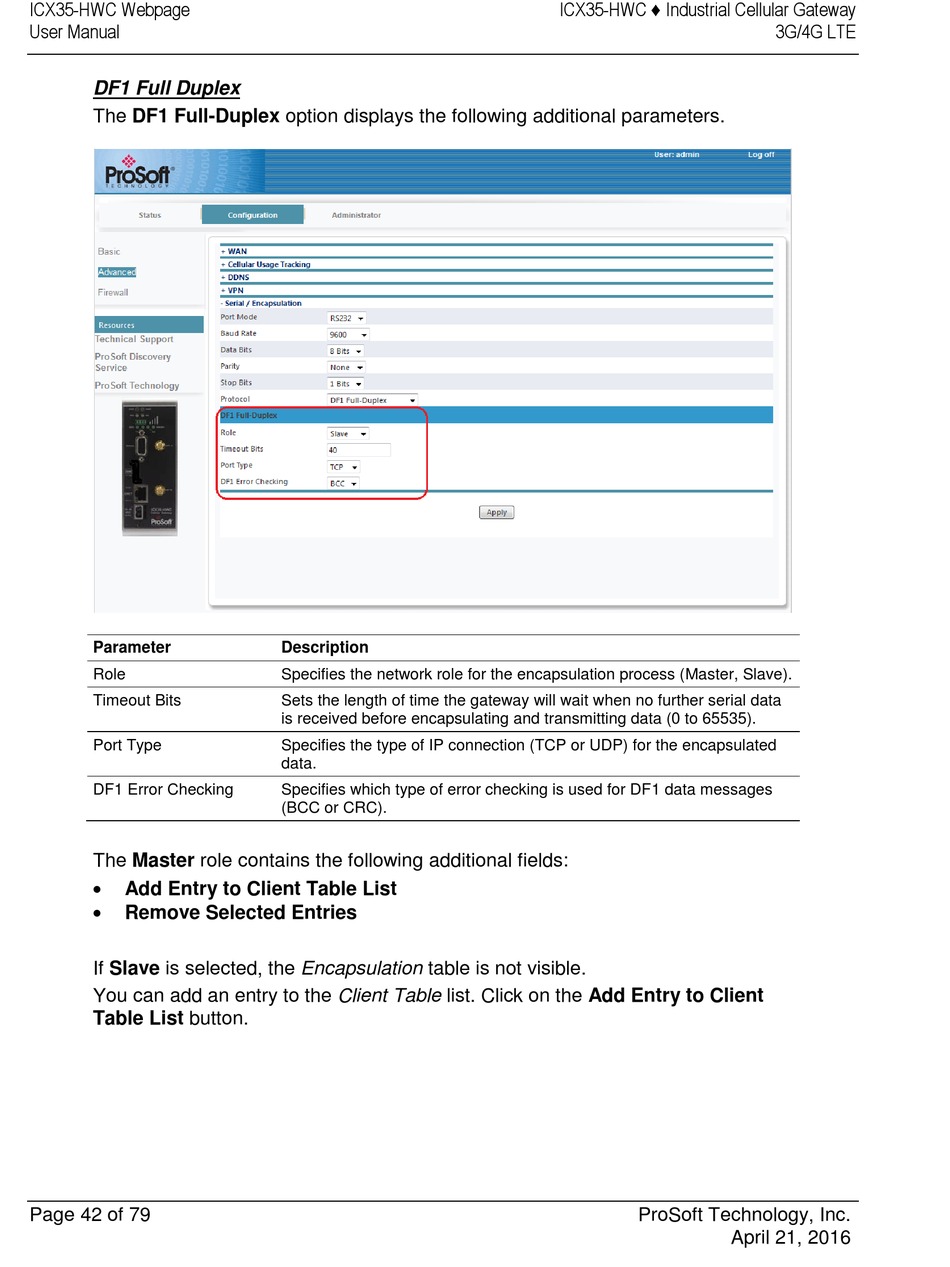

ProSoft ICX35-HWC User Manual page 42

ICX35-HWC Webpage
User Manual
DF1 Full Duplex
The DF1 Full-Duplex option displays the following additional parameters.
Parameter
Role
Timeout Bits
Port Type
DF1 Error Checking
The Master role contains the following additional fields:

Add Entry to Client Table List

Remove Selected Entries
If Slave is selected, the Encapsulation table is not visible.
You can add an entry to the Client Table list. Click on the Add Entry to Client
Table List button.
Page 42 of 79
Description
Specifies the network role for the encapsulation process (Master, Slave).
Sets the length of time the gateway will wait when no further serial data
is received before encapsulating and transmitting data (0 to 65535).
Specifies the type of IP connection (TCP or UDP) for the encapsulated
data.
Specifies which type of error checking is used for DF1 data messages
(BCC or CRC).
