Connecting to the ICX35-HWC
User Manual
1
Remove the SIM Card Slot cover by removing the two screws holding it into
place.
2
Insert the SIM card into the ICX35-HWC and cycle power. The SIM card is
read by the ICX35-HWC upon boot up.
3
Re-attach the SIM Card Slot cover.
4
After the ICX35-HWC reboots, it establishes a link to your cellular provider
network, also called registering on the network, and then receives an IP
address.
5
When the ICX35-HWC receives its IP address from the cellular provider, a
connection to the Internet or the cellular network is also available for
computers or other devices to connect directly to the ICX35-HWC.
6

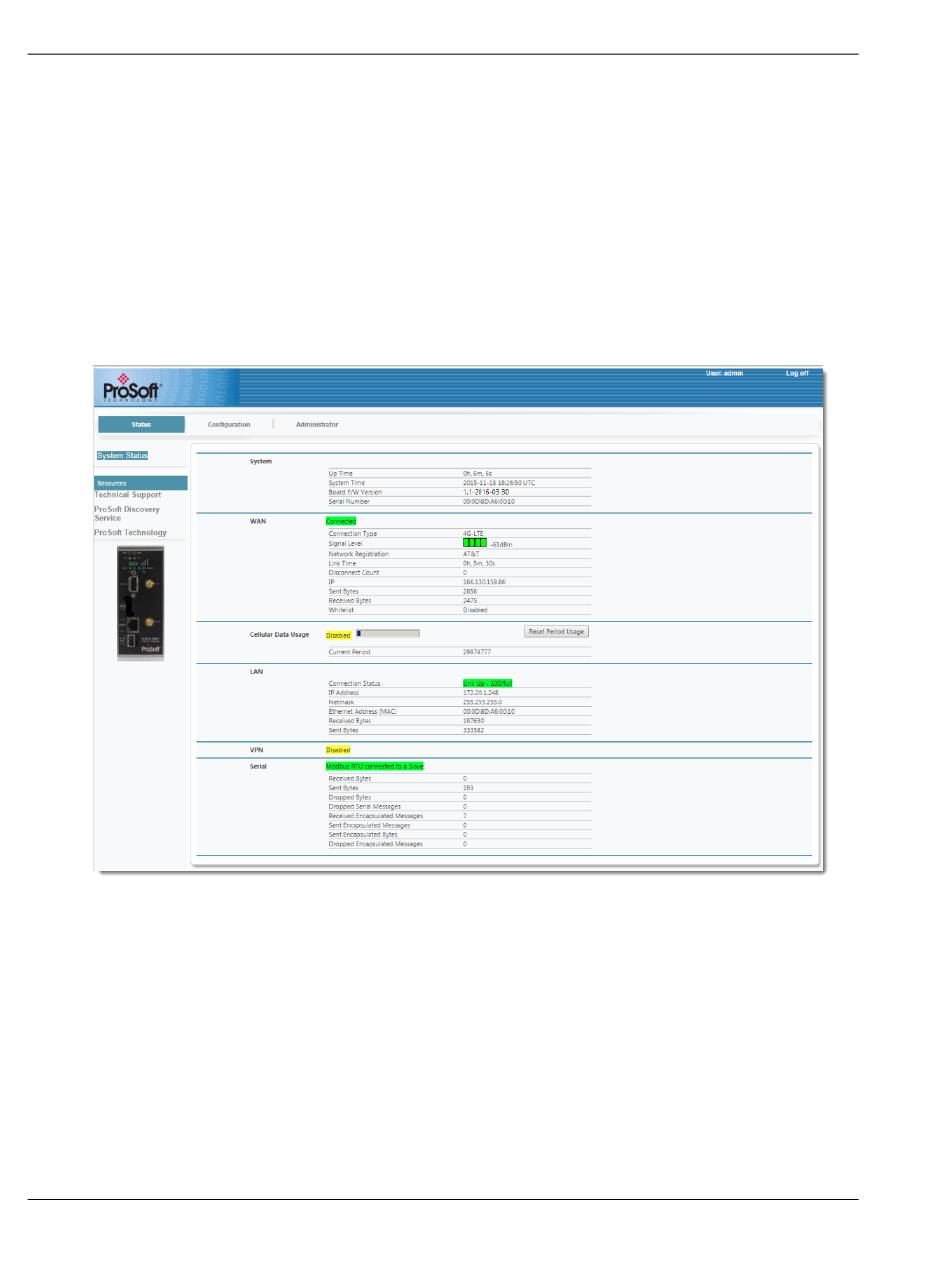

The GSM network information is now displayed on the Status web page.
Page 18 of 79
ICX35-HWC ♦ Industrial Cellular Gateway
ProSoft Technology, Inc.
April 21, 2016
3G/4G LTE
