Hardware Installation
User Manual
If hardware handshaking is required, the cable to connect to the port is as shown
below:
RS422

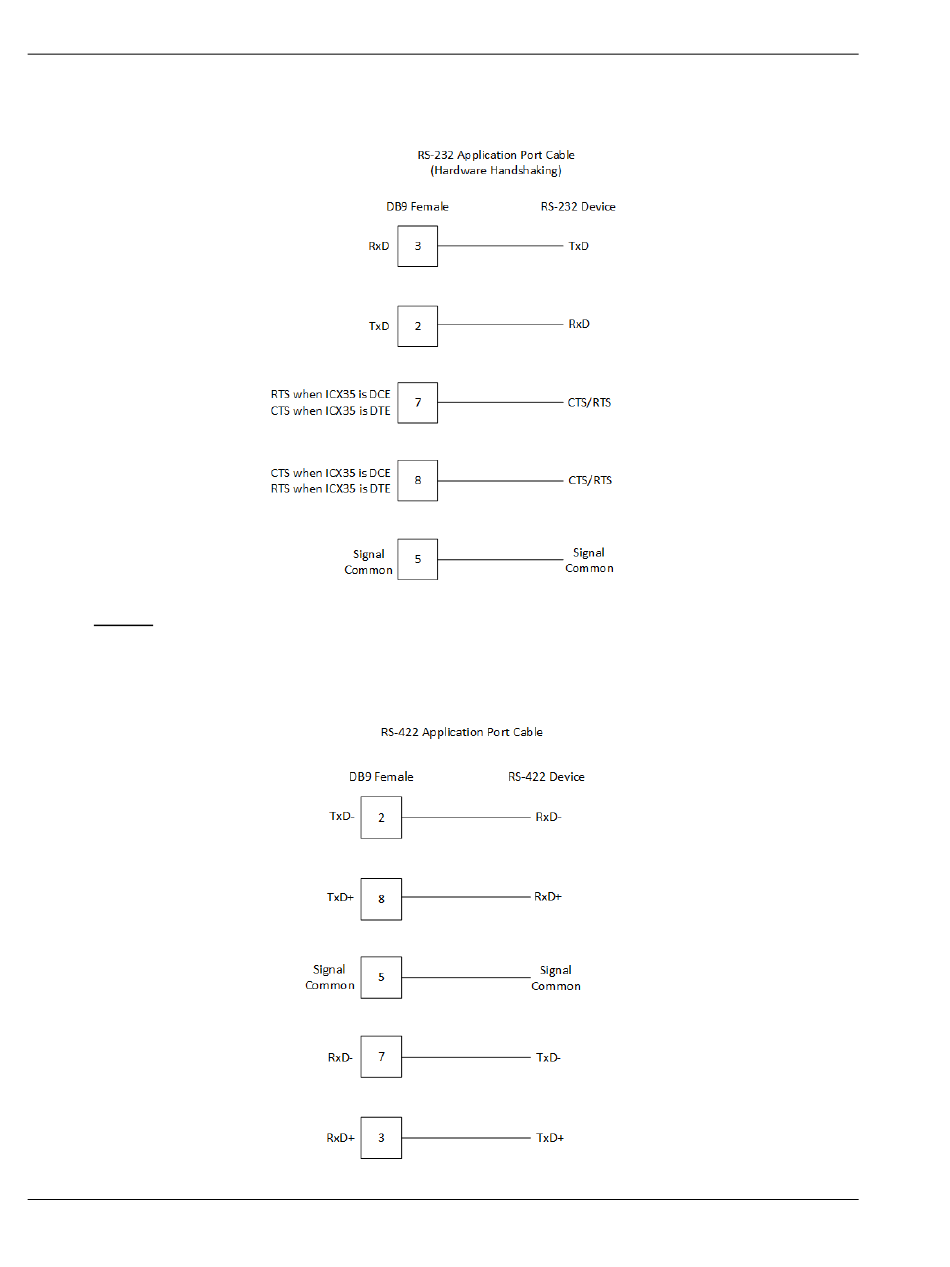

The RS-422 interface requires a single four or five wire cable. The Common
connection is optional, depending on the RS-422 network devices being used.
The cable required for this interface is shown in the following diagram:
Page 60 of 79
ICX35-HWC ♦ Industrial Cellular Gateway
ProSoft Technology, Inc.
April 21, 2016
