Hardware layout and configuration

The STM32100E-EVAL evaluation board is designed around the STM32F100ZET6 (144-pin
LQFP package). The hardware block diagram
STM32F100ZET6 and peripherals (LCD, SRAM, IR receiver, SPI Flash, USART, IrDA,
speaker, HDMI CEC, temperature sensor, MicroSD card, motor control and embedded
ST-LINK/V2) and
Figure 2.
Figure 3 will help you locate these features on the actual evaluation board.

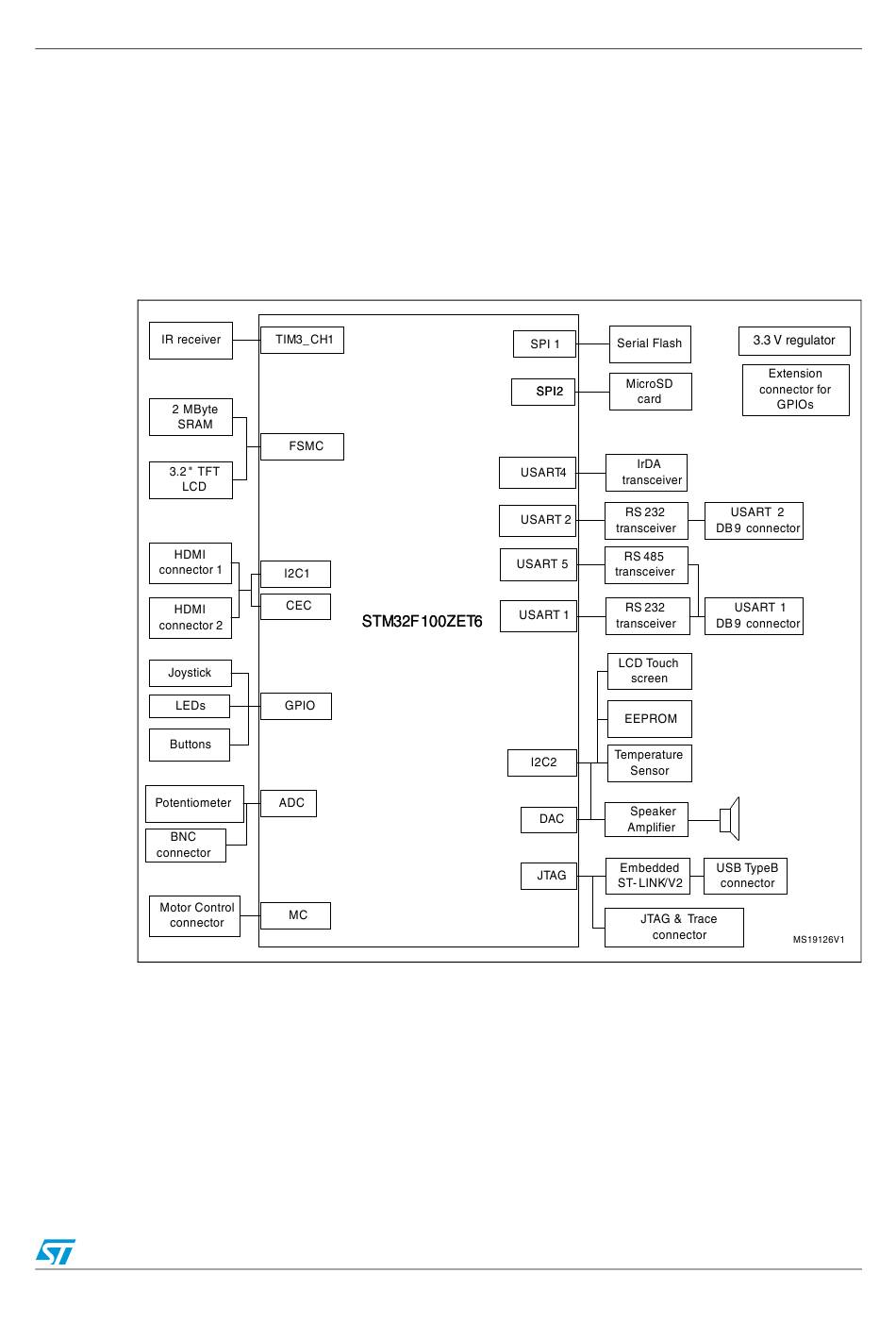

Hardware block diagram
Doc ID 018466 Rev 1
Hardware layout and configuration
Figure 2 illustrates the connection between
