STM32100E-EVAL evaluation board
Introduction
The STM32100E-EVAL evaluation board is designed as a complete development platform
®
for the STMicroelectronics ARM
Cortex-M3 core-based STM32F100 microcontroller with
2
HDMI CEC connection, FSMC (Flexible Static Memory Controller), two I
C, three SPI, five
USART, 32 Kbytes of internal SRAM, 512 Kbytes of internal Flash memory and JTAG and
SWD debugging/programming support.
The full range of hardware features on the board helps you evaluate all peripherals
(HDMI CEC, SRAM, motor control, LCD, MicroSD card, serial Flash, EEPROM, temperature
sensor, speaker, IrDA, RS-232, RS-485... etc.) and develop your own applications.
Extension headers facilitate the connection of a daughterboard or wrapping board for your
specific applications.
A ST-LINK/V2 is integrated on the board as an embedded debugger and programmer for the
STM32F100 MCU.

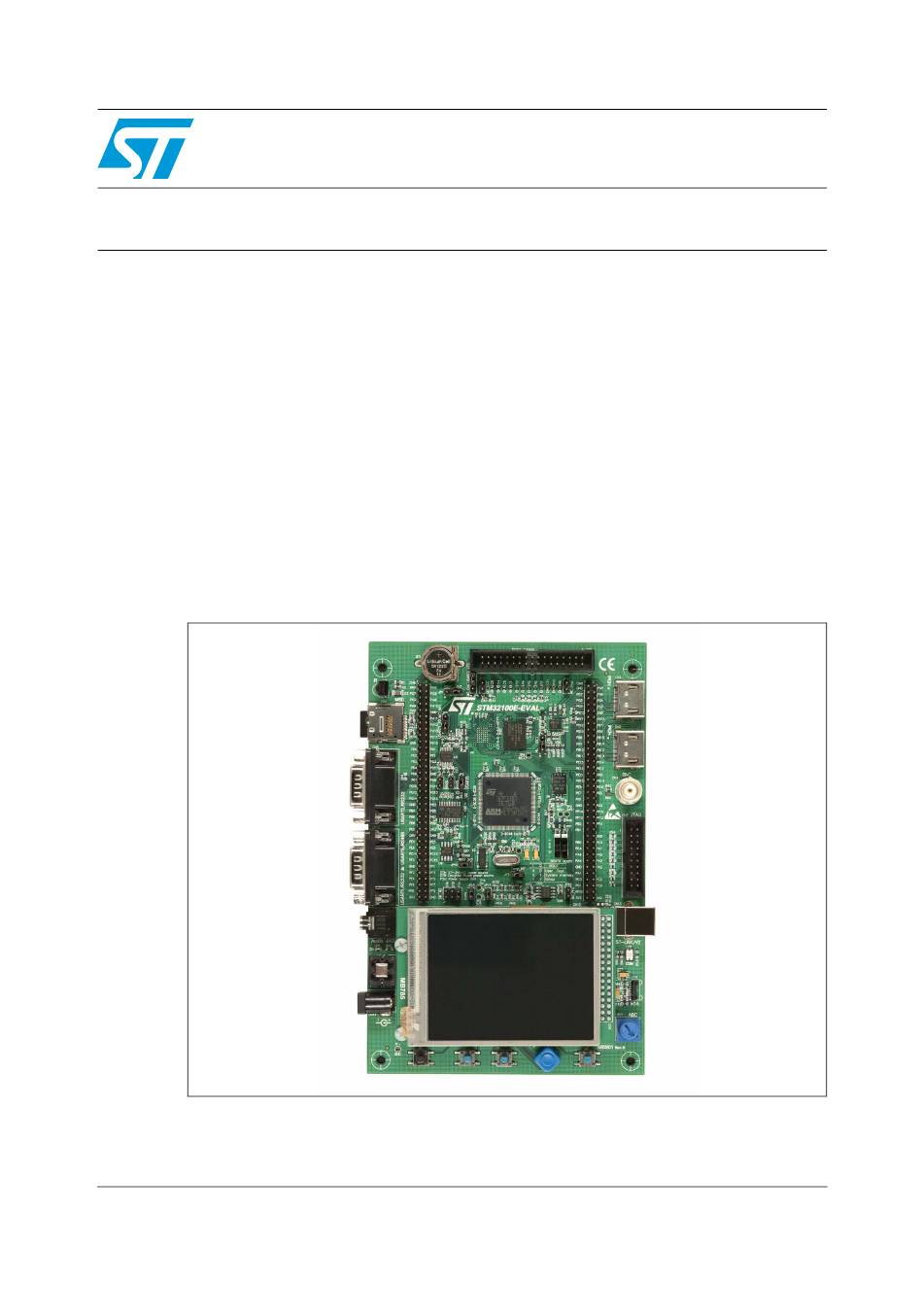

Figure 1.
STM32100E-EVAL evaluation board
March 2011
Doc ID 018466 Rev 1
1/49
www.st.com
This datasheet has been downloaded from
http://www.digchip.com
at this
page
Advertisement
Chapters
Table of Contents
Related Manuals for ST STM32100E-EVAL
Summary of Contents for ST STM32100E-EVAL
- Page 1 IrDA, RS-232, RS-485… etc.) and develop your own applications. Extension headers facilitate the connection of a daughterboard or wrapping board for your specific applications. A ST-LINK/V2 is integrated on the board as an embedded debugger and programmer for the STM32F100 MCU. Figure 1.
-
Page 2: Table Of Contents
Contents UM1055 Contents Overview ..........4 Features . - Page 3 Schematics ..........26 Appendix A STM32100E-EVAL pinout ....... . . 43 Revision history .
-
Page 4: Overview
Demonstration software is preloaded on board Flash memory for easy demonstration of the device peripherals in standalone mode. For more information and to download the latest version available, please refer to STM32100E-EVAL demonstration software available on the web: www.st.com/mcu. Order code To order the STM32F100ZET6 MCU evaluation board, use the order code STM32100E-EVAL. -
Page 5: Hardware Layout And Configuration
UM1055 Hardware layout and configuration Hardware layout and configuration The STM32100E-EVAL evaluation board is designed around the STM32F100ZET6 (144-pin LQFP package). The hardware block diagram Figure 2 illustrates the connection between STM32F100ZET6 and peripherals (LCD, SRAM, IR receiver, SPI Flash, USART, IrDA,... - Page 6 Hardware layout and configuration UM1055 Figure 3. STM32100E-EVAL Evaluation board layout 6/49 Doc ID 018466 Rev 1...
-
Page 7: Development And Debug Support
Hardware layout and configuration Development and debug support Version 2 of the ST-LINK, known as ST-LINK/V2, is embedded on the board. This tool allows program loading and debugging of the STM32F using the JTAG or SWD interface Third-party debug tools are also supported by using the JTAG connector (CN7). -
Page 8: Boot Option
Enables consumption measurements of both VDD and VDDA. JP10 Default setting: Fitted The LED LD6 is lit when the STM32100E-EVAL evaluation board is powered by the 5 V correctly. Note: The recommended AC220V to DC5V power adapter is the PSU-5V2A. It is not included with the board but can be ordered from ST as a separate item. -
Page 9: Clock Source
PC14 and PC15 are connected to extension connector CN8 when solder bridges SB5 and SB6 are closed. SB5, SB6 Default Setting: Not fitted Reset source The reset signal of STM32100E-EVAL evaluation board is active low and the reset sources include: ● Reset button B1 ●... -
Page 10: Audio
Default Setting: Not fitted. Audio STM32100E-EVAL evaluation board supports playback based on a speaker on the board. Two channels DAC of STM32F100ZET6 are connected to audio amplifier TS4956EIJT which drive both speaker and stereo audio jack output. The audio volume can be adjusted by configuration of audio amplifier through I C interface. -
Page 11: Motor Control
Hardware layout and configuration Motor control The STM32100E-EVAL evaluation board supports an induction motor control via a 34-pin connector. Connector CN1 provides all required control and feedback signals to and from the motor power driving board. Available signals on this connector include emergency stop, motor speed, 3-phase motor current, bus voltage, heatsink temperature coming from the motor driving board and 6 channels of PWM control signal going to the motor driving circuit. -
Page 12: Microsd Card
Hardware layout and configuration UM1055 2.10 MicroSD card The 1 Gbyte (or more) MicroSD card connected to SPI2 of STM32F100ZET6 is available on the board. MicroSD card chip select is managed by standard I/O port PG6 while MicroSD card detect signal is managed by I/O port PF11. 2.11 Analog input One BNC connector CN4 is connected to PA4 of STM32F100ZET6 as external analog input... -
Page 13: Display And Input Devices
Default Setting: Not fitted 2.16 HDMI CEC Two HDMI connectors CN2 and CN3 are available on STM32100E-EVAL board. The signals CEC, SCL, SDA and HPD are supported and connected to STM32F100ZET6 through HDMI2C1-5DIJ, the ST full integrated ESD protection, level-shifting device and signal booster for control links of HDMI 1.3 transmitter. -
Page 14: Rs-485 Communication
Hardware layout and configuration UM1055 Note: Jumper JP4 must be fitted on pins 2-3 for USART2 operations and jumper JP5 must be fitted on pins 1-2 for for USART1 operations. Please refer to Table 7 for more details. 2.19 RS-485 communication The RS-485 communication on USART5 is supported by RS-485 transceiver ST485ABDR and connected to pin4 and pin 9 of D-type 9-pin connector CN10 (shared with USART1). -
Page 15: Connectors
UM1055 Connectors Connectors Motor control connector CN1 Figure 4. Motor control connector CN1 Table 12. Motor control connector CN1 pin assignments Pin of Pin of Pin number Pin number Description STM32F100 STM32F100 Description of CN1 of CN1 ZET6 ZET6 EMERGENCY STOP PWM-UH PWM-UL PWM-VH... -
Page 16: Hdmi Connectors Cn2 And Cn3
Connectors UM1055 HDMI connectors CN2 and CN3 Figure 5. HDMI connectors CN2 & CN3 Table 13. HDMI connectors CN2 & CN3 Pin number Description Pin number Description 1-12 SDA (PB7) CEC (PB8) SCL (PB6) HPD (PB9) Analog input connector CN4 Figure 6. -
Page 17: Rs-232 Connector Cn5 With Rts/Cts Handshake Support
UM1055 Connectors RS-232 connector CN5 with RTS/CTS handshake support 1 2 3 4 5 6 7 8 9 Front view MS19140V2 Table 16. RS-232 connector CN5 with full modem control support Pin number Description Pin number Description Connect to Pin 4 USART2_RX USART2_RTS USART2_TX... -
Page 18: Microsd Connector Cn6
Connectors UM1055 MicroSD connector CN6 Table 18. MicroSD connector CN6 Pin number Description Pin number Description Reserved SCLK/PB13 CS/PG6 Vss/GND DI/PB15 DO/PB14 Card Detect (PF11) JTAG debugging connector CN7 19 17 12 10 Viewed from above PCB MS19143V2 Table 19. JTAG debugging connector CN7 Pin number Description... -
Page 19: Daughterboard Extension Connectors Cn8 And Cn9
Daughterboard extension connectors CN8 and CN9 Two 70-pinmale header connectors CN8 and CN9 can be used to connect with daughterboard or standard wrapping board to STM32100E-EVAL evaluation board. All GPI/Os are available on it. The space between these two connectors and position of power, GND and RESET pins are defined as a standard which allows to develop common daughterboards for several evaluations boards. - Page 20 Connectors UM1055 Table 20. Daughterboard extension connector CN8 (continued) How to disconnect from function block Description Alternative function on STM3210E-EVAL board FSMC_MWAIT Remove R36 FSMC_NE0 Remove R22 PG10 FSMC_NE2 Remove R18 PG12 FSMC_NE3 Remove R85 PG14 Joystick_Left Remove R106 Disconnect STM3210E-EVAL evaluation Debug_TRST/MC board from motor power drive board or remove JP12.
- Page 21 UM1055 Connectors Table 20. Daughterboard extension connector CN8 (continued) How to disconnect from function block Description Alternative function on STM3210E-EVAL board FSMC_D3 FSMC_BLN1 FSMC_CLK FSMC_WEN PG11 Joystick_Down Remove R104 PG13 Joystick_Right Remove R107 PG15 Joystick_Up Remove R108 Debug_TDO Disconnect STM3210E-EVAL evaluation board from motor power drive board.
- Page 22 Connectors UM1055 Table 21. Daughterboard extension connector CN9 (continued) How to disconnect from function block Description Alternative function on STM3210E-EVAL board PC13 Button B3 RESET# PD12 FSMC_A17 Remove R99 PD10 FSMC_D15 FSMC_D13 PB13 MicroSDcard PB11 I2C2_SDA Remove R72 PE15 FSMC_D12 PE13 FSMC_D10 PE11...
- Page 23 UM1055 Connectors Table 21. Daughterboard extension connector CN9 (continued) How to disconnect from function block Description Alternative function on STM3210E-EVAL board Disconnect STM3210E-EVAL evaluation board from motor power drive board. PF10 +3V3 User button B4 Remove R109 MicroSDcard_CS Remove R16 FSMC_A14 FSMC_A12 PD13...
-
Page 24: Audio Jack Cn11
Remove R9 and C12. Audio jack CN11 A 3.5mm Mono audio jack connector CN11 is available on STM32100E-EVAL board. The speaker U12 will be bypassed when an earphone is plugged into connector CN11. 3.10 ST-LINK/V2 connector CN13 (USB connector) Figure 7. -
Page 25: Power Connector Cn14
UM1055 Connectors 3.12 Power connector CN14 The STM32100E-EVAL evaluation board can be powered by a DC 5V power supply via the external power supply jack connector CN14 shown in Figure 8. The central pin of CN14 must be positive. Figure 8. -
Page 26: Schematics
Figure 21: STM32100E-EVAL ST-LINK (JTAG only) on page 39 ● Figure 22: STM32100E-EVAL motor control on page 40Figure 23: STM32100E-EVAL power on page 41 ● Figure 24: STM32100E-EVAL 3.2" LCD module with both SPI and16 bit interface on page 42 26/49 Doc ID 018466 Rev 1... -
Page 27: Figure 9: Schematic Diagram Of Stm32100E-Eval
UM1055 Schematics Figure 9. Schematic diagram of STM32100E-EVAL Doc ID 018466 Rev 1 27/49... -
Page 28: Figure 10: Stm32100E-Eval Mcu
Schematics UM1055 Figure 10. STM32100E-EVAL MCU 28/49 Doc ID 018466 Rev 1... -
Page 29: Figure 11: Stm32100E-Eval Sram And Onenand
UM1055 Schematics Figure 11. STM32100E-EVAL SRAM and OneNAND Doc ID 018466 Rev 1 29/49... -
Page 30: Figure 12: Stm32100E-Eval Lcd, Eeprom And Tsensor
Schematics UM1055 Figure 12. STM32100E-EVAL LCD, EEPROM and TSensor IO_Expa ndor_INT I2C2_SDA I2C2_S CK 30/49 Doc ID 018466 Rev 1... -
Page 31: Figure 13: Stm32100E-Eval Audio Schematic
UM1055 Schematics Figure 13. STM32100E-EVAL Audio schematic +3V3 100nF +3V3 Doc ID 018466 Rev 1 31/49... -
Page 32: Figure 14: Stm32100E-Eval I/O Peripherals
Schematics UM1055 Figure 14. STM32100E-EVAL I/O Peripherals 32/49 Doc ID 018466 Rev 1... -
Page 33: Figure 15: Stm32100E-Eval I/O Peripherals
UM1055 Schematics Figure 15. STM32100E-EVAL I/O Peripherals Doc ID 018466 Rev 1 33/49... -
Page 34: Figure 16: Stm32100E-Eval Microsd And Spi Flash
Schematics UM1055 Figure 16. STM32100E-EVAL MicroSD and SPI Flash 34/49 Doc ID 018466 Rev 1... -
Page 35: Schematics
UM1055 Schematics Figure 17. STM32100E-EVAL RS-232 and IrDA +3V3 +3V3 +3V3 [N/A] R4 1 100nF R2 7 R3 1 100nF 100nF 100nF RS232_TX2 US ART2 _ TX T1i n T1out R138 RS232_RX2 US ART2 _ RX R1 out R1i n... -
Page 36: Figure 18: Stm32100E-Eval Rs-485
Schematics UM1055 Figure 18. STM32100E-EVAL RS-485 CN10 +3V3 DB9 -mal e USART1 100nF 100nF DS R +3V3 100nF 100nF TX D R5 0 10 K 100nF T1I N T1OUT PA 9 US A RT1 _ TX T2I N T2OUT T3I N... -
Page 37: Figure 19: Stm32100E-Eval Hdmi_Cec And Ir Receiver
UM1055 Schematics Figure 19. STM32100E-EVAL HDMI_CEC and IR receiver Doc ID 018466 Rev 1 37/49... -
Page 38: Figure 20: Stm32100E-Eval Jtag
Schematics UM1055 Figure 20. STM32100E-EVAL JTAG 38/49 Doc ID 018466 Rev 1... -
Page 39: Figure 21: Stm32100E-Eval St-Link (Jtag Only)
UM1055 Schematics Figure 21. STM32100E-EVAL ST-LINK (JTAG only) Doc ID 018466 Rev 1 39/49... - Page 40 Schematics UM1055 Figure 22. STM32100E-EVAL motor control 40/49 Doc ID 018466 Rev 1...
- Page 41 UM1055 Schematics Figure 23. STM32100E-EVAL power Doc ID 018466 Rev 1 41/49...
-
Page 42: Figure 24: Stm32100E-Eval 3.2" Lcd Module With Both Spi And16 Bit Interface
Schematics UM1055 Figure 24. STM32100E-EVAL 3.2" LCD module with both SPI and16 bit interface CN 1 WR/SC L Soldered for i80- system 16- b it interface #RE SET RESE T SD O SD I BL GND PD10 PD10 PD11 BL _GN D... -
Page 43: Appendix A Stm32100E-Eval Pinout
UM1055 STM32100E-EVAL pinout Appendix A STM32100E-EVAL pinout Table 23. STM32100E-EVAL pinout Pin no. Pin name Description FSMCA19 FSMCA20 Flash_CS VBAT VBAT PC13-ANTI_TAMP Anti-tamper button PC14-OSC32_IN 32K OSC PC15-OSC32_OUT 32K OSC FSMCA0 FSMCA1 FSMCA2 FSMCA3 FSMCA4 FSMCA5 VSS_5 VDD_5 LED1 LED2... - Page 44 STM32100E-EVAL pinout UM1055 Table 23. STM32100E-EVAL pinout (continued) Pin no. Pin name Description VDDA PA0-WKUP MC1_TIM2_CH1 pin 31 (EnA) / Wakeup button / USART2 CTS MC1_TIM2_CH2 pin 33 (EnB) / USART2 RTS MC1_TIM2_CH3 pin34 (EnIndex) / USART2 TX USART2 RX...
- Page 45 UM1055 STM32100E-EVAL pinout Table 23. STM32100E-EVAL pinout (continued) Pin no. Pin name Description PE15 FSMCD12 PB10 EEPROM_TS_IO_expandor_Audio_SCL2 PB11 EEPROM_TS_IO_expandor_Audio_SDA2 VSS_1 VDD_1 PB12 MC1_pin21 / Temperature SMBIA PB13 SD_card_SCK PB14 SD_card MISO PB15 SD_card_MOSI FSMCD13 FSMCD14 PD10 FSMCD15 PD11 FSMCA16 PD12...
- Page 46 STM32100E-EVAL pinout UM1055 Table 23. STM32100E-EVAL pinout (continued) Pin no. Pin name Description PA11 IrDA_SD PA12 IO_Expandor_INT PA13 Debug TMS VSS_2 VDD_2 PA14 Debug TCK PA15 Debug TDI PC10 IRDA TX PC11 IRDA RX PC12 RS485_TX5 FSMCD2 FSMCD3 MC1_TIM3_ETR pin 27 (PFCsync2) / RS485_RX5...
- Page 47 UM1055 STM32100E-EVAL pinout Table 23. STM32100E-EVAL pinout (continued) Pin no. Pin name Description BOOT0 HDMI_CEC HDMI_HPD FSMCBLN0 FSMCBLN1 VSS_3 VDD_3 Doc ID 018466 Rev 1 47/49...
-
Page 48: Revision History
Revision history UM1055 Revision history Table 24. Document revision history Date Revision Changes 23-Mar-2011 Initial release. 48/49 Doc ID 018466 Rev 1... - Page 49 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
