IP CAMERA USER MANUAL
6. Connect your lock to the corresponding alarm output.

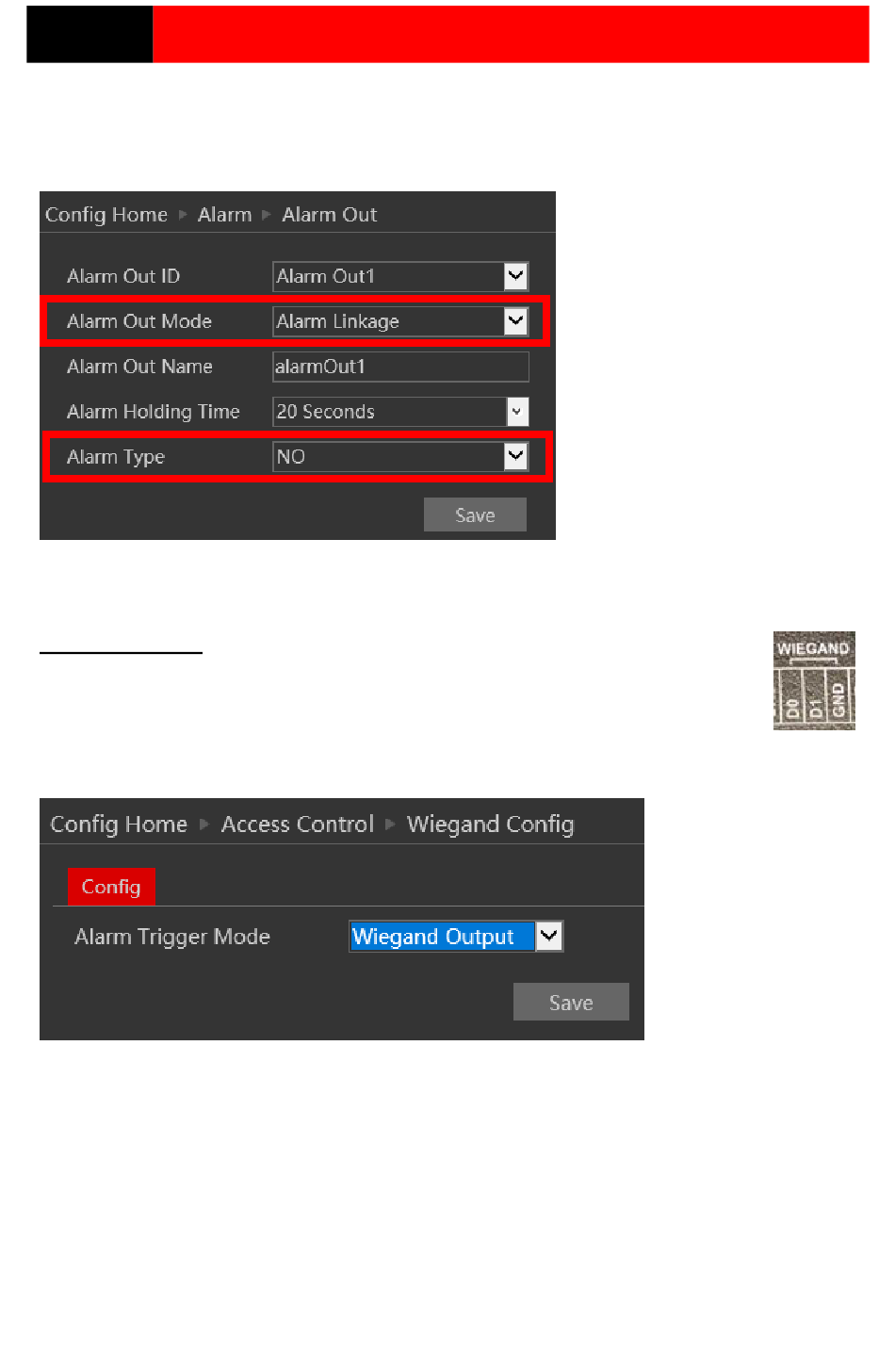

7. Under "Alarm → Alarm out", confirm that the corresponding alarm out mode is set to
"Alarm Linkage" and set the Alarm type to NO/NC as required.
8. Upon a successful face recognition combined with the matching card, the door will open.
Wiegand Output:
1. Connect the EC-001 to an external access control controller through the
Wiegand interface (D0, D1, GND)
2. Under the Wiegand interface, set the Alarm Trigger mode to "Wiegand Output"
and save.
3. Edit an existing person from the database or add a new person.
4. Input the proximity card number in the "ID Number" Field from the database card together
with all the other mandatory information.
