Provision ISR BX-390IP User Manual

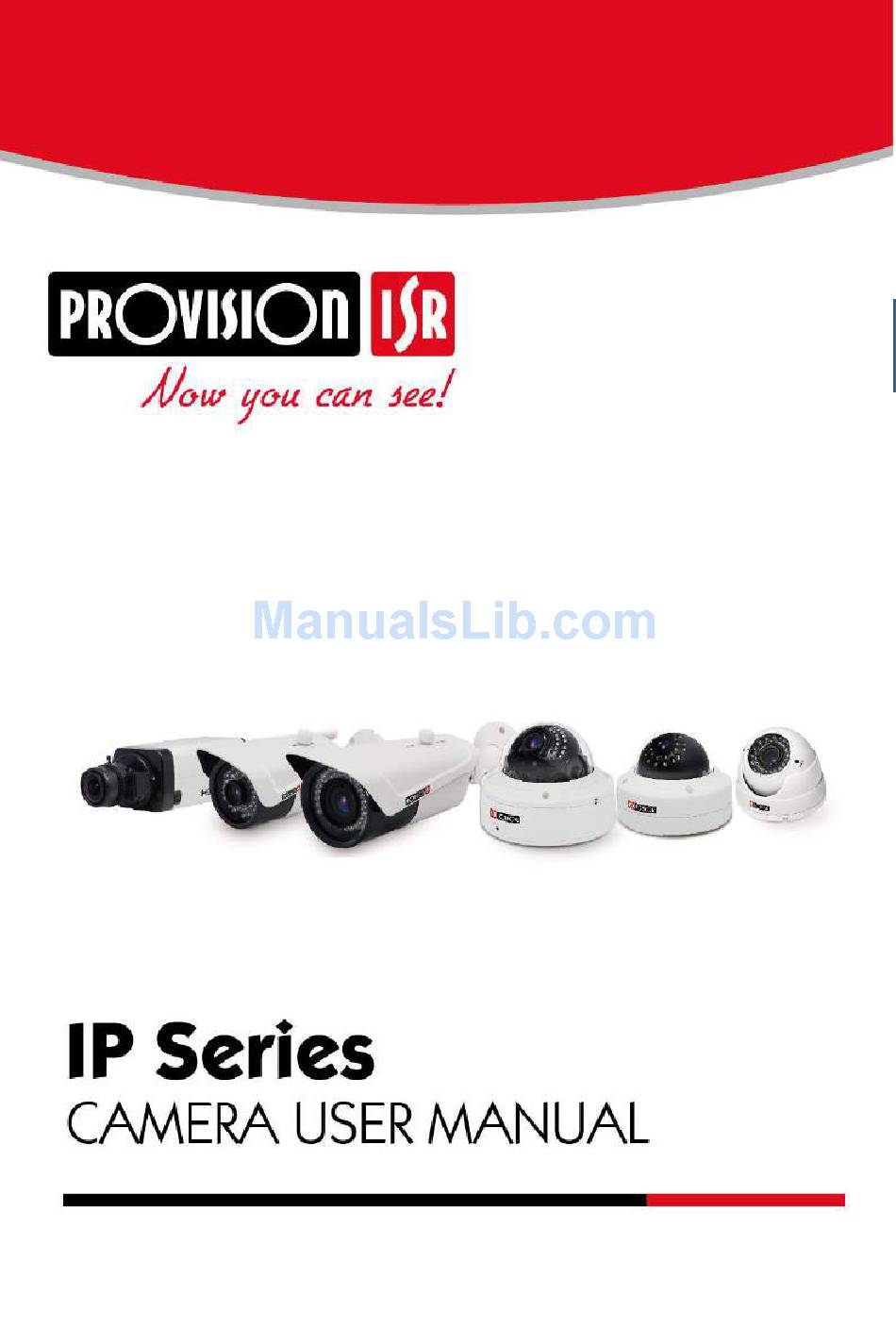

Ip series 1080p professional ip box camera
Hide thumbs Also See for BX-390IP:
Table of Contents

Advertisement

Quick Links

Download this manual
I
P
C
a
m
e
r
a
U
s
e
r
M
a
n
u
a
l
I
P
C
a
m
e
r
a
U
s
e
r
M
a
n
u
a
l
I
P
C
a
m
e
r
a
U
s
e
r
M
a
n
u
a
l
Please read this instruction carefully for correct use of the product and preserve it for
reference purposes

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BX-390IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Provision ISR BX-390IP

Summary of Contents for Provision ISR BX-390IP

  • Page 1 Please read this instruction carefully for correct use of the product and preserve it for reference purposes...

  • Page 2: User Manual

    PROVISION-ISR BX-390IP User Manual 1080P Professional IP Box Camera For H.264 IP Camera All rights reserved...
  • Page 4 Cautions  Before operation, we strongly advise users to read this manual and keep it properly for using later.  Please use the specified power supply to connect.  Avoid from in correct operation, shock vibration, heavy pressing which can cause damage to product.

  • Page 5: Table Of Contents

    Contents Introduction ....................1 1.1 Overview ....................1 1.2 Package ..................... 1 1.3 Side Panel for IP-CAM ................1 1.4 Rear Panel Connection ................2 Installation ...................... 3 2.1 Wall Mounting ..................3 2.2 CMS and IP-Tool Installation ..............3 IE Connection ....................
  • Page 6 5.4.2 Motion Detection Trigger ............17 5.4.3 Motion Detection Schedule ............18 5.4.4 Alarm Input Trigger ..............18 5.4.5 Alarm Input Schedule ............... 19 5.4.6 Alarm Out.................. 20 5.5 Network Configuration ................ 20 5.5.1 Port .................... 20 5.5.2 Wired ..................20 5.5.3 NET Traversal Configuration ...........

  • Page 7: Introduction

    1 Introduction 1.1 Overview This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system more stable and reliable.

  • Page 8: Rear Panel Connection

    When it still fails to realize focusing after having confirmed the correct lens interface, the back focus adjustment may be required. Operate the following steps: tighten the lens firstly and then loose the fixed back focus ring; rotate the lens slowly until the video image turns to be clear, and finally tighten and lock the back focus ring.

  • Page 9: Installation

    2 Installation 2.1 Wall Mounting Step 1: Rotate the lens clockwise onto the lens mount of the camera. Step 2: Plug the wire of auto iris lens to the auto iris interface of the camera. Step 3: Connect the power supply and video output. Step 4: Attach the mounting block to the bracket and then install the bracket to the wall and tighten the screws to fix it as shown below.

  • Page 10: Ie Connection

    3 IE Connection User can connect IP-CAM through LAN or WAN. Here only take IE browser (6.0) for example. The details are as follows. 3.1 LAN In LAN, there are two ways to access IP-CAM： ① Access through IP-Tool； ② Directly Access through IE Browser.
  • Page 11 For example, the network segment of this computer is 192.168.13.57. So, please modify the IP address, Subnet Mask, Gateway of IP-Cam which must be in the same network segment with the computer. After modifying, please input the user name and password and then click “OK”...

  • Page 12: Directly Access Through Ie

    Input User name and password and then click “OK” button to login. Note: User also can use the modified IP address of the IP-Cam. Input the IP address in the IE browser bar and then click “Enter” to access IP-Cam. The default user name is admin. The default password is 123456.

  • Page 13: Wan

    Step 2: Open the IE Browser and input the default address of IP-CAM and confirm. Then the IE browser will download Active X control automatically. Step 3: After downloading Active X control, the login dialog box will pop up as below: Step 4: Input user name and password in the login dialog box and click “OK”...

  • Page 14: Remote Preview

    4 Remote Preview 4.1 Remote Preview After you log in, you will see the following window. The descriptions of the icon on the remote preview interface: Icon Description Icon Description Sensor alarm indicator icon Full screen Motion alarm indicator icon Start/Stop record Fix size Playback...

  • Page 15: Playback

    Click PTZ extended button to unfold PTZ control panel. The descriptions of the control panel are as follows: Button Description to rotate the dome upwards； to rotate the dome downwards; to rotate the dome towards left; to rotate the dome towards right；...
  • Page 16 User can snap multiple pictures. Select the picture number from Frame pull down list box, such as 2, and check “Title” and “Time” to show capture title and time on the snap pictures simultaneously. Click “Browse” to set saving path; Click “Save” to save pictures to HDD on the computer; Click “Printer setup”...

  • Page 17: Remote Configuration

    5 Remote Configuration Functions of remote configurations include: System Configuration, Video Configuration, PTZ Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. You should firstly select the menu on the left, and then setup the relative parameters. When one user configures parameters of a certain device, other users can not setup this device. 5.1 System Configuration The “System configuration”...

  • Page 18: Sd Card

    2. Select “Modify Time ", user can self-define time. Choose the right "Time Zone" according to user’s location. 3. User can also enable DST and set DST mode and time. 4. User can setup time by select the “Synchronize with NTP Server”. 5.

  • Page 19: Video Configuration

    Video Configuration Camera Configuration includes four submenus: Camera Configuration, Video Stream, Time Stamp and Video Mask. 5.2.1 Camera Configuration Setting steps: 1. Enter into "Video Configuration " "Camera" interface as shown below: 2. Adjust Brightness, Contrast, Hue and saturation of the picture. 3.

  • Page 20: Video Mask

    Here you can set date format and the position of the time stamp shown in the live image. 5.2.4 Video Mask You can set 4 mask area at most. Enable the mask, select color and transparent of the mask area and then drag the mouse to set the mask area.

  • Page 21: Preset Configuration

    2. Tick off “Enable/Disable PTZ Config”, and then reboot IE client side, the PTZ control panel will be displayed on the live interface. 3. Select the protocol of the PTZ device at the "Protocol" pull down list. 4. Input address of the PTZ in the "Address" textbox. 5.

  • Page 22: Alarm Configuration

    Click “Add” button to add cruise. Choose a cruise and click “Modify” button to pop up a window as below: Click “Add Preset” button to pop up a window. You can add the preset there. Click “Preview” button to check the related information of this cruise and click “Delete” button to delete this cruise.

  • Page 23: Motion Detection Trigger

    2. Move the "Sensitivity" scroll bar to setup the motion trace sensitivity. 3. Check the "Add”, press the "Ctrl" button and move mouse to select the motion detection area; Select “Erase” and move the mouse to clear all motion detection area. 4.

  • Page 24: Motion Detection Schedule

    Trigger FTP: If “Uploading picture” is checked, the triggered snap pictures will be sent into FTP server address. Please refer to FTP configuration chapter for more details. 5. Press the "Save" button to save the settings. 5.4.3 Motion Detection Schedule A window will show as below by entering into “Alarm configuration"...

  • Page 25: Alarm Input Schedule

    2. Select the sensor at the "Sensor" pull down list and set the sensor name and alarm type: NO and NC. 3. Enable alarm and select alarm holding time. 4. Set alarm trigger options. The setting steps are the same with that of motion detection trigger.

  • Page 26: Alarm Out

    Motion Detection Schedule chapter for more details 5.4.6 Alarm Out 1. Enter into “Alarm configuration""Alarm output" as shown below: 2. Select alarm holding time and alarm name at the "Alarm out” and “Alarm holding time” pull down list box respectively. 3.

  • Page 27: Net Traversal Configuration

    4. PPPOE: User needs to manual input the user name and password for dial-up internet. Firstly, user needs to login IE clients, then enter into user name and password of PPPoE, save the setting and exit. Secondly, setup IP address change notice. Thirdly, connect with Modem, then the device will dial-up internet automatically.

  • Page 28: Server Configuration

    IP address of the device was changed, a new IP address will be sent to FTP server. 5.5.6 DDNS Configuration 1. Domain name Registration （http://provision-isr-dns.com） Note: DDNS is used to register for a hostname IP Camera User Manual-22...
  • Page 29 IP addresses. Follow the steps below to register your DVR's name and to configure your DVR to use Provision ISR's Mint DDNS server. (a) To register a domain with Provision-ISR DDNS server follow these steps: Visit our website: http://provision-isr-dns.com...
  • Page 30 The domain name is added at the beginning of your DVR's address, for example the domain "home" will appear as home.provision-isr-dns.com. 1. Enter into "Network Configuration""DDNS Configuration" tab as below: Note: The steps to band a domain name for video surveillance server are as follows. Firstly, register a user name and a password to log on the website of service supplier, and then apply for a domain name online for the server.
  • Page 31 1. Apply the Domain Name (Take dns2p for example) Register in the Web Register dialog box Step 1: Fill in the blank of IE address with ‘www.dns2p.com’. Step 2: Click to enter the website. Step 3: Click "New User" in the right of homepage to register. For example: User ID is ‘abc’, and password is ‘123456’.

  • Page 32: Rtsp

    Step 3: Click "Submit" button, the system will pop up a dialog box to show that the domain is added successfully. Note: Time of probationary period is one month. If user wants to use it continuatively after one month, please Step 4: click "Buy Now" in the right of homepage to pay for it. 2.

  • Page 33: Upnp

    Application: This device supports VLC player. You can upload the VLC player in the related website and then select “File””Open URL” from the tool bar of the player. You will see the live image which is the same with that of playing through IE. 5.5.8 UPNP Enter into “Network Configuration”...

  • Page 34: Ftp

    1. From Email: sender’s e-mail address 2. User name and password: sender’s user name and password 3. Server address: SMTP name of sender 4.Select the secure connection type at the Secure Connection pull down list according to user’ actual needs 5.

  • Page 35: Advanced Configuration

    Parameter Meaning The name of the FTP server Server name The address of the FTP server Server address The port number of the FTP server Port User name The user name of the FTP server Password The password of the FTP server Path The save path for FTP files 5.6 Advanced Configuration...

  • Page 36: Onvif Configuration

    1. Select the user which needs to modify password and physical address in the user configuration list box. 2. Clicking “Modify” button will pop up “Modify user” dialog box as shown below. 3. Input original password of this user in the “password” text box. 4.

  • Page 37: Security Configuration

    5.6.3 Security Configuration Enter into Advanced ConfigurationSecurity Configuration to see a tab shown below: Check “Enable IP address” check box, select “Deny the following IP address”, input IP address in the IP address list box and click “Add” button. Then this IP address will display in the list box;...

  • Page 38: Reboot Device

     Import & Export Configuration: User can import or export the setting information from PC or to device. 1. Click “Browse” to select save path for import or export information on PC. 2. User can import or export all setting information to PC, but those two settings “user configuration”...

  • Page 39: Video Search

    6 Video Search Click “picture” icon and search the images which saved in the SD card. 1. Select date in the “calendar”, check “motion detection” relatively and click “search” button. Then the triggered snap pictures will be displayed in the list box. 2.
  • Page 40 Item Buttons Explanations Close: Select certain picture and click this button will close this preview picture. Close all: click this button will close all preview pictures Save: click this button, select the save path of the picture file on PC to save this preview picture Save all: click this button, select the save path of the picture files on PC to save all preview pictures Fit size: click this button, the preview pictures will fit on...

  • Page 41: Mobile Surveillance

    7 Mobile Surveillance This IP-CAM supports mobile surveillance by phones with Windows mobile, iPhone, Android and Blackberry OS. Please check the operation system version of mobile before use; and connect the IP-CAM to Internet. 7.1 Network Configuration  Access device via LAN Step 1: Connect device via wireless router.

  • Page 42: By Phones With Iphone Os

    7.2 By Phones with iPhone OS  Install through Iphone. Step 1: Open App Store software as shown in the figure on the left. Step2: Search “Provision Cam” and click “Free” button as shown in the figure on the right. Step 3: Click “Install App”...
  • Page 43  "Provision Cam" Instruction 1. Login Step 1: Choose network type. There are two network connection ways: 3G/3G +WIFI, enhanced video quality. This network supports main stream and sub stream. The real-time image will be displayed by using sub stream. 3G, normal video quality compared to the former network type.
  • Page 44 ：Server list button. Click this button to add server list. ：Help button. Help you know about the use of this software quickly. ：CMS button. Make you preview the live image of multi-devices. ：Log off button. Click this button to return to the login interface. ：Screen mode button.
  • Page 45 Channel indicator instruction: ：Video loss ： Schedule recording ：Others ：Sensor alarm ：Motion alarm ：Motion /sensor alarm based recording or manual recording Server list Click button to pop up the following picture.  Add device: Click “Add” button in the top right corner to pop up a dialog box as shown in the following left picture.
  • Page 46 When there is video playing in a screen, you can switch the channel by long pressing the screen as shown in Fig 2. When no video is playing in a screen, click this screen to choose channel as shown in Fig 3.
  • Page 47 CMS Function This function makes multi-device managements and preview come true. Step 1: Click to enable CMS function. When this icon turns green, it means this function is enabled. Step 2: Click to choose channel as shown in the right picture. After you choose the channel, click “ok”, the system will display the related image automatically.
  • Page 48 Then click button to play. Only one favorite group can be collected. ：Color means the channel or group has been collected. Grey means the channel or group isn’t collected. Playback Interface Click “Playback” button to enter the playback interface. Then click “Search”...

  • Page 49: By Phones With Android

    By Phones with Android Software Installation Step 1: Run “Play Store” (or Google market) program. Step 2: Search “Provision Cam”. Step 3: Press “Install” button. Step 4: Install the software subject to the notes. Once the downloading is done, the software will install automatically Login Menu Step 1: Configure the network of your device and mobile phone.
  • Page 50 Main Menu Live View The first picture The previous picture Next picture The last picture Zoom in Zoom out Delete Record Playback: Click “Playback” in the main menu interface to enter playback interface. Then choose the channel you want to playback. This will take you to see the record file. Click this file to play. Pause/Play Stop Forward...
  • Page 51 Add Server: Click button to pop up a window as shown in the above picture on the right hand. Enter the name, server, user and password of the device you want to add. Then click “Save” button to save the server. When you log in next time, you can choose and quickly access this server by clicking the little triangle button in the server column.

  • Page 52: Ip-Tool

    8 IP-Tool Updating through IP-Tool Note: Do not cut off power supply and internet when updating. If the device is unable to start because of the failure of upgrade, it needs to retrofit. Acquire the IP-Tool from the supplier and then double click the IP-Tool icon to run this software.
  • Page 53 Modify IP address and click OK button to exit the dialog box. After that, IP-Tool will display the new IP address.  Upgrade Software Select the device; right click “Update software”. Click “Update” to start upgrading，the progress bar will display as below. When upgrading, please do not disconnect PC and the device and make sure the power is on.
  • Page 54 Input the relevant information and click “Browse” button to choose your update file. After that, click “Update Kernel” button to start updating. When upgrading, do not disconnect PC to device and make sure the power is on. The update progress bar will display as below: After finishing upgrading, a message box will pop up.
  • Page 55 & & & 9 Q & A 1. Q: How to find my password if I forget it? A：Hold and press the default hole with spicula to reset. Default IP: 192.168.226.201 User name: admin Password: 123456 2. Q：Fail to connect devices through IE browser, why? A: Network doesn’t connect well.
  • Page 56 & & & Fig 4-1 Fig 4-2 ④ then click ok to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them. 5. Q：No sound can be heard, why? A：Without connect audio input device. Please connect and try again. B: Without enable audio function at the corresponding channel.

  • Page 57: Specification

    10 Specification Model BX-390IP Image Sensor Sony Exmor IMX122 1/3" CMOS Effective Pixels 1920x1080 Electronic Shutter 1/25s ~ 1/100000s Day & Night Min. Illumination 0.1lux Audio compression G711A Communication Two Way Audio AWB, AES, AGC Adjustable Exposure Mode (Auto / Manual)
  • Page 58 Notes: IP Camera User Manual-52...
  • Page 59 IP Camera User Manual-53...
