IP CAMERA USER MANUAL

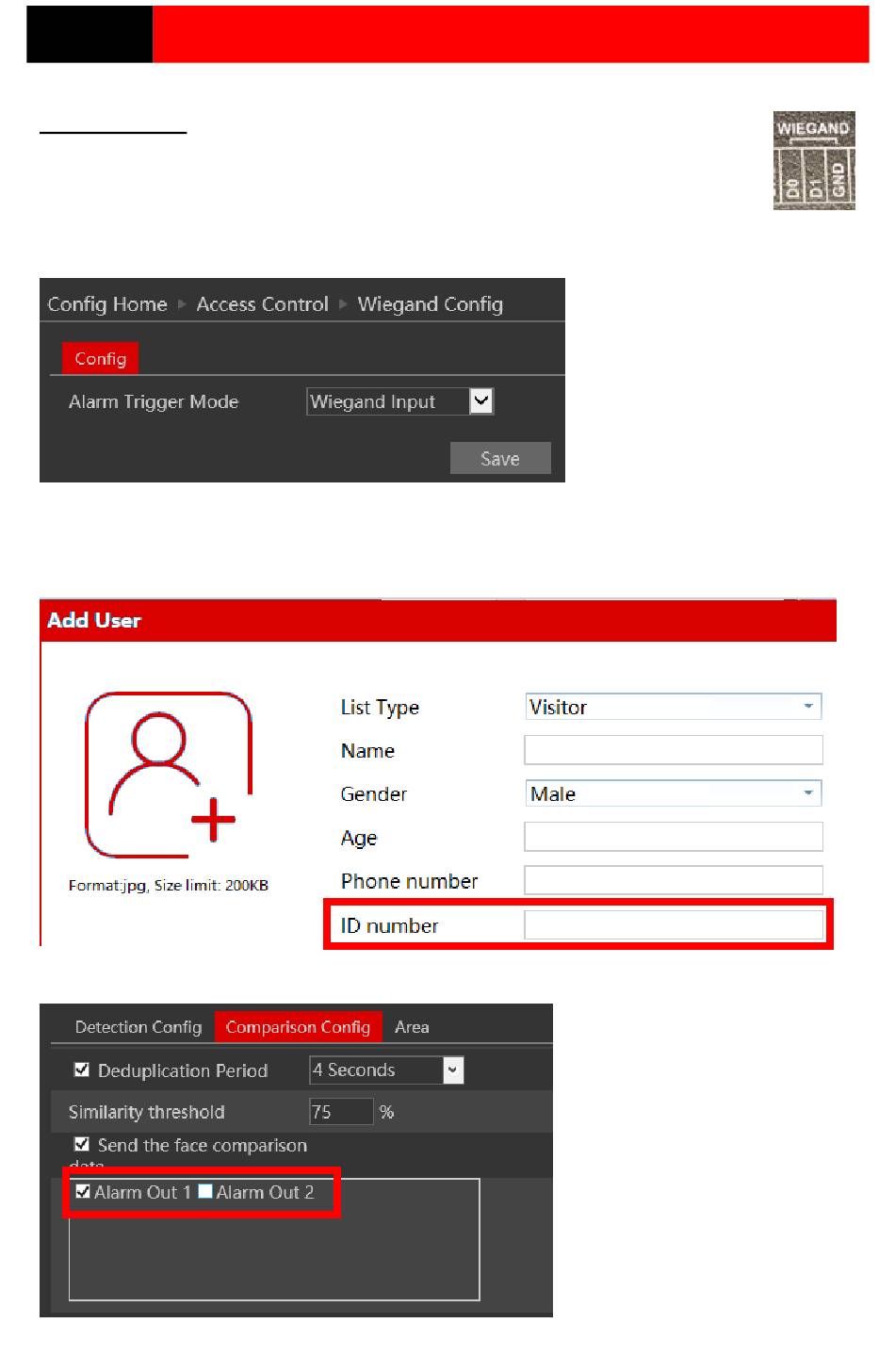

Wiegand Input:
1. Connect the EC-001 to an external card reader through the Wiegand interface
(D0, D1, GND)
2. Under the Wiegand interface, set the Alarm Trigger mode to "Wiegand Input"
and save.
3. Edit an existing person from the database or add a new person.
4. Input the proximity card number in the "ID Number" Field from the database card together
with all the other mandatory information.
5. Under "Face Match Config → Comparison Config", set trigger of alarm output 1 or 2.
