  • Page 2: User Manual

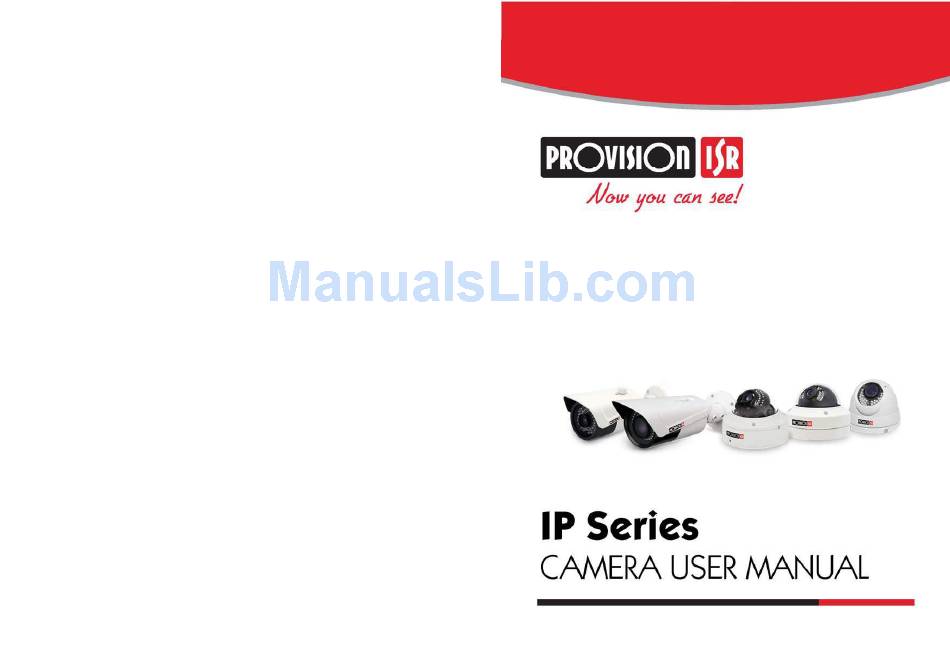

    PROVISION-ISR  DAI-310IPHEVF  DAI-310IPHE04  DI-310IPHEVF  I4-310IPHEVF  I3-310IPHE04  DM-480IPE28  DAI-480IPE28  I3-480IPE2.8 User Manual Economy IP Camera For H.264 IP Camera All rights reserved...
  • Page 3 Notes  Before operation, we strongly advise users to read this manual and keep it for later use.  Please use the specified power supply to connect.  Avoid from incorrect operation, shock vibration, heavy pressing which can cause damage to product. ...

  • Page 4: Table Of Contents

    Economy IP Camera User Manual Table of Contents   Introduction ......................1       Summarization ........................1   IE Remote Access ....................2       LAN ........................... 2     Access through IP-Tool ..................2 3.1.1     3.1.2 Directly Access through IE ..................
  • Page 5 Economy IP Camera User Manual   Mobile Surveillance.................... 27       Network Configuration ....................... 27     By Phones with iPhone OS ....................27 By Phones with Android ........................33   IP-Tool ....................... 36     Q & A ........................ 40  ...

  • Page 6: Introduction

    Economy IP Camera User Manual Page 1 1 Introduction Summarization This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system more stable and reliable.

  • Page 7: Ie Remote Access

    Economy IP Camera User Manual Page 2 2 IE Remote Access IP-CAM can be connected through LAN or WAN. Here only take IE browser (6.0) for example. The details are as follows: In LAN, there are two ways to access IP-CAM: 1. Access through IP-Tool; 2. Directly access through IE browser.

  • Page 8: Directly Access Through Ie

    Economy IP Camera User Manual Page 3 shall be changed to 192.168.13.X. After modification, please input the password of the administrator and click “Modify” button to modify the setting.  The default password of the administrator is “123456”. ④ Double click the IP address and then the system will pop up the IE browser to connect IP- CAM.

  • Page 9: Wan

    Economy IP Camera User Manual Page 4 Select “Property” and then select internet protocol according to the actual situation (for example: IPV4). Next, click “Property” button to set the network of the PC. ② Open the IE browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatically.
  • Page 10 Economy IP Camera User Manual Page 5 go to the Config Network Config Port menu to set up the port number.   ② Go to Config Network Config Wired menu to modify the IP address.   ③ Go to the router’s management interface through IE browser to forward the IP address and port of the camera in the “Virtual Server”.

  • Page 11: Remote Preview

    Economy IP Camera User Manual Page 6 3 Remote Preview The Remote Preview Interface Remote Preview People icon Zoom in Start recording Fix size Zoom out Playback Actual size Full screen Snap When motion detection alarm is triggered, the people icon turns red. ...

  • Page 12: Snap Pictures

    Economy IP Camera User Manual Page 7 Play Next frame Zoom out Pause The previous file Full screen Stop The next file Path Forward Zoom in Volume Snap Pictures Select the picture number, and then click “Snap” icon as shown below. Single Snap User can snap multiple pictures.
  • Page 13 Economy IP Camera User Manual Page 8 Multi-picture Snap Click “Browse” to set saving path. Click “Save” to save pictures to HDD on the computer; Click “Printer setup” to set the printer and print the snap pictures; drag the scroll bar to view all snapped pictures.

  • Page 14: Remote Live Surveillance

    Economy IP Camera User Manual Page 9 4 Remote Live Surveillance Functions of remote configurations include: System Configuration, Video Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. User should firstly select the menu on the left, and then set the relative parameters. When a user set the parameters of a certain device, other users can not set this device.

  • Page 15: Sd Card

    Economy IP Camera User Manual Page 10 4.1.3 SD Card (Availability Depends on Model) 1. Go to “System Configuration” “SD Card” as shown below: The first time you used the SD card, you should click “Format SD card”. Click “Eject card” to stop writing data to SD card. Then the SD card can be ejected safely. ...

  • Page 16: Video Stream

    Economy IP Camera User Manual Page 11 3. Select white balance mode. 4. Wide dynamic, sharpen and denoise are adjustable. 5. You can also set day-night mode and enable the image mirror and image overturn function. 6. Press the “Save” button to save the settings. 4.2.2 Video Stream Go to “Video configuration”...

  • Page 17: Video Mask

    Economy IP Camera User Manual Page 12 4.2.4 Video Mask You can set 4 mask areas at most. To set up video mask 1. Enable video mask and select mask color. 2. Click “Draw” button and then drag the mouse to draw the video mask area. 3.

  • Page 18: Roi Configuration

    Economy IP Camera User Manual Page 13 Clear the video mask: Go to video mask menu and then click “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration To set up ROI 1. Go to ConfigROI Config menu. 2.

  • Page 19: Alarm Configuration

    Economy IP Camera User Manual Page 14 Alarm Configuration Alarm configuration includes three submenus: Motion Detection Area, Motion Detection Trigger and Motion Detection Schedule. 4.3.1 Motion Detection Area 1. Go to “Alarm configuration”  “Motion Detection Area” to see an interface as shown below. 2.

  • Page 20: Motion Detection Schedule

    Economy IP Camera User Manual Page 15 2. Check “Enable alarm” check box. Then motion based alarm is activated. 3. Set alarm holding time. 4. Set alarm trigger options. Trigger Snap: If selected, the system will snap images on an alarm and save them in SD card. Trigger Email: If the email and attach picture checkbox is checked (Email address shall be set first in the Mail config interface), the triggered snap pictures and event will be sent into those address.

  • Page 21: Network Configuration

    Economy IP Camera User Manual Page 16 Network Configuration Network configuration includes eight submenus: Port, Wired, Server Configuration, IP Notify, DDNS Config, RTSP, UPnP, Mail Setting and FTP. 4.4.1 Port 1. Go to “Network config” “Port” to see the interface as shown below. 2.

  • Page 22: Server Configuration

    Economy IP Camera User Manual Page 17 4. PPPoE: User needs to manual input the user name and password for dial-up internet. Firstly, log in IE clients and then enter user name and password of PPPoE, save the setting and exit.

  • Page 23: Ddns Configuration

    Note: DDNS is used to register for a hostname with DDNS username and password. Provision ISR now allows you to use our mint DDNS server in order to create a virtual address for your DVR/NVR/IP-Camera on the internet. Each account is limited to 35 different addresses using your preferred domain name address instead of using IP addresses.
  • Page 24 Economy IP Camera User Manual Page 19 If there is no problem with the domain registration you will see the following message: “Your domain was successfully created.” If you do not see this message, the domain name you requested is already in use and you will be requested to provide an alternate domain name (please note: domain name is sometimes called host name).
  • Page 25 Economy IP Camera User Manual Page 20 Register dialog box Step 1: Fill in the blank of IE address with ‘www.dns2p.com’. Step 2: Click to enter the website. Step 3: Click "New User" in the right of homepage to register. For example: User ID is ‘abc’, and password is ‘123456’.

  • Page 26: Rtsp

    Economy IP Camera User Manual Page 21 after one month, please Step 4: click "Buy Now" in the right of homepage to pay for it. 2. Setup in the IP-CAMERA ⑴ DOMAIN Domain is set in ‘1. Apply the Domain Name’. According to the example above, the domain is ‘WWW.

  • Page 27: Upnp

    Economy IP Camera User Manual Page 22 4.4.7 UPnP Go to “Network Configuration” “UPnP” interface as shown below. Select “Enable UPnP” and then input friendly name. Then double click “Network” icon on the desktop of the PC to see an icon with the friendly name and IP address of the camera.

  • Page 28: Ftp

    Economy IP Camera User Manual Page 23 4.4.9 FTP Go to Network ConfigurationFTP interface as shown below. 1. Add: Click Add button to input FTP server’s server name, address, port number, user name, password, and upload path, click OK to confirm the setting. 2.
  • Page 29 Economy IP Camera User Manual Page 24 User Configuration Add User Note: After binding physical address to the IP-CAM, you can access the device on this PC in network only. If the MAC address is “00:00:00:00:00:00” which means it can be connected to any computers.

  • Page 30: Security Configuration

    Economy IP Camera User Manual Page 25 4.5.2 Security Configuration 1. Go to Advanced ConfigurationSecurity Configuration to see a tab shown below. 2. Check “Enable IP address” check box, select “Deny the following IP address”, input IP address in the IP address list box and click “Add” button. Then this IP address will display in the list box;...

  • Page 31: Reboot Device

    Economy IP Camera User Manual Page 26  Default Configuration Click “Load default” button to restore all system settings to the default status. 4.5.4 Reboot Device Go to Advanced configuration—Reboot device to see an interface as shown below. Click “Reboot device” button to reboot the device. 4.5.5 Upgrade Go to Advanced Configuration—Upgrade interface as shown below.

  • Page 32: Mobile Surveillance

    Economy IP Camera User Manual Page 27 6 Mobile Surveillance This IP-CAM supports mobile surveillance by phones with Windows mobile, iPhone, Android and Blackberry OS. Please check the operation system version of mobile before use; and connect the IP-CAM to Internet. Network Configuration ...
  • Page 33 Economy IP Camera User Manual Page 28 Step2: Search “Provision Cam” and click “Free” button as shown in the figure on the right. Step 3: Click “Install App” button as shown in the figure on the left. Step 4: Input iTunes Store password and then click “OK”.
  • Page 34 Economy IP Camera User Manual Page 29 Server: WAN IP address (or domain name) plus HTTP port of the device. For example: 210.21.183:89 or 123.dvrdydns.com:89. Note: The default http port of the device is 80. If modified, use the modified port. Account and Password: The login account and password of the device.
  • Page 35 Economy IP Camera User Manual Page 30 audio of this channel. ：Open/Close talk. Click this button to pop up the servers which support talk function. Select the device to start talking. ：Set video parameter button. Select the channel and click this button to set the video parameters including brightness, hue, saturation and contrast.
  • Page 36 Economy IP Camera User Manual Page 31 accordance with the channel number of the device Note: The maximum number of channels which can be connected are nine after login. Click “Screen mode” button to select channel as shown in Fig 1. When there is video playing in a screen, you can switch the channel by long pressing the screen as shown in Fig 2.
  • Page 37 Economy IP Camera User Manual Page 32 Fig 4 Fig 5 CMS Function This function makes multi-device managements and preview come true. Step 1: Click to enable CMS function. When this icon turns green, it means this function is enabled. Step 2: Click to choose channel as shown in the right picture.

  • Page 38: By Phones With Android

    Economy IP Camera User Manual Page 33 Enable CMS function and enlighten the group to save the favorite groups as shown in the following picture on the right. Then click button to play. Only one favorite group can be collected. ：Color means the channel or group has been collected.
  • Page 39 Economy IP Camera User Manual Page 34 Step 3: Press “Install” button. Step 4: Install the software subject to the notes. Once the downloading is done, the software will install automatically Login Menu Step 1: Configure the network of your device and mobile phone. Step 2: Input the WAN IP address/domain name and port of your device in the sever column.
  • Page 40 Economy IP Camera User Manual Page 35 Record Playback: Click “Playback” in the main menu interface to enter playback interface. Then choose the channel you want to playback. This will take you to see the record file. Click this file to play.

  • Page 41: Ip-Tool

    Economy IP Camera User Manual Page 36 Modify Server: Click button to modify the server information. Delete Server: Click button to delete the server information. Settings: In the main menu interface, click “Settings” to enter the settings interface where you can configure local settings.
  • Page 42 Economy IP Camera User Manual Page 37 Click the device to check its detail information as shown below: When upgrading the software and kernel, the IP address of PC and device should be at the same network segment. If the network segment is different, user should change the IP address by right clicking the device and then select “network setup”.
  • Page 43 Economy IP Camera User Manual Page 38 After finishing upgrading, a massage box will pop up as below: Click OK button to exit the update dialog box, and then the device will restart automatically. Select the device and right click it to select “Update kernel”. This will bring up a dialog box as below: Input the relevant information and click “Browse”...
  • Page 44 Economy IP Camera User Manual Page 39 After finishing upgrading, a message box will pop up. After a while, the device will restart automatically.
  • Page 45 Economy IP Camera User Manual Page 40 Q & A 1. Q: How to find my password if I forget it? A：Hold and press the default hole with spicula to reset. Default IP: 192.168.226.201 User name: admin Password: 123456 2. Q：Fail to connect devices through IE browser, why? A: Network doesn’t connect well.
  • Page 46 Economy IP Camera User Manual Page 41 Fig 4-1 Fig 4-2 ④ then click ok to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them. 5. Q：No sound can be heard, why? A：Without connect audio input device. Please connect and try again. B: Without enable audio function at the corresponding channel.
