Provision ISR I1-390IPS36 User Manual

S series
Hide thumbs
Table of Contents

Advertisement

Quick Links

(v4.0.2)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I1-390IPS36 and is the answer not in the manual?

Questions and answers

Related Manuals for Provision ISR I1-390IPS36

Summary of Contents for Provision ISR I1-390IPS36

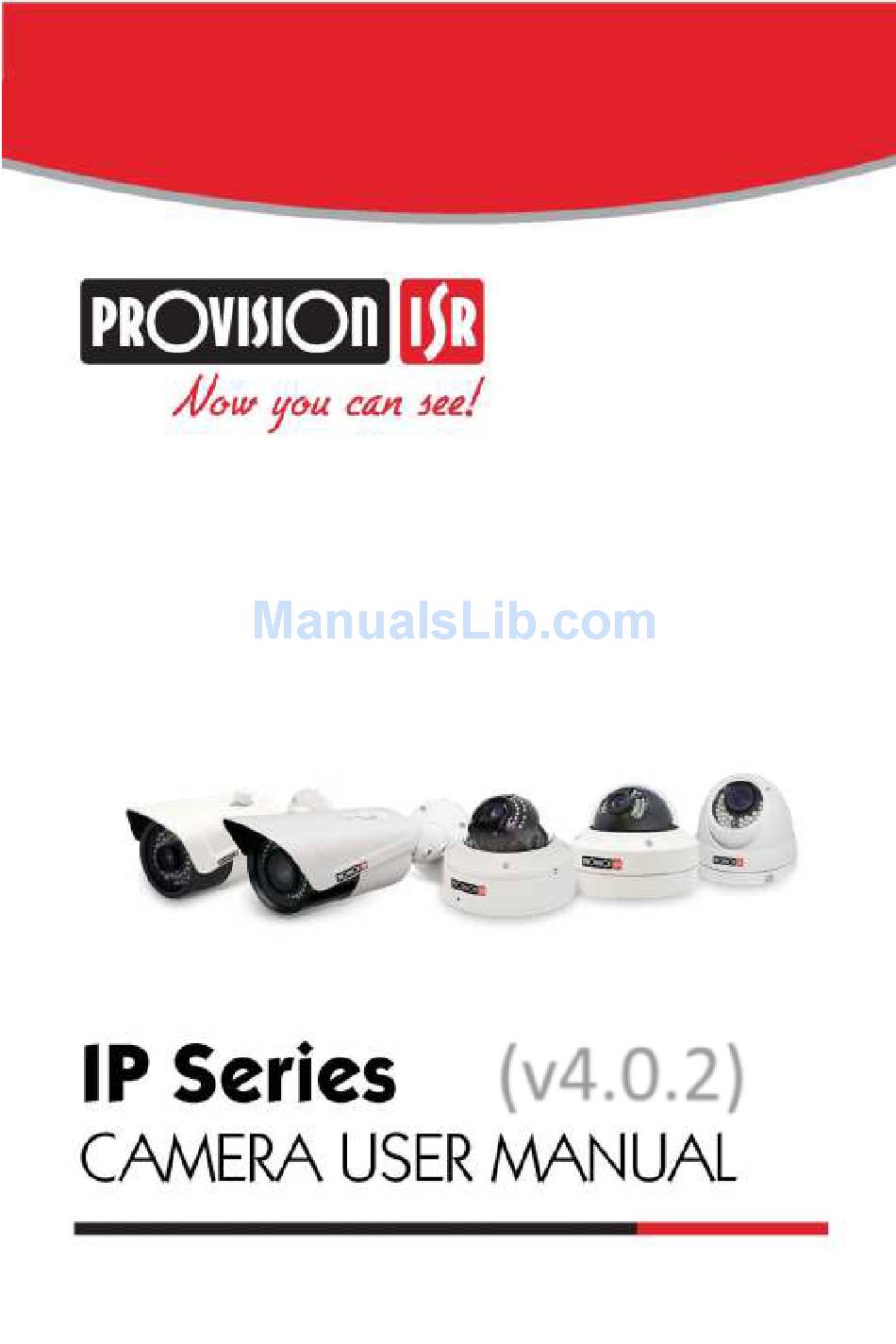

  • Page 1 (v4.0.2)

  • Page 2: User Manual

    PROVISION-ISR All “S” Series IP Cameras I1-390IPS36 DI-390IPS36 I1-330IPS36 DI-330IPS36 User Manual All rights reserved ® Provision-ISR...
  • Page 3 Notes on Safety  Please refer to the technical specs to choose the correct power supply. Do not use power supply with higher/lower rating than specified.  Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove any screws or covers.

  • Page 4: Table Of Contents

    Table of Contents Introduction ........................1 IE Remote Access ......................2 LAN ........................2 2.1.1 Access through IP Manager Software ............. 2 2.1.2 Directly Access through IE ..............4 WAN ......................... 6 Remote Preview ......................8 Remote Live-view Interface................8 Remote Live Surveillance ....................
  • Page 5 IPC “S Series” User Manual Search ........................... 28 Appendix ..........................29 Appendix 1: Q & A ....................... 29...

  • Page 6: Introduction

    IPC “S Series” User Manual 1 Introduction Main Camera Features:  ICR auto switch - true day/night  3D DNR  Digital WDR  ROI coding  Support Smart Phone/Tablet remote monitoring (Android and iOS platforms only) Surveillance Application...

  • Page 7: Ie Remote Access

    IPC “S Series” User Manual 2 IE Remote Access You may connect the IPC via LAN or WAN. This manual will use IE browser (6.0) for example: 2.1 LAN In LAN, there are two ways to access IPC: access through IP Manager Software Directly access through IE browser.
  • Page 8 IPC “S Series” User Manual ③ Modify the IPC’s IP address. The default IP address of this camera is 192.168.226.201. Click on the empty square to “tick” mark the desired IPC from the list (as seen in the below table). Click on “Batch set net”...

  • Page 9: Directly Access Through Ie

    IPC “S Series” User Manual Input the username and password to log in. If you input the wrong password for the first time, you shall wait for 10 seconds and then input the right password.  The default username is “admin”; the default password is “123456”. 2.1.2 Directly Access through IE The default network settings are as shown below: IP address: 192.168.226.201...
  • Page 10 IPC “S Series” User Manual Click on “Properties” and select internet protocol according to the actual situation (for example: IPv4). Next, click “Properties” button to set the network of the PC. ② Open the IE browser, input the default address of the IPC and confirm. For the first use – you will have to install the camera ActiveX plugin.

  • Page 11: Wan

    IPC “S Series” User Manual 2.2 WAN  Access through the router or virtual server ① Make sure the camera is properly connected via LAN and then log in the camera via LAN. Go to ConfigNetwork Port menu and set the port values. ②...
  • Page 12 IPC “S Series” User Manual Router Setup ④ Open the IE browser and input its WAN IP and http port to access. (For example: 192.168.1.201:81)  Access through PPPoE dial-up Network connection You may access the camera through PPPoE auto dial-up. The setting steps are as follow: ①...

  • Page 13: Remote Preview

    IPC “S Series” User Manual  Access through static IP Network connection The setting steps are as follow: ① Go to ConfigNetwork ConfigPort menu to set the port values. ② Go to Config Network ConfigIP Address menu to set the IP address. (Can be done via IP Manager Tool as well).

  • Page 14: Remote Live Surveillance

    IPC “S Series” User Manual The following table shows the interface’s icon descriptions: Icon Description Icon Description Motion alarm indicator Start/stop live view Original size Snap Appropriate size Start/stop record Auto Digital zoom in Full screen Digital zoom out When motion detection alarm is triggered, the motion icon will turn red. ...

  • Page 15: Date & Time

    IPC “S Series” User Manual 4.1.2 Date & Time Go to ConfigSystemDate and Time. You can select the time zone and DST as required. Click “Date and Time” to set the time keeping mode out of 3 options: Synchronize with NTP server – Time keeping by NTP. Synchronize with computer time –...
  • Page 16 IPC “S Series” User Manual Brightness: Set the brightness level. Contrast: Set the color difference between the brightest and darkest parts. Hue: Set the total color degree of the image. Saturation: Set the degree of color purity. The purer the color is, the livelier the image is. WDR: Wide dynamic range brightens the dark areas and darkens the bright areas in order to provide a clear image without burnt pixels.

  • Page 17: Video Stream

    IPC “S Series” User Manual 4.2.2 Video Stream Click on ConfigImageVideo/Audio. In this interface, you can set the resolution, frame rate, bitrate type and video quality. Three video streams can be adjustable. Resolution: The higher the resolution is, the bigger the image is. Frame rate: The higher the frame rate is, the more fluent the video will.

  • Page 18: Osd Configuration

    IPC “S Series” User Manual 4.2.3 OSD Configuration Go to ConfigImageOSD: You may set the time stamp, device name and free OSD here. After enabling the desired display and entering the content, drag it on the live video to set their position. Press the “Save” button to save the settings.

  • Page 19: Roi Configuration

    IPC “S Series” User Manual Clear the video mask: Go to video mask menu and then click “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration To set up ROI 1. Go to Video ConfigROI Config menu. 2.

  • Page 20: Alarm Configuration

    IPC “S Series” User Manual 4.3 Alarm Configuration Alarm configuration includes two submenus: Motion Detection and Alarm Server. 4.3.1 Motion Detection To set motion detection: 1. Go to ConfigAlarmMotion Detection to set motion detection alarm. Mark “Enable Alarm” check box to activate motion based alarm. Choose alarm holding time and set alarm trigger options.
  • Page 21 IPC “S Series” User Manual Move the “Sensitivity” scroll bar to set the sensitivity. Select “Add” and click “Draw” button. Click and drag the mouse on the video area to mark the motion detection area; Select “Erase” and move the mouse to clear motion detection area. Click “Save”...

  • Page 22: Alarm Server

    IPC “S Series” User Manual Week schedule Set the alarm time for each day of the week. Each bar means one day of a week; full length means 24 hours. Red means selected area. Blank means unselected area. “Add”: Add schedule markings. “Erase”: Delete schedule markings.

  • Page 23: Port

    IPC “S Series” User Manual  Use PPPoE: Enter the user name and password provided by your ISP. You can choose either of the network connection. If you use PPPoE to connect, you will get a dynamic WAN IP address. This IP address will change frequently. You may use the function of IP change notification.

  • Page 24: Central Server (Auto Report Server)

    IPC “S Series” User Manual 4.4.3 Central Server (Auto Report Server) This function is mainly used for connecting to network video management systems. 1. Check “Enable”. 2. Check the IP address and port of the CMS’s transfer media server. Enable the auto report in the CMS.

  • Page 25: Snmp

    IPC “S Series” User Manual Create domain name. After you successfully request your domain name, you will see your domain in the list. 3. Input the username, password, domain you apply for in the DDNS configuration interface. 4. Click “Save” button to save the settings. 4.4.5 SNMP To get camera status, parameters and alarm information and remotely manage the camera, you can set the SNMP function.

  • Page 26: Rtsp

    IPC “S Series” User Manual 2. Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2, Enable SNMPv3) according to the version of the SNMP software you download. 3. Set the “Read SNMP Community”, “Write SNMP Community”, “Trap Address”, “Trap Port” and so on.

  • Page 27: Upnp

    IPC “S Series” User Manual 1. Select “Enable”. 2. RTSP Port: Access port of the streaming media. The default number is 554. 3. RTSP Address: Showing the RTSP address you need to input in the media player. 4. Check “Allow anonymous login” to allow RTSP stream without authentication. 4.4.7 UPNP If you enable this function, you can quickly access the camera via LAN and you don’t need to configure port mapping when the camera is connected to the WAN via the router.

  • Page 28: Ftp Setting

    IPC “S Series” User Manual Sender Address: sender’s e-mail address; User name and password: sender’s user name and password; SMTP Address: The SMTP IP address or host name. Select the secure connection type at the pull down list according to the mail server configuration. SMTP Port: The SMTP port.
  • Page 29 IPC “S Series” User Manual Add user: 1. Click “Add” button to open the following box. 2. Input user name in “User Name” box. 3. Input letters and/or numbers in “Password” and “Confirm Password” textbox. 4. Choose the user type. 5.

  • Page 30: Online Video User

    IPC “S Series” User Manual 3. Input old password. 4. Input new password in the “New password” and “Confirm Password” text boxes. 5. Mark “Bind MAC” and input the computer’s MAC address if required. 6. Click “OK” button to modify user’s password. Delete user: 1.

  • Page 31: Maintenance

    IPC “S Series” User Manual Setting steps are as follows: Check “Enable IP address filtering” check box. Select “Block/Allow the following IP address” as desired, input the IP address in the IP address list box and click “Add” button. After you set the IP address or MAC address, the system will block or allow the user as specified.

  • Page 32: Reboot Device

    IPC “S Series” User Manual  Import & Export Setting: You can import or export the setting information from PC or to device. 1. Click “Browse” to select save path for import or export information on PC. 2. Click “Import Setting” or “Export Setting” button. ...
  • Page 33 IPC “S Series” User Manual 5 Search You can play the local video record through the search interface. Before playing, please set the storage path of the video record in the local configuration interface and make sure there are record files. After that, click “Search” tab on the menu toolbar. Choose the date and the start time and end time and then click “Search”...
  • Page 34 IPC “S Series” User Manual Appendix Appendix 1: Q & A Q: How to recover my password if I forget it? A：Reset the device to the default factory settings by using the IP Manager Tool. Default IP: 192.168.226.201 User name: admin Password: 123456 Q: I fail to connect through IE browser, why? A: Network is not well connected.
  • Page 35 IPC “S Series” User Manual ④ Click OK to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please disable it and try again.

This manual is also suitable for:

I1-330ips36Di-390ips36Di-330ips36
