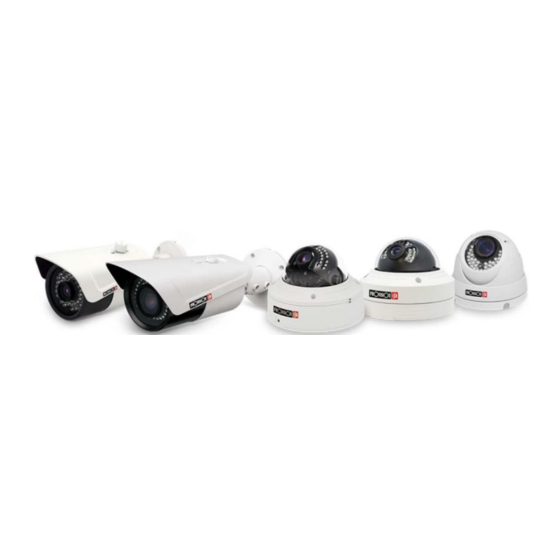

- Page 2 PROVISION-ISR BX-342IP5 340IP5 Series 330IP5 Series 331IP5 Series BX-251IP5 251IP5 Series VF Lens Models (Excludes DI-VF) User Manual IP Camera For H.265 IP Camera All rights reserved...
- Page 3 Notes Before operation, we strongly advise users to read this manual and keep it for later use. Please use the specified power supply to connect. Avoid from incorrect operation, shock vibration, heavy pressing which can cause damage to product. ...
-
Page 4: Table Of Contents
IP CAMERA USER MANUAL Table of Contents Introduction ......................1 IE Remote Access ....................2 LAN ..........................2 2.1.1 Access through IP-Tool ..................2 Directly Access through IE ................. 3 2.1.2 WAN ..........................4 Remote Preview ....................6 The Remote Preview Interface.................... 6 Playback ......................... - Page 5 IP CAMERA USER MANUAL User Configuration ..................26 4.6.1 4.6.2 Security Configuration ..................28 Configure Backup & Restore ................28 4.6.3 4.6.4 Reboot Device ....................29 Upgrade ......................29 4.6.5 Mobile Surveillance ................... 30 Network Configuration....................30 By Phones with iPhone OS ....................30 By Phones with Android .......................
-
Page 6: Introduction
Page 1 IP CAMERA USER MANUAL Introduction This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system more stable and reliable. -
Page 7: Ie Remote Access
Page 2 IP CAMERA USER MANUAL 2 IE Remote Access You may connect IP-Cam via LAN or WAN. Here only take IE browser (6.0) for example. The details are as follows: 2.1 LAN In LAN, there are two ways to access IP-Cam: 1. Access through IP-Tool; 2. Directly access through IE browser. -
Page 8: Directly Access Through Ie
Page 3 IP CAMERA USER MANUAL administrator and click “Modify” button to modify the setting. The default password of the administrator is “123456”. ④ Double click the IP address and then the system will pop up the IE browser to connect IP-CAM. -
Page 9: Wan
Page 4 IP CAMERA USER MANUAL Select “Property” and then select internet protocol according to the actual situation (for example: IPV4). Next, click “Property” button to set the network of the PC. ② Open the IE browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatically. - Page 10 Page 5 IP CAMERA USER MANUAL ② Go to Config Network ConfigIP Address menu to modify the IP address. ③ Go to the router’s management interface through IE browser to forward the IP address and port of the camera in the “Virtual Server”. Port Setup IP Setup Router Setup...
-
Page 11: Remote Preview
Page 6 IP CAMERA USER MANUAL 3 Remote Preview 3.1 The Remote Preview Interface Icon Description Icon Description Motion alarm Sensor alarm indicator icon indicator icon Fix size Start/Stop record Actual size Playback Zoom in Snap Zoom out Talk Full screen Enable audio When motion detection alarm is triggered, the people icon will turn red. -
Page 12: Playback
Page 7 IP CAMERA USER MANUAL view the image from every direction by controlling PTZ panel. The descriptions of the control panel are as follows: Button Description to rotate the dome upwards； to rotate the dome downwards; to rotate the dome towards left; to rotate the dome towards right；... -
Page 13: Snap Pictures
Page 8 IP CAMERA USER MANUAL Forward Zoom in Volume 3.3 Snap Pictures Select the picture number, and then click “Snap” icon as shown below: Single Snap Snap multiple pictures Select the picture number from Frame pull down list box, such as 2, and check “Title” and “Time”... -
Page 14: Remote Live Surveillance
Page 9 IP CAMERA USER MANUAL 4 Remote Live Surveillance Functions of remote configurations include: System Configuration, Video Configuration, PTZ Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. You should firstly select the menu on the left, and then set up the relative parameters. When one user configures parameters of a certain device, other users can not set up this device. -
Page 15: Date & Time Configuration
Page 10 IP CAMERA USER MANUAL 4.1.2 Date & Time Configuration Setting steps: 1. Go to ConfigDate & Time menu as shown below. 2. Set time zone. 3. Enable DST mode as required. 4. Set time. You may set time manually or enable NTP. 4.1.3 SD Card 1. -
Page 16: Camera Configuration
Page 11 IP CAMERA USER MANUAL 4.2.1 Camera Configuration Setting steps: 1. Go to “Video Configuration” “Camera” interface as shown below. 2. You may adjust brightness, contrast, hue and saturation of the picture. 3. Select white balance mode. 4. Wide dynamic, sharpen, and denoise are adjustable. 5. -
Page 17: Osd Configuration
Page 12 IP CAMERA USER MANUAL video resources. This will help to optimize the network bandwidth. Video Quality: When VBR is selected, you need to choose image quality. The higher the image quality you choose, the more bitrate will be required. Bitrate: Please choose it according to the actual network situation. -
Page 18: Roi Configuration
Page 13 IP CAMERA USER MANUAL To set up video mask 1. Enable video mask and select mask color. 2. Click “Draw” button and then drag the mouse to draw the video mask area. 3. Click “Save” button to save the settings. 4. -
Page 19: Ptz Configuration
Page 14 IP CAMERA USER MANUAL 2. Check “Enable” and then click “Draw” button. 3. Drag the mouse to set the ROI area. 4. Set the level. 5. Click “Save” button to save the settings. Now, you will see the selected ROI area is clearer than other areas especially in low bitrate condition. -
Page 20: Preset Configuration
Page 15 IP CAMERA USER MANUAL 2. Input the protocol, address and baud rate according to the speed dome. 4.3.2 Preset Configuration 1. Go to “PTZ Configuration” “Preset” to see an interface as shown below: Button Meanings to rotate the dome upwards; to rotate the dome downwards;... -
Page 21: Alarm Configuration
Page 16 IP CAMERA USER MANUAL 4.4 Alarm Configuration Alarm configuration includes six submenus: Motion Detection Area, Motion Detection Trigger, Motion Detection Schedule, Alarm Input Trigger, Alarm Input Schedule and Alarm Out. 4.4.1 Motion Detection Area 1. Go to “Alarm configuration” “Motion Detection Area” to see an interface as below. 2. -
Page 22: Motion Detection Schedule
Page 17 IP CAMERA USER MANUAL 3. Set alarm holding time. 4. Set alarm trigger options. Alarm Out: If selected, this would trigger the external relay output on detecting a motion based alarm. Trigger Snap: If selected, the system will snap images on an alarm and save them in SD card. Trigger Email: If the email and attach picture checkbox is checked (Email address shall be set first in the Mail config interface), the triggered snap pictures and event will be sent into those address. -
Page 23: Alarm Input Trigger
Page 18 IP CAMERA USER MANUAL 4.4.4 Alarm Input Trigger 1. Enter “Alarm Configuration” “Alarm Input Trigger” to see a screen as shown below: 2. Select the sensor at the “Sensor” pull down list and set the sensor name and alarm type: NO and NC. -
Page 24: Alarm Out
Page 19 IP CAMERA USER MANUAL 1. Select the sensor. 2. The following setup steps are similar to Motion Detection Schedule’s. Please refer to Motion Detection Schedule chapter for more details. 4.4.6 Alarm Out 1. Go to “Alarm configuration” “Alarm output” as shown below: 2. -
Page 25: Server Configuration
Page 20 IP CAMERA USER MANUAL device. 4. PPPoE: User needs to manual input the user name and password for dial-up internet. Firstly, log in IE clients and then enter user name and password of PPPoE, save the setting and exit. Secondly, set up IP address change notice. Thirdly, connect with Modem. Then the device will dial up internet automatically. -
Page 26: Ddns Configuration
Note: DDNS is used to register for a hostname with DDNS username and password. Provision ISR now allows you to use our mint DDNS server in order to create a virtual address for your DVR/NVR/IP-Camera on the internet. Each account is limited to 35 different addresses using your preferred domain name address instead of using IP addresses. - Page 27 Page 22 IP CAMERA USER MANUAL If there is no problem with the domain registration you will see the following message: “Your domain was successfully created.” If you do not see this message, the domain name you requested is already in use and you will be requested to provide an alternate domain name (please note: domain name is sometimes called host name).
- Page 28 Page 23 IP CAMERA USER MANUAL Password Log in the website of domain name supplier 1. Apply the Domain Name (Take dns2p for example) Register in the Web Register dialog box Step 1: Fill in the blank of IE address with ‘www.dns2p.com’. Step 2: Click to enter the website.
-
Page 29: Rtsp
Page 24 IP CAMERA USER MANUAL Step 2: Input the domain in the textbox. For example, you set ‘IP-CAMERA’ as the domain. Step 3: Click "Submit" button, the system will pop up a dialog box to show that the domain is added successfully. -
Page 30: Upnp
Page 25 IP CAMERA USER MANUAL 2. RTSP Port: Access Port of the streaming media. The default number is 554. 3. RTSP Address: The RTSP address you need to input in the media player. 4. You can also choose to enable anonymous viewer login. 4.5.7 UPnP Go to “Network Configuration”... -
Page 31: Ftp
Page 26 IP CAMERA USER MANUAL to your mail box for notifying a new IP address. 4.5.9 FTP Go to Network ConfigurationFTP interface as shown below. 1. Add: Click Add button to input FTP server’s server name, address, port number, user name, password, and upload path, click OK to confirm the setting. - Page 32 Page 27 IP CAMERA USER MANUAL User Configuration Add User Note: After binding physical address to the IP-CAM, you can access the device on this PC in network only. If the MAC address was “00:00:00:00:00:00” which means it can be connected to any computers.
-
Page 33: Security Configuration
Page 28 IP CAMERA USER MANUAL Parameter Meaning User Name User name to operate the logon client end User Type Type of users, normal user, advanced user and super administrator The MAC addresses of user access the server which should set up Binding MAC address according to actual MAC address of server. -
Page 34: Reboot Device
Page 29 IP CAMERA USER MANUAL You can import or export the setting information from PC or to device. 1. Click “Browse” to select save path for import or export information on PC. 2. You can import or export all setting information to PC, but those two settings “User Configuration”... -
Page 35: Mobile Surveillance
Page 30 IP CAMERA USER MANUAL 5 Mobile Surveillance This IP-CAM supports mobile surveillance by phones with Windows mobile, iPhone, Android and Blackberry OS. Please check the operation system version of mobile before use; and connect the IP-CAM to Internet. 5.1 Network Configuration ... - Page 36 Page 31 IP CAMERA USER MANUAL figure on the left. Step2: Search “Provision Cam” and click “Free” button as shown in the figure on the right. Step 3: Click “Install App” button as shown in the figure on the left. Step 4: Input iTunes Store password and then click “OK”.
- Page 37 Page 32 IP CAMERA USER MANUAL 3G, normal video quality compared to the former network type. Step 2: Input server, account and password. Server: WAN IP address (or domain name) plus HTTP port of the device. For example: 210.21.183:89 or 123.dvrdydns.com:89. Note: The default http port of the device is 80.
- Page 38 Page 33 IP CAMERA USER MANUAL ： Open/Close audio. Choose the channel and click this button to open/close the audio of this channel. ：Open/Close talk. Click this button to pop up the servers which support talk function. Select the device to start talking. ：Set video parameter button.
- Page 39 Page 34 IP CAMERA USER MANUAL Live Preview Once you access the device, the system will automatically display the screen mode in accordance with the channel number of the device Note: The maximum number of channels which can be connected are nine after login.
- Page 40 Page 35 IP CAMERA USER MANUAL Fig 4 Fig 5 CMS Function This function makes multi-device managements and preview come true. Step 1: Click to enable CMS function. When this icon turns green, it means this function is enabled. Step 2: Click to choose channel as shown in the right picture.
-
Page 41: By Phones With Android
Page 36 IP CAMERA USER MANUAL Enable CMS function and enlighten the group to save the favorite groups as shown in the following picture on the right. Then click button to play. Only one favorite group can be collected. ：Color means the channel or group has been collected. Grey means the channel or group isn’t collected. - Page 42 Page 37 IP CAMERA USER MANUAL Step 3: Press “Install” button. Step 4: Install the software subject to the notes. Once the downloading is done, the software will install automatically Login Menu Step 1: Configure the network of your device and mobile phone. Step 2: Input the WAN IP address/domain name and port of your device in the sever column.
- Page 43 Page 38 IP CAMERA USER MANUAL Record Playback: Click “Playback” in the main menu interface to enter playback interface. Then choose the channel you want to playback. This will take you to see the record file. Click this file to play. Pause/Play Stop Forward...
-
Page 44: Ip-Tool
Page 39 IP CAMERA USER MANUAL this interface, you can set favorite channel and storage. Favorite Channel: Check the favorite channels and click “Save” button to save these channels. Then go into live interface and click button to play these favorite channels. Storage: Setup the relevant parameters of mobile video. - Page 45 Page 40 IP CAMERA USER MANUAL When upgrading the software and kernel, the IP address of PC and device should be at the same network segment. If the network segment is different, user should change the IP address by right clicking the device and then select “network setup”. Modify IP address dialog box will appear as follows: Modify IP address and click OK button to exit the dialog box.
- Page 46 Page 41 IP CAMERA USER MANUAL After finishing upgrading, a massage box will pop up as below: Click OK button to exit the update dialog box, and then the device will restart automatically. Select the device and right click it to select “Update kernel”. This will bring up a dialog box as below: Input the relevant information and click “Browse”...
- Page 47 Page 42 IP CAMERA USER MANUAL 7 Q & A 1. Q: How to find my password if I forget it? A：Hold and press the default hole with spicula to reset. Default IP: 192.168.226.201 User name: admin Password: 123456 2. Q：Fail to connect devices through IE browser, why? A: Network doesn’t connect well.
- Page 48 Page 43 IP CAMERA USER MANUAL Fig 4-1 Fig 4-2 ④ then click ok to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them. 5. Q：No sound can be heard, why? A：Without connect audio input device. Please connect and try again. B: Without enable audio function at the corresponding channel.
