Page 2: User Manual

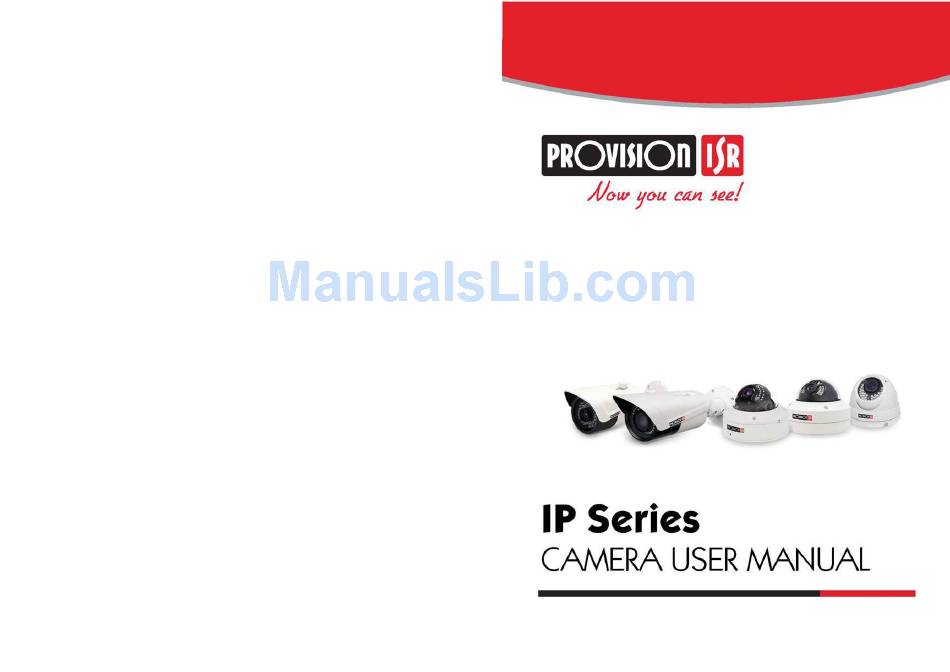

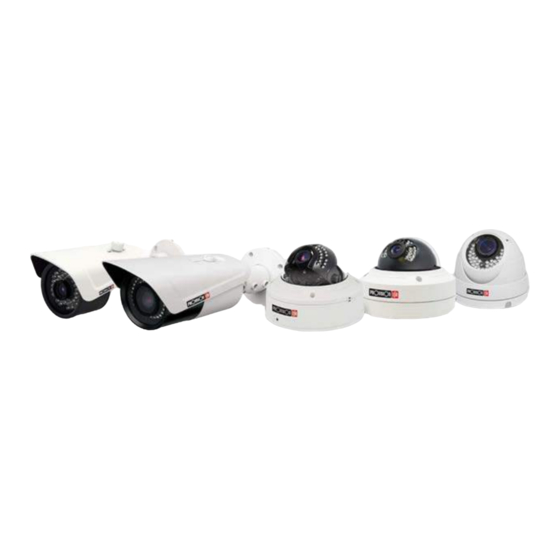

PROVISION-ISR DAI-310IP04 I3-310IP04 DI-310IPVF DAI-390IP04 I3-390IP04 DI-390IPVF DAI-390IP04 I3-390IP04 DI-390IPVF User Manual IP Camera For H.264 IP Camera All rights reserved... - Page 3 Do not operate the camera in extreme temperatures or extreme humidity conditions. Use the power supply supplied authorized by a PROVISION-ISR technician. Keep away from heat sources such as radiators, heat registers, stove, etc.
-
Page 4: Table Of Contents
IP CAMERA USER MANUAL Table of Contents Introduction ......................1 IE Remote Access ....................2 LAN ........................... 2 2.1.1 Access through IP-Tool ..................2 Directly Access through IE ..................3 2.1.2 ... - Page 5 IP CAMERA USER MANUAL By Phones with iPhone OS ....................27 By Phones with Android ........................33 IP-Tool ....................... 36 Q & A ........................ 39 ...
-
Page 6: Introduction
Page 1 IP CAMERA USER MANUAL Introduction This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system more stable and reliable. -
Page 7: Ie Remote Access
Page 2 IP CAMERA USER MANUAL 2 IE Remote Access You may connect IP-Cam via LAN or WAN. Here only take IE browser (6.0) for example. The details are as follows: 2.1 LAN In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access through IE browser. -
Page 8: Directly Access Through Ie
Page 3 IP CAMERA USER MANUAL administrator and click “Modify” button to modify the setting. The default password of the administrator is “123456”. ④ Double click the IP address and then the system will pop up the IE browser to connect IP-CAM. -
Page 9: Wan
Page 4 IP CAMERA USER MANUAL Select “Property” and then select internet protocol according to the actual situation (for example: IPV4). Next, click “Property” button to set the network of the PC. ② Open the IE browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatically. - Page 10 Page 5 IP CAMERA USER MANUAL ② Go to Config Network ConfigWired menu to modify the IP address. ③ Go to the router’s management interface through IE browser to forward the IP address and port of the camera in the “Virtual Server”. Port Setup IP Setup Router Setup...
-
Page 11: Remote Preview
Page 6 IP CAMERA USER MANUAL 3 Remote Preview 3.1 The Remote Preview Interface People icon Full screen Fix size Start recording Actual size Playback Zoom in Snap Zoom out Enable audio When motion detection alarm is triggered, the people icon will turn red. ... -
Page 12: Playback
Page 7 IP CAMERA USER MANUAL 3.2 Playback Before you play the record files, please make sure you have recorded. You may click button to record. Then click button to pop up a video player. Double click the record file to play the video as shown below. - Page 13 Page 8 IP CAMERA USER MANUAL Snap multiple pictures Select the picture number from Frame pull down list box, such as 2, and check “Title” and “Time” to show capture title and time on the snap pictures simultaneously. Multi-picture Snap...
-
Page 14: Remote Live Surveillance
Page 9 IP CAMERA USER MANUAL 4 Remote Live Surveillance Functions of remote configurations include: System Configuration, Video Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. You should firstly select the menu on the left, and then set up the relative parameters. When one user configures parameters of a certain device, other users can not set up this device. -
Page 15: Video Configuration
Page 10 IP CAMERA USER MANUAL 2. Set time zone. 3. Enable DST mode as required. 4. Set time. You may set time manually or enable NTP. 4.2 Video Configuration Camera Configuration includes five submenus: Camera Configuration, Video Stream, OSD Config, Video Mask and ROI Config. -
Page 16: Video Stream
Page 11 IP CAMERA USER MANUAL 4.2.2 Video Stream Go to “Video configuration” “Video Stream” to see an interface as shown below. Three video streams can be adjustable. Resolution: The higher the resolution is, the clearer the image is. Frame rate: The higher the frame rate is, the more fluency the video is. -
Page 17: Video Mask
Page 12 IP CAMERA USER MANUAL You may set time stamp, device name and custom OSD here. Drag the time stamp and custom OSD to set their position. Then press the “Save” button to save the settings. 4.2.4 Video Mask You can set 4 mask areas at most. -
Page 18: Roi Configuration
Page 13 IP CAMERA USER MANUAL Clear the video mask: Go to video mask menu and then click “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration To set up ROI 1. Go to ConfigROI Config menu. 2. -
Page 19: Alarm Configuration
Page 14 IP CAMERA USER MANUAL 4.3 Alarm Configuration Alarm configuration includes three submenus: Motion Detection Area, Motion Detection Trigger and Motion Detection Schedule. 4.3.1 Motion Detection Area 1. Go to “Alarm configuration” “Motion Detection Area” to see an interface as below. ... -
Page 20: Motion Detection Schedule
Page 15 IP CAMERA USER MANUAL 4.3.3 Motion Detection Schedule Go to “Alarm configuration” “Motion Detection schedule” interface as shown below. Week schedule User could set the alarm time from Monday to Sunday for alarm everyday in one week. Add: Add the schedule for a special day. -
Page 21: Network Configuration
Page 16 IP CAMERA USER MANUAL that day. Press the “Save” button to save the settings. Note: Holiday schedule is prior to Week schedule. 4.4 Network Configuration Network configuration includes eight submenus: Port, IP Address, Server Configuration, IP Notify, DDNS Config, RTSP, UPNP, Mail Setting and FTP. 4.4.1 Port 1. -
Page 22: Server Configuration
Page 17 IP CAMERA USER MANUAL 2. There are two options for IP setup: obtain an IP address auto by DHCP protocol and use the following IP address. You may choose one of options as required. 3. Use the following IP address: display the IP address, subnet mask, gateway and DNS of the device. -
Page 23: Ddns Configuration
IP addresses. Follow the steps below to register your DVR's name and to configure your DVR to use Provision ISR's Mint DDNS server. (a) To register a domain with Provision-ISR DDNS server follow these steps: Visit our website: http://provision-isr-dns.com and register for a domain name by clicking "Registration"... - Page 24 The domain name is added at the beginning of your DVR's address, for example the domain "home" will appear as home.provision-isr-dns.com. 1. Enter into "Network Configuration""DDNS Configuration" tab as below: Note: The steps to band a domain name for video surveillance server are as follows.
- Page 25 Page 20 IP CAMERA USER MANUAL Register dialog box Step 1: Fill in the blank of IE address with ‘www.dns2p.com’. Step 2: Click to enter the website. Step 3: Click "New User" in the right of homepage to register. For example: User ID is ‘abc’, and password is ‘123456’.
-
Page 26: Rtsp
Page 21 IP CAMERA USER MANUAL 2. Setup in the IP-CAMERA ⑴ DOMAIN Domain is set in ‘1. Apply the Domain Name’. According to the example above, the domain is ‘WWW. IP-CAMERA.dns2p.com’. ⑵ USER ID Username of registered which is set in ‘(1 Register in the Web’. -
Page 27: Mail Setting
Page 22 IP CAMERA USER MANUAL Select “Enable UPNP” and then input friendly name. Then double click “Network” icon on the desktop of the PC to see an icon with the friendly name and IP address of the camera. You may quickly access the device by double clicking this icon. -
Page 28: Advanced Configuration
Page 23 IP CAMERA USER MANUAL 1. Add: Click Add button to input FTP server’s server name, address, port number, user name, password, and upload path, click OK to confirm the setting. 2. Modify：Click this button to change some information of the FTP server. 3. - Page 29 Page 24 IP CAMERA USER MANUAL User Configuration Add User Note: After binding physical address to the IP-CAM, you can access the device on this PC in network only. If the MAC address was “00:00:00:00:00:00” which means it can be connected to any computers.
-
Page 30: Security Configuration
Page 25 IP CAMERA USER MANUAL Note: The default super administrator cannot be deleted. Parameter Meaning User Name User name to operate the logon client end User Type Type of users, normal user, advanced user and super administrator The MAC addresses of user access the server which should set up Binding MAC address according to actual MAC address of server. -
Page 31: Reboot Device
Page 26 IP CAMERA USER MANUAL You can import or export the setting information from PC or to device. 1. Click “Browse” to select save path for import or export information on PC. 2. You can import or export all setting information to PC, but those two settings “User Configuration”... -
Page 32: Mobile Surveillance
Page 27 IP CAMERA USER MANUAL 5 Mobile Surveillance This IP-CAM supports mobile surveillance by phones with Windows mobile, iPhone, Android and Blackberry OS. Please check the operation system version of mobile before use; and connect the IP-CAM to Internet. 5.1 Network Configuration ... - Page 33 Page 28 IP CAMERA USER MANUAL figure on the left. Step2: Search “Provision Cam” and click “Free” button as shown in the figure on the right. Step 3: Click “Install App” button as shown in the figure on the left. Step 4: Input iTunes Store password and then click “OK”.
- Page 34 Page 29 IP CAMERA USER MANUAL 3G, normal video quality compared to the former network type. Step 2: Input server, account and password. Server: WAN IP address (or domain name) plus HTTP port of the device. For example: 210.21.183:89 or 123.dvrdydns.com:89. Note: The default http port of the device is 80.
- Page 35 Page 30 IP CAMERA USER MANUAL ： Open/Close audio. Choose the channel and click this button to open/close the audio of this channel. ：Open/Close talk. Click this button to pop up the servers which support talk function. Select the device to start talking. ：Set video parameter button.
- Page 36 Page 31 IP CAMERA USER MANUAL Live Preview Once you access the device, the system will automatically display the screen mode in accordance with the channel number of the device Note: The maximum number of channels which can be connected are nine after login.
- Page 37 Page 32 IP CAMERA USER MANUAL Fig 4 Fig 5 CMS Function This function makes multi-device managements and preview come true. Step 1: Click to enable CMS function. When this icon turns green, it means this function is enabled. Step 2: Click to choose channel as shown in the right picture.
-
Page 38: By Phones With Android
Page 33 IP CAMERA USER MANUAL Enable CMS function and enlighten the group to save the favorite groups as shown in the following picture on the right. Then click button to play. Only one favorite group can be collected. ：Color means the channel or group has been collected. Grey means the channel or group isn’t collected. - Page 39 Page 34 IP CAMERA USER MANUAL Step 3: Press “Install” button. Step 4: Install the software subject to the notes. Once the downloading is done, the software will install automatically Login Menu Step 1: Configure the network of your device mobile phone.
- Page 40 Page 35 IP CAMERA USER MANUAL Record Playback: Click “Playback” in the main menu interface to enter playback interface. Then choose the channel you want to playback. This will take you to see the record file. Click this file to play. Pause/Play Stop Forward...
-
Page 41: Ip-Tool
Page 36 IP CAMERA USER MANUAL channel and storage. Favorite Channel: Check the favorite channels and click “Save” button to save these channels. Then go into live interface and click button to play these favorite channels. Storage: Setup the relevant parameters of mobile video. Information View: view the DVR/NVR basic information as shown in the picture on the right. - Page 42 Page 37 IP CAMERA USER MANUAL When upgrading the software and kernel, the IP address of PC and device should be at the same network segment. If the network segment is different, user should change the IP address by right clicking the device and then select “network setup”. Modify IP address dialog box will appear as follows: Modify IP address and click OK button to exit the dialog box.
- Page 43 Page 38 IP CAMERA USER MANUAL After finishing upgrading, a massage box will pop up as below: Click OK button to exit the update dialog box, and then the device will restart automatically. Select the device and right click it to select “Update kernel”. This will bring up a dialog box as below: Input the relevant information and click “Browse”...
- Page 44 Page 39 IP CAMERA USER MANUAL 7 Q & A 1. Q: How to find my password if I forget it? A：Hold and press the default hole with spicula to reset. Default IP: 192.168.226.201 User name: admin Password: 123456 2. Q：Fail to connect devices through IE browser, why? A: Network doesn’t connect well.
- Page 45 Page 40 IP CAMERA USER MANUAL Fig 4-1 Fig 4-2 ④ then click ok to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them. 5. Q：No sound can be heard, why? A：Without connect audio input device. Please connect and try again. B: Without enable audio function at the corresponding channel.
