HMS Sequence Editor

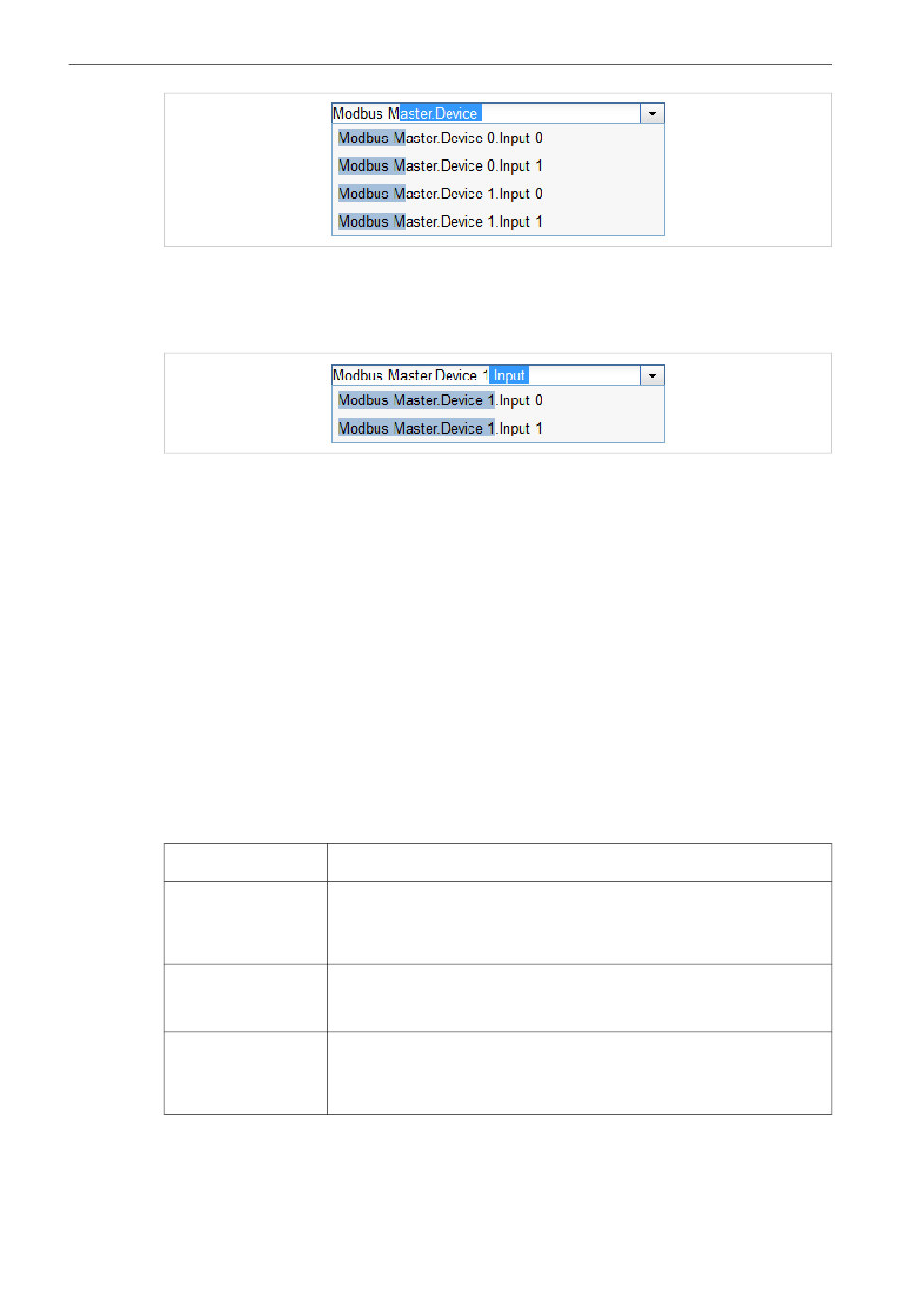

Fig. 11 Selection of an input – step 2
When you accept the completed text and supplement it to "Modbus Master.Device 1", the list
will only show values of the second device and the text will be auto-completed to
"Modbus Master.Device 1.Input ".
Fig. 12 Selection of an input – step 3
Now you can select one of the input values.
3.3.2

Edit, Delete Discard Mappings

Use the corresponding buttons in the toolbar to edit or delete a mapping or to discard the whole
mapping table.
3.3.3

Limits

A maximum of 9216 I/O mappings can be added. That is enough to map all outputs and all
variables.
3.4

Program Settings

By clicking the Program settings button in the toolbar, a dialog can be opened through which you
can change the following program settings:
Diagram description
Cycle time
Treat all numerical I/O
values on the diagram as
32-bit signed integers
Use timestamps with
seconds resolution instead
of microseconds resolution
(32-bit instead of 64-bit)
Anybus Edge Gateway Reference Guide
Here you can enter a description for the diagram. The description can consist of up to
1024 printable ASCII characters and line breaks.
Here you can configure the cycle time with which the PLC will run while executing the
program. The cycle time can be configured between 10 and 1000 ms. Greater values
allow for more complex programs, i.e. more diagram elements and I/O mappings. If the
cycle time can not be maintained, a message will be emitted to the
you may either increase the cycle time or reduce the complexity of the program.
Before version 8.2.0 all I/O values were treated as 32-bit signed integer numbers by the
diagram. For backward compatibility this checkbox can be used to mimic this behavior for
all numerical data types. For programs created with older versions this checkbox is
checked automatically, but it can be unchecked.
Before version 19.1.0 timestamps in UNIX timestamp format (32-bit, seconds since 1970-
01-01 00:00:00) were used. For backward compatibility this checkbox can be used to
mimic this behavior. This effects the Local Clock, UTC Clock, String to TS and TS to String
unit as well as the I/O elements. For programs created with older versions this checkbox
is checked automatically, but it can be unchecked.
22 (148)
Event Log. In this case
