Diagnostics

5 Diagnostics
On the diagnostics page you can check the correct function of the device or get additional
information in case of a malfunction.

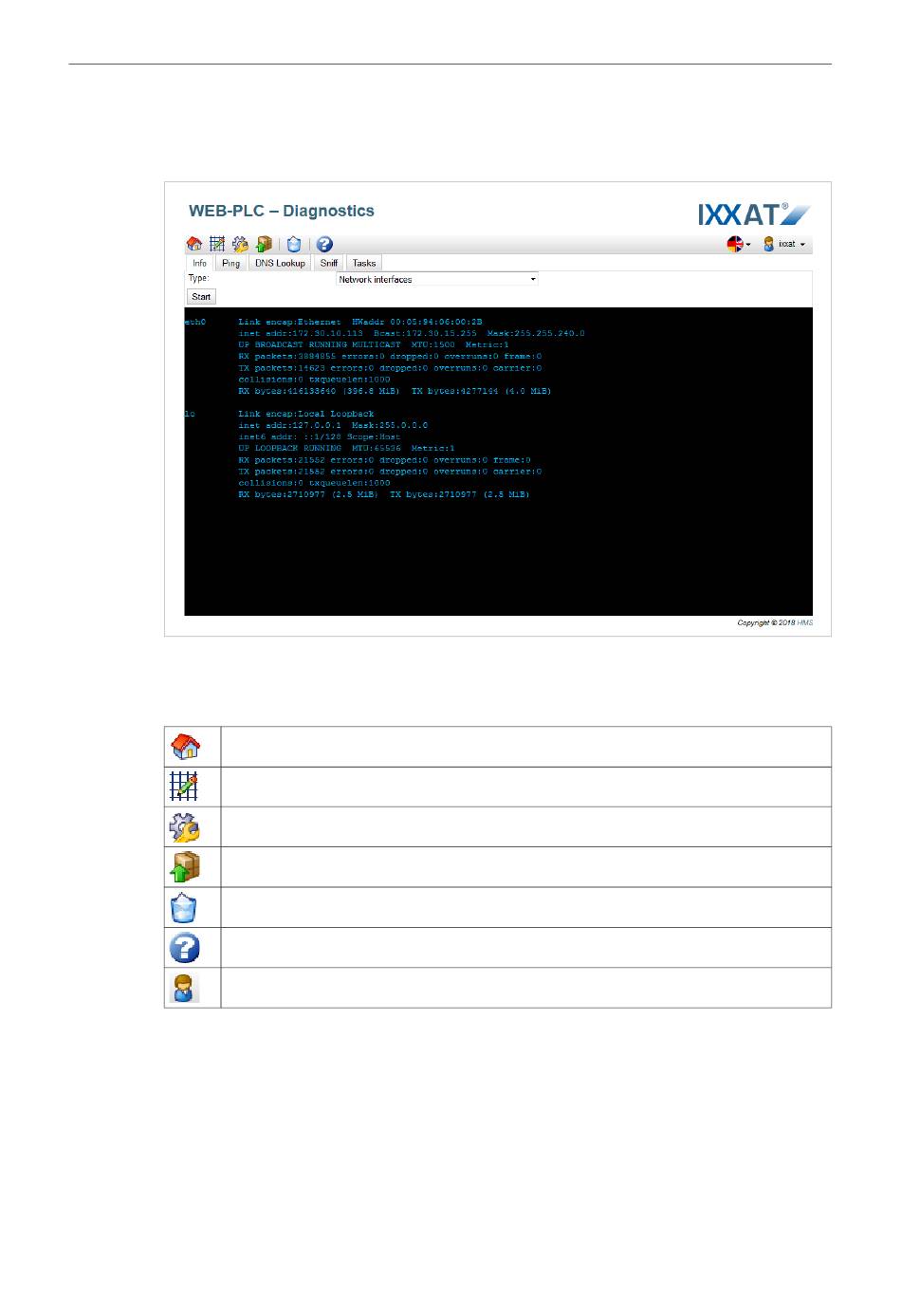

Fig. 19 Screenshot of the diagnostics page
At the top of the page there is a toolbar. In the following the toolbar's buttons will be described
in detail.
Closes the diagnostics page and opens the home page.
Closes the diagnostics page and opens the HMS Hub editor.
Closes the diagnostics page and opens the settings page.
Closes the diagnostics page and opens the update page.
Clears the contents of the console.
Opens the help system in a new window.
Login button
Below the toolbar you'll find the diagnostics console.
5.1

Diagnostics Console

The Diagnostics console provides different commands that can be used to check the correct
function of the device or to get additional information in case of a malfunction.
The commands can be selected and started via a tabbed control. Below there is the actual
console where all commands emit their outputs.
