US Robotics Instant802 APSDK Administrator's Manual page 114

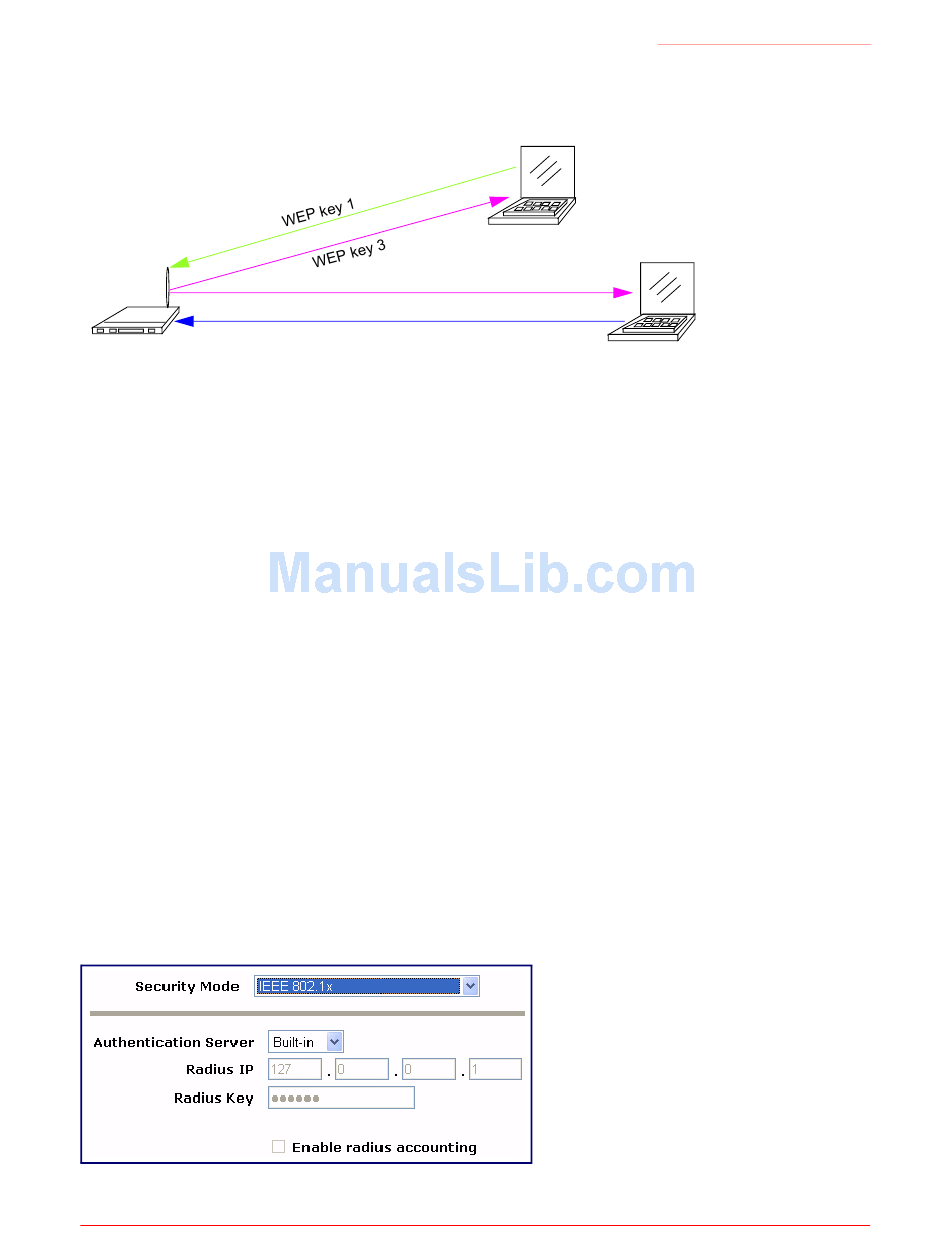

Figure 9. Example of Using Multiple WEP Keys and Transfer Key Index on Client Devices
Access Point transmits to both stations with WEP key 3
IEEE 802.1x
IEEE 802.1x is the standard that defines port-based authentication and provides a framework for
implementing key management. Extensible Authentication Protocol (EAP) packets are sent over an
802.11 wireless network using a protocol called EAP Encapsulation Over LANs (EAPOL). IEEE 802.1x
provides dynamically-generated keys that are periodically refreshed. An RC4 stream cipher is used to
encrypt the frame body and cyclic redundancy checking (CRC) of each 802.11 frame.
The IEEE 802.1x security mode requires the use of a
configuration of user accounts via the Cluster menu's User Management page.
The access point requires a RADIUS server capable of EAP, such as the Microsoft Internet Authentication
Server or the Professional Access Point internal authentication server. To work with Windows clients, the
authentication server must support Protected EAP (PEAP) and
When configuring IEEE 802.1x mode, you can use either the embedded RADIUS server or an external
RADIUS server that you provide. The Professional Access Point embedded RADIUS server supports
Protected EAP (PEAP) and MSCHAP V2.
If you use your own RADIUS server, you can use any of a variety of authentication methods that the IEEE
802.1x mode supports, including certificates, Kerberos, and public key authentication. Keep in mind,
however, that the clients must be configured to use the same authentication method being used by the
access point.
IEEE 802.1x
If you select Security Mode, you must provide the following:
can decrypt WEP key 3
transmits in WEP key 1
Client Station 1
WEP key 3
WEP key 2
Client Station 2
RADIUS server to authenticate users and requires
MSCHAP
Professional Access Point
Administrator Guide
can decrypt WEP key 3
transmits in WEP key 2
V2.
Security - 114
IEEE
