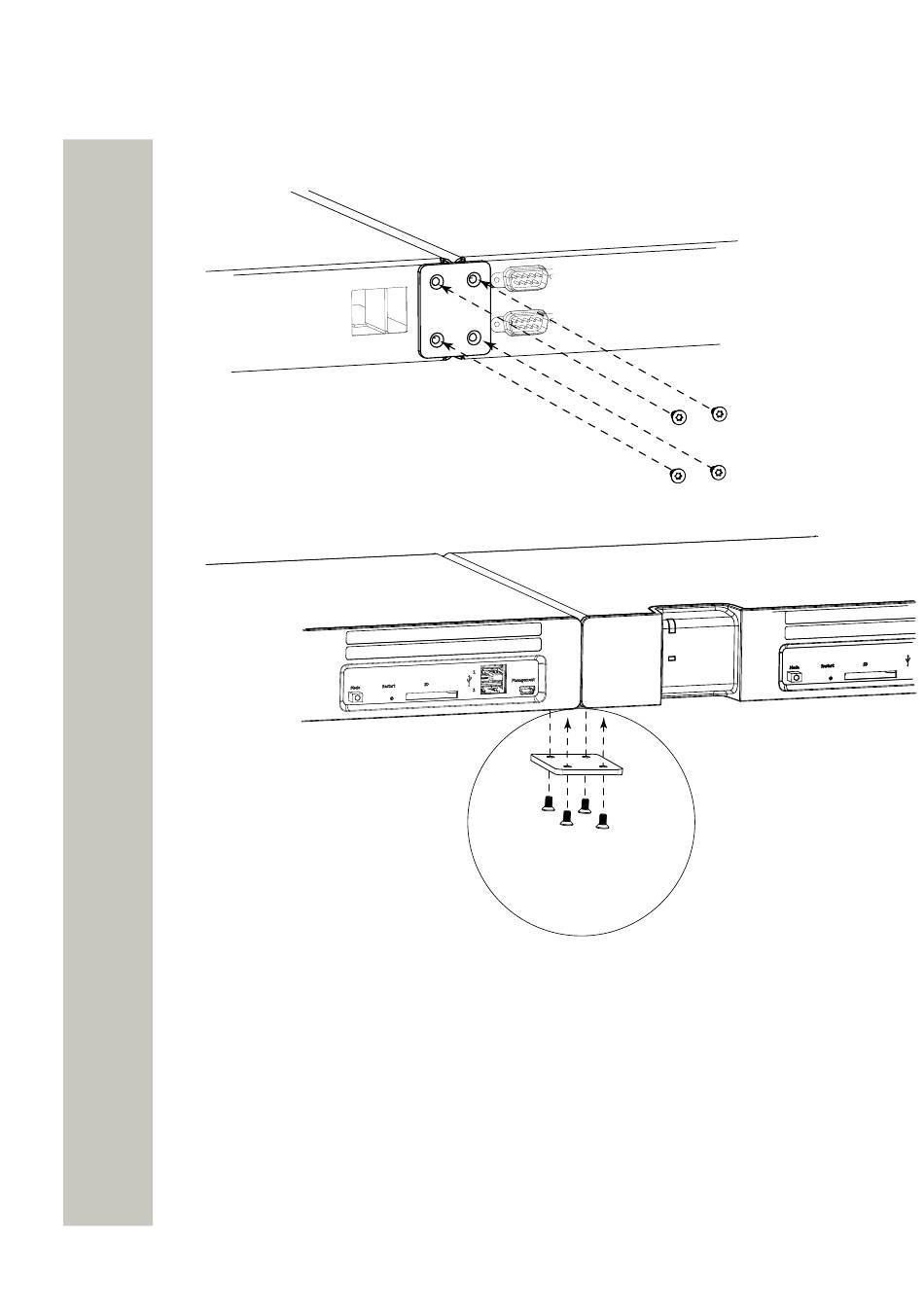

1) Use the supplied assembly brackets and fasten the two modules together, both on the rear
side and on the bottom side, as shown in the two figures below.
Figure 7: Front mounted double
Figure 8: Front mounted double
2) Use the two small standard assembly brackets and fasten one on the right front side and the
other on the left front side.
A31003-M2000-J109-01-7631, 30/06/2020
Wireless Service Gateway WSG, Installation Guide
Installation and Configuration
17
