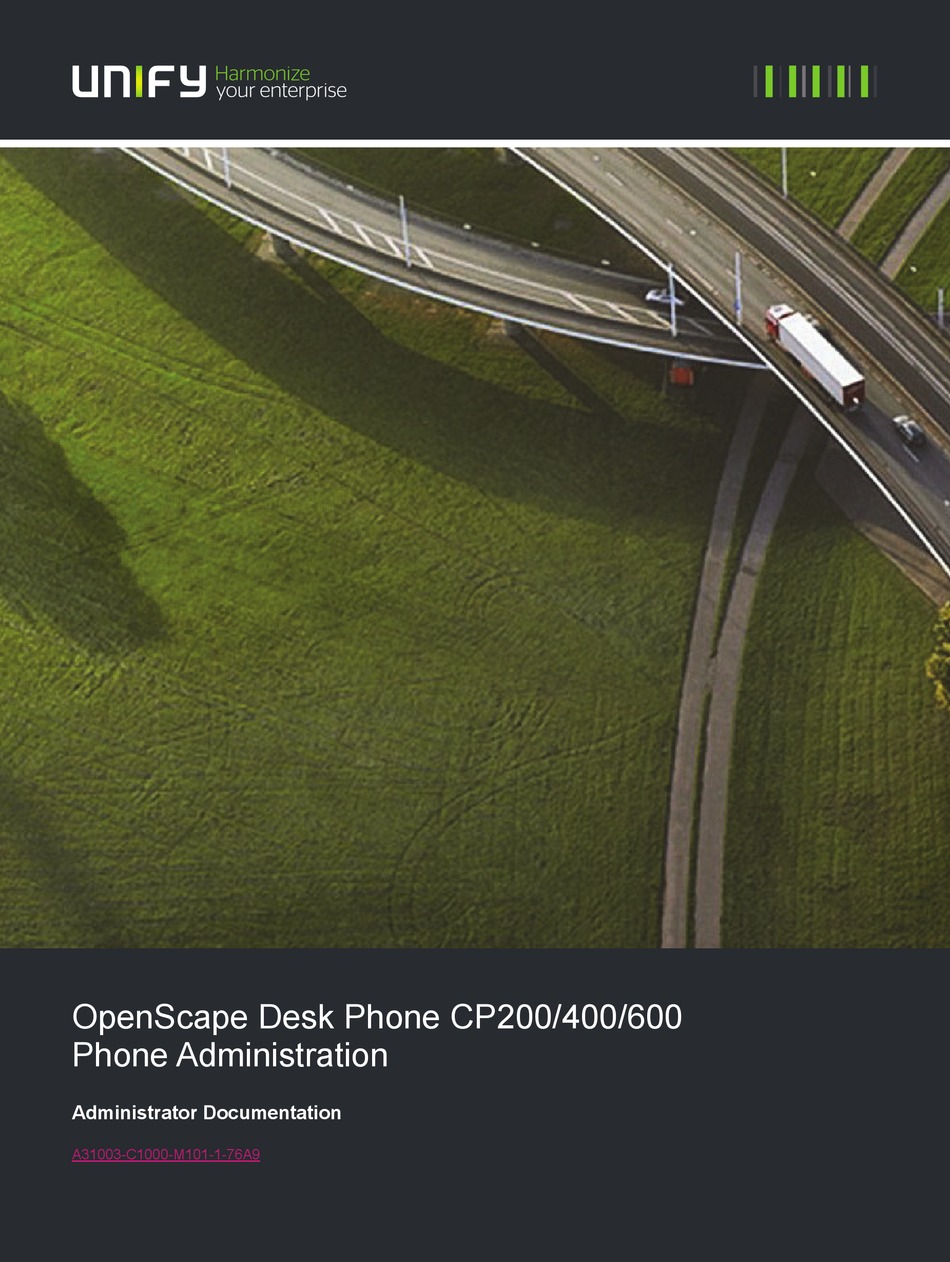

Page 1 OpenScape Desk Phone CP200/400/600  Phone Administration Administrator Documentation A31003-C1000-M101-1-76A9...
Page 2 ISO9001 and ISO14001 standards and are certified by an external certification company.  Copyright © Unify Software and Solutions GmbH & Co. KG 03/2016  Mies-van-der-Rohe-Str. 6, 80807 München/Deutschland All rights reserved. Reference No.: A31003-C1000-M101-1-76A9 The information provided in this document contains merely general descriptions or characteristics of performance which in case of actual use do not always apply as ...
Page 3: Table Of Contents
1.6.3 OpenScape Desk Phone CP200........
Page 4 3.6.3 Energy Saving ........... 3-90 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 5 3.6.3.1 Backlight Time Setting (OpenScape Desk Phone CP600 only) ..3-90 3.6.3.2 Energy Efficient Ethernet (OpenScape Desk Phone CP200 only) ..3-91 3.6.4 Call logging ........... . . 3-92 3.6.4.1 Logging of Missed Calls (via User menu) .
Page 6 3.9.34 Start Phonebooks ..........3-167 3.9.35 Show phone screen (OpenScape Desk Phone CP200 only) ....3-167 3.9.36 Release .
Page 7 Nur für den internen Gebrauch 3.10 Fixed Function Keys on OpenScape Desk Phone CP200....3-168 3.11 Multiline Appearance/Keyset ......... 3-169 3.11.1 Line Key Configuration .
Page 8 3.24.10.17 Sidecar..........3-263 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 9 Index ..............1-1 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 10: Overview
Consult the dealer or an experienced radio/TV technician for help. This product is a UL Listed Accessory, I.T.E., in U.S.A. and Canada. This equipment also complies with the Part 68 of the FCC Rules and the Industrie Canada CS-03. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 11: Maintenance Notes
Unify Expert WIKI at http://wiki.unify.com under the section “Declarations of Conformity”.
Page 12: Conventions For This Document
"/". For the parameters described in this document, a WBM screenshot and the path in the local phone menu is provided. This document describes the software version V3R4. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 13: The Openscape Desk Phone Cp Family
The OpenScape Desk Phone CP phone family comprises the following devices. • Section 1.6.1, “OpenScape Desk Phone CP600” • Section 1.6.2, “OpenScape Desk Phone CP400” • Section 1.6.3, “OpenScape Desk Phone CP200” A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 14: Openscape Desk Phone Cp600
The Notification LED visually signals incoming calls and new voice messages. The Keypad is used for entering phone numbers and text. The Out-of-Office Key provides an easy way to set up Call Deflection and DND. Tabelle 1-1 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 15: Openscape Desk Phone Cp400
The Keypad is used for entering phone numbers and text. The Out-of-Office Key provides an easy way to set up Call Deflection and DND. The Free programmable Keys can be set up with various functions defined by user. Tabelle 1-2 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...

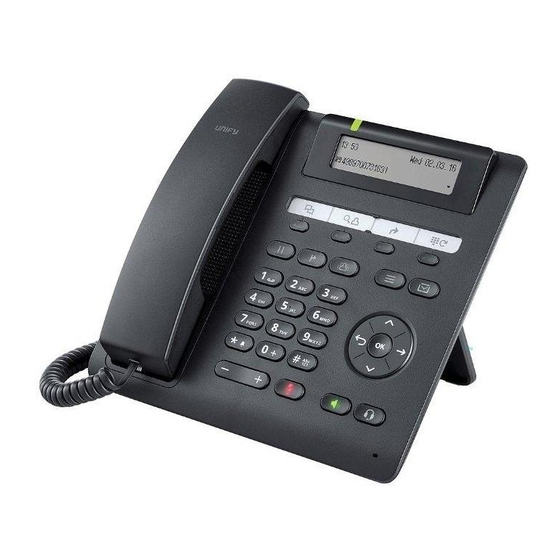

Page 16: Openscape Desk Phone Cp200
Mute: Turns off/on the microphone during conversations. Speaker: Turns on/off the hands-free mode (speakerphone). Headset: Switches the audio between handset/speakerphone and headset The Notification LED visually signals incoming calls and new voice messages. Tabelle 1-3 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 17: Administration Interfaces
This method provides direct configuration of the OpenScape Desk Phone CP via the local phone menu. Direct access to the phone is required. As long as the IP connection is not properly configured, you have to use this method > to set up the phone. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 18: Openstage Manager
Assignment of images to contacts (OpenScape Desk Phone CP600) • Screensaver (OpenScape Desk Phone CP600) Contact your administrator for the latest version of OpenStage Manager. The feature > availablity depends on phonetype. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 19: Startup
For additional information see: http://wiki.unify.com/wiki/IEEE_802.1x. Assembling and Installing the Phone 2.2.1 Shipment • Phone • Handset • Handset cable • Subpackage: – Document "Information and Important Operating Procedures" – Emergency number sticker A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 20: Connectors At The Bottom Side
Assembling and Installing the Phone 2.2.2 Connectors at the bottom side OpenScape Desk Phone CP600 PC (eg. Phone Manager) Power supply (if required) Network Switch Key Module (max. 4) Headset Handset Service Interface A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 21 Startup Assembling and Installing the Phone OpenScape Desk Phone CP400 PC (eg. Phone Manager) Power supply (if required) Network Switch Key Module (max. 2) Headset Handset Service Interface A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 22: Assembly
LAN resp. switch. If PoE (Power over Ethernet) is to be used, the PSE (Power Sourcing Equipment) must meet the IEEE 802.3af specification. For details about the required power supply, see the following table: A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 23: How To Better Use Lan Network Connections
Do not use this connection for further OpenScape Desk Phone CP, OpenScape Desk Phone IP or OpenStage phones! OpenScape Desk Phone CP400/600 Network switch A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 24: Key Module
Access the local phone´s Admin menu as described in Access via Local Phone. • If DHCP is enabled (default): In the Admin menu, navigate to Network > IPv4 config- uration > IP address. The IP address is displayed. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 25: How To Set The Terminal Number
Plug&Play facility of the DLS is used. For further information about this setting, please refer to Terminal Identity. With the WBM, the terminal number is configured as follows: A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 26: Basic Network Configuration
DHCP lease. Step by Step In the left column, select Network > IPv4 configuration. Select the check box to enable DHCP lease reuse. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 27: Date And Time / Sntp
For manual configuration of the DNS domain name see Section 3.4.7.1, “DNS Domain Name”. 2.3.8 Vendor Specific: VLAN Discovery and DLS Address The VLAN ID can also be configured by LLDP-MED (see Automatic VLAN discovery > using LLDP-MED). A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 28: How To Use A Vendor Class
In the DHCP console menu, right-click the DHCP server in question and select Define Vendor Classes... in the context menu. A dialog window opens with a list of the classes that are already available. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 29 Next, two options resp. tags will be added to the vendor class. Two passes are needed for this: in the first pass, tag #1 with the required value "Siemens" is entered, and in the second pass, the VLAN ID is entered as tag #2. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 30 In the DHCP console menu, right-click the DHCP server in question and select Set Pre- defined Options from the context menu. In the dialog, select the previously defined OptiIpPhone class and click on Add... to add a new option. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 31 Description: Free text. Enter the value for this option. First Pass: "Siemens" Second Pass: VLAN ID 10. Press OK, repeat steps 7 to 9 for the second pass, and press OK again. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 32 13. The DHCP console now shows the information that will be transmitted for the correspond- ing workpoints. Information from the Standard vendor is transmitted to all clients, whereas information from the OptiIpPhone vendor is transmitted only to the clients (workpoints) in this vendor class. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 33: How To Use Option #43 "Vendor Specific
The Vendor name tag is coded as follows (the first line indicates the ASCII values, the second line contains the hexadecimal values): Code Length Vendor name The following example shows a VLAN ID with the decimal value "10": Code Length VLAN ID A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 34 Select the DHCP server and the scope. Choose "Configure Options" in the context menu using the right mouse button. Enter the VLAN ID. Providing the length is not required here, as the VLAN ID is always 4 Bytes long. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 35: Dls Server Address
The following steps are required for the configuration of the Windows DHCP server. Setting up a new vendor class using the Windows DHCP Server In the Windows Start menu, select Start > Programs > Administrative Tools > DHCP. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 36 Define a new vendor class with the name OptiIpPhone and enter a description of this class. Click OK to apply the changes. The new vendor class now appears in the list. Exit the window with Close. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 37 DHCP console. This error was corrected in Windows 2003 Server SP2. In the DHCP console menu, right-click the DHCP server in question and select Set Pre- defined Options from the context menu. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 38 Data type: "String" • Code: "1" • Description: Free text. Second Pass: Option 3 • Name: Free text, e. g. "OptiIpPhone element 03" • Data type: "String" • Code: "3" • Description: Free text. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 39 10. Press OK, repeat steps 7 to 9 for the second pass, and press OK again. Defining the scope for the new vendor class 11. Select the DHCP server in question and the Scope and right-click Scope Options. Select Configure Options... in the context menu. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 40 13. The DHCP console now shows the information that will be transmitted for the correspond- ing workpoints. Information from the Standard vendor is transmitted to all clients, whereas information from the OptiIpPhone vendor is transmitted only to the clients (workpoints) in this vendor class. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 41 ’;’ instead of a ’:’. # Tag/Option #1: Vendor "Siemens" 01:07:53:69:65:6D:65:6E:73: # Tag/Option #3: DLS IP Address (here: sdlp://192.168.3.30:18443) 25 s d 3 ..etc. 03:19:73:64:6C:70:3A:2F:2F:31:39:32:2E:31:36:38:2E:33:2E:33:30: 3A:31:38:34:34:33; match if substring (option vendor-class-identifier, 0, 11) = "OptiIpPhone"; A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 42: Using Option #43 "Vendor Specific
DLS port number, which is "18443" by default. The following example illustrates the syntax: Code Length DLS IP address s d l p : / / 1 9 2 . 1 6 8 . 2 . 1 9 : 1 8 4 4 3 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 43: Using The Web Interface (Wbm)
Section 2.3.1, “How to Access the Web Interface (WBM)”. In the menu at the lefthand side, go to System > Gateway. Enter the IP address of the OpenScape Voice Communication System in the IP address field. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 44: Using The Local Menu
Enter the phone’s Gateway Id, which will also serve as internal phone number. Enter the password associated with the Gateway Id. After the data has been entered, select Save & exit and press A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 45: Administration
The # key cycles around the input modes as follows: (Abc) -> (abc) -> (123) -> (ABC) -> back to start. Usable characters are 0-9 A-Z a-z .*#,?!’"+-()@/:_ Navigate within the Administration Menu. Select a parameter A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 46 Press the OK key to enter the selective list. Use the Up Arrow and Down Arrow keys to scroll up and down in the selection list. To select a list entry, press the OK key. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 47: Bluetooth Interface
(Abc) -> (abc) -> (123) -> (ABC) -> back to start. With the OpenScape Desk Phone CP200/400/600 use the keypad for entering parameter values. Use the Navigation Keys or Navigation Block to navigate and execute administra- tive actions in the Administration Menu.
Page 48 Administration LAN Settings OpenScape Desk Phone CP200) and duplex method (full or half duplex) with whatever equip- ment is connected. Optionally, the required transfer rate and duplex mode can be specified manually using the LAN Port Speed parameter. In the default configuration, the LAN port supports automatic detection of cable con- >...
Page 49: Port Configuration
PC port autoMDIX Reset Submit Administration via Local Phone --- Admin --- Network --- Port Configuration --- Number |--- LAN port type |--- PC port status |--- PC port type --- PC port autoMDIX A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 50: Vlan
(Link Layer Discovery Protocol-Media Endpoint Discovery). If the switch provides an appropri- ate TLV (Type-Length-Value) element containing the VLAN ID, this VLAN ID will be used. If no appropriate TLV is received, DHCP will be used for VLAN discovery. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 51: Automatic Vlan Discovery Using Dhcp
DHCP format. If a phone configured for VLAN discovery by DHCP fails to discover its VLAN, it will proceed to configure itself from the DHCP within the non-tagged LAN. Under these circum- stances, network routing may probably not be correct. Administration via WBM Network > General IP configuration A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 52: Manual Configuration Of A Vlan Id
VLAN, the phone will possibly not connect to the network. In DHCP mode it will behave as though the DHCP server cannot be found, in fixed IP mode no server connections will be pos- sible. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 53 Submit Reset Administration via Local Phone --- Administration --- Network --- General IP configuration |--- Protocol Mode |--- Use LLDP-MED |--- Use DHCP |--- Use DHCPv6 |--- VLAN discovery --- VLAN ID A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 54: Ip Network Parameters
Layer 2 signalling: Sets the CoS (Class of Service) value for signaling. Value range: 0-7 Default: 3 • Layer 2 default: Sets the default CoS (Class of Service) value. Value range: 0-7 Default: 0 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 55: Layer 3 / Diffserv
Expedited Forwarding is used for voice (RTP streams) by default. It effectively creates a special low-latency path in the network. The DSCP (Diffserv Codepoint) value for EF is "1 0 1 1 1 0". Assured Forwarding (AF referred to RFC 2597) A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 56 Network > QoS > Service Service Layer 2 Layer 2 voice Layer 2 signalling Layer 2 default 0 Layer 3 Layer 3 voice Layer 3 signalling AF31 MLPP Priority Immediate Flash Flash override Submit Reset >> A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 57 Administration IP Network Parameters Administration via Local Phone --- Admin --- Network --- QoS --- Service |--- Layer 3 |--- Layer 3 voice --- Layer 3 signalling A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 58 VLAN discovery Manual VLAN ID workgroup DNS domain Primary DNS 192.168.1.105 Secondary DNS HTTP proxy Submit Reset Administration via Local Phone --- Admin --- Network --- General IP Configuration --- Protocol Mode A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 59 SNTP IP Address (Simple Network Time Protocol Server option 31) • SIP Addresses / SIP Server & Registrar (SIP Server Domain Name List option 21, SIP Server IPv6 Address List option 22) A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 60: Protocol Mode Ipv4/Ipv6
--- Admin --- Network --- IPv4 configuration or / and Administration via WBM - IPv6 Network > General IP configuration Set DHCPv6 Enabled to "selected" (default setting is Enabled). Afterwards, click Submit. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 61 DHCP Enabled DHCPv6 Enabled VLAN discovery DHCP VLAN ID workgroup DNS domain Primary DNS 192.168.1.105 Secondary DNS HTTP proxy Submit Reset Administration via Local Phone --- Admin --- Network --- IPv6 configuration A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 62: Ip Address - Manual Configuration
Protocol Mode IPv4/IPv6. Set DHCP Enabled , resp. DHCPv6 Enabled and LLDP-MED Enabled to "not selected". Enter the IP address and the Subnet mask. If applicable, enter the Default route. Afterwards, click Submit. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 63 --- Admin --- Network --- General IP Configuration |--- Use LLDP-MED |--- Use DHCP --- Use DHCPv6 --- Admin --- Network --- IPv4 Configuration |--- IP address --- Subnet mask --- Admin A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 64: Default Route/Gateway
--- IPv4 configuration --- Route (Default) Administration via WBM - IPv6 Configuration Enter the IP address of the Global Gateway that links your IP network to other networks. After- wards, click Submit. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 65 Route 1 Gateway Route 2 Dest. Route 2 Prefix Len Route 2 Gateway Submit Reset Administration via Local Phone - IPv6 Configuration --- Admin --- Network --- IPv6 configuration --- Global Gateway A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 66: Specific Ip Routing
Route 2 mask Submit Reset Administration via Local Phone --- Admin --- Network --- IPv4 Configuration |--- Route 1 IP |--- Route 1 gateway |--- Route 1 mask --- Route 2 IP A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 67 --- Admin --- Network --- IPv6 Configuration |--- Route 1 dest |--- Route 1 prefix len |--- Route 1 gateway |--- Route 2 dest |--- Route 2 prefix len --- Route 2 gateway A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 68: Dns
Manual VLAN discovery VLAN ID workgroup DNS domain Primary DNS 192.168.1.105 Secondary DNS HTTP proxy Submit Reset Administration via Local Phone --- Admin --- Network --- General IP configuration --- DNS domain A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 69: Dns Servers
VLAN ID workgroup DNS domain Primary DNS 192.168.1.105 Secondary DNS HTTP proxy Submit Reset Administration via Local Phone --- Admin --- Network --- General IP configuration |--- Primary DNS --- Secondary DNS A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 70: Terminal Hostname
Terminal number. Administration via WBM System > System Identity System Identity 3338 Terminal number Terminal name Display identity 312 Enabled ID Web name DNS name construction Only number Reset Submit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 71: Configuration & Update Service
The URI of the DCMP, as well as the polling interval, are configured by the DLS. For > this purpose, it is necessary that the phone establishes a first contact to the DLS, e. g. by phone restart or local configuration change. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 72 Security PIN: Used for enhanced security. • Administration via WBM Network > Update Service Update Service DLS address Default mode port 18443 Contact gap 300 Revert to default security Mode Default Security PIN Reset Submit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 73 IP Network Parameters Administration via Local Phone --- Admin --- Network --- Update Service |--- DLS address |--- Default mode port |--- Contact gap |--- Revert to default security |--- Mode --- Security PIN A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 74: Snmp
Default: "No" Trap destination: IP address or hostname of the SNMP manager that receives traps. • Trap destination port: Port on which the SNMP manager is receiving TRAP messages. • Default: 162 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 75 Default: 12010. QCU community: QCU community string. • Default: "QOSCD". • QoS to generic destination: Enables or disables the sending of QoS traps to a generic destination. Value range: "Yes", "No" Default: "No" A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 76: Trap Destination
|--- Trap community |--- Diag sending enabled |--- Diag destination |--- Diag destination port |--- Diag community |--- QoS traps to QCU |--- QCU address |--- QCU port --- QoS to generic dest. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 77: Security
The SRTP type sets the key exchange method (negotiation method) for secure calls via SRTP. The following encryption key exchange methods are available: A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 78: Srtp Configuration
SRTP, no connection will be established. • With SRTP + RTP, the phone will try to establish an SRTP connection, but fall back to RTP if this should fail. This is the recommended option. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 79: Access Control
As a prerequisite, the root user needs to create a user and to define a password via Serial Access, so that access can be granted when the Password required prompt is issued. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 80 Factory reset claw Serial port No Password Submit Reset Administration via Local Phone --- Administration --- System --- Security --- Access control |--- CCE access |--- Factory reset claw --- Serial port A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 81: Security Log
Last archived shows the date when the security log was last archived to the DLS. • Administration via WBM System > Security > Logging Logging Max. lines Archive to DLS Archive when at Last archived 20101105-0010 Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 82: Security-Related Faults
User access: Shows the date and time when the phone encountered multiple consecutive failures to enter the user password. Administration via WBM System > Security > Faults Faults Security log entry 20111009-2206 OCSR Failure Admin access User access Cancel faults Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 83: Password Policy
This list is organised as FIFO (First In, First Out) so that it always contains the latest passwords. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 84: Admin Policy
"suspended" when the password has been entered incorrectly more times than allowed. Administration via WBM Security and Policies > Password > Admin Policy Admin policy 2038-01-19T03:14:07+00:00 Expiry date Minimum length Password history Active Current status Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 85: Character Set
(Password handling in previous versions see Section 3.19, “Password”). Administration via WBM Security and Policies > Password > Change Admin password Change Admin password Old password New password Confirm password Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 86: Certificate Policy
OCSR 2 address: Specifies the IP address (or FQDN) of a secondary OCSP responder. • Administration via WBM Security and Policies > Certificates > Generic Generic OCSP check OCSR 1 address OCSR 2 address Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 87: Server Authentication Policy
Administration via Local Phone --- Admin --- Security & policies --- Certificates --- Authentication policy |--- Secure file transfer |--- Secure send URL |--- Secure SIP server |--- Secure file transfer --- LDAP via TLS A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 88: System Settings
3.6.1.2 Display Identity If an individual name or number is entered as Display identity and Enable ID is activated, it is displayed in the phone’s status bar instead of the Terminal number. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 89: Emergency And Voice Mail
If more than one emergency number is needed, additional numbers can be configu- > red in the canonical dial settings (Section 3.13.1, “Canonical Dialing Configuration”). If a mailbox located at a remote server shall be used, its Voice mail number must be entered. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 90: Energy Saving
The possible values are: 1 minute, 5 minutes, 30 minutes, 60 minutes, 2 hours, 4 hours, or 8 hours. Moreover, with OpenScape Desk Phone CP600 this parameter can also be configured by the user. The default value is 1 minute. Administration via WBM Local functions > Energy saving A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 91: Energy Efficient Ethernet (Openscape Desk Phone Cp200 Only)
3.6.3.2 Energy Efficient Ethernet (OpenScape Desk Phone CP200 only) The OpenScape Desk Phone CP200 phone supports the standard IEEE 802.3az (Energy Ef- ficient Ethernet). The energy saving benefit provided by this standard can only be received when the phone is connected to a network component which also is able to support the IEEE 802.3az standard.
Page 92: Call Logging
Details form of such an entry). Note that the Call Log display on OpenScape Desk Phone CP200 has been simplified so that an entry only displays a name or a number (not both) and there is no access to entry details. However, this only limits the display and the default dialling number for an OpenScape Desk Phone CP200 entry is determined as above.
Page 93: Logging Of Missed Calls (Via User Menu)
Forwarded calls are not logged under "Missed calls", but under "Forwarded" in the call log. Administration via WBM (User menu) User > Configuration > Call logging > General General Enable call log Submit Reset User > Configuration > Call logging > Missed calls A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 94: Date And Time
This parameter determines when DST starts or ends, and must be set accord- ing to the location of the phone. The Difference (minutes) parameter defines how many minutes the clock is put forward for DST. In Germany, for instance, the value is +60. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 95: Sntp Is Available, But No Automatic Configuration By Dhcp Server
Administration via WBM Date and Time Date and time Time source SNTP IP address 192.43.244.18 Timezone offset (hours) Daylight saving Daylight saving Difference (minutes) Auto time change DST zone Europe (Rest) Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 96: No Sntp Server Available
Date and Time : 44 Local time (hh:mm): Local date (day,month,year): November 2006 Use daylight saving: 87678 Difference (minutes): Auto time change Submit Reset Administration via Local Phone --- Menu --- Date and Time A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 97: Sip Addresses And Ports
SIP server address: IP address or host name of the SIP proxy server. • • SIP registrar address: IP address or host name of the registration server. SIP gateway address: IP address or host name of the SIP gateway. • A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 98 Backup transport Backup connection Persistent (SB) Backup OBP flag Reset Submit Administration via Local Phone --- Admin --- System --- Registration --- SIP Addresses |--- SIP server |--- SIP registrar --- SIP gateway A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 99: Sip Ports
SIP local Backup proxy 5060 5010 RTP base Download server (default) LDAP server HTTP proxy Automatic LAN port speed Automatic PC port speed PC port mode disabled PC port autoMDIX Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 100: Sip Registration
A challenge from the server for authentication information is not only restricted to the > REGISTER message, but can also occur in response to other SIP messages, e. g. INVITE. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 101 Value range: "Other", "OS Voice", "HiQ8000", "Genesys" Default value: "OS Voice" • Realm: Protection domain for authentication. • User ID: Username required for an authenticated registration. Password: Password required for an authenticated registration. • A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 102 Persistent (SB) Backup OBP flag Submit Reset Administration via Local Phone --- Admin --- System --- Registration --- SIP Session |--- Registration timer |--- Server type |--- Realm |--- User ID --- Password A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 103: Sip Communication
Connectivity check timer (seconds) Keep alive format Sequence Media Negotiation Single IP Media IP Mode IPv4 Early 183 response Submit Reset Administration via Local Phone --- Admin --- System --- SIP Interface A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 104: Sip Transport Protocol
A Persistent connection for SIP-TCP will result in only a single client connection to the SIP serv- er – the SIP server will reuse the available TCP connection for sending SIP requests to the phone (like at SIP-TLS). Persistent (SB) means persistent connection with Switchback. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 105 Connectivity check timer (seconds) Keep alive format Sequence Media Negotiation Single IP Media IP Mode IPv4 Early 183 response Submit Reset Administration via Local Phone --- Admin --- System --- SIP Interface --- SIP connection A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 106: Media/Sdp
Sequence Media Negotiation Single IP Media IP Mode IPv4 Early 183 response Reset Submit Administration via Local Phone --- Admin --- System --- SIP Interface |--- Media negotiation --- Media IP mode A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 107: Early 183 Response
Keep alive format Sequence Media Negotiation Single IP Media IP Mode IPv4 Early 183 response Submit Reset Administration via Local Phone --- Admin --- System --- SIP Interface --- Early 183 response A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 108: Sip Session Timer
Session timer enabled: Activates or deactivates the session timer mechanism. • Value range: "Yes", "No" Default value: "No" • Session duration (seconds): Sets the expiration time for a SIP session. Default: 3600 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 109: Session Timer
Backup registration timer (seconds) 3600 Backup transport Backup connection Persistent (SB) Backup OBP flag Reset Submit Administration via Local Phone --- Admin --- System --- Registration --- SIP session |--- Session timer --- Session duration A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 110: Resilience And Survivability
Resilience and Survivability To allow for stable operation even in case of network or server failure, OpenScape Desk Phone CP200/400/600 phones have the capability of switching to a fallback system. The switchover is controlled by various configurable check and timeout intervals.
Page 111: Connectivity Check
If no other primary SIP server is found via DNS SRV, the phone will switch over to a backup server for making receiving calls. For configuring the backup server, please refer to Section 3.6.10.5, “Backup SIP Server”. Administration via WBM System > SIP interface A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 112: Response Timer
Call transaction response timer (ms) 32000 NoCall transaction response timer (ms) 32000 Reg. backoff (seconds) Connectivity check timer (seconds) Keep alive format Sequence Media Negotiation Single IP Media IP Mode IPv4 Early 183 response Reset Submit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 113 Administration System Settings Administration via Local Phone --- Admin --- System --- SIP Interface --- Call trans. (ms) A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 114: Non-Invite Transaction Timer
Keep alive format Sequence Media Negotiation Single IP Media IP Mode IPv4 Early 183 response Submit Reset Administration via Local Phone --- Admin --- System --- SIP Interface --- NonCall transactions (ms) A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 115: Maximum Registration Backoff Timer
Connectivity check timer (seconds) Keep alive format Sequence Media Negotiation Single IP Media IP Mode IPv4 Early 183 response Submit Reset Administration via Local Phone --- Admin --- System --- SIP Interface --- Reg. backoff A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 116: Backup Sip Server
Backup OBP flag: Determines whether or not the backup proxy is used as an outbound • proxy. Value range: "Yes", "No" Default: "No" Network > Port Configuration > Backup proxy: Port of the backup proxy server. • Default: 5060 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 117 SIP local 5060 Backup proxy 5010 RTP base Download server (default) LDAP server HTTP proxy Automatic LAN port speed Automatic PC port speed PC port mode disabled PC port autoMDIX Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 118: Interactive Connectivity Establishment (Ice)
STUN servers and will only return Server reflexive candidates, or TURN if the ICE servers are both TURN servers and will return Relayed and Server reflexive candidates. Main address: Address of the ICE server. • A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 119 |--- Addressing |--- Main server |--- Main address |--- Main port |--- Main username |--- Main password |--- Backup server |--- Backup address |--- Backup port |--- Backup username --- Backup password A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 120: Candidates
Check RTO timer (ms): Sets the RTO timer value in milliseconds which controls the pac- • ing of the ICE Connectivity Check retransmissions sent on a candidate pair. Administration via WBM System > ICE > Technical A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 121: Feature Access
• CTI control (see Section 3.8.11, “uaCSTA Interface”) • Web based manag. (see Section 1.7.1, “Web-based Management (WBM)”) • USB device access (see user manual) • Backup to USB (see user manual) A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 122: Blind Transfer
Backup to USB Feature toggle Phone lock Submit Reset Administration via Local Phone --- Admin --- System --- Features --- Feature access --- Call control |--- Blind transfer --- 3rd call leg A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 123 --- CTI control --- Admin --- System --- Features --- Feature access --- Services |--- Web based manag. |--- USB device access |--- Backup to USB |--- Feature toggle --- Phone lock A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 124: Feature Configuration
Not used timeout (minutes) Transfer on hangup Bridging enabled Dial plan enabled FPK program timer Administration via Local Phone --- Admin --- System --- Features --- Configuration --- General --- Allow refuse A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 125: Hot/Warm Phone
Dial plan enabled FPK program timer Administration via Local Phone --- Admin --- System --- Features --- Configuration --- General |--- Hot / warm phone |--- Hot / warm destination --- Initial digit timer A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 126: Initial Digit Timer
Not used timeout (minutes) Transfer on hangup Bridging enabled Dial plan enabled FPK program timer Administration via Local Phone --- Admin --- System --- Features --- Configuration --- General --- Initial digit timer A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 127: Group Pickup
"Yes", a pickup group call will be signaled by a short ring tone; the currently selected rigtone is used. If set to "No", a pickup group call will be signaled by an alert tone. The default is "Yes". A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 128 Beep Headset Headset Beep Beep Open listening Headset and Headset and Speaker Speaker Hands-free Beep Beep Speaker Speaker Group pickup visual alert defines the user action required to accept a pickup call. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 129 Callback ringer alert-internal Impact level ringer Administration via Local Phone --- Admin --- System --- Features --- Group pickup |--- Group pickup tone |--- Group pickup as ringer --- Group pickup visual A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 130: Call Transfer
A goes on-hook, B gets connected to C. If disabled, C will be released when A hangs up, and A has the possibility to reconnect to B. By default, the feature is disabled. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 131 Not used timeout (minutes) Transfer on hangup Bridging enabled Dial plan enabled FPK program timer Administration via Local Phone --- Admin --- System --- Features --- Configuration --- General --- Transfer on hangup A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 132: Callback Uris
Group pickup URI Callback: FAC Callback cancel all BLF pickup code *0 Reset Submit Administration via Local Phone --- Admin --- System --- Features --- Addressing |--- Callback: FAC --- Callback: Cancel all A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 133: Call Completion
Allow after call (s) Max. callbacks Submit Reset Administration via Local Phone --- Admin --- System --- Features --- Call completion |--- Functional CCSS |--- Callback ringer --- Allow after call (s) --- Max. callbacks A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 134: Message Waiting Address
MW server URI 192.168.1.2 Conference Group pickup URI Callback: FAC Callback cancel all BLF pickup code *0 Submit Reset Administration via Local Phone --- Admin --- System --- Features --- Addressing --- MWI server URI A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 135: Indicate Messages
Administration via WBM Local functions > Messages settings Messages settings Show New items Alternative label New urgent items Show Alternative label Old Items Show Alternative label Old urgent items Show Alternative label Reset Submit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 136: System Based Conference
OpenScape Desk Phone CP uses multiple nodes. Administration via WBM System > Features > Addressing Addressing MW server URI 192.168.1.2 Conference Group pickup URI Callback: FAC Callback cancel all BLF pickup code *0 Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 137: Server Based Features
It is recommended to set Server features when setting up the phone, and avoid fur- ther changes, as possible. To enable server based features, uaCSTA must be allowed (see Section 3.8.11, > “uaCSTA Interface”). A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 138 Not used timeout (minutes) Transfer on hangup Bridging enabled Dial plan enabled FPK program timer Administration via Local Phone --- Admin --- System --- Features --- Configuration --- General --- Server features A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 139: Uacsta Interface
Not used timeout (minutes) Transfer on hangup Bridging enabled Dial plan enabled FPK program timer Administration via Local Phone --- Admin --- System --- Features --- Configuration --- General --- Allow uaCSTA A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 140: Local Menu Timeout
> exited the menu, e.g. for receiving a call. Thus, if the user/admin re-enters the menu, he is directed to exactly that submenu, or parameter, which he had been editing be- fore. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 141: Call Recording
"Auto-start": The recording starts automatically; besides, the user can stop and start the recording manually. • "All Calls": The recording starts automatically for all recordable calls; the user can not stop or start the recording manually. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 142 "Repeated": An audible indication is given when recording commences or resumes, and repeated periodically during the recording. With the Recorder address/Recorder number parameter, the SIP address of the call recorder is specified. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 143 Recorder Address Recording Mode Disabled Audible Notification Submit Reset Administration via Local Phone --- Admin --- System --- Features --- Configuration --- Call Recording |--- Recorder number |--- Recorder mode --- Audible notification A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 144: Free Programmable Keys
On OpenScape Desk Phone CP600 four Soft Keys will appear as Favourites in the display if no Key module is attached. The OpenScape Desk Phone CP200 phone provides four free programmable keys (FPKs). This is called „Phone keys“. The key programming can be accessed via the WBM or via the Local Phone.
Page 145 Key only Allow refuse Hot/warm phone No action Hot/warm destination Initial digit timer (seconds) Allow uaCSTA Server features Not used timeout (minutes) Transfer on hangup Bridging enabled Dial plan enabled FPK program timer A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 146: Clear (No Feature Assigned)
How to Config- ure Free Programmable Keys (FPKs). Administration via WBM System > Features > Program keys > Selected dialling Selected dialling Key.label 4 Selected dialling Dial number Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 147: Repeat Dialing
If "On busy" is selected, incoming calls will be forwarded when the phone is busy. Use the Key label <key number> field to define or change the name (label) of the key. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 148: Call Forwarding By Call Type
„CF unconditional - int.“, „CF no reply - ext.“, „CF no reply - int.“, „CF busy - ext.“, „CF busy - int“ Default: „CF Unconditional any“ • Destination: Destination number of call forwarding. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 149 Forward external calls 2102 Destination Forward internal calls 2102 Destination Forwarding- No reply Forward any call 2102 Destination Forward external calls 2102 Destination Forward internal calls 2102 Destination Forwarding Favourites Forwarding Favorites Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 150: Ringer Off
How to Config- ure Free Programmable Keys (FPKs). Administration via WBM System > Features > Program keys > Hold Hold Key.label 3 Hold Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 151: Alternate
How to Config- ure Free Programmable Keys (FPKs). Administration via WBM System > Features > Program keys > Blind transfer Blind transfer Key.label 3 Blind transfer Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 152: Transfer Call
How to Config- ure Free Programmable Keys (FPKs). Administration via WBM System > Features > Program keys > Transfer Call Join Transfer Call Key.label 3 Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 153: Deflect A Call
How to Config- ure Free Programmable Keys (FPKs). Administration via WBM System > Features > Program keys > Shift Shift Key.label 8 Shift Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 154: Phone-Based Conference
How to Config- ure Free Programmable Keys (FPKs). Administration via WBM System > Features > Program keys > Headset Headset Headset Key.label 3 Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 155: Do Not Disturb
How to Config- ure Free Programmable Keys (FPKs). Administration via WBM System > Features > Program keys > Group pickup Group pickup Group pickup Key.label 3 Reset Submit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 156: Repertory Dial
System > Features > Program keys > Repertory dial Repertory dial Repertory dial Key.label 3 Use the following characters in the Dial string field Release < Consult Okay > Pause Dial string Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 157: Feature Toggle
Free Programmable Keys (FPKs) can be configured via the WBM or on the local phone. For details regarding the different ways to configure program keys, please refer to How to Config- ure Free Programmable Keys (FPKs). A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 158: Directed Pickup
Free Programmable Keys (FPKs) can be configured via the WBM or on the local phone. For details regarding the different ways to configure program keys, please refer to How to Config- ure Free Programmable Keys (FPKs). A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 159: Cancel Callbacks
Free Programmable Keys (FPKs) can be configured via the WBM or on the local phone. For details regarding the different ways to configure program keys, please refer to How to Config- ure Free Programmable Keys (FPKs). A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 160: Resume Callbacks
Free Programmable Keys (FPKs) can be configured via the WBM or on the local phone. For details regarding the different ways to configure program keys, please refer to How to Config- ure Free Programmable Keys (FPKs). Administration via WBM System > Features > Program keys > Consultation A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 161: Call Waiting
Free Programmable Keys (FPKs) can be configured via the WBM or on the local phone. For details regarding the different ways to configure program keys, please refer to How to Config- ure Free Programmable Keys (FPKs). A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 162: Auto Answer With Zip Tone
This function is intended primarily for operation with an Asterisk SIP server. For de- > tails, please refer to the Administration Manual for OpenScape Desk Phone CP on Asterisk. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 163: Blf Key
The question mark will be automatically added between the path and the parame- > ters. If a question mark has been entered at the start of the parameters, it will be stripped off automatically. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 164 Method: HTTP method used for transfer. Value range: "GET", "POST" Web server user ID: User id for user authentication at the server. • • Web server password: Password for user authentication at the server. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 165 Free Programmable Keys (FPKs) can be configured via the WBM or on the local phone. For details regarding the different ways to configure program keys, please refer to How to Config- ure Free Programmable Keys (FPKs). A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 166: Built-In Forwarding
3.9.32 Built-in Forwarding As a programmable key function, this is relevant for OpenScape Desk Phone CP200 and OpenScape Desk Phone CP400 phones, which have no fixed forwarding key. Use the Key label <key number> field to define or change the name (label) of the key.
Page 167: Start Phonebooks
These key functions opens a menu which enables the user to start the personal or the corpo- rate phonebook. For further information about the personal and corporate phonebook, please refer to the user guide for OpenScape Desk Phone CP200 phones. For more information about the corporate phonebook, please see Section 3.17, “Corporate Phonebook: Directory Set- tings”.
Page 168: Release
Cancel/Release Key.label 4 Cancel/Release Submit Reset 3.10 Fixed Function Keys on OpenScape Desk Phone CP200 The OpenScape Desk Phone CP200 comes with three keys, which can be reprogrammed with specific functions. The preset is: • Hold • Transfer • Conference If you reset the phone, these keys will be reset to the default factory settings.
Page 169: Multiline Appearance/Keyset
If the option is not checked, the incoming call will be indicated only by the blinking of the key’s LED. If it is desired that the line ring with a delay, the time interval in sec- onds can be configured by Ring delay. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 170 Initial digit timer (seconds) (for details, see Section 3.8.3, “Initial Digit Timer”). During the delay period, it is possible for the user to dial a different number A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 171 A new line key can only be added by use of the WBM or, preferably, the DLS. Once > a line key exists, it can also be configured by the local menu. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 172: How To Configure Line Keys For Keyset Operation
Clear (no feature assigned) edit edit Clear (no feature assigned) Clear (no feature assigned) edit edit Mobility edit Clear (no feature assigned) edit Label: Mobility Clear (no feature assigned) Clear (no feature assigned) edit edit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 173 Key label 1 Allow in overview 3337 Address Primary line Ring on/off Selection order Hot/warm line Hot line Hot/warm destination 3333 Submit Reset In the local menu, the menu path is the same. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 174: Configure Keyset Operation
"last": The line selected for originating calls is the line that has been used for the last call (originating or terminating). • "none": The user manually selects a line by pressing its line key before going off-hook or by pressing the speaker key, to originate a call. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 175 The reservation of a line is accomplished by the OpenScape Desk Phone CP200/400/600 server, which notifies all the endpoints sharing this line. If set to 0, the reservation timer is deactivated.
Page 176 Bridging enabled (see Admin > Features > Configuration) : When set to "Yes", the user is allowed to join a call on a shared line. For this purpose, a server based conference is established. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 177 Key only Allow refuse Hot/warm phone No action Hot/warm destination Initial digit timer (seconds) Allow uaCSTA Server features Not used timeout (minutes) Transfer on hangup Bridging enabled Dial plan enabled FPK program timer A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 178 |--- Line action mode |--- Show focus |--- Reservation timer |--- Forward indicated |--- Preselect mode --- Preselect timer Administration via Local Phone --- Admin --- System --- Features Configuration --- General --- Bridging enabled A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 179: Line Preview
Prieview timer: When Prieview Mode is set, the timer controls preview. Value range: 2, 3, 4, 6, 8, 10, 15, 20, 30, 40, 50, 60 Default: 8 • Bridging priority Value range: "Prieview overrides bridging", "Bridging overrides preview" Default: "Prieview overrides bridging" A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 180: Preview And Preselection
  line key 2x while press: bridge (confer- line-view is displayed ence) Preview LED remains on In case the Preview key is not pressed, only the Preselection mode configuration is relevant: A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 181: Immediate Ring
Reset 3.11.6 Direct Station Select (DSS) This feature requires OpenScape Voice. > This feature can be enabled or disabled under System > Features > Feature access > (see Section 3.7, “Feature access”). A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 182: General Dss Settings
3.7, “Feature access”). The DSS key can be configured to indicate the call forwarding state of the number represented by the DSS key. This feature is activated when Forwarding shown is enabled. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 183: Settings For A Dss Key
If set to Line type is set to "Normal", this is not the case, and the call will be treated like a regular call. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 184 Default: "Yes" Administration via WBM System > Features > Program keys > DSS Key label 2 Address Realm User Identifier Password Outgoing Calls Normal_ Action on Calls Consult Allow in overview Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 185: Distinctive Ringers Per Keyset Lines
Pattern sequence: Determines the length and repetitions of pattern. Value Range: "1":1 sec ON, 4 sec OFF, "2": 1 sec ON, 2 sec OFF "3": 0.7 sec ON, 0.7 sec OFF, 0.7 sec ON, 3 sec OFF Default: "1" A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 186 Ringer3.mp3 Ring alert-emerge Ringer5.mp3 Ring Line-3336-R Ringer2.mp3 Ring Line-3335-R Ringer4.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Reset Submit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 187 --- Configuration --- Keyset --- Lines <xx> |--- Ringer file(= Ringer sound in Admin Menu) |--- Ringer melody (= Pattern melody in Admin Menu) --- Ringer sequence (= Pattern sequence in Admin Menu) A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 188: Key Modules
A maximum of two key modules can be connected to the phone. On an OpenScape Desk Phone CP200 phone no key modules can be connected. The configuration of a key on the key module is exactly the same as the configuration of a phone key.
Page 189 If, for instance, the extensions 3000-5999 are configured in the OpenScape Desk Phone CP200/400/600, each number will start with 3, 4, or 5. Therefore, the digits to be entered are 3, 4, 5.
Page 190 "For external numbers": Default value. All public network numbers will be prefixed with the access code that allows a number a call to be routed outside the enterprise net- work. However, international numbers that use the + prefix will not be given access code. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 191 Local functions > Locality > Canonical dial Canonical dial Local enterprise form Internal numbers Local public form External numbers External access code Not required International gateway code Use national code Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 192 |--- Operator code |--- Emergency number --- Initial extension digits --- Admin --- Local Functions --- Locality --- Canonical dial |--- Internal numbers |--- External numbers |--- External access code --- Internat(iona)l access A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 193: Canonical Dial Lookup
• Local code 1 ... 5: Local enterprise code for the node/PBX the phone is connected to. Example: "7007" for Unify office in Munich. • International code 1 ... 5: Sequence of "+", local country code, local area code, and local enterprise node corresponding to to one or more phone book entries.
Page 194 |--- Local code 1 |--- International 1 |--- Local code 2 |--- International 2 |--- Local code 3 |--- International 3 |--- Local code 4 |--- International 4 |--- Local code 5 --- International 5 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 195: Phone Location
Default: "Signalled" Administration via WBM Locality > Phone Location Phone location Phone location Signalled Submit Reset Administration via Local Phone --- Admin --- Local Functions --- Locality --- Phone location --- Phone location A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 196: Dial Plan
Administration via WBM (User menu) User > Configuration > Outgoing calls > Allow immediate dialing Outgoing calls Autodial delay (seconds) Allow callback Allow busy when dialling Allow transfer on ring Allow immediate dialling Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 197: Ringer Setting
The SIP server may provide information indicating a specific type of call within an incoming call. The phone can use this information to choose a ring tone according to the call type from the "Distinctive ringer table". A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 198 Ringer sound, Pattern Melody, and Pattern sequence. Abstract names used for Special Ringers: •"Bellcore-dr1" - normal (internal) alerting or ring-back; •"Bellcore-dr2" - external alerting or ring-back; •"Bellcore-dr3" - recall alerting or ring-back (e.g., following transfer). A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 199 Ring Impact-Level Ringer2.mp4 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Ringer2.mp3 Ring Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 200: Map To Specials
Emergency alert-emerge Special1 Special2 Special3 Reset Submit 3.14.3 Special Ringers Special Ringers can be configured via the User menu for the following call types: • Internal • External • Recall • Emergency A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 201 1.0 sec. ON, 2.0 sec. OFF Special 1 Ringer1.mp3 1.0 sec. ON, 4.0 sec. OFF Special 2 Ringer1.mp3 1.0 sec. ON, 4.0 sec. OFF 1.0 sec. ON, 4.0 sec. OFF Ringer1.mp3 Special 3 Reset Submit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 202 There are 3 variants: • "1": 1 sec ON, 4 sec OFF • "2": 1 sec ON, 2 sec OFF • "3": 0.7 sec ON, 0.7 sec OFF, 0.7 sec ON, 3 sec OFF A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 203: Mobility
Timer Medium Priority: Timespan in seconds between a data change in the phone and its transfer to the DLS server. Default: 60 • Mobility feature: Indicates whether the mobility feature is enabled. • Managed Profile: Display only field. • Error Count Local: Display only field. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 204 Submit Reset Administration via Local Phone --- Admin --- Mobility |--- Unauthorized Logoff Trap |--- Logoff Trap Delay |--- Timer Medium Priority |--- Mobility Feature |--- Managed Profile --- Error Count Local A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 205: Transferring Phone Software, Application, And Media Files
OpenScape Desk Phone CP600: 100 MB • OpenScape Desk Phone CP400: 100 MB • OpenScape Desk Phone CP200: 25 MB 3.16.1 FTP/HTTPS Server There are no specific requirements regarding the FTP server for transferring files to the Open- Scape Desk Phone CP. Any FTP server providing standard functionality will do.
Page 206 Reset Administration via Local Phone --- Admin --- File Transfer --- Defaults |--- Download method |--- Server |--- Port |--- Account |--- Username |--- Password |--- FTP path --- HTTPS base URL A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 207: Phone Application
LEDs and/or in the display. 3.16.3.1 Upgrade using File You can upgrade the phone application by uploading a local file. This can be done only by WBM administration. Administration via WBM File transfer > Phone application A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 208: Upgrade Using Ftp/Https
HTTPS base URL: IP address or hostname of the HTTPS server in use; only applicable if • Download method is switched to "HTTPS". • After submit: Specifies actions after submit button is pressed. Value range: "do nothing", "start download". Default: "do nothing". A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 209 --- Admin --- File Transfer --- Phone application |--- Use default |--- Download method |--- Server |--- Port |--- Account |--- Username |--- Password |--- FTP path |--- HTTPS base URL --- Filename A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 210: Download/Update Phone Application
Press the OK key. A context menu opens. In the context menu, select Download. The download will start immediately. • On OpenScape Desk Phone CP400/OpenScape Desk Phone CP600: Press the Soft Key labeled Download. The download will start immediately. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 211: Picture Clips
HTTPS base URL: IP address or hostname of the HTTPS server in use; only applicable if • Download method is switched to "HTTPS". • After submit: Specifies actions after submit button is pressed. Value range: "do nothing", "start download". Default: "do nothing". A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 212 |--- Username |--- Password |--- FTP path |--- HTTPS base URL --- Filename • On OpenScape Desk Phone CP400/OpenScape Desk Phone CP600: Press the Soft Key labeled Download. The download will start immediately. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 213: Download Picture Clip
In the administration menu, set the focus to Picture clip. --- Admin --- File Transfer --- Picture clip • On OpenScape Desk Phone CP400/OpenScape Desk Phone CP600: Press the Soft Key labeled Download. The download will start immediately. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 214: Ldap Template
The LDAP template is an ASCII text file that uses an allocation list to assign directory server attributes to input and output fields on an LDAP client. The LDAP template must be modified correctly for successful communication between the directory server and the LDAP client. The OpenScape Desk Phone CP200/400/600 phones support LDAPv3. > 3.16.5.1 FTP/HTTPS Access Data If the default FTP/HTTPS access settings (see Section 3.16.2, “Common FTP/HTTPS Settings...
Page 215 --- Admin --- File Transfer --- LDAP |--- Use default |--- Download method |--- Server |--- Port |--- Account |--- Username |--- Password |--- FTP path |--- HTTPS base URL --- Filename A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 216: Download Ldap Template
Press the OK key. A context menu opens. In the context menu, select Download. The download will start immediately. • On OpenScape Desk Phone CP400/OpenScape Desk Phone CP600: Press the Soft Key labeled Download. The download will start immediately. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 217: Logo
Value range: "Yes", "No" Default: "No" • Filename: Specifies the file name of the phone software. After submit: Specifies actions after submit button is pressed. • Value range: "do nothing", "start download". Default: "do nothing". A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 218 --- Admin --- File Transfer --- Logo |--- Use default |--- Download method |--- Server |--- Port |--- Account |--- Username |--- Password |--- FTP path |--- HTTPS base URL --- Filename A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 219: Download Logo
In the administration menu, set the focus to Logo. --- Admin --- File Transfer --- Logo • On OpenScape Desk Phone CP600: Press the Soft Key labeled Download. The download will start immediately. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 220: Screensaver
Value range: "FTP", "HTTPS" Default: "FTP" Server address: IP address or hostname of the FTP/HTTPS server in use. • • Server port: Port number of the FTP/HTTPS server in use. Default: 21 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 221 --- Admin --- File Transfer --- Screensaver |--- Use default |--- Download method |--- Server |--- Port |--- Account |--- Username |--- Password |--- FTP path |--- HTTPS base URL --- Filename A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 222: Download Screensaver
In the administration menu, set the focus to Screensaver. --- Admin --- File Transfer --- Screensaver • On OpenScape Desk Phone CP600: Press the Soft Key labeled Download. The download will start immediately. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 223: Ringer File
0.21 MB 0:30 min 0.23 MB 0.29 MB 0.35 MB 0.41 MB 0:45 min 0.35 MB 0.44 MB 0.53 MB 0.62 MB 1:00 min 0.47 MB 0.59 MB 0.70 MB 0.82 MB A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 224: Ftp/Https Access Data
FTP path: Path of the directory containing the files. • HTTPS base URL: IP address or hostname of the HTTPS server in use; only applicable if Download method is switched to "HTTPS". A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 225: A31003-C1000-M101-1-76A9,
--- Admin --- File Transfer --- Ringer |--- Use default |--- Download method |--- Server |--- Port |--- Account |--- Username |--- Password |--- FTP path |--- HTTPS base URL --- Filename A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 226: Download Ringer File
In the administration menu, set the focus to Ringer. --- Admin --- File Transfer --- Ringer • On OpenScape Desk Phone CP600: Press the Soft Key labeled Download. The download will start immediately. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 227: Dongle Key
FTP path: Path of the directory containing the files. HTTPS base URL: IP address or hostname of the HTTPS server in use; only applicable if • Download method is switched to „HTTPS“. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 228 --- Admin --- File Transfer --- Dongle key |--- Use default |--- Download method |--- Server |--- Port |--- Account |--- Username |--- Password |--- FTP path |--- HTTPS base URL --- Filename A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 229: Download Dongle Key File
Press the OK key. A context menu opens. In the context menu, select Download. The download will start immediately. • On OpenScape Desk Phone CP400/OpenScape Desk Phone CP600: Press the Soft Key labeled Download. The download will start immediately. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 230: Corporate Phonebook: Directory Settings
COMM,OU=COM,L=NTH,CN=BAYLIS MICHAEL". The internal structure will depend on the specific corporate directory. For a quick guide on setting up LDAP on an OpenScape Desk Phone CP200/400/600 phone, please refer to Section 5.3, “How to Set Up the Corporate Phonebook (LDAP)”.
Page 231 Search trigger timeout Submit Reset Administration via Local Phone --- Admin --- Local Functions --- LDAP |--- Server address |--- LDAP server port |--- Authenticate |--- User name |--- Password --- Search trigger (s) A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 232: Speech
HTTP proxy Automatic LAN port speed Automatic PC port speed PC port mode disabled PC port autoMDIX Submit Reset Administration via Local Phone --- Admin --- Network --- Port configuration --- RTP base A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 233: Codec Preferences
If Silence suppression is activated, the transmission of data packets is suppressed on no con- versation, that is, if the user doesn’t speak. The OpenScape Desk Phone CP200/400/600 phones provide the codecs G.711, G.722, and G.729. When a SIP connection is established between two endpoints, the phones negotiate the codec to be used.
Page 234: Silence Suppression
Submit Administration via Local Phone --- Admin --- Speech --- Codec Preferences |--- Silence suppression |--- Allow "HD" icon |--- Packet size |--- G.711 |--- G.729 |--- G.722 --- Allow "HD" icon A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 235: Audio Settings
Admin menu: 123456 • User menu: no password • Factory Reset: 124816 • Soft Restart: Press keys 1-4-7 simultaneously and enter Admin password. • Factory Reset: Press keys 2-8-9 simultaneously and enter Reset password. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 236: Troubleshooting: Lost Password
Press the number keys 2-8-9 simultaneously. The factory reset menu opens. If not, the key combination is deactivated due to security reason. In the input field, enter the special password for factory reset: "124816". Confirm by pressing OK. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 237: Restart Phone
WBM, the system can be accessed by the user "admin" for a specified timespan. When this timespan has expired, no connection is possible any more. The user "admin" has the following permissions: A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 238: Display License Information
The license information can also be viewed by users who logged on using the User > login if logging on as Admin is not permitted. Administration via Local Phone --- Admin --- Licence information A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 239: Diagnostics
Part Number: S30817-S7724-A101-03 1.0.0 UBoot version: Display on the Local Phone --- Admin --- General Information |--- MAC address |--- Software version --- Last restart --- Backlight type --- Part Number --- UBoot version A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 240: View Diagnostic Information
The Diagnostic Information can also be viewed by the user on the local phone by > selecting User > Diagnostic information. Administration via WBM Diagnostics > Diagnostic information > User access User access User Access Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 241: Diagnostic Call
This is completely user related and user should be informed about the process. There will not be any restriction to prevent user to dial the prefix. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 242 If admin tries to change trace configuration or delete existing trac- es this will not be allowed and admin will get the following error: Change not allowed: Diag- nostic tracing is active! A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 243: Lan Monitoring
|--- IPv6 Global Address |--- IPv6 Linklocal Address |--- LAN RX |--- LAN TX |--- PC RX |--- PC TX |--- LAN autonegotiated |--- LAN information |--- PC autonegotiated --- PC information A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 244: Lldp-Med
System capabilities: The devices advertise their potential and currently enabled func- • tions, e. g. "Bridge", "Telephone". • TTL: Time To Live. This parameter determines how long the TLVs are valid. When expired, the device will send a new set of TLVs. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 245 If both sent and received values are concordant, OK is appended to the parameter. If not, an error message is displayed. --- Admin --- Network --- LLDP-MED operation |--- Extended Power |--- Network policy (voice) |--- LLDP-MED cap’s |--- MAC_Phy config |--- System cap’s --- TTL A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 246: Ip Tests
Traceroute enables traceroute tests for a random IP address. Administration via WBM Diagnostics > Miscellaneous > IP tests IP tests Pre Defined Ping tests Ping DLS Ping Ping tests Ping Pre Defined Trace tests Traceroute DLS Traceroute Traceroute Traceroute A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 247: Process And Memory Information
The High Threshold (MBs) parameter defines the threshold for off-time. For OpenScape Desk Phone CP200, the default value is 20 MB, and for OpenScape Desk Phone CP400/OpenScape Desk Phone CP600, it is 30 MB. With Low Threshold (MBs), the threshold for off-time is defined.
Page 248 0% SvcConfig services.conf -startLogDaemon -logAll V3 R0.50.0 SIP 110924 2057 1877 root 44712 36% 0% SvcConfig services.conf -startLogDaemon -logAll V3 R0.50.0 SIP 110924 1881 1877 root 44712 36% 0% SvcConfig services.conf -startLogDaemon -logAll V3 R0.50.0 SIP 110924 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 249: Fault Trace Configuration
Download exception file If an exceptions occurs in a process running on the phone, a message is written to this file. These messages are incorporated in the syslog file (see Download syslog file also). A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 250 Brief Descriptions of the Components/Services • Administration Deals with the changing and setting of parameters within the phone database, from both the User and Admin menus. • AGP Phonelet Deals with AGP Phonelet. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 251 Involved in the passing of call related information and signaling to and from the CSTA ser- vice. • Component registrar Handles data relating to the type of phone, e.g. OpenScape Desk Phone CP200/400/600. • CSTA service Any CSTA messages are handled by this service. CSTA messages are used within the phone by all services as a common call progression and control protocol.
Page 252 The trace level must be set to "TRACE" or "DEBUG". > • Physical interface service Handles any interactions with the phone via the keypad, mode keys, fixed feature buttons, clickwheel and slider. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 253 Provides a switching mechanism for voice streams within the phone. This component is also involved in QDC, Music on hold and voice instrumentation. • Voice mail Handles the voice mail functionality. • Web server service Provides access to the phone via web browser. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 254 Download old trace file Download Database file Download saved syslog file Download syslog file Download old syslog file Download dial plan file Download upgrade error file Download HPT remote service log file Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 255: Easytrace Profiles
Download trace file Download saved trace file Reset Submit 3.24.10.2 Bluetooth headset profile This profile is available only on OpenScape Desk Phone CP600 telephones. Diagnostics > EasyTrace Profiles > Bluetooth headset profile A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 256: Call Connection
Download saved trace file Submit Reset This EasyTrace profile contains the tracing of SIP messages. Please note that after > changing the level for the tracing of SIP messages, the phone must be rebooted. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 257: Call Log Problems
Trace timeout (minutes) Automatic clear before start Trace levels for components Call View DEBUG Communications DEBUG SIP call control DEBUG Media recording service DEBUG Download trace file Download saved trace file Reset Submit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 258: Das Connection
Trace levels for components Certificate management TRACE Component registrar Data Access service TRACE Health service DLS client management TRACE OpenStage client management Service framework TRACE Download trace file Download saved trace file Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 259: Help Application
File size (Max 6290000 bytes) 1048576 Trace timeout (minutes) Automatic clear before start Trace levels for components Component registrar TRACE Health service Physical interface service DEBUG Download trace file Download saved trace file Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 260: 3.24.10.10 Lan Connectivity
Trace levels for components Component registrar TRACE Health service Application framework TRACE Call View TRACE Communications TRACE CSTA service TRACE Desktop TRACE SIP signalling DEBUG Communications Download trace file Download saved trace file Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 261: 3.24.10.12 Mobility
Automatic clear before start Trace levels for components Administration TRACE Health service WARNING OpenStage client management Application framework TRACE Communications TRACE CSTA service TRACE Desktop TRACE Download trace file Download saved trace file Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 262: 3.24.10.14 Local Phonebook
Trace levels for components Application menu TRACE Component registrar TRACE Directory service TRACE Health service Application framework TRACE Desktop TRACE Journal service TRACE Transport service Download trace file Download saved trace file Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 263: 3.24.10.16 Server Based Applications
Trace levels for components Call View TRACE Communications WARNING CSTA service Team Service TRACE SIP signalling TRACE SIP call control TRACE SIP messages TRACE Download trace file Download saved trace file Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 264: 3.24.10.19 Sip Standard Singleline
Trace levels for components Component registrar TRACE Health service Voice engine service TRACE Media processing service TRACE SIP signalling DEBUG SIP call control DEBUG Download trace file Download saved trace file Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 265: 3.24.10.21 Tone
Trace timeout (minutes) Automatic clear before start Trace levels for components Component registrar TRACE Health service Tone generation service TRACE Media processing service TRACE Download trace file Download saved trace file Reset Submit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 266: 3.24.10.22 Voice Dialling
Trace levels for components Data Access service TRACE OpenStage client management TRACE Web server service TRACE USB backup service TRACE 802.1x service TRACE Voice recognition TRACE Download trace file Download saved trace file Reset Submit A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 267: 3.24.10.24 802.1X Problems
Bluetooth Advanced Traces Automatic clear before start File size (Max 6290000 bytes) Extended dump Verbose decoding Start Tracing is stopped Download trace file Reset Submit 3.24.12 M5T Advanced Traces Diagnostics > M5T Advanced Traces A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 268 Administration Diagnostics M5T Advanced Traces SIP M5T stack M5T trace components Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 269: Qos Reports
Maximum jitter (milliseconds): When the jitter exceeds this value, a report is generated. Default: 20 • Average round trip delay (milliseconds): When the average round trip time exceeds this value, a report is generated. Default: 100 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 270 Resend last report: If checked, the previous report is sent once again on pressing Sub- mit. By default, this is unchecked. The transmission of report data can be triggered manually by pressing Send now in the local menu. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 271 --- Thresholds |--- Maximum jitter |--- Round-trip delay |--- Non-compressing: |--- ...Lost packets (K) |--- ...Lost consecutive |--- ...Good consecutive |--- Compressing: |--- ...Lost packets (K) |--- ...Lost consecutive --- ...Good consecutive A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 272: View Report
A silence suppression activation object is defined as a period of silence when no encoded voice signals were transmitted by the sender. Count of good packets: Total amount of good packets. • A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 273 If there is no data, the value is 255. The threshold values included are: • maximum jitter; • lost packets; • consecutive lost packets; • consecutive good packets. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 274 • 3: E.164 number of the local phone Subscriber number: Subscriber number of the local phone. • • Call ID: SIP call id. MAC address: MAC address of the local phone. • A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 275 HiPath Switch ID Asterisk PBX 1.6.2.19 LTU number Slot number Endpoint type OpenScape Desk Phone CP600 Version V3 R0.50.0 SIP 110924 Subscriber number type Subscriber number 3339 Call ID 05b4445aeaf00008 MAC address 0001e325eaca A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 276: Core Dump
Administration via WBM Diagnostics > Miscellaneous > Core Dump Core Dump Enable core dump* Delete core dump *Changes to this item do not take effect until the phone is restarted Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 277: Remote Tracing - Syslog
If user notification is enabled, a blinking symbol ( OpenScape Desk Phone CP400/OpenScape Desk Phone CP600; OpenScape Desk Phone CP200) will inform the user when remote tracing is active, that is, when Remote trace status is set to "Enabled".
Page 278: Hpt Interface (For Service Staff)
For special diagnosis and maintenance tasks, the service staff may employ the HPT tool, which is able to control and observe an OpenScape Desk Phone CP200/400/600 phone remotely. For security reasons, this tool can only be used when a dongle key file is uploaded to the phone (see Section 3.16.9, “Dongle Key”).
Page 279: Mwi Led
Missed Calls are indicated to the user; via the "Envelope" mode key LED only, via the Top LED only, via both LEDs or no LED. The selection field offers the choice between: • "Key only" (default) • "Key & AlertBar" A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 280 Administration Missed Call LED • "AlertBar only" • "No LED" A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 281: Impact Level Notification
'impact' levels (the impact level indicates how the phone user should handle the call conversation). The purpose is to notify the OpenScape Desk Phone CP200/400/ 600 phone users when they are connecting or in a call where another party in the call is in a lower Impact Level (IL) zone.
Page 282 Impact level ringer: Identifies one of the named distinctive ringers to be used in place of the normal ringer for calls from a lower impact level. Value range: the offered values are those definded in "Ringer Settings" > Distinctive", e.g. "Bellcore-dr1" or any arbitrary name A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 283 The ringer has to be configured in the ringer setting table (see Section 3.14, “Ring- er Setting”). Administration via Local Phone --- Admin --- System --- Features --- Configuration --- Audio --- Lower IL ringer A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 284: Technical Reference
Technical Reference Default Port List Technical Reference Default Port List The following table contains all default ports, resp. port ranges, and protocols used by the ser- vices running on OpenScape Desk Phone CP200/400/600 phones. Service Server De- Client Default Protocol Stack...
Page 285 8085 HTTP / TCP Secure Web Server for WBM access 443 HTTPS / TCP - SSL / TLS OpenStage Phone Manager 65531 HTTP / TCP OpenStage Phone Manager 65530 HTTP / UDP A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 286: Troubleshooting: Error Codes
Occurs when the pin prompt is dismissed Cloud-Deployment: Cloud-Deployment: unable to get the address unable to get the ad- for the Unify Redirect server. DNS lookup fai- dress for the Unify Redirect server Unable to establish Cloud-Deployment: unable to establish cont-...
Page 287 Unify Redirect server - unauthorised Redirect server - un- authorised Unable to establish Cloud-Deployment: unable to establish cont- contact with Unify act with Unify Redirect server - no or invalid Redirect server - no OCSP response or invalid OCSP res- ponse Unable to establish...
Page 288: Examples And Howtos
Initial extension digits 2,3,4,5,6,8 digits of numbers that are used for extensi- on numbers on the local node. (No blank after comma, or else the subsequent entry is igno- red.) A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 289: Canonical Dial Lookup
International code <2> +49897007 Equivalent prefix to access numbers on this node from the PSTN. Here, the prefix used by the PSTN for direct inward dialing is identical to the enterprise node prefix. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 290: Conversion Examples
Number stored in the +498970072345 phonebook Dial string sent when Internal numbers = Local enterprise form 2345 dialing from the Internal numbers = Always add node 7802345 phonebook Internal numbers = Use external numbers 9432345 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 291 Number stored in the +4411511234567 phonebook Dial string sent when External numbers = Local public form 234567 dialing from the External numbers = National public form 011511234567 phonebook External numbers = International form 004411511234567 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 292: How To Create Logo Files
The background color on OpenScape Desk Phone CP600 - skin 1 is a gradient; the colour listed here is an average value. Adobe Photoshop: Click on the Background Color icon on the Color palette group, then type the color code without leading "#" into the # field) A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 293 Merge the two layers to one. Adobe Photoshop: In the Panel, select both the background layer and the new layer containing the inserted logo. Afterwards, go to Layer in the Menu bar, and select Merge Layers. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 294 Magic Eraser Tool. After this, got to the Menu bar and set the Tolerance field to "0". Save the Image Finally, save the image in PNG format. You can now upload the logo file to the phone as described in Section 3.16.6, “Logo”. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 295: How To Set Up The Corporate Phonebook (Ldap)
Therefore, it is recommended to use the ipPhone field, which is typically unused in Ac- tive Directory. It can be found in the Telephones tab of the Active Directory User Manager. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 296: Create An Ldap Template
The "ATTRIB12" is optional, the existing templates remain unchanged, when no wildcard search is desired. Search via FIND-mask is not affected by "ATTRIB12". See example LDAP  Template for wildcard search example. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 297 441274333444 Company ATTRIB07 Example Inc. Address 1 ATTRIB08 departmentNumber 0815 Address 2 ATTRIB09 Job function ATTRIB10 title Product Manager Email ATTRIB11 mail doe@example.com any LDAP attribute optional for wildcard ATTRIB12 search A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 298 441274333444 Company ATTRIB07 company Example Inc. Address 1 ATTRIB08 department Administration Address 2 ATTRIB09 Job function ATTRIB10 title Product Manager Email ATTRIB11 mail doe@example.com any LDAP attribute optional for wildcard ATTRIB12 search A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 299 Given "example.com" as the LDAP subtree to be searched with ’wildcard search’ quick search for LDAP attribute ’info’, the LDAP template file looks like this: OpenScape Desk Phone CP LDAP TEMPLATE (v.1) SEARCHBASE="dc=example,dc=com" ATTRIB01="sn" ATTRIB02="givenName" ATTRIB03="ipPhone" ATTRIB04="otherTelephone" ATTRIB05="mobile" ATTRIB06="homePhone" ATTRIB07="company" ATTRIB08="department" ATTRIB09="l" ATTRIB10="title" ATTRIB11="mail" ATTRIB12="sn" A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 300: Load The Ldap Template Onto The Phone
LDAP Use defaults Download method FTP Server address FTP Server port FTP account FTP username phone FTP password media FTP path HTTPS base URL Filename ldap-template.txt After submit do nothing Submit Reset A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 301: Configure Ldap Access
In the query mask, select the entry to be searched, for instance Last Name. Press open the onscreen keypad for text input. Enter the text to be searched. For information on using the onscreen keypad, see Section 3.1, “Access via Local Phone”, step 5. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 302 How to Set Up the Corporate Phonebook (LDAP) Navigate to the Find option and press . If the query was successful, at least one entry will be listed in the following manner: A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 303 Dial the Business 1 number. Dial the Mobile number. • • Have the entry’s details, that is, all attributes displayed. • Start a new search. • Clear the list of search results. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 304: An Lldp-Med Example
Select the MAC_Phy config submenu by pressing OK and navigate to the parameters dis- played by using the navigation keys. The following status is displayed for the MAC_Phy config parameters: AutoSet enabled = Incompatible MAU = Incompatible A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 305 Examples and HowTos An LLDP-Med Example A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 306: Example Dial Plan
Maximum length: Automatic sending will occur when this number of digits have been di- aled. If not specified, then the digits will be sent when the timer expires, or a terminating character is entered. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 307 Terminator sent: If set to true, the terminating character is sent to the server along with the dial string proper. If set to false, the dial string is sent without the terminating character. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 308: How To Set Up And Deploy A Dial Plan
Summary: This rule determines that digit strings which begin with 3 and have a length of 4 digits are sent to the server without delay after the last digit has been entered. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 309 When further digits are entered during the 1 second timespan, the next dial plan rule will take control. Click on to create the third dial plan rule. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 310 11. The example dial plan is completed; it should look like this: 12. You can check the dial plan using the phone’s web interface; navigate to Diagnostics > Fault trace configuration > Download dial plan file. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 311: Glossary
Differentiated Services. Specifies a layer 3 mechanism for classifying and managing net- work traffic and providing quality of service (-> QoS) guarantees on -> IP networks. Diff- Serv can be used to provide low-latency, guaranteed service for e. g. voice communica- tion. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 312 The standard bitrate is 8 kBit/s. Music or tones such as -> DTMF or fax tones cannot be transported reliably with this codec. Gateway Mediation components between two different network types, e. g., -> IP network and ISDN network. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 313 LDAP Lightweight Directory Access Protocol. Simplified protocol for accessing standardized di- rectory systems, e.g., a company telephone directory. Light Emitting Diode. Cold light illumination in different colours at low power consumption. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 314 Ports are used in -> IP networks to permit several communication connections simultane- ously. Different services often have different port numbers. PSTN Public Switched Telephone Network. The network of the world's public circuit-switched telephone networks. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 315 255.0.0.0 for Class A, 255.255.0.0 for Class B and 255.255.255.0 for Class C. In a Class C network, for instance, 254 IP addresses are available. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 316 Voice over IP. A term for the protocols and technologies enabling the routing of voice con- versations over the internet or through any other -> IP-based network Web Based Management. A web interface which enables configuration of the device using a standard web browser. A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 317 Glossary A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 318: Index
Early 183 response 3-107 Canonical Dialing 3-188 Easy Trace Profiles 3-255 Codec Preferences 3-233 802.1x 3-267 Conference Bluetooth handsfree profile 3-255 Phone-Based 3-154 Bluetooth headset profile 3-255 System based 3-136 Call Connection 3-256 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 319 Hold 3-150 Layer 3 3-55 Hot Phone 3-125 LDAP 3-230, 5-295, 6-313 Hot warm LDAP Template (Download) 3-214 action 3-170 License Information 3-238 destination 3-170 Line action mode 3-175 HPT Interface 3-278 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 320 Operator Code 3-189 Originating line preference 3-174 Realm 3-170 Outbound Proxy 3-103 Refuse 3-124 Registration Authenticated 3-100 Part Number 3-239 Registration Backoff Timer 3-115 Password Release 3-168 Change 3-235 Remote Tracing – Syslog 3-277 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...
Page 321 Transport Protocol 3-104 SNMP 3-74, 6-315 Zip Tone 3-162 Software version 3-239 SSH – Secure Shell Access 3-237 Start Phonebook 3-167 Subnet Mask 2-26 Subnet Mask (Manual configuration) 3-62 Survivability 3-110 TCP 6-316 A31003-C1000-M101-1-76A9, 03/2016 OpenScape Desk Phone CP200/400/600, Administrator Documentation...

This manual is also suitable for:

Cp400 Cp600

Unify CP200 Administrator Documentation

1 Overview

2 Startup

3 Administration

4 Technical Reference

5 Examples and Howtos

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unify CP200

Summary of Contents for Unify CP200
