Installation and Configuration

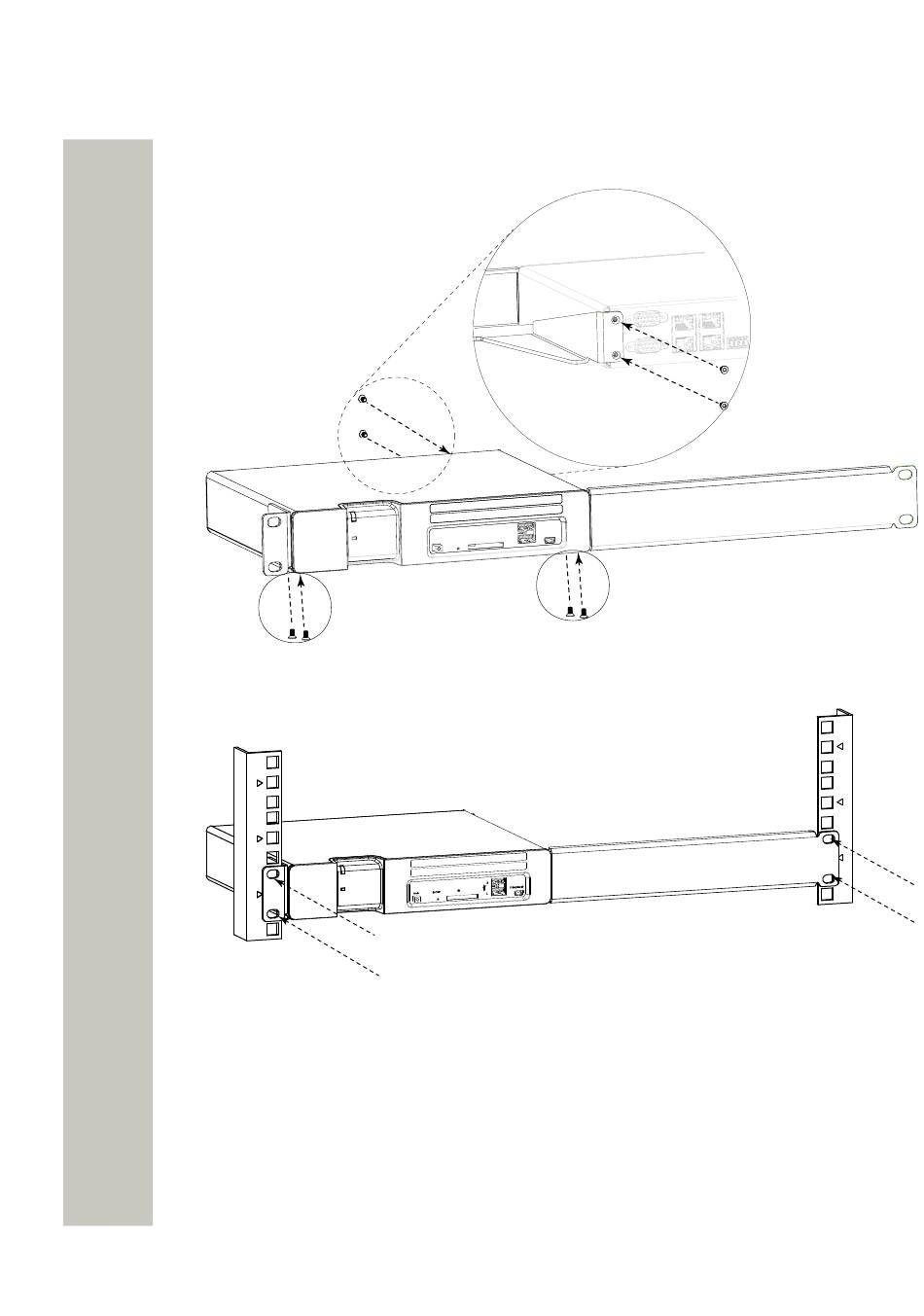

1) Fasten the big assembly bracket on the right side of the module and the small assembly
bracket on the left side as shown in the figure below.
Figure 5: Mounting the assembly bracket
2) Fasten the assembly brackets in the rack, see below (screws not included).
Figure 6: Front mounted single in rack
Front mounted double
•
Requires the standard 19´´ rack kit
16
A31003-M2000-J109-01-7631, 30/06/2020
Wireless Service Gateway WSG, Installation Guide
