Summary of Contents for DFI PR610-C621

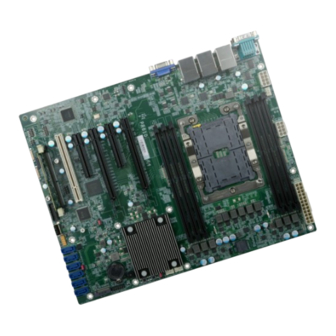

- Page 1 PR610-C621 with SEM2500/SEM2510 ATX Industrial Motherboard User’s Manual A-544-M-2015...
- Page 2 1. The changes or modifications not expressly approved by the party responsible for com- pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | PR610-C621...
-
Page 3: Table Of Contents
CPU Configuration ......................28 Video Configuration .......................28 SATA Configuration .......................29 USB Configuration ......................30 PCI Express Configuration ....................31 Debug Configuration .....................31 UEFI Device Manager ....................32 SIO NCT6112D .......................32 SIO AST2500/AST2510 ....................34 H2O IPMI Configuration ....................34 Console Redirection ......................37 User's Manual | PR610-C621... - Page 4 • To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | PR610-C621...
- Page 5 • Storage device such as hard disk drive, CD-ROM, etc. • Power adaptor External system peripherals may also be required for navigation and display, including at least a keyboard, a mouse and a video display monitor. User's Manual | PR610-C621...
-
Page 6: Chapter 1 - Introduction
Please visit the download page at go.dfi. 1x USB 3.1 Gen1 header (2x USB 3.1 gen1) com/PR610, or via the QR code to the right for the latest datasheet. SATA 6 x SATA 3 (up to 6Gb/s) SMBus 1 x SMBus User's Manual | PR610-C621... -
Page 7: Features
This function allows you to use a USB keyboard or USB mouse to wake up a system from the The Real Time Clock (RTC) installed on the system board allows your system to automatically S3 (STR - Suspend To RAM) state. power-on on the set date and time. User's Manual | PR610-C621... -
Page 8: Block Diagram
USB 3.1 Gen1 4x 80h port SPI BIOS TPM 2.0 (opt.) IPMI UART RS232 1x ADM213E Super IO (by SEM2500) NCT6112D UART RS232 1x ADM213E Sensors GbE 1x Realtek System Fan 3x & CPU Fan 1x (Mgnt) RTL8211F User's Manual | PR610-C621... -
Page 9: Chapter 2 - Hardware Installation
PCI1 LED4 Status LEDs PLD Update SO-DIMM for JP16 M.2 M Key Debug Green=Normal; Amber=Abnormal SEM2500/SEM2510 Note USB 5/6 SMBus BMC COM USB 3.1 Gen1 SATA 5/4/3/2/1 (left to right) USB 7 USB 8/9 (USB 2.0) User's Manual | PR610-C621... -
Page 10: System Memory
DIMMs in a channel can be identical or completely different. However, we highly rec- ommend using identical DIMMs. Not all slots need to be populated. Socket Side View Features • Six 288-pin RDIMM up to 192GB • Single Channel DDR4 up to 2933 MHz Step 1 Step 2 User's Manual | PR610-C621... -
Page 11: Removing The Dimm Module
The tabs snap automatically to the edges of the card and lock the card in place. S ocket Side View Socket Side View Step 1 Step 1 Step 1 Step 1 Step 2 Step 2 Step 2 Step 2 Step 3 Step 3 Step 3 Step 3 User's Manual | PR610-C621... -
Page 12: Cpu
CPU fan and heat sink assembly. If ® your CPU was purchased separately, make sure to only use Intel®-certified fan and heat sink. Latch Triangular mark Gold triangular mark Latch CPU Carrier (bottom view) User's Manual | PR610-C621... - Page 13 (top view) Triangular hole 6. Connect the CPU fan’s CPU Fan power cable to the CPU fan connector on the system board. 4. Slide the protective caps open and detach them from the board. User's Manual | PR610-C621...
-
Page 14: Jumper Settings
1 and pin 2. 3. Plug the power cord and power-on the system. „ 1-2 On: Normal (default) „ 2-3 On: Force ME Update „ 1-2 On: Normal (default) „ 2-3 On: Clear CMOS User's Manual | PR610-C621... -
Page 15: Rear I/O Ports
BIOS Setting Configure the display devices in the "Advanced" menu (“Video Configuration” submenu) of the BIOS. Refer to the chapter 3 for more information. MGMT Port (optional) VGA (optional) USB 11 (USB 2.0) USB 10 (USB 2.0) User's Manual | PR610-C621... -
Page 16: Com (Serial) Ports
3 for more information. Features • 2 x Intel I210AT PCIe (10/100/1000Mbps) ® • 1 x RTL8211F only with SEM2500 Note: The BMC COM port is used to monitor the IPMI functions and the BMC on the SEM2500/SEM2510 card. User's Manual | PR610-C621... -
Page 17: Usb Ports
+5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support • 2 x USB 2.0 rear ports (USB 10/11) ≥2A. User's Manual | PR610-C621... -
Page 18: Internal I/O Connectors
6 Serial ATA 3.0 ports with data transfer rate up to 6Gb/s Line-Out-R Mic-JD (sense) • Integrated Advanced Host Controller Interface (AHCI) controller • Support RAID 0, RAID 1, RAID 5, RAID 10 Line-Out-L Line-JD (sense) User's Manual | PR610-C621... -
Page 19: Cooling Fan Connectors
Insufficient power supplied to the system may result in instability or malfunction Sense of the add-in boards and peripherals. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consump- Speed Control tion requirements. User's Manual | PR610-C621... -
Page 20: Chassis Intrusion
Power On Suspend) state, it will blink at 1-second intervals. When the system is in the S3 (STR - Suspend To RAM) state, it will blink at 4-second intervals. Power Button This button is used to switch the system's power on or off . User's Manual | PR610-C621... -
Page 21: Expansion Slots
45mm SEM2510 module for additional IPMI management, BMC, and VGA output. 69.6mm BIOS Setting Configure PCIe root ports in the "Advanced > PCI Express Configuration” submenu of the BIOS. Refer to chapter 3 for more information. User's Manual | PR610-C621... -
Page 22: Lpc
L_CLK L_LAD1 the gap between the card and the stand-off closes up. The L_RST# L_LAD0 card should be lying parallel to the board when it’s correctly L_FRAME# 3.3V mounted. L_LAD3 L_LAD2 SERIRQ User's Manual | PR610-C621... -
Page 23: Battery
• There exists explosion hazard if the battery is incorrectly installed. Pin Assignment Pin Assignment • Replace only with the same or equivalent type recommended by the manufacturer. 3V3SB • Dispose of used batteries according to local ordinances. SMBus_Clock SMBus_DATA SMBus_Alert User's Manual | PR610-C621... -
Page 24: Jtag Pld Programming
„ JTAG PLD Connector The JTAG PLD connector is used to verify and test printed circuits. „ JTAG PLD Pin Assignment Assignment Assignment 3V3SB Test Data Out Test Data In EN N Reset Test Mode Select Test Clock User's Manual | PR610-C621... -
Page 25: Chapter 3 - Bios Setup
When “X” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | PR610-C621... -
Page 26: Main
00 to 59. Second displays seconds from 00 to 59. System Date The date format is <month>, <date>, <year>. Month displays the month, from 01 to 12. Date displays the date, from 01 to 31. Year displays the year, from 2000 to 2099. User's Manual | PR610-C621... -
Page 27: Acpi Configuration
Real-time clock (RTC) battery. [Wake up time] Configure the time of day the system will wake on RTC — [HH:MM:SS]. This field will only ap- pear when “Wake On RTC” is enabled. User's Manual | PR610-C621... -
Page 28: Cpu Configuration
Please make sure that the OS operating on your system is optimized for Hyper-Threading, e.g. Windows and Linux. This field is not available when the equipped CPU does not support Hyper- threading. User's Manual | PR610-C621... -
Page 29: Sata Configuration
AHCI This option allows the Serial ATA controller(s) to use AHCI (Advanced Host Control- ler Interface). RAID This option allows the Serial ATA controller(s) to use UEFI, RAID, and Intel Rapid Storage Technology. SATA Port 0-5/Hot Plug Enable or disable each Serial ATA port and its hot plug function. User's Manual | PR610-C621... -
Page 30: Usb Configuration
Select Serial ATA controller(s) speed — Auto, Gen1 (1.5 Gbit/s), Gen2 (3 Gbit/s) or Gen 3 (6 Enable or disable XHCI Hand-off. Gbit/s). SATA Port / Hot Plug Enable or disable each Serial ATA port and its hot plug function. User's Manual | PR610-C621... -
Page 31: Pci Express Configuration
GT/s). Gen 3 is only available for the PCIE1 port. This field may not appear when the speed of the port is not configurable. Default value is 115200. Hot Plug Enable or disable hot plug function of the port. This field may not appear when the port does not support hot plug. User's Manual | PR610-C621... -
Page 32: Uefi Device Manager
Network Device will not be configurable in Device Manager if "Network Stack" is Set the timeout value of the WDT — 1-255 seconds. disabled in the "Boot" menu. Case Open Alert Enable or disable case open alert. Clean Case Open Status Clean current case open status including alert. User's Manual | PR610-C621... - Page 33 Enable or disable the system smart fan. When disabled, fan speed will not be controllable ac- cording to different system temperatures. Instead, a Fix Fan Speed Count field will be displayed to configure at which speed the fan will always be fixed regardless of system temperature. User's Manual | PR610-C621...
-
Page 34: Sio Ast2500/Ast2510
Enable or disable this field for IPMI driver installation. SIO AST2500/AST2510 is only present when the board supports the IPMI func- Boot Option Support tions and equipped with SEM2500/SEM2510. Enable or disable IPMI boot option function. User's Manual | PR610-C621... - Page 35 BMC's LAN channel number. There are three channels available — channel number from 1 to 3. To configure a LAN channel, insert a channel number, and the IP settings of the selected chan- nel will be listed in the following. User's Manual | PR610-C621...
- Page 36 Select among Reserved, Callback, User, Operator, Administrator, and No Access. The privilege of a user ID can be set differently in different channels. Add current setting to list Save the setting of the current user ID's previlege of the current channel. User's Manual | PR610-C621...
-
Page 37: Console Redirection
Select data bits — 7 bits or 8 bits. Parity Select parity bits — none, even or odd. Stop Bits Select stop bits — 1 bit or 2 bits. Flow Control Select flow control type — none, RTS/CTS or XON/XOFF. User's Manual | PR610-C621... -
Page 38: Security
This field is used to enable or disable network stacks, i.e. IPv4 or IPv6 network protocols. Note: The devices shown here are based on a carrier board that may not resemble your actual carrier board. The actual I/O devices depend entirely on those present on your actual carrier board. User's Manual | PR610-C621... - Page 39 "PXE Boot to LAN", "PXE boot capability", "Network Stack" and the LAN controller of the said LAN (go to "Advanced" > "PCI Express Configuration") are enabled. Please press F10 to save the settings and re-start the system board for the settings to take effect. User's Manual | PR610-C621...
-
Page 40: Exit
Select YES and press <Enter> to load optimal defaults. Discard Changes Select YES and press <Enter> to exit the system setup without saving your changes. Save Setting to file Select this option to save BIOS configuration settings to a USB flash device. User's Manual | PR610-C621... -
Page 41: Chapter 4 - Raid
Single Drive Failure Disk mirroring Block-level data striping with RAID 5 Single Drive Failure distributed parity 1 Disk Per Mirrored Combination of RAID 0 (data striping) RAID 10 Stripe (not same mirror) and RAID 1 (mirroring) User's Manual | PR610-C621... - Page 42 5. Press <Enter>. 6. Use the up or down arrow keys to select the strip size and press <Enter>. 7. Enter the volume size and press <Enter>. 8. At the prompt, press <Y> to confirm volume creation. User's Manual | PR610-C621...
- Page 43 (create, delete, migrate), and monitor SATA and RAID volume via user-friendly and icon-driven UI, and enables enhanced performance and power management for your storage subsystems. Please refer to Chapter 4 for more instructions on installing Intel Rapid Storage Technology. User's Manual | PR610-C621...
-
Page 44: Chapter 5 - Supported Software
Please refer to the following sections that correspond to your selection for more information. 2. Read the license agreement then click “Accept”. Note: This step can be ignored if the applications are downloaded standalone files. User's Manual | PR610-C621... -
Page 45: Aspeed Graphics Drivers
“Restart Now” to exit setup. 3. Wait for the installation pro- cess to complete, and press Restarting the system will al- Finish when the process is low the new software installa- completed. tion to take effect. User's Manual | PR610-C621... -
Page 46: Intel Lan Driver
5. The step displays the installing status in the progress. 2. Click “I accept the terms in the license agreement” then click “Next”. 6. After completing installation, click “Finish”. 3. Select the program features you want installed then click “Next”. User's Manual | PR610-C621... -
Page 47: Realtek Audio Drivers
“Fin- ish”. Restarting the system will al- low the new software installa- tion to take effect. 2. Read the license agreement and click “I accept the terms in the License Agreement”. Then, click “Next”. User's Manual | PR610-C621... - Page 48 “Fin- tion then click “Next”. ish”. 4. Click “Next” to install to the default folder or click “Change to choose another destination folder”. 5. Confirm the installation and click “Next”. User's Manual | PR610-C621...
-
Page 49: Adobe Acrobat Reader 9.3
X Adobe Acrobat Reader 9.3 1. Click “Next” to install or click 3. Setup is now installing the driver. “Change Destination Folder” to select another folder. 2. Click “Install” to begin installa- 4. Click “Finish” to exit installa- tion. tion. User's Manual | PR610-C621...
