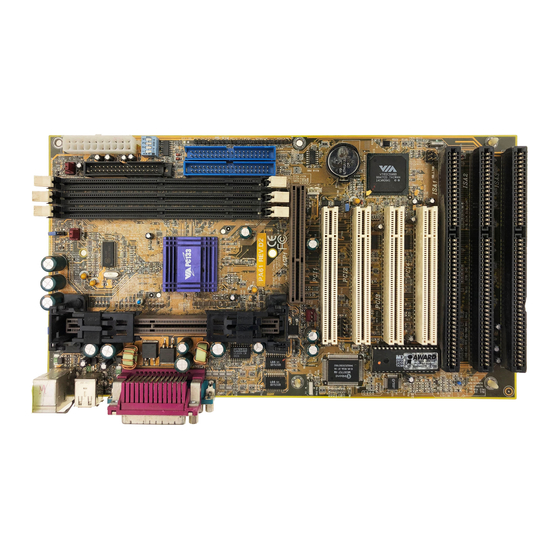

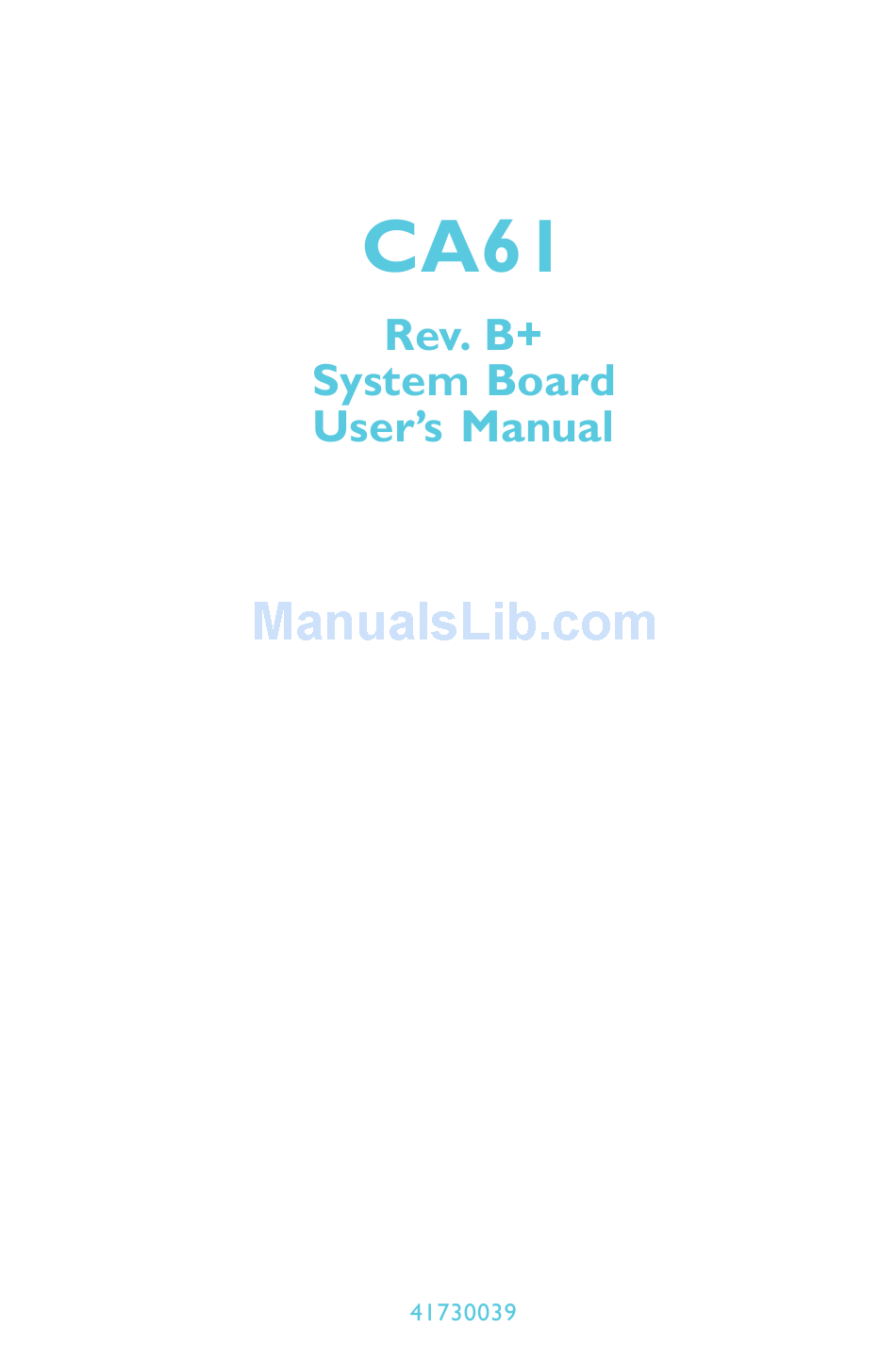

DFI CA61 User Manual

Rev. b+ system board
Hide thumbs Also See for CA61:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA61 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DFI CA61

Summary of Contents for DFI CA61

  • Page 6: Features And Specifications

    Introduction Chapter 1 - Introduction 1.1 Features and Specifications 1.1.1 Features Chipset • VIA 82C693A and 82C596B (PC-133) Processor The system board is equipped with Socket 370 for installing an Intel ® ® Celeron FCPGA/PPGA, Pentium III FCPGA or VIA Cyrix processor.
  • Page 10 þ þ þ þ þ...
  • Page 31 ROM PCI/ISA BIOS CMOS SETUP UTILITY AWARD SOFTWARE, INC. STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERVISOR PASSWORD CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION SAVE & EXIT SETUP PNP/PCI CONFIGURATION LOAD FAIL-SAFE SETTINGS EXIT WITHOUT SAVING LOAD OPTIMAL SETTINGS : Quit...
  • Page 32 ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC. Date (mm:dd:yy) : Fri, Apr 21 2000 Time (hh:mm:ss) : 13: 27: 50 HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Primary Master Auto Auto Primary Slave Auto Auto Secondary Master Auto Auto...
  • Page 34 ROM PCI/ISA BIOS BIOS FEATURES SETUP AWARD SOFTWARE, INC. Virus Warning : Disabled CPU L1 Cache : Enabled CPU L2 Cache : Enabled CPU L2 Cache ECC Checking : Enabled Quick Power On Self Test : Enabled Boot Sequence : A, C, SCSI Swap Floppy Drive : Disabled Boot Up Floppy Seek...
  • Page 38 ROM PCI/ISA BIOS CHIPSET FEATURES SETUP AWARD SOFTWARE, INC. DIMM 1 DRAM Timing : Normal **** System Health Monitor **** DIMM 2 DRAM Timing : Normal Current System Temp. : 28 C/82 DIMM 3 DRAM Timing : Normal : 42 C/107 Current CPU Temperature SDRAM CAS Latency...
  • Page 40 ROM PCI/ISA BIOS POWER MANAGEMENT SETUP AWARD SOFTWARE, INC. ACPI Function : Disabled ** PM Events ** Power Management : User Define IRQ3 (COM 2) : Primary IRQ4 (COM 1) : Primary PM Control by APM : Yes IRQ5 (LPT 2) : Primary Video Off Method : DPMS...
  • Page 44 ROM PCI/ISA BIOS PNP/PCI CONFIGURATION AWARD SOFTWARE, INC. Resources Controlled By : Auto Assign IRQ for VGA : Enabled Reset Configuration Data : Disabled PCI Slot 1 Use IRQ : Auto PCI Slot 2 Use IRQ : Auto PCI Slot 3 Use IRQ : Auto PCI Slot 4 Use IRQ : Auto...
  • Page 46 ROM PCI/ISA BIOS INTEGRATED PERIPHERALS AWARD SOFTWARE, INC. Onboard Primary PCI IDE : Enabled KBC Input Clock : 8MHz Onboard Secondary PCI IDE : Enabled Onboard FDC Controller : Enabled IDE Prefetch Mode : Enabled Onboard Serial Port 1 : 3F8/IRQ4 IDE HDD Block Mode : Enabled Onboard Serial Port 2...
  • Page 52 ROM PCI/ISA BIOS CMOS SETUP UTILITY AWARD SOFTWARE, INC. HARD DISKS TYPE SIZE CYLS HEAD RECOMP LANDZ SECTOR MODE Primary Master: Select Primary Master Option (N=Skip): N OPTIONS SIZE CYLS HEAD RECOMP LANDZ SECTOR MODE 2 (Y) 1653 1654 65535 1653 Normal 65536...
  • Page 55 Award DMI Configuration Utility Copyright Award Software Inc, 1996 [Edit DMI] [Add DMI] [Load DMI File] [Save DMI File] BIOS *** BIOS Auto Detect *** System Enclosure/Chassis Type : BIOS Information Processor Handle : 0000 Memory Controller Vendor Name : Memory Module BIOS Version : Memory Module...
  • Page 57 ® ® ®...
