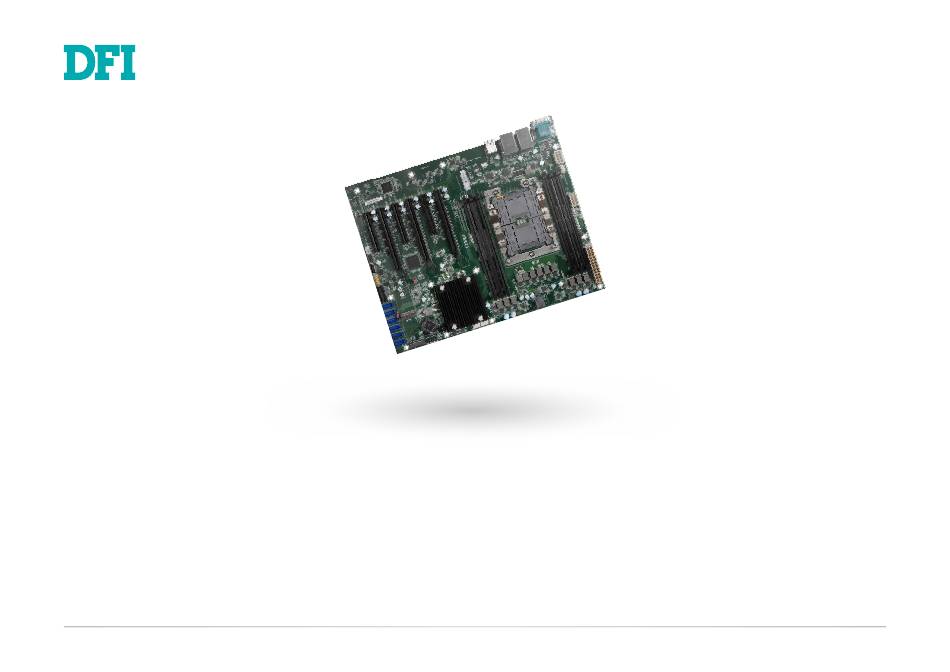

- Page 1 PR611-C621 ATX Industrial Motherboard User’s Manual ver.A_MP_3-1621_12-9 A-583-M-2007...
- Page 2 1. The changes or modifications not expressly approved by the party responsible for com- pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | PR611-C621...
-
Page 3: Table Of Contents
SATA Configuration .......................32 USB Configuration ......................34 PCI Express Configuration ....................34 Debug Configuration .....................35 UEFI Device Manager ....................35 USB Power Control ......................36 SIO NCT6112D .......................36 SIO AST2500/AST2510 ....................38 H2O IPMI Configuration ....................38 Console Redirection ......................41 Security ..........................42 User's Manual | PR611-C621... - Page 4 • To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | PR611-C621...
- Page 5 • Storage device such as hard disk drive, CD-ROM, etc. • Power adaptor External system peripherals may also be required for navigation and display, including at least a keyboard, a mouse and a video display monitor. User's Manual | PR611-C621...
- Page 6 3 x PCIe x8 (Gen 3)(share w/ PCIe x16) 1 x M.2 M key 2280 (SATA/PCIe Gen3 x4 NVMe) 1 x M.2 E key 2230 (USB 2.0/PCIe Gen3 x2) Audio Audio ALC887 Codec Ethernet Controller 2 x Intel® I210AT PCIe (10/100/1000Mbps) IPMI: RTL8211F (opt.) User's Manual | PR611-C621...
- Page 7 Operating: 5 to 90% RH, Non-condensing Storage: 5 to 90% RH, Non-condensing MTBF PR611-C621: 558,025 hrs @ 25°C; 339,879 hrs @ 45°C ; 224,136 hrs @ 60°C PR611-C621 w/ IPMI-Mgnt: 510,709 hrs @ 25°C; 306,113 hrs @ 45°C ; 200,130 hrs @ 60°C...
-
Page 8: Features
This function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. The Real Time Clock (RTC) installed on the system board allows your system to automatically power-on on the set date and time. User's Manual | PR611-C621... -
Page 9: Chapter 2 - Hardware Installation
M.2 M Key PCIe 6 (PCIe x8) USB 8/9 2280 JP16 PLD Update USB 2.0 LED5 SMBus SATA 5 - 0 (left to right) COM2 Note System USB 7 USB 5/6 Fan 3 USB 2.0 USB 3.1 Gen1 User's Manual | PR611-C621... -
Page 10: System Memory
Six 288-pin RDIMM up to 192GB • Single Channel DDR4 up to 2933 MHz **2nd Gen Xeon Scalable (62xx/52xx/4215) processors support Optane DC per- Step 1 sistent memory module (DCPMM), in DIMM3 and DIMM6. Step 2 User's Manual | PR611-C621... -
Page 11: Removing The Dimm Module
The tabs snap automatically to the edges of the card and lock the card in place. S ocket Side View Socket Side View Step 1 Step 1 Step 1 Step 1 Step 2 Step 2 Step 2 Step 2 Step 3 Step 3 Step 3 Step 3 User's Manual | PR611-C621... -
Page 12: Cpu
CPU fan and heat sink assembly. If ® your CPU was purchased separately, make sure to only use Intel®-certified fan and heat sink. Latch Triangular mark Gold triangular mark Latch CPU Carrier (bottom view) User's Manual | PR611-C621... - Page 13 (top view) Triangular hole 6. Connect the CPU fan’s CPU Fan power cable to the CPU fan connector on the system board. 4. Slide the protective caps open and detach them from the board. User's Manual | PR611-C621...
-
Page 14: Jumper Settings
1 and pin 2. 3. Plug the power cord and power-on the system. „ 1-2 On: Normal (default) „ 2-3 On: Force ME Update „ 1-2 On: Normal (default) „ 2-3 On: Clear CMOS User's Manual | PR611-C621... -
Page 15: Rear I/O Ports
USB 4 (USB 3.1 Gen 1) tly tighten the cable screws to hold the connector in place. USB 1 (USB 3.1 Gen 1) USB 3 (USB 3.1 Gen 1) IPMI LAN (optional) USB 11 (USB 2.0) USB 10 (USB 2.0) User's Manual | PR611-C621... -
Page 16: Com (Serial) Ports
2 x Intel I210AT PCIe (10/100/1000Mbps) ® • 1 x RTL8211F only with IPMI Note: The BMC COM port is used to monitor the IPMI, and may not be present when your model does not support IPMI. User's Manual | PR611-C621... -
Page 17: Usb Ports
2 x USB 3.1 Gen 1 internal ports, box headers (USB 5/6) • 3 x USB 2.0 internal ports, one pin headers (USB 8/9) and one Type A (USB 7) • 2 x USB 2.0 rear ports (USB 10/11) User's Manual | PR611-C621... -
Page 18: Internal I/O Connectors
6 Serial ATA 3.0 ports with data transfer rate up to 6Gb/s Line-Out-R Mic-JD (sense) • Integrated Advanced Host Controller Interface (AHCI) controller • Support RAID 0, RAID 1, RAID 5, RAID 10 Line-Out-L Line-JD (sense) User's Manual | PR611-C621... -
Page 19: Cooling Fan Connectors
Insufficient power supplied to the system may result in instability or malfunction of the add-in boards and peripherals. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consump- tion requirements. User's Manual | PR611-C621... -
Page 20: Chassis Intrusion
Power On Suspend) state, it will blink at 1-second intervals. When the system is in the S3 (STR - Suspend To RAM) state, it will blink at 4-second intervals. Power Button This button is used to switch the system's power on or off . User's Manual | PR611-C621... -
Page 21: Expansion Slots
The M.2 socket is the Next Generation Form Factor (NGFF) which is designed to support mul- tiple modules and make the M.2 more suitable in application for solid-state storage. Note: The PCIe x16 slot will automatically switch to x8 bandwidth when the paired PCIe x8 slot is in use. User's Manual | PR611-C621... -
Page 22: Lpc
L_CLK L_LAD1 the gap between the card and the stand-off closes up. The L_RST# L_LAD0 card should be lying parallel to the board when it’s correctly L_FRAME# 3.3V mounted. L_LAD3 L_LAD2 SERIRQ User's Manual | PR611-C621... -
Page 23: Battery
• There exists explosion hazard if the battery is incorrectly installed. Pin Assignment Pin Assignment • Replace only with the same or equivalent type recommended by the manufacturer. 3V3SB • Dispose of used batteries according to local ordinances. SMBus_Clock SMBus_DATA SMBus_Alert User's Manual | PR611-C621... -
Page 24: Jtag Pld Programming
„ JTAG PLD Connector The JTAG PLD connector is used to verify and test printed circuits. „ JTAG PLD Pin Assignment Assignment Assignment 3V3SB Test Data Out Test Data In EN N Reset Test Mode Select Test Clock User's Manual | PR611-C621... -
Page 25: Chapter 3 - Bios Settings
When “X” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | PR611-C621... -
Page 26: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | PR611-C621... -
Page 27: Cpu Configuration
Configure the time of day the system will wake on RTC — [HH:MM:SS]. This field will only ap- pear when “Wake On RTC” is enabled. Note: Some of the fields may not be available when the features are not supported by the equipped CPU. User's Manual | PR611-C621... -
Page 28: Video Configuration
VGA card that need huge resource. But it may cause VGA card to not display Press Enter to enter the sub-menu and configure the M.2 SATA storage device. during boot in dual/legacy mode. User's Manual | PR611-C621... - Page 29 AHCI This option allows the Serial ATA controller(s) to use AHCI (Advanced Host Control- ler Interface). RAID This option allows the Serial ATA controller(s) to use UEFI, RAID, and Intel Rapid Storage Technology. SATA Port 0-5/Hot Plug Enable or disable each Serial ATA port and its hot plug function. User's Manual | PR611-C621...
-
Page 30: Usb Configuration
GT/s). Gen 3 is only available for the PCIE1 port. This field may not appear when the speed of the port is not configurable. Hot Plug Enable or disable hot plug function of the port. This field may not appear when the port does not support hot plug. User's Manual | PR611-C621... -
Page 31: Debug Configuration
Default value is 0x8000004F. EFI debug serial port Default value is 0x3F8. Note: Network Device will not be configurable in Device Manager if "Network Stack" is disabled in the "Boot" menu. EFI debug baud rate Default value is 115200. User's Manual | PR611-C621... -
Page 32: Usb Power Control
WDT. Input any value between 1 to 255 seconds. ▼ WDT = [Enable] Counter Set the timeout value of the WDT — 1-255 seconds. Case Open Alert Enable or disable case open alert. Clean Case Open Status Clean current case open status including alert. User's Manual | PR611-C621... - Page 33 Enable or disable the system smart fan. When disabled, fan speed will not be controllable ac- cording to different system temperatures. Instead, a Fix Fan Speed Count field will be displayed to configure at which speed the fan will always be fixed regardless of system temperature. User's Manual | PR611-C621...
-
Page 34: Sio Ast2500/Ast2510
Enable or disable this field for IPMI driver installation. SIO AST2500/AST2510 is only present when the board supports the IPMI func- Boot Option Support tions and equipped with SEM2500/SEM2510. Enable or disable IPMI boot option function. User's Manual | PR611-C621... - Page 35 BMC's LAN channel number. There are three channels available — channel number from 1 to 3. To configure a LAN channel, insert a channel number, and the IP settings of the selected chan- nel will be listed in the following. User's Manual | PR611-C621...
- Page 36 Select among Reserved, Callback, User, Operator, Administrator, and No Access. The privilege of a user ID can be set differently in different channels. Add current setting to list Save the setting of the current user ID's previlege of the current channel. User's Manual | PR611-C621...
-
Page 37: Console Redirection
Select data bits — 7 bits or 8 bits. Parity Select parity bits — none, even or odd. Stop Bits Select stop bits — 1 bit or 2 bits. Flow Control Select flow control type — none, RTS/CTS or XON/XOFF. User's Manual | PR611-C621... -
Page 38: Security
This field is used to enable or disable network stacks, i.e. IPv4 or IPv6 network protocols. Note: The devices shown here are based on a carrier board that may not resemble your actual carrier board. The actual I/O devices depend entirely on those present on your actual carrier board. User's Manual | PR611-C621... - Page 39 "PXE Boot to LAN", "PXE boot capability", "Network Stack" and the LAN controller of the said LAN (go to "Advanced" > "PCI Express Configuration") are enabled. Please press F10 to save the settings and re-start the system board for the settings to take effect. User's Manual | PR611-C621...
- Page 40 Select YES and press <Enter> to load optimal defaults. Discard Changes Select YES and press <Enter> to exit the system setup without saving your changes. Save Setting to file Select this option to save BIOS configuration settings to a USB flash device. User's Manual | PR611-C621...
- Page 41 Single Drive Failure Disk mirroring Block-level data striping with RAID 5 Single Drive Failure distributed parity 1 Disk Per Mirrored Combination of RAID 0 (data striping) RAID 10 Stripe (not same mirror) and RAID 1 (mirroring) User's Manual | PR611-C621...
- Page 42 5. Press <Enter>. 6. Use the up or down arrow keys to select the strip size and press <Enter>. 7. Enter the volume size and press <Enter>. 8. At the prompt, press <Y> to confirm volume creation. User's Manual | PR611-C621...
- Page 43 The Intel Rapid Storage Technology can be installed from within Windows. It allows you to dis- play, manage (create, delete, migrate), and monitor SATA and RAID volume via user-friendly and icon-driven UI, and enables enhanced performance and power management for your storage subsystems. User's Manual | PR611-C621...
