Back-to-Back Desks

Perpendicular to Beam

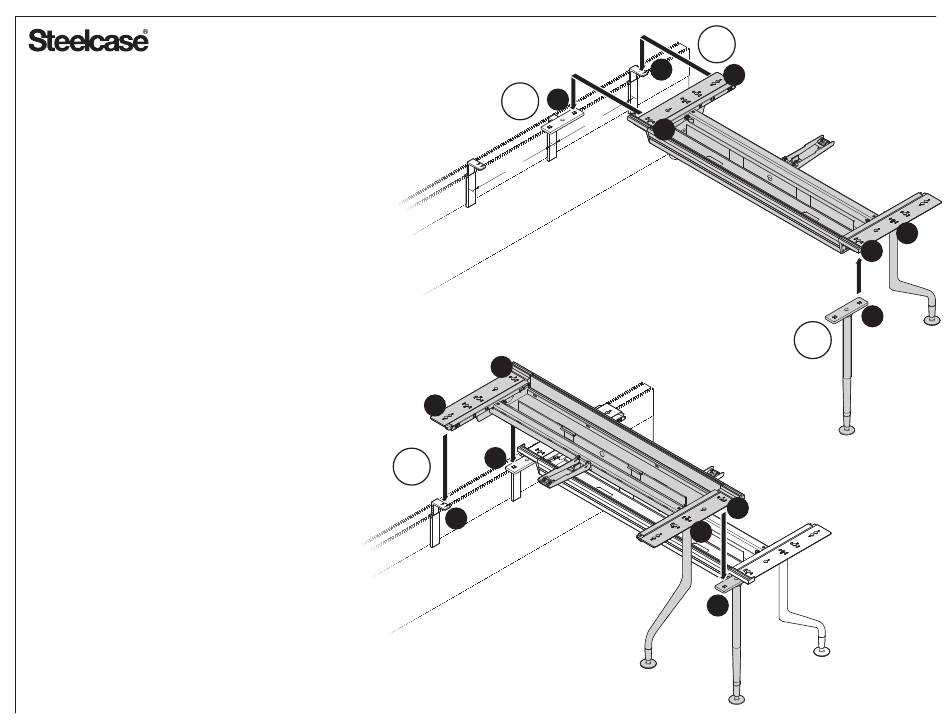

1.
Attach legs to understructure
•"L" leg uses 24" or 30" depending on worksurface depth.
•Attach shared plate to top of post leg.
NOTE: You need to lower leg height by 1 detent (1/2").
•Attach shared support plate "G" to understructure "A".
2.
Attach tethers to beam or storage
•Sub-assemble shared plate to tether "B".
•Lower tether 1 detent (1/2") to account for plate
thickness.
•Install shared tether centerline to back edge of desk.
•2nd and 3rd tethers 21" edge to edge of shared tether.
3.
Attach understructure onto tethers
•Understructure "A" to shared support plate "G" (GAP).
•Understructure "D" to tether "B" (BEAM).
4.
Attach 2nd understructure onto tethers:
•Understructure "A" to shared support plate "G" (both ends).
•Understructure "D" to tether "B".
5.
Level both units.
6.
Install power and data components.
7.
Sub-assemble worksurfaces.
8.
Install worksurfaces and level.
9.
Install covers.
2
G
21"
A
D
G
4
B
3
B
D
21"
A
A
24
G
24
A
G
1
