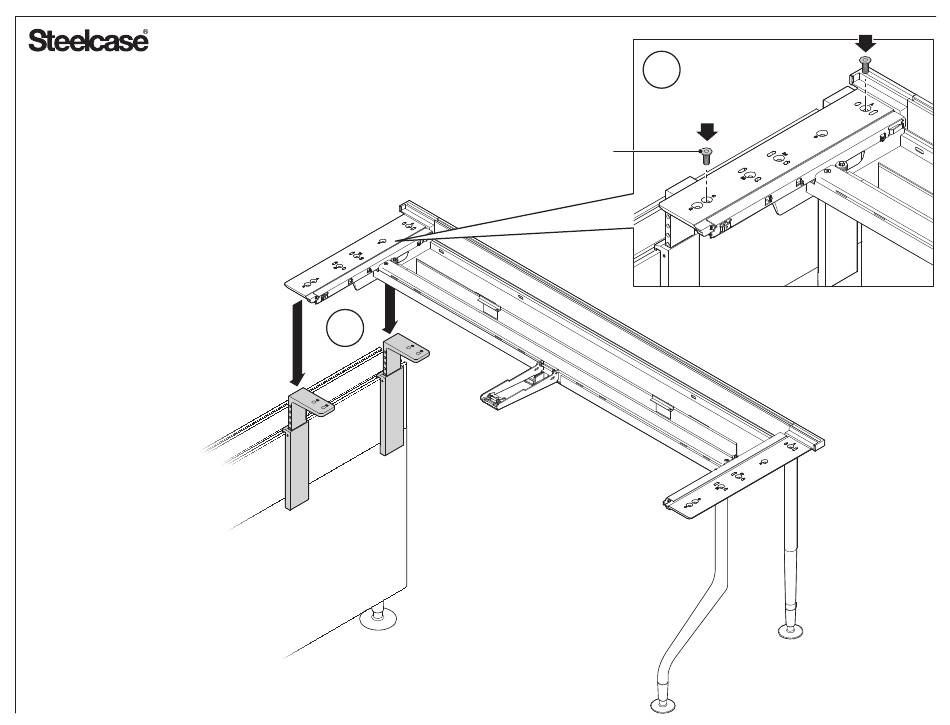

Attaching Desk to
Tether Brackets
1.
Place the understructure
onto the tether brackets.
2.
Align mounting holes of
end support with holes in
tethers.
3.
Connect together using
two (2) 3/8-16 x 3/4" bolts.
4.
Tighten securely using a
3/16" hex drive.
1
3
3/8-16 X 3/4" BOLT
Page 9 of 24
939500367 Rev E
