Sub-Assembly of
Worksurfaces

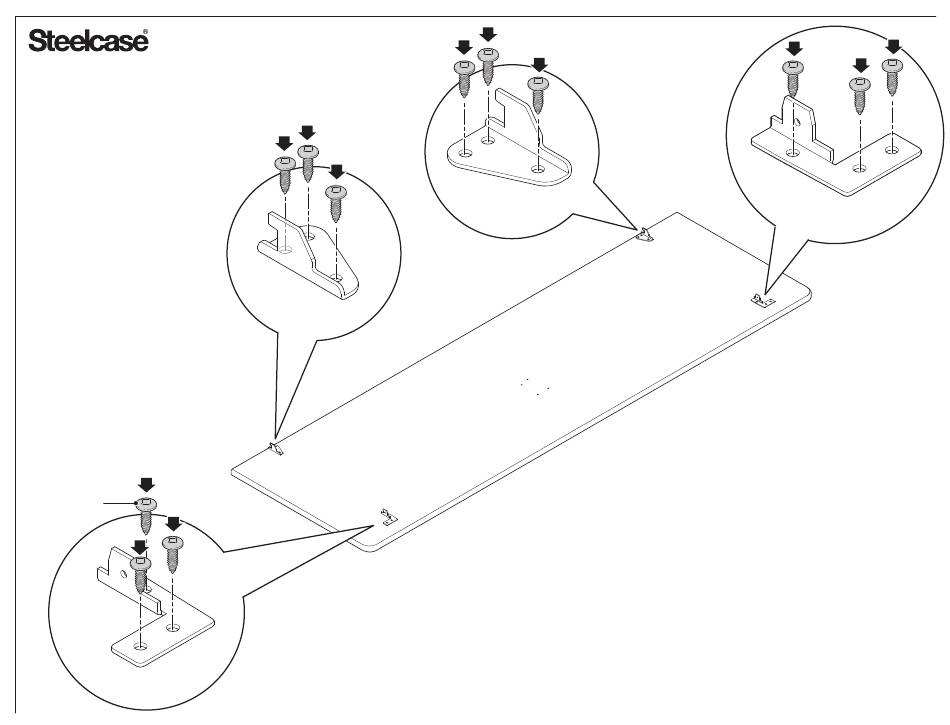

1.
Place worksurface upside down
on smooth surface.
2.
Align mounting brackets to
respective pre-drilled pilot holes.
3.
Drive three (3) #10-12 x 5/8"
screws per bracket with square or
phillips driver.
TIP: Do not use screws longer than
5/8". Longer screws wil go though
worksurface.
#10-12 X 5/8"
SCREW
Page 11 of 24
939500367 Rev E
