Assembling Tether
Brackets to Beam or
Storage Rail

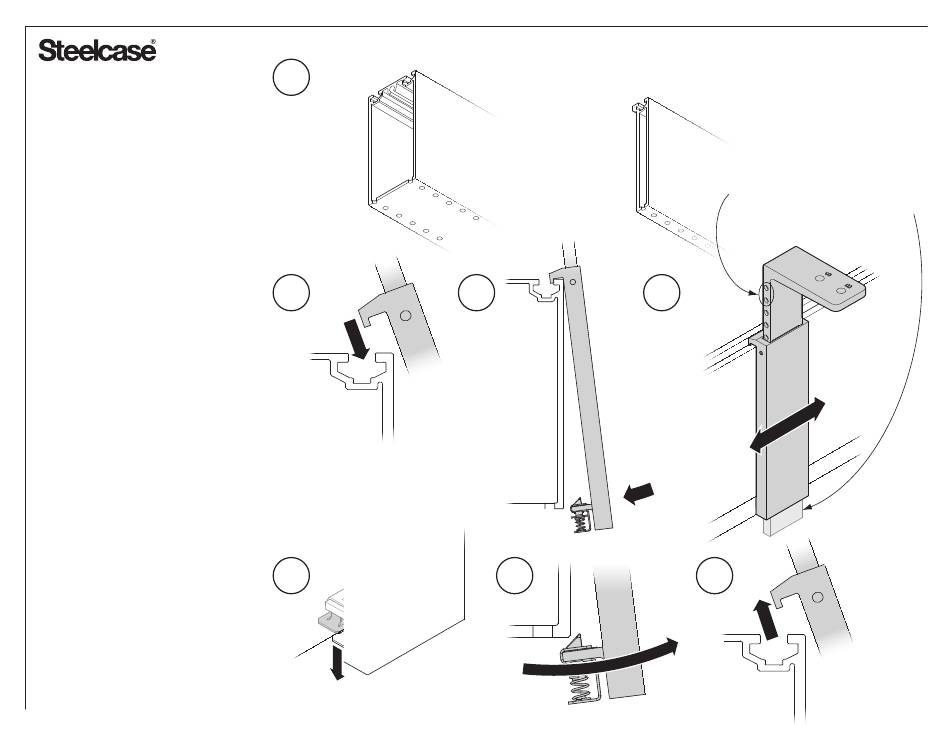

1.
Beams and storage rails have
holes on their undersides, for discrete
positioning along their lengths. These
holes are located 1-1/2" apart along
the lengths of the beam and storage
rail.
2.
Installing tether brackets:
a) Hook the tether bracket over
the top lip of the beam or
storage rail.
b) Swing the bottom ot the
tether in, and push on the lower
part of the bracket until the
spring pin snaps over the
bottom edge of the beam or
storage rail.
c) Slide the tether bracket
left or right until the spring pin
pops into the appropriate
positioning hole.
3.
Removing tether brackets:
a) With a finger or screwdriver tip,
depress either side of the
spring pin lever at the bottom
rear of the bracket to disengage
the spring pin.
b) Rotate bottom of bracket out,
and remove.
Beam
1
2a
3a
Storage Unit
w/ Connection Zone
2b
3b
NOTE: If tether is in lowest 2
positions, tether will stick down
below the reveal and trap skin on.
Mount skin first, then lower tether
brackets.
2c
R e
3c
939500367 Rev E
a l
v e
i n
S k
Page 6 of 24
