Steelcase c:scape Manual page 12

Sub-Assembly of
Worksurfaces
(continued)

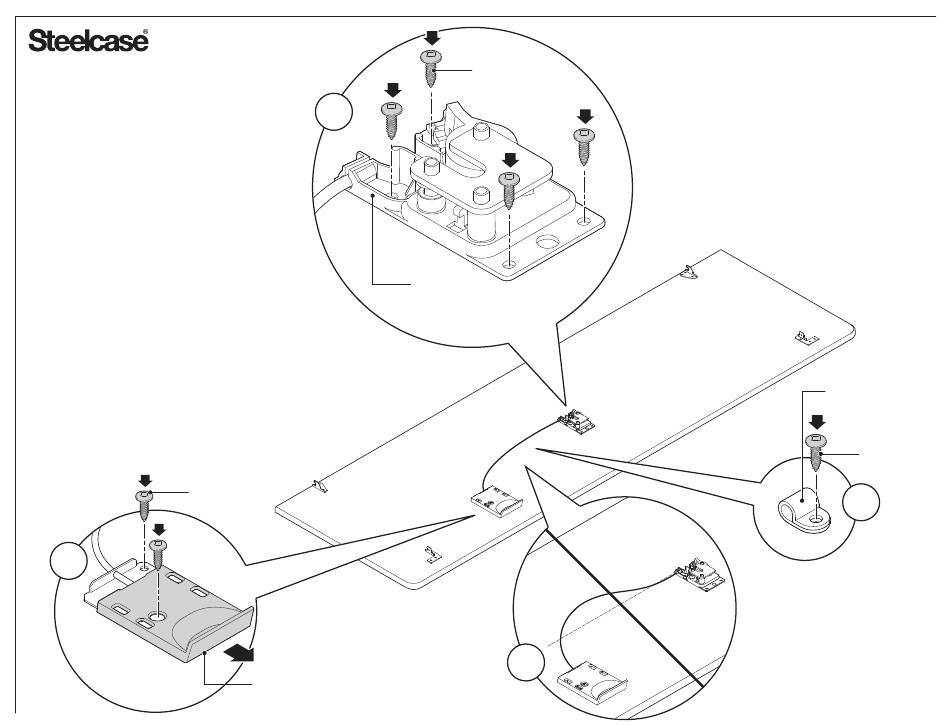

1.
Align handle and latch mechanism to
respective pre-drilled pilot holes.
2.
Drive four (4) #10-12 x 5/8" screws into
latch with square or phillips driver.
3.
Slide handle cover back until screw holes
align and drive two (2) #10-12 x 5/8" screws
into handle bracket.
4.
Position cable so that it doesn't extend
towards the back of the worksurface.
5.
Position retaining clip and drive one (1)
screw #8-18 x 1/2" into each retaining clip
bracket with square or phillips driver.
#10-12 X 5/8"
SCREW
3
2
LATCH
MECHANISM
HANDLE BRACKET
COVER
#10-12 X 5/8"
SCREW
4
RETAINING
CLIP
#8-18 X 1/2"
SCREW
5
Page 12 of 24
939500367 Rev E
