Adjusting Height of
Tether Brackets

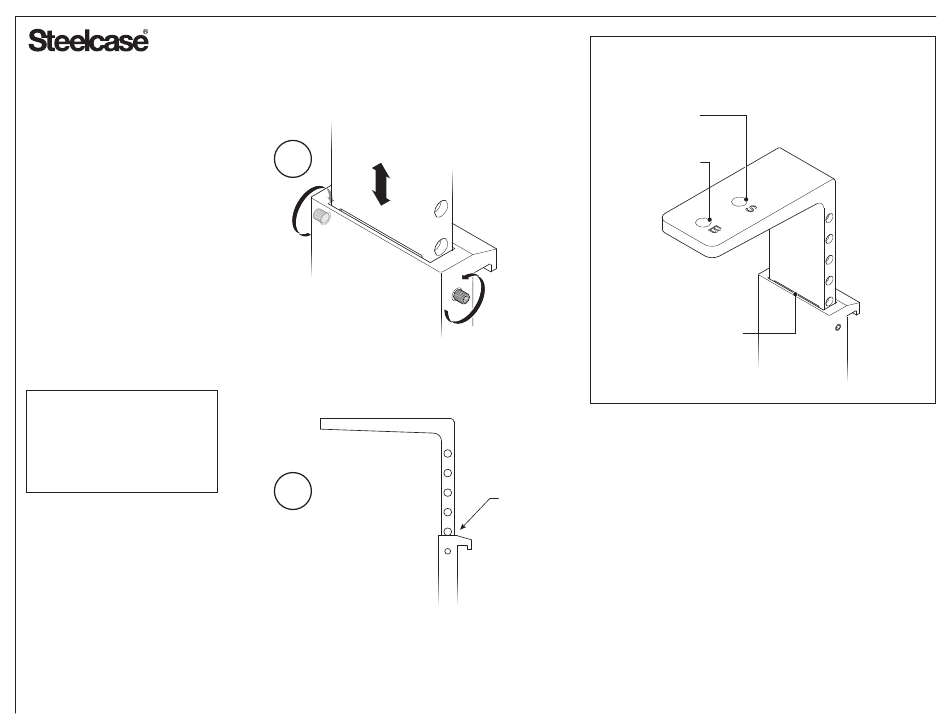

1.
Loosen set screws using a
3/32" Allen/hex drive. Loosen
until upper "L" bracket can slide
freely, but DO NOT remove
screws.
2.
Position upper "L" bracket
at desired height, and tighten
screws. When the next-up holes
are tangent with the top surface
of the bracket, the receiver
holes for the screws are aligned
with the screws.
TIP: Do not over-tighten set
screws! The aluminum threads
of the bracket may become
stripped. Tighten set screws
with not more than 7-1/2 in-lb
of torque.
1
2
TIP: Tether brackets arrive from
the factory adjusted for a 28-1/2"
desk height.
USE "S" POSITION
WHEN ATTACHING
TO LOW STORAGE
USE "B" POSITION
WHEN ATTACHING
TO BEAM
LOOSEN,
DO NOT
TIGHTEN
28-1/2" SCORE
"L" BRACKET
BOTTOM OF NEXT
HOLE TANGENT TO
TOP SURFACE
5 HOLES
SHOWING
= 28-1/2"
POSITION
MARK IN
Page 5 of 24
939500367 Rev E
