Chapter 3
Select a suitable location for the foot switch (P/N 063-0172-470) to be installed.
1.
Note:
The foot switch should be installed in a location where the operator has easy access to it and is
able to fully press the pedal.
Using the holes in the foot switch as a template, drill holes in the floor of the cab.
2.
Secure the foot switch to the floor by installing the supplied screws in each of the mounting holes.
3.
Locate the ENABLE connector on the node harness (P/N 115-4001-092) and connect it to the foot switch
4.
cable connector.
Install the Master Switch (If Applicable)

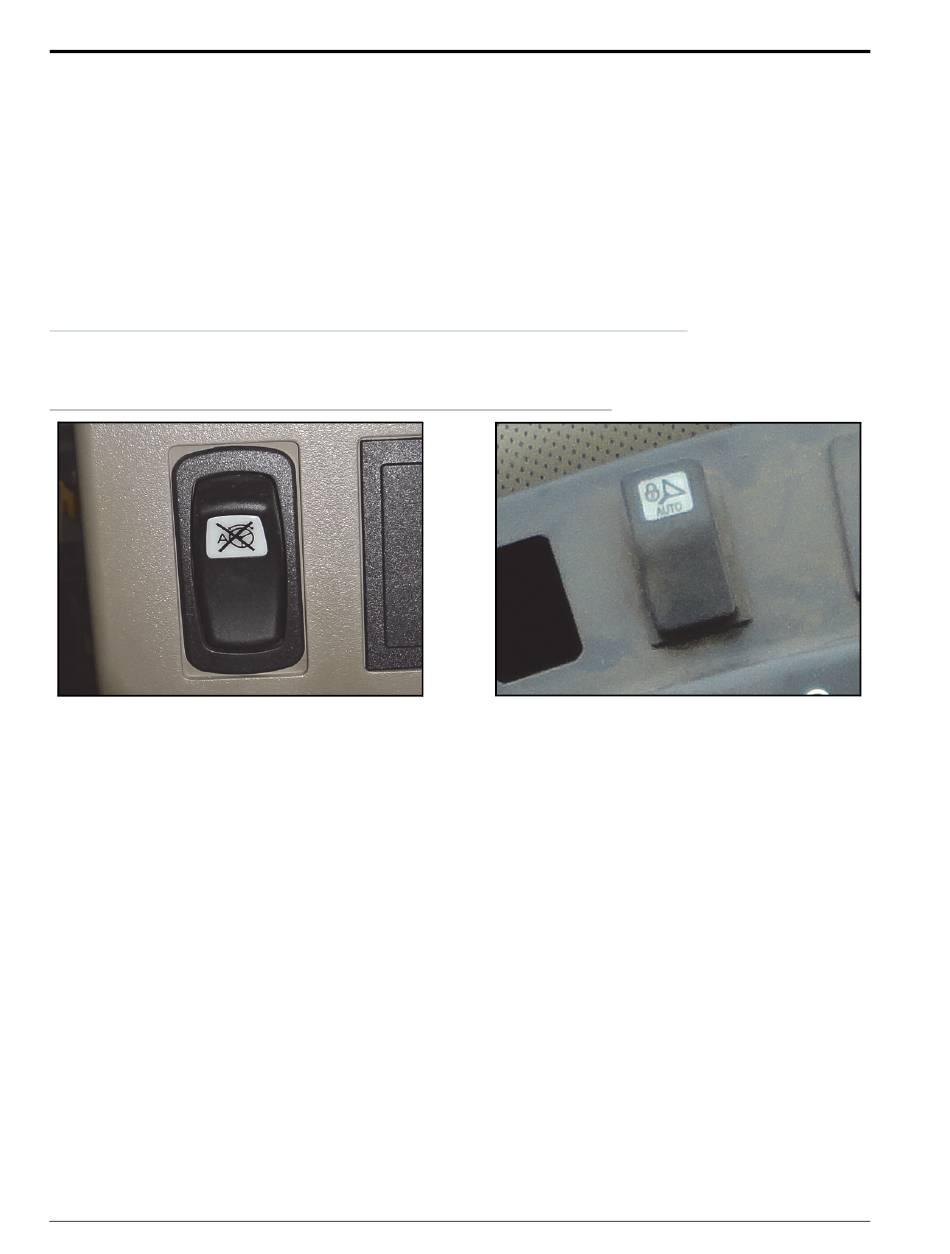

Factory Installed Master Switch Options
FIGURE 14.
Note:
If the machine is already equipped with a master switch as shown in Figure 9, skip this section.
Locate and disconnect the MASTER connection on the node harness (P/N 115-4001-092).
1.
Route the MASTER connector to the armrest console.
2.
Locate an unused switch port on the armrest console and remove the plug.
3.
Route the MASTER connector from the node harness to the open switch port through the bottom of the
4.
armrest console.
Connect the MASTER connector to the mating connector on the master switch (P/N 412-2011-104).
5.
Feed the node harness wires and master switch wires into the armrest console.
6.
Press on the switch casing to ensure the switch is securely installed.
7.
14
Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manual
