Raven SmarTrax system Supplement Installation Manual

For caseih spx 3200b
Hide thumbs Also See for SmarTrax system:

Advertisement

Quick Links

Download this manual
CaseIH SPX 3200B
(S/N 3805 & Lower; 2002 & Older)

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmarTrax system and is the answer not in the manual?

Questions and answers

Related Manuals for Raven SmarTrax system

Summary of Contents for Raven SmarTrax system

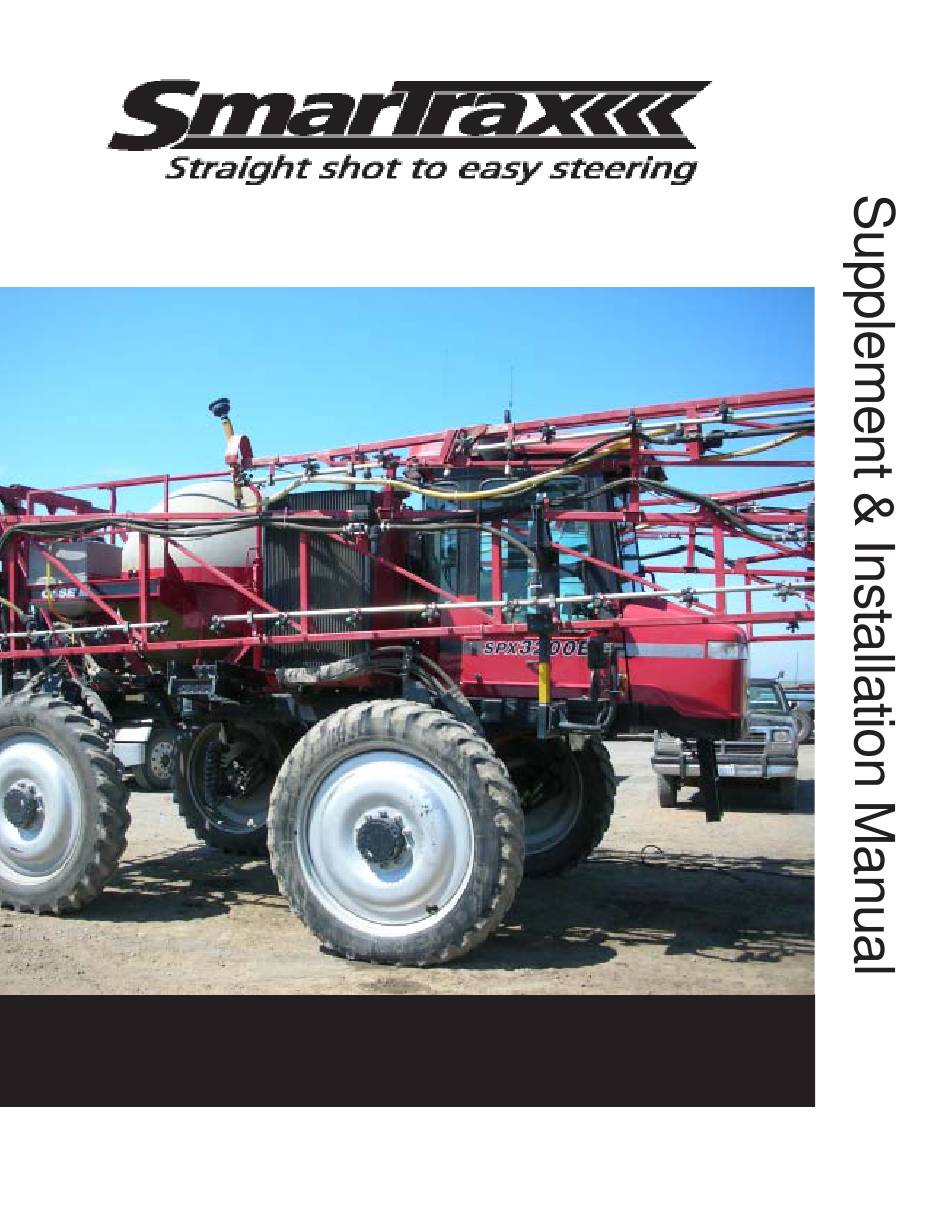

  • Page 1 CaseIH SPX 3200B (S/N 3805 & Lower; 2002 & Older)
  • Page 2 GPS signal from the US Department of Defense/NAVSTAR GPS satellites, the OmniSTAR correction service or the WAAS correction service. Raven Industries accepts no responsibility for the use of the signal for other than the stated purpose. Raven Industries shall not be responsible or liable for incidental or...
  • Page 3 Manual # 016-0190-030 Rev A, 09/06 H A P T E R NTRODUCTION Congratulations on your purchase of the Raven SmarTrax system! This system is designed to provide cutting-edge, hands-free steering of your machine via GPS coordinates.

  • Page 4: Basic Kit

    Case IH SPX 3200b SmarTrax Installation Manual Below you will see the kit contents that you should have received with this SmarTrax kit. Basic Kit Contents Case IH SPX 3200B SmarTrax Kit Contents t n a y t i r c s t p i n o i t r a...
  • Page 5 Caution must be exercised. Any work carried out on the hydraulic system must be performed in accordance with the machine manufacturerer’s approved maintenance instructions. Raven Industries recommends that appropri- ate protective equipment be worn when working on the hydraulic system. Ob- jects or materials that are able to bypass the machine’s hydraulic filtration system...
  • Page 6 Customer Raven Support Center by any of the following methods: Industries Via phone: 1-800-243-5435 Via mail: Raven Industries Flow Control Division 205 E. 6th St. Sioux Falls, SD 57104 Via email: fcdinfo@ravenind.com...
  • Page 7 Manual # 016-0190-030 Rev A, 09/06 H A P T E R OUNTING THE NIVERSAL RACKET AND ALVE Mount the valve underneath the machine to cross member behind the orbital or to the inside of the left frame rail. Valve mounting location and orientation NOTE: You may need to drill holes in the universal bracket to accomodate the bracket and valve block in the configuration shown above.
  • Page 8 Case IH SPX 3200b SmarTrax Installation Manual H A P T E R YDRAULICS NOTE: Refer to schematic at the end of this section when installing hydraulic lines. Installing the Hydraulics Locate/identify the four ports on the steering orbital: T, P, L, R. Install the two -6 M/M/F flat-faced o-ring run tees onto the L and R ports on the orbital.
  • Page 9 Manual # 016-0190-030 Rev A, 09/06 Install the -8 M/F 90° elbow to the EF port and the -8 JIC (F) to -6 JIC (M) adapter to the P port on the SmarTrax valve block. Connect the pressure switch to the PS port on the SmarTrax valve block. Disconnect line from P port on orbital and connect to P port on SmarTrax valve.
  • Page 10 Case IH SPX 3200b SmarTrax Installation Manual...
  • Page 11 Manual # 016-0190-030 Rev A, 09/06 Notes:...
  • Page 12 Case IH SPX 3200b SmarTrax Installation Manual H A P T E R & W TEERING OSITION ENSOR IRING ARNESS NSTALLATION Mounting the Important: Be sure not to over extend or over compress the steering position sensor when turning the wheels. Attach the steering position sensor to the right steering cylinder using the supplied universal brackets and band clamps.
  • Page 13 Manual # 016-0190-030 Rev A, 09/06 Getting Power Remove the access panel on right side of cab and locate a good source for switch power to power SmarTrax electronic accessories. Switched Power Access Panel...
  • Page 14 Case IH SPX 3200b SmarTrax Installation Manual Notes:...

  • Page 15: Start-Up Procedures

    Manual # 016-0190-030 Rev A, 09/06 H A P T E R TART- ROCEDURES After installing the SmarTrax on your machine, follow these start-up procedures. Make sure the Steering Position Sensor does not over-extend or over- compress when turning the wheels. Turn the wheels fully from side to side numerous times to remove air from the hydraulic system.
  • Page 16 Case IH SPX 3200b SmarTrax Installation Manual Notes:...
  • Page 19 RAVEN INDUSTRIES LIMITED WARRANTY WHAT IS COVERED? This warranty covers all defects in workmanship or materials in your Raven Flow Control Product under normal use, maintenance, and service. HOW LONG IS THE COVERAGE PERIOD? This warranty coverage runs for 12 months from the purchase date of your Raven Flow Control Product.
  • Page 20 P.O. Box 5107 www.ravenprecision.com Sioux Falls, SD 57117-5107 fcdinfo@ravenind.com Notice: This document and the information provided are the property of Raven Industries, Inc. and may only be used as authorized by Raven Industries, Inc. All rights reserved under the copyright laws.
