Chapter 3

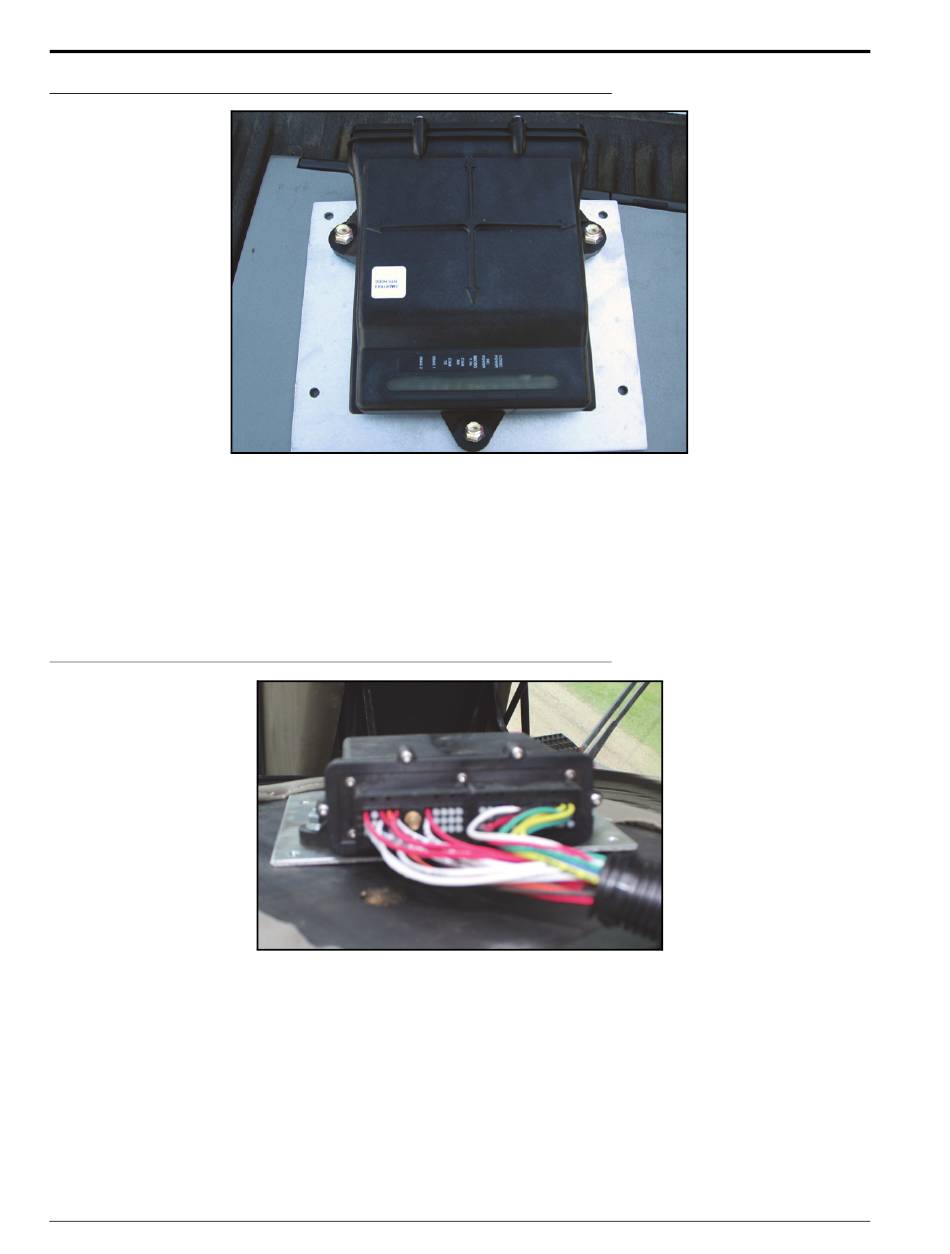

Node Installed on Mounting Plate
FIGURE 2.
Mount the SmarTrax node (P/N 063-0173-228) on the node mounting plate (P/N 107-0172-084) using three
5.
3/8"-16 nylon insert lock nuts (P/N 312-4000-061).
Place the node in the instructional seat compartment, positioning it over the Case interface box so that the
6.
holes in the mounting plate align with the machine's existing mounting posts.
Secure the mounting plate on the machine's mounting posts using four M6 x 1.0 x 20 mm bolts (P/N 311-
7.
0070-010), four 1/4" split lock washers (P/N 313-1000-016) and four 1/4" flat washers (P/N 313-2300-009).
Node Cable Installed on Node
FIGURE 3.
Install the two large, rectangular connectors of the node harness into the correct ports of the node,
8.
tightening the bolts on the connectors to secure the connections.
Connect the round, 16-pin connector of the node harness to the Raven console cable.
9.
