Raven SmarTrax Installation Manual page 14

Chapter 3

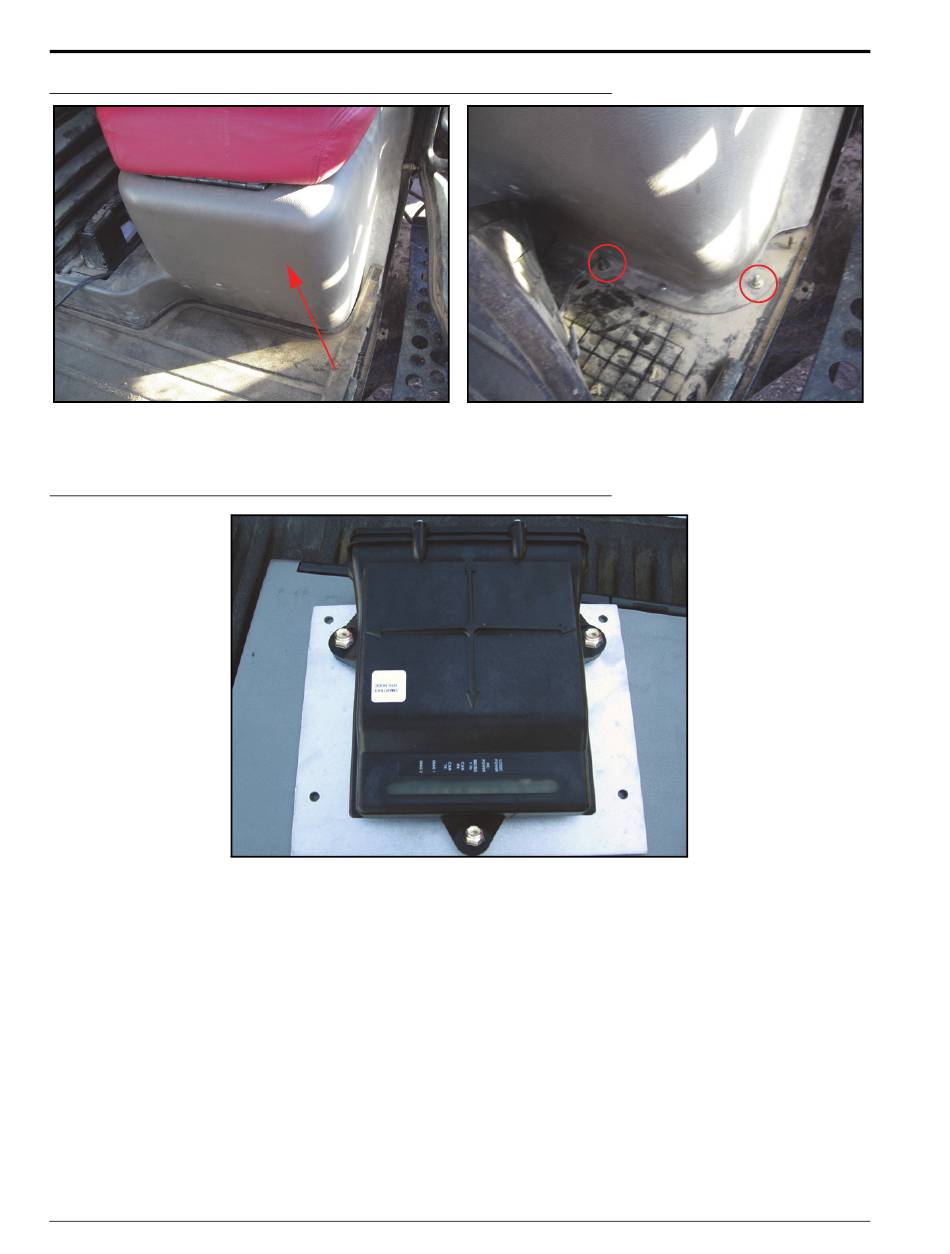

Removing Instructional Seat Molding
FIGURE 6.
Remove the plastic molding under the instructional seat by removing the nuts and bolts that secure it.
4.
Node Mounted to Mounting Plate
FIGURE 7.
Mount the node (P/N 063-0173-228) to the node mounting plate (P/N 107-0172-084) using three 3/8"-16
5.
lock nuts (P/N 312-4000-061).
Place the node in the instructional seat compartment so the connectors face the door.
6.
Secure the node mounting plate to the existing bolts in the floor of the cab using four 1/4" split lock washers
7.
(P/N 313-1000-016), four 1/4" flat washers (P/N 313-2300-009), and four M6 lock nuts (P/N 312-4000-207).
10
Case IH STX/Steiger/Quadtrac & New Holland TJ/T90X0/T9.XXX - Steering Ready SmarTrax™ Installation Manual
Plastic
Molding
