Install the Foot Switch (If Applicable)

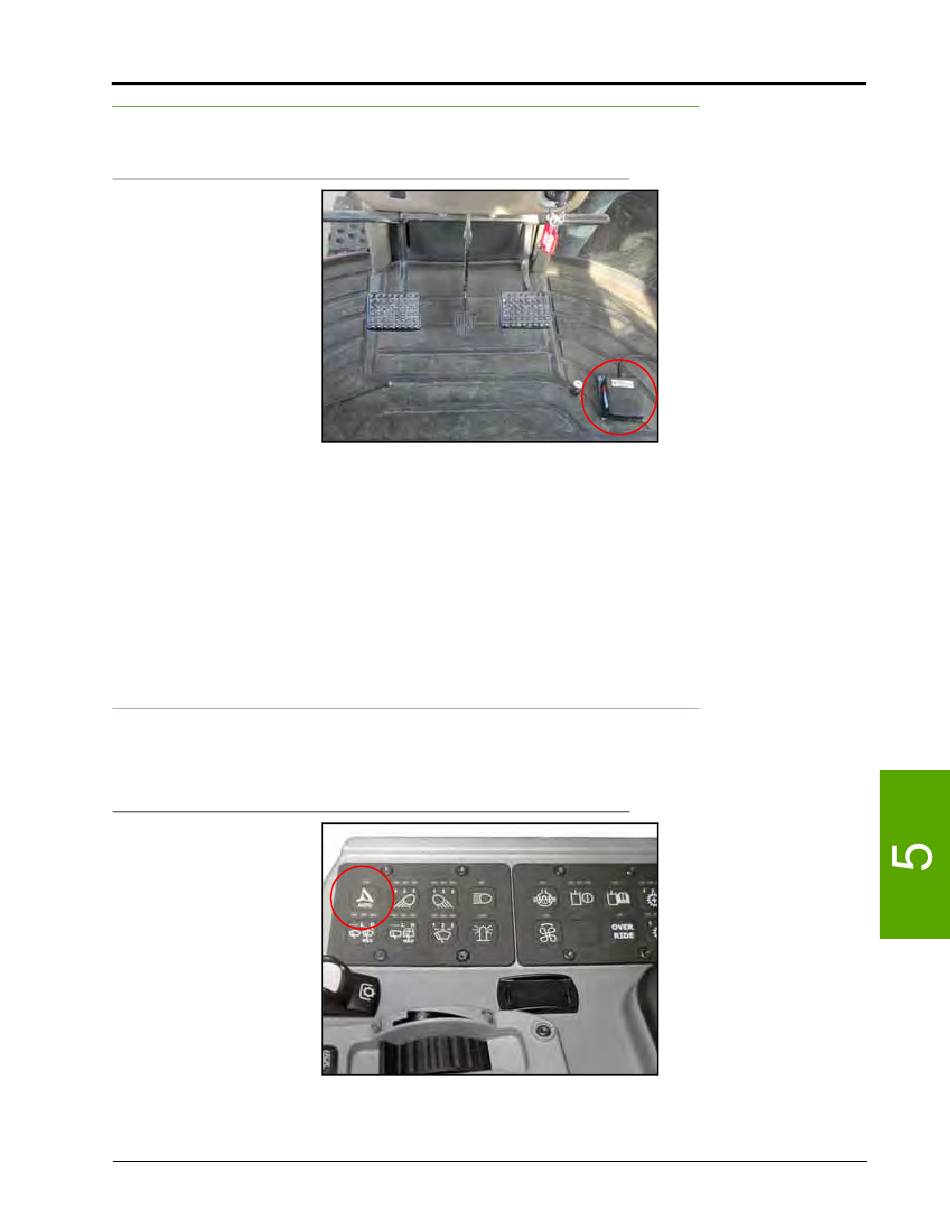

Foot Switch Installed
FIGURE 7.
Select a suitable location for the foot switch (P/N 063-0172-470) to be installed.
1.
Note:
The foot switch should be installed in a location where the operator has easy access to it and is
able to fully press the pedal.
Using the holes in the foot switch as a template, drill holes in the floor of the cab.
2.
Secure the foot switch to the floor by installing the supplied screws in each of the mounting holes.
3.
Locate the ENABLE connector on the node harness (P/N 115-4001-109) and connect it to the foot switch
4.
cable connector.
Connect the Factory-Installed Enable
Switch (If Applicable)
Factory-Installed Enable Switch
FIGURE 8.
Locate the TO ENABLE connector on the node harness (P/N 115-4001-109) and connect it to the 4-pin
1.
connector on the finger toggle enable adapter cable (P/N 115-4001-215).
