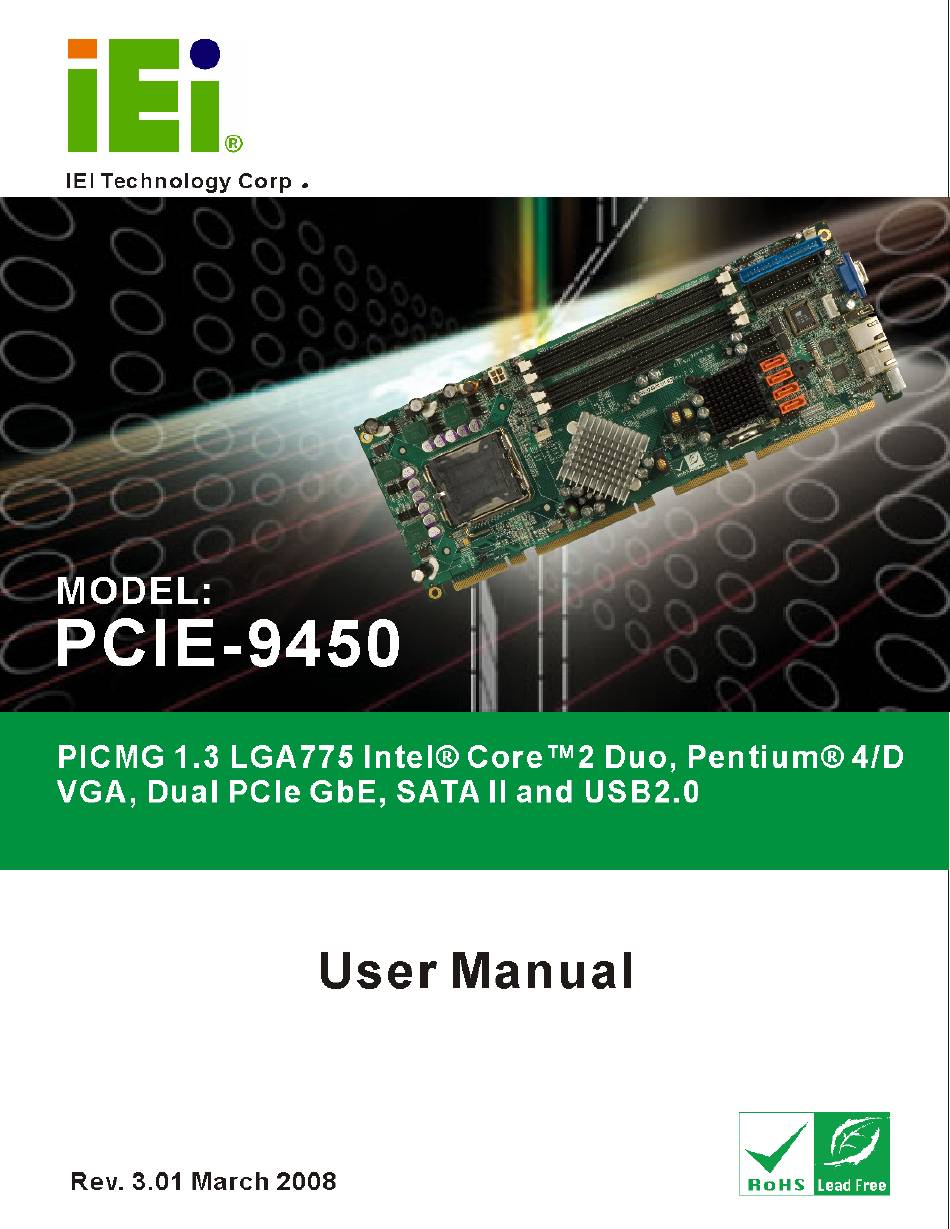

Page 1 PCIE-9450 PICMG 1.3 CPU Card Revision Date Version Changes 2008-03-6 3.01 Removed erroneous reference to Super I/O keyboard controller support on page 23. 2007-03-10 3.00 Released as PCIE-9450_UMN_v3.00 • Added “Appendix G: HAZARDOUS MATERIALS DISCLOSURE” • Added list of compatible IEI backplanes to Chapter 2 •...
Page 2 Cautionary messages should also be heeded to help reduce the chance of losing data or damaging the PCIE-9450. Cautions are easy to recognize. The word “caution” is written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the cautionary message.
Page 3 PCIE-9450 PICMG 1.3 CPU Card CAUTION: This is an example of a caution message. Failure to adhere to cautions messages may result in permanent damage to the PCIE-9450. Please take caution messages seriously. NOTE: These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes.
Page 4 PCIE-9450 PICMG 1.3 CPU Card Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
Page 5 PCIE-9450 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. The items listed below should all be included in the PCIE-9450 package. 1 x PCIE-9450 single board computer 1 x ATX-12V cable (P/N: 32100-087100-RS)
Page 6: Table Of Contents
VERVIEW 1.1.1 PCIE-9450 Features ..................2 1.2 PCIE-9450 O ....................3 VERVIEW 1.2.1 PCIE-9450 Overview Photo ................3 1.2.2 PCIE-9450 Peripheral Connectors and Jumpers ..........3 1.2.3 Technical Specifications..................5 DETAILED SPECIFICATIONS ................7 2.1 O ......................... 8 VERVIEW 2.2 D ......................
Page 7 PCIE-9450 PICMG 1.3 CPU Card ® 2.6.6 Intel ICH7R Real Time Clock ................ 18 ® 2.6.7 Intel ICH7R SATA Controller................. 18 ® 2.6.8 Intel ICH7R USB Controller................18 2.7 PCI B .................... 18 OMPONENTS 2.7.1 PCI Bus Overview.................... 18 2.7.2 PCI Express (PCIe) Slot Connector..............19 2.7.3 Broadcom PCIe GbE interface ................
Page 8 PCIE-9450 PICMG 1.3 CPU Card 4.1 P ..............36 ERIPHERAL NTERFACE ONNECTORS 4.1.1 PCIE-9450 Layout ................... 36 4.1.2 Peripheral Interface Connectors ..............36 4.1.3 External Peripheral Interface Panel Connectors ..........38 4.2 I ..............38 NTERNAL ERIPHERAL ONNECTORS 4.2.1 +12V ATX Power Supply Connector ............... 38 4.2.2 Audio Connector (10-pin) ................
Page 9 PCIE-9450 PICMG 1.3 CPU Card 5.4.1 Clear CMOS Jumper..................71 5.5 C ................... 72 HASSIS NSTALLATION 5.5.1 Airflow......................72 5.5.2 Backplane Installation ..................73 5.5.3 CPU Card Installation ..................73 5.6 I ............73 NTERNAL ERIPHERAL EVICE ONNECTIONS 5.6.1 Peripheral Device Cables ................73 5.6.2 ATA Flat Cable Connection ................
Page 10 PCIE-9450 PICMG 1.3 CPU Card 6.3.7 APM Configuration..................105 6.3.8 Remote Access Configuration ................ 107 6.3.9 USB Configuration..................109 6.3.9.1 USB Mass Storage Device Configuration..........111 6.4 PCI/P P .........................113 6.5 B ........................118 6.5.1 Boot Settings Configuration................119 6.5.2 Boot Device Priority ..................121 6.5.3 Removable Drives ..................
Page 11 PCIE-9450 PICMG 1.3 CPU Card B.3.1 Enable the DIO Input Function..............173 B.3.2 Enable the DIO Output Function ..............173 WATCHDOG TIMER.................... 175 ADDRESS MAPPING ..................179 D.1 A ..................... 180 DDRESS D.2 1 MB M ............... 180 EMORY DDRESS D.3 IRQ M...
Page 12 Figure 4-12: SATA Drive Connector Locations ................50 Figure 4-13: Serial Port Connector Pinout Locations..............51 Figure 4-14: USB Connector Pinout Locations ................52 Figure 4-15: PCIE-9450 External Peripheral Connector Panel..........53 Figure 4-16: PS/2 Pinout and Configuration ................54 Figure 4-17: Ethernet Connector....................55 Figure 4-18: VGA Connector ......................57 Figure 5-1: Intel LGA775 ......................64...
Page 13 PCIE-9450 PICMG 1.3 CPU Card Figure 5-4: Insert the LGA775 CPU....................66 Figure 5-5: IEI Cooling Kits......................67 Figure 5-6: Securing the Heat sink to the PCB Board .............68 Figure 5-7: Installing a DIMM......................69 Figure 5-8: Jumper ........................70 Figure 5-9: Clear CMOS Jumper ....................72 Figure 5-10: IDE Cable Connection ...................74...
Page 14 PCIE-9450 PICMG 1.3 CPU Card Figure 7-17: System Icon ......................142 Figure 7-18: Device Manager Tab ................... 143 Figure 7-19: Device Manager List ................... 144 Figure 7-20: Search for Suitable Driver.................. 145 Figure 7-21: Locate Driver Files ....................145 Figure 7-22: Location Browsing Window................146 Figure 7-23: Select the Audio CODEC..................
Page 15 PCIE-9450 PICMG 1.3 CPU Card List of Tables Table 1-1: Technical Specifications.....................6 Table 2-1: Supported Intel® Core™ 2 Duo Processors ............11 Table 2-2: Supported Intel® Pentium® 4 Processors ..............11 Table 2-3: Supported Intel® Pentium® D Processors .............12 ® ® Table 2-4: Supported Intel Celeron D Processors ..............12...
Page 16 PCIE-9450 PICMG 1.3 CPU Card Table 4-18: Ethernet Connector Pinouts...................55 Table 4-19: Ethernet Connector LEDs..................56 Table 4-20: USB Connector Pinouts..................56 Table 4-21: VGA Connector Pinouts..................57 Table 5-1: Jumpers........................70 Table 5-2: Clear CMOS Jumper Settings...................71 Table 5-3: IEI Provided Cables ....................73 Table 6-1: BIOS Navigation Keys ....................87...
Page 17 PCIE-9450 PICMG 1.3 CPU Card BIOS Menus BIOS Menu 1: Main ........................88 BIOS Menu 2: Advanced ......................90 BIOS Menu 3: CPU Configuration ....................90 BIOS Menu 4: IDE Configuration....................91 BIOS Menu 5: IDE Master and IDE Slave Configuration............93 BIOS Menu 6: IDE Master and IDE Slave Configuration............98 BIOS Menu 7: Super IO Configuration ..................99...
Page 18 PCIE-9450 PICMG 1.3 CPU Card Glossary Input/Output AC ’97 Audio Codec 97 ACPI Advanced Configuration and ICH4 I/O Controller Hub 4 Power Interface L1 Cache Level 1 Cache Advanced Power Management L2 Cache Level 2 Cache ARMD ATAPI Removable Media Device...
Page 19 WSB-9150-R10 CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page xix...
Page 21: Introduction
PCIE-9450 PICMG 1.3 CPU Card Chapter Introduction Page 1...
Page 22: Overview
PCIE-9450 PICMG 1.3 CPU Card 1.1 Overview ® The PCIE-9450 PICMG 1.3 form factor CPU card is a Socket LGA 775 Intel Core™ 2 ® ® ® ® Duo/Socket LGA 775 Intel Pentium 4/Socket LGA 775 Intel Pentium D/Socket LGA ®...
Page 23: Pcie-9450 Overview

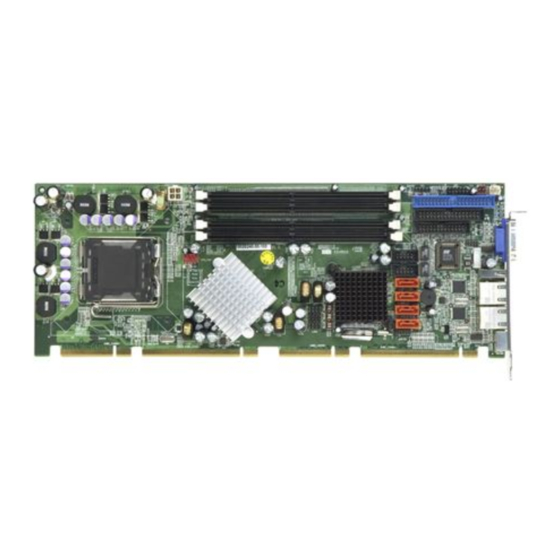

1.2 PCIE-9450 Overview 1.2.1 PCIE-9450 Overview Photo The PCIE-9450 has a wide variety of internal and external peripheral connectors. The peripheral connectors are connected to devices including storage devices, display devices and parallel communications devices. A labeled photo of the peripheral connectors is shown in Figure 1-1.
Page 24 1 x SDVO connector 4 x Serial ATA (SATA) drive connectors 2 x Serial port connectors 2 x USB connectors The PCIE-9450 has the following external peripheral interface connectors on the board rear panel: 1 x PS/2 keyboard/mouse connector 2 x Ethernet connectors 1 x USB 2.0 connector...
Page 25: Technical Specifications
PCIE-9450 PICMG 1.3 CPU Card 1.2.3 Technical Specifications PCIE-9450 technical specifications are listed in Table 1-1. Detailed descriptions of each specification can be found in Chapter 2. Specification PCIE-9450 Form Factor PICMG 1.3 full-size CPU card Socket LGA 775 Intel® Core™ 2 Duo (up to 2.66GHz) Socket LGA 775 Intel®...
Page 26: Table 1-1: Technical Specifications
PCIE-9450 PICMG 1.3 CPU Card Specification PCIE-9450 Floppy Disk One FDD connector supports one floppy disk drive SATA Four 3.0Gb/s SATA drives supported Keyboard/mouse One PS/2 connector supports mouse and keyboard connectivity Watchdog Timer Software programmable 1-255 sec. by supper I/O +12V@9A, +5V@2.6A, 3.3V@6.3A, 5VSB@0.93A, -12V@0.1A...
Page 27: Detailed Specifications
PCIE-9450 PICMG 1.3 CPU Card Chapter Detailed Specifications Page 7...
Page 28: Overview
PCIE-9450 PICMG 1.3 CPU Card 2.1 Overview This chapter describes the specifications and on-board features of the PCIE-9450 in detail. 2.2 Dimensions 2.2.1 Board Dimensions The dimensions of the board are listed below and shown in Figure 2-2. Length: 338.58mm Width: 126.39mm...
Page 29: External Interface Panel Dimensions
PCIE-9450 PICMG 1.3 CPU Card 2.2.2 External Interface Panel Dimensions External peripheral interface connector panel dimensions are shown in Figure 2-3. Figure 2-2: External Interface Panel Dimensions (mm) Page 9...
Page 30: Data Flow
PCIE-9450 PICMG 1.3 CPU Card 2.3 Data Flow Figure 2-4 shows the data flow between the two on-board chipsets and other components installed on the motherboard and described in the following sections of this chapter. Figure 2-3: Data Flow Block Diagram...
Page 31: Compatible Processors
2.4 Compatible Processors 2.4.1 CPU Overview Socket LGA 775 Intel® Core™ 2 Duo, Intel® Pentium® 4, Intel® Pentium® D and Intel® ® ® Celeron® D processors can be installed on the PCIE-9450 CPU card. The Intel Pentium ® ® ®...
Page 32: Supported Intel® Pentium® D Processors
PCIE-9450 PICMG 1.3 CPU Card 2.4.4 Supported Intel® Pentium® D Processors Specifications for the compatible Intel® Pentium® D processors are listed in Table 2-4. CPU Speed Bus Speed Mfg. Tech Cache Package Processor No. 3.60 GHz 800 MHz 65 nm...
Page 33: Intel ® 945G Memory Support
The Intel 945G supports four, 1GB, 400/533/667MHz dual channel DDR SDRAM DIMMs. Four 240-pin memory sockets on the PCIE-9450 enable a maximum of 4GB of memory to be installed on the system. The memory sockets are shown in Figure 2-5.
Page 34: Intel ® 945G Integrated Graphics Media Accelerator 950
PCIE-9450 PICMG 1.3 CPU Card Flat panels up to 2048x1536 @ 60 Hz or digital CRT/HDTV at 1920x1080 @ 85Hz Dual independent display options with digital display Multiplexed digital display channels (Supported with ADD2 Card). ADD2/ADD2+ card uses PCI Express graphics x16 connector ®...
Page 35: Intel ® Ich7R Southbridge Chipset
ICH7R Southbridge Chipset ® 2.6.1 Intel ICH7R Overview The ICH7R southbridge chipset on the PCIE-9450 has the features are listed below. Complies with PCI Express Base Specification, Revision 1.0a Complies with PCI Local Bus Specification, Revision 2.3 and supports 33MHz PCI operations...
Page 36: Intel ® Ich7R Audio Codec '97 Controller
PCIE-9450 PICMG 1.3 CPU Card Supports Firmware Hub (FWH) interface Serial Peripheral Interface (SPI) for Serial and Shared Flash 1.05 V Core Voltage Intel® High Definition Audio Interface Intel® Active Management Technology Intel® Quick Resume Technology Support ® 2.6.2 Intel ICH7R Audio Codec ’97 Controller...
Page 37: Intel ® Ich7R Low Pin Count (Lpc) Interface
PCIE-9450 PICMG 1.3 CPU Card Ultra ATA/100 Ultra ATA/66 Ultra ATA/33 Specification IDE devices 0 – 4 0 – 4 0 – 4 PIO Mode 16.6 MB/s 16.6 MB/s 16.6 MB/s PIO Max Transfer Rate UDMA 3 - 4 UDMA 3 – 4...
Page 38: Intel ® Ich7R Real Time Clock
PCIE-9450 PICMG 1.3 CPU Card The remaining four PCI bus masters are reserved for four PCI expansion boards that can be installed on the backplane. ® 2.6.6 Intel ICH7R Real Time Clock 256 bytes of battery backed RAM is provided by the Motorola MC146818A real time clock (RTC) integrated into the ICH7R.
Page 39: Pci Express (Pcie) Slot Connector
PCIE-9450 PICMG 1.3 CPU Card PCI Express slot connector on the bottom of the CPU card Broadcom PCI Express GbE interface Winbond PCI-to-ISA bridge interface 2.7.2 PCI Express (PCIe) Slot Connector The PCIe slot connector (Figure 2-6) is located on the bottom of the CPU card and slots into a PCIe slot on a backplane.
Page 40: Lpc Bus Components
PCIE-9450 PICMG 1.3 CPU Card Wake on LAN support meeting the ACPI requirements Statistics for SNMP MIB II, Ethernet-like MIB, and Ethernet MIB (802.3z, clause 30) Serial EEPROM or serial flash support JTAG support 2.8 LPC Bus Components 2.8.1 LPC Bus Overview The LPC bus is connected to components listed below and show in Figure 2-7.
Page 41: Super I/O Chipset
PCIE-9450 PICMG 1.3 CPU Card PXE (Pre-boot Execution Environment) support USB booting support 2.8.3 Super I/O Chipset The Winbond W83627THG Super I/O chipset is connected to the ICH7R southbridge through the LPC bus. Some of the features of the Winbond W83627THG chipset are listed below.
Page 42: Super I/O Hardware Monitor
PCIE-9450 PICMG 1.3 CPU Card 2.8.3.3 Super I/O Hardware Monitor The Super I/O Hardware Monitor monitors three thermal inputs, VBAT internally, and eight voltage monitor inputs. The Super I/O Hardware Monitor supports the SmartFan® control system, including the “Thermal Cruise™” and “Speed Cruise™” functions. These hardware parameters are reported in the BIOS and can be read from the BIOS Hardware Health Configuration menu.
Page 43: Environmental And Power Specifications
EPP v1.9 compliant High-speed mode ECP, IEEE 1284 compliant 2.9 Environmental and Power Specifications 2.9.1 System Monitoring Three thermal inputs on the PCIE-9450 Super I/O Hardware Monitor the following temperatures: System temperature Power temperature CPU temperature The PCIE-9450 Super I/O Hardware Monitor the following voltages:...
Page 44: Operating Temperature And Temperature Control
Table 2-6: Power Consumption 2.10 Expansion Options 2.10.1 Expansion Options Overview A number of compatible IEI Technology Corp. PICMG 1.3 backplanes and chassis can be used to develop and expanded system. These backplanes and chassis are listed below. Page 24...
Page 45: Iei Expansion Picmg 1.3 Backplanes
NOTE: If previous revisions of the backplanes listed below are being used with the Revision 3.0 PCIE-9450, an earlier BIOS version (v1.7) must be installed onto the system. The backplanes listed in Table 2-8 are compatible with the PCIE-Q350 and can be used to develop highly integrated industrial applications.
Page 46: Iei Chassis
PCIE-9450 PICMG 1.3 CPU Card Expansion Slots System Total Model Revision System PCIe Type Slots x16 x4 x1 PCI PCI-X PXE-5S 2.0 or later Single Single PXE-13S 2.0 or later Single PXE-19S 2.0 or later Single Table 2-7: Compatible IEI Backplanes 2.10.3 IEI Chassis...
Page 47: Table 2-8: Compatible Iei Chassis
PCIE-9450 PICMG 1.3 CPU Card Model Slot SBC Mounting Max Slots Backplanes PXE-13S PXE-19S RACK-360G-R20 Full-size (4U) Rack PE-6S-R20 PE-10S-R20 PE-10S2 PXE-13S RACK-814G-R20 Full-size (4U) Rack PE-6S-R20 PE-10S-R20 PE-10S2 PXE-13S RACK-3000G-R20 Full-size (4U) Rack PE-6S-R20 PE-10S-R20 PE-10S2 PXE-13S PXE-19S PAC-1700G-R20...
Page 48 PCIE-9450 PICMG 1.3 CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 28...
Page 49: Unpacking
PCIE-9450 PICMG 1.3 CPU Card Chapter Unpacking Page 29...
Page 50: Anti-Static Precautions
When the PCIE-9450 is unpacked, please do the following: Follow the anti-static precautions outlined in Section 3.1. Make sure the packing box is facing upwards so the PCIE-9450 does not fall out of the box. Make sure all the components shown in Section 3.3 are present.
Page 51: Unpacking Checklist
If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the PCIE-9450 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.
Page 52: Optional Components
PCIE-9450 PICMG 1.3 CPU Card Quantity Item and Part Number Image USB cable (P/N: CB-USB02-RS) Mini jumper Pack (P/N: 33100-000079-RS) Quick Installation Guide (P/N: 51000-001083-RS) Utility CD (P/N: IEI-7B000-000087/CD1) Table 3-1: Package List Contents 3.3.2 Optional Components The following components are optional:...
Page 53: Table 3-2: Optional Components
PCIE-9450 PICMG 1.3 CPU Card (P/N: AC-KIT-883 HD) CPU cooling kit (P/N: CF-520-RS) CPU cooling kit (P/N: CF-775A-RS) FDD cable (P/N: 32200-0000-17-RS) LPT cable (P/N: 19800-000049-RS) VGA output SDVO card (P/N: SVDO-100VGA-R10) DVI output SDVO card (P/N: SVDO-100DVI-R10) Table 3-2: Optional Components...
Page 54 PCIE-9450 PICMG 1.3 CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 34...
Page 55: Connector Pinouts
PCIE-9450 PICMG 1.3 CPU Card Chapter Connector Pinouts Page 35...
Page 56: Peripheral Interface Connectors
Figure 4-8 shows the on-board peripheral connectors, rear panel peripheral connectors and on-board jumpers. Figure 4-1: Connector and Jumper Locations 4.1.2 Peripheral Interface Connectors Table 4-8 shows a list of the peripheral interface connectors on the PCIE-9450. Detailed descriptions of these connectors can be found below. Connector Type...
Page 57: Table 4-1: Peripheral Interface Connectors
PCIE-9450 PICMG 1.3 CPU Card Connector Type Label Front panel connector 12-pin header IDE Interface connector 40-pin box header IDE1 Infrared connector 5-pin header Keyboard connector 5-pin wafer Parallel port connector 26-pin box header LPT1 RS-232 serial port connector 10-pin box header...
Page 58: External Peripheral Interface Panel Connectors
PCIE-9450 PICMG 1.3 CPU Card 4.1.3 External Peripheral Interface Panel Connectors Table 4-9 lists the external peripheral interface panel connectors on the PCIE-9450. Detailed descriptions of these connectors can be found in. Connector Type Label Keyboard/Mouse PS/2 KB/MS Ethernet connector...
Page 59: Audio Connector (10-Pin)
PCIE-9450 PICMG 1.3 CPU Card Figure 4-2: +12V ATX Power Connector Location DESCRIPTION +12V +12V Table 4-3: +12V ATX Power Connector Pinouts 4.2.2 Audio Connector (10-pin) CN Label: AUDIO1 CN Type: 10-pin header (2x5) CN Location: See Figure 4-10 CN Pinouts:...
Page 60: Digital Input/Output (Dio) Connector
PCIE-9450 PICMG 1.3 CPU Card Figure 4-3: Audio Connector Location (10-pin) DESCRIPTION DESCRIPTION AC_SYNC AC_CLK AC_SDOUT PC_BEEP AC_SDIN AC_RST# PWR (+5V) PWR (+12V) Table 4-4: Audio Connector Pinouts (10-pin) 4.2.3 Digital Input/Output (DIO) Connector CN Label: DIO1 CN Type: 10-pin header (2x5)
Page 61: Fan Connectors
PCIE-9450 PICMG 1.3 CPU Card Figure 4-4: DIO Connector Locations DESCRIPTION DESCRIPTION PWR (+5V) XOUT0 XOUT1 XOUT3 XOUT4 XIN0 XIN1 XIN2 XIN3 Table 4-5: DIO Connector Pinouts 4.2.4 Fan Connectors CN Label: CPU_FAN, FAN1 CPU_FAN: 4-pin wafer connector CN Type:...
Page 62: Floppy Disk Connector (34-Pin)
PCIE-9450 PICMG 1.3 CPU Card FAN1 CPU_FAN Figure 4-5: Fan Connectors Locations CPU_FAN FAN1 +12V +12V Rotation Signal Rotation Signal Control Table 4-6: Fan Connectors Pinouts 4.2.5 Floppy Disk Connector (34-pin) CN Label: FDD1 CN Type: 34-pin header (2x17) CN Location:...
Page 63: Figure 4-6: 34-Pin Fdd Connector Location
PCIE-9450 PICMG 1.3 CPU Card Figure 4-6: 34-pin FDD Connector Location DESCRIPTION DESCRIPTION REDUCE WRITE INDEX# MOTOR ENABLE A# DRIVE SELECT B# DRIVE SELECT A# MOTOR ENABLE B# DIRECTION# STEP# WRITE DATA# WRITE GATE# TRACK 0# Page 43...
Page 64: Front Panel Connector (12-Pin)
PCIE-9450 PICMG 1.3 CPU Card WRITE PROTECT# READ DATA# SIDE 1 SELECT# DISK CHANGE# Table 4-7: 34-pin FDD Connector Pinouts 4.2.6 Front Panel Connector (12-pin) CN Label: CN Type: 12-pin header (2x6) CN Location: See Figure 4-14 CN Pinouts: See Table 4-15 The front panel connector connects to external switches and indicators to monitor and controls the motherboard.
Page 65: Ide Connector (40-Pin)
Table 4-8: Front Panel Connector Pinouts 4.2.7 IDE Connector (40-pin) CN Label: IDE1 CN Type: 40-pin header (2x20) CN Location: See Figure 4-15 CN Pinouts: See Table 4-16 One 40-pin IDE device connector on the PCIE-9450 supports connectivity to two hard disk drives. Page 45...
Page 66: Figure 4-8: Ide Device Connector Locations
PCIE-9450 PICMG 1.3 CPU Card Figure 4-8: IDE Device Connector Locations DESCRIPTION DESCRIPTION RESET# GROUND DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1...
Page 67: Infrared Interface Connector (5-Pin)
PCIE-9450 PICMG 1.3 CPU Card DESCRIPTION DESCRIPTION HDD ACTIVE# GROUND Table 4-9: IDE Connector Pinouts 4.2.8 Infrared Interface Connector (5-pin) CN Label: CN Type: 5-pin header (1x5) CN Location: See Figure 4-16 CN Pinouts: See Table 4-17 The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift Key Infrared (ASKIR) interfaces.
Page 68: Parallel Port Connector
PCIE-9450 PICMG 1.3 CPU Card CN Label: CN Type: 5-pin header (1x5) CN Location: See Figure 4-10 CN Pinouts: See Table 4-11 The keyboard connector can be connected to a standard PS/2 cable or PS/2 cable to add keyboard and mouse functionality to the system.
Page 69: Figure 4-11: Parallel Port Connector Location
PCIE-9450 PICMG 1.3 CPU Card The 26-pin parallel port connector connects to a parallel port connector interface or some other parallel port device such as a printer. Figure 4-11: Parallel Port Connector Location DESCRIPTION DESCRIPTION STROBE# DATA 0 DATA 1...
Page 70: Sata Drive Connectors
PCIE-9450 PICMG 1.3 CPU Card GROUND GROUND GROUND GROUND GROUND Table 4-12: Parallel Port Connector Pinouts 4.2.11 SATA Drive Connectors CN Label: SATA1, SATA2, SATA3 and SATA4 CN Type: 7-pin SATA drive connectors CN Location: See Figure 4-18 CN Pinouts:...
Page 71: Serial Port Connector (Com1 And Com2)
PCIE-9450 PICMG 1.3 CPU Card Table 4-13: SATA Drive Connector Pinouts 4.2.12 Serial Port Connector (COM1 and COM2) CN Label: COM1 and COM2 CN Type: 10-pin header (2x5) CN Location: See Figure 4-19 CN Pinouts: See Table 4-20 The 10-pin serial port connectors provide RS-232 serial communications channels that can be connected to external RS-232 serial port devices.
Page 72: Usb Connectors (Internal)
PCIE-9450 PICMG 1.3 CPU Card DESCRIPTION DESCRIPTION DCD- DSR- RTS- SOUT CTS- DTR- Table 4-14: Serial Port Connector Pinouts 4.2.13 USB Connectors (Internal) USB0 CN Label: CN Type: 8-pin header (2x4) CN Location: See Figure 4-20 CN Pinouts: See Table 4-21 The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0...
Page 73: External Peripheral Interface Connectors
Table 4-15: USB Port Connector Pinouts 4.3 External Peripheral Interface Connectors Figure 4-15 shows the PCIE-9450 external peripheral connector panel. The peripheral connectors on the panel can be connected to devices externally when the motherboard is installed in a chassis. The external peripheral connectors are:...
Page 74: Ethernet Connector
PCIE-9450 PICMG 1.3 CPU Card Figure 4-16: PS/2 Pinout and Configuration DESCRIPTION KB DATA KB CLOCK Table 4-16: Keyboard Connector Pinouts DESCRIPTION MS DATA MS CLOCK Table 4-17: Mouse Connector Pinouts 4.3.2 Ethernet Connector CN Label: LAN1 and LAN2 CN Type:...
Page 75: Figure 4-17: Ethernet Connector
PCIE-9450 PICMG 1.3 CPU Card A 1Gb connection can be made between the Ethernet connectors and a Local Area Network (LAN) through a network hub. DESCRIPTION DESCRIPTION TX+ (or MDX0+) N/C (or MDX2-) TX- (or MDX0-) RX- (or MDX1-) RX+ (or MDX1+)
Page 76: Usb Connectors
PCIE-9450 PICMG 1.3 CPU Card SPEED LED LINK LED Status Description Status Description GREEN ON: 100MB YELLOW ON: Linked OFF: 10MB Flashing: Activity Table 4-19: Ethernet Connector LEDs 4.3.3 USB Connectors CN Label: USB_C0 CN Type: USB port CN Location:...
Page 77: On-Board Jumpers
PCIE-9450 PICMG 1.3 CPU Card Figure 4-18: VGA Connector Description Description GREEN BLUE DDC DAT HSYNC VSYNC DDC CLK Table 4-21: VGA Connector Pinouts 4.4 On-board Jumpers The PCIE-9450 has fifteen on-board jumpers. Refer to Section 5.4 for jumper configuration settings. Page 57...
Page 78 PCIE-9450 PICMG 1.3 CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 58...
Page 79: Installation
PCIE-9450 PICMG 1.3 CPU Card Chapter Installation Page 59...
Page 80: Anti-Static Precautions
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PCIE-9450. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PCIE-9450, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
Page 81: Installation Considerations
PCIE-9450 is installed. All installation notices pertaining to the installation of the PCIE-9450 should be strictly adhered to. Failing to adhere to these precautions may lead to severe damage of the PCIE-9450 and injury to the person installing the motherboard. 5.2.1 Installation Notices...
Page 82: Installation Checklist
PCIE-9450 PICMG 1.3 CPU Card When working with the PCIE-9450, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system. Before and during the installation of the PCIE-9450 DO NOT: Remove any of the stickers on the PCB board.
Page 83: Cpu, Cpu Cooling Kit And Dimm Installation
Running a CPU without a cooling kit may also result in injury to the user. The CPU, CPU cooling kit and DIMM are the most critical components of the PCIE-9450. If one of these component is not installed the PCIE-9450 cannot run.
Page 84: Figure 5-1: Intel Lga775
The LGA775 is shown in Figure 5-21. Figure 5-1: Intel LGA775 To install a LGA775 CPU onto the PCIE-9450, follow the steps below: WARNING: When handling the CPU, only hold it on the sides. DO NOT touch the pins at the bottom of the CPU.
Page 85: Figure 5-2: Remove The Cpu Socket Protective Shield
PCIE-9450 PICMG 1.3 CPU Card Figure 5-2: Remove the CPU Socket Protective Shield Step 2: Open the socket. Disengage the load lever by pressing the lever down and slightly outward to clear the retention tab. Rotate the load lever to a fully open position.
Page 86: Figure 5-4: Insert The Lga775 Cpu
PCIE-9450 PICMG 1.3 CPU Card facing upward. Step 5: Correctly position the CPU. Match the Pin 1 mark with the cut edge on the CPU socket. Step 6: Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.
Page 87: Lga775 Cooling Kit Installation
WARNING: It is strongly recommended that the original heat sink and cooler provided by Intel not be used on the PCIE-9450. IEI’s cooling kits include a support bracket that is combined with the heat sink mounted on the CPU to counterweigh and balance the load on both sides of the PCB.
Page 88: Dimm Installation
Step 6: Connect the fan cable. Connect the cooling kit fan cable to the fan connector on the PCIE-9450. Carefully route the cable and avoid heat generating chips and fan blades.Step 0: 5.3.3 DIMM Installation...
Page 89: Figure 5-7: Installing A Dimm
PCIE-9450 PICMG 1.3 CPU Card WARNING: Using incorrectly specified DIMM may cause permanently damage the PCIE-9450. Please make sure the purchased DIMM complies with the memory specifications of the PCIE-9450. DIMM specifications compliant with the PCIE-9450 are listed in Chapter 2.
Page 90: Jumper Settings
OPEN a jumper means removing the Figure 5-8: Jumper plastic clip from a jumper. Before the PCIE-9450 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the PCIE-9450 are listed in Table 5-1. Description...
Page 91: Clear Cmos Jumper
Jumper Location: See Figure 5-9 If the PCIE-9450 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.
Page 92: Chassis Installation
The PCIE-9450 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.
Page 93: Backplane Installation
PCIE-9450 PICMG 1.3 CPU Card 5.5.2 Backplane Installation Before the PCIE-9450 can be installed into a chassis, a backplane must first be installed. Please refer to the installation instructions that came with the backplane and the chassis. NOTE: IEI has a wide range of backplanes available. Please contact your PCIE-9450 vendor, reseller or an IEI sales representative at sales@iei.com.tw...
Page 94: Ata Flat Cable Connection
PCIE-9450 PICMG 1.3 CPU Card 5.6.2 ATA Flat Cable Connection The ATA 66/100 flat cable connects to the PCIE-9450 IDE device. Follow the instructions below to connect an IDE HDD to the PCIE-9450. Step 1: Locate the IDE connector. The locations of the IDE device connectors are shown in Chapter 3.
Page 95: Keyboard/Mouse Y-Cable Connector
The PCIE-9450 is shipped with a keyboard/mouse Y-cable connector. The keyboard/mouse Y-cable connector connects to a keyboard/mouse connector on the PCIE-9450 and branches into two cables that are each connected to a PS/2 connector, one for a mouse and one for a keyboard. To connect the keyboard/mouse Y-cable connector please follow the steps below.
Page 96 PCIE-9450 PICMG 1.3 CPU Card Step 4: Attach PS/2 connectors to the chassis. The keyboard/mouse Y-cable connector is connected to two PS/2 connectors. To secure the PS/2 connectors to the chassis please refer to the installation instructions that came with the chassis.
Page 97: Single Rs-232 Cable Connection
PCIE-9450 PICMG 1.3 CPU Card 5.6.4 Single RS-232 Cable Connection The single RS-232 cable consists of one serial port connectors attached to a serial communications cable that is then attached to a D-sub 9 male connector that is mounted onto a bracket. To install the single RS-232 cable, please follow the steps below.
Page 98: Sata Drive Connection
PCIE-9450 PICMG 1.3 CPU Card 5.6.5 SATA Drive Connection The PCIE-9450 is shipped with SATA drive cables and SATA drive power cable. Follow the steps below to connect the SATA drives to the CPU card. Step 1: Locate the connectors. The locations of the SATA drive connectors are shown in Chapter 3.
Page 99: Usb Cable Connectors
Step 0: Figure 5-14: SATA Power Drive Connection 5.6.6 USB Cable Connectors The PCIE-9450 is shipped with a dual USB 2.0 cable. To connect the USB cable connector, please follow the steps below. Step 1: Locate the connectors. The locations of the USB connectors are shown in Chapter 3.
Page 100: Figure 5-15: Dual Usb Cable Connection
Step 3: Insert the cable connectors. Once the cable connectors are properly aligned with the USB connectors on the PCIE-9450, connect the cable connectors to the onboard connectors. See Figure 5-15. Figure 5-15: Dual USB Cable Connection Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a bracket.
Page 101: External Peripheral Interface Connection
5.7.1 PS/2 Y Cable Connection The PCIE-9450 has a single PS/2 connector on the external peripheral interface panel. The PS/2 connector is connected to a keyboard and mouse Y cable. To connect a keyboard to the PCIE-9450, please follow the instructions below.
Page 102: Ethernet Connection
PCIE-9450 PICMG 1.3 CPU Card Figure 5-16: PS/2 Connector 5.7.2 RJ-45 Ethernet Connection The PCIE-9450 RJ-45 Ethernet connector on the external peripheral interface panel is connected to a LAN cable RJ-45 connector (Figure 5-17). Figure 5-17: RJ-45 Connector Page 82...
Page 103: Usb Connection
Figure 5-18: USB Connector 5.7.4 VGA Monitor Connection The PCIE-9450 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the PCIE-9450, please follow the instructions below.
Page 104: Figure 5-19: Vga Connector
PCIE-9450 PICMG 1.3 CPU Card insert the male connector from the VGA screen into the female connector on the PCIE-9450. See Figure 5-19. Figure 5-19: VGA Connector Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA monitor to the external interface by tightening the two retention screws on either side of the connector.
Page 105: Bios Screens
PCIE-9450 PICMG 1.3 CPU Card Chapter BIOS Screens Page 85...
Page 106: Introduction
PCIE-9450 PICMG 1.3 CPU Card 6.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.
Page 107: Getting Help
PCIE-9450 PICMG 1.3 CPU Card Function F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 6-1: BIOS Navigation Keys 6.1.3 Getting Help...
Page 108: Main
PCIE-9450 PICMG 1.3 CPU Card 6.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.
Page 109: Advanced
PCIE-9450 PICMG 1.3 CPU Card Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.
Page 110: Cpu Configuration
PCIE-9450 PICMG 1.3 CPU Card BIOS Menu 2: Advanced 6.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: Module Version: xx.xx...
Page 111: Ide Configuration
PCIE-9450 PICMG 1.3 CPU Card Cache L1: Lists the CPU L1 cache size Cache L2: Lists the CPU L2 cache size Ratio Actual Value: Displays the ratio at which the CPU is actually operating 6.3.2 IDE Configuration Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system.
Page 112: Ide Master, Ide Slave
PCIE-9450 PICMG 1.3 CPU Card to 6 storage devices. Some legacy OS do not support this mode. Legacy IDE Channels [PATA Pri, SATA Sec] Use the Legacy IDE Channels option to determine how SATA channels and PATA channels are ordered.
Page 113: Bios Menu 5: Ide Master And Ide Slave Configuration
PCIE-9450 PICMG 1.3 CPU Card BIOS Menu 5: IDE Master and IDE Slave Configuration Auto-Detected Drive Parameters The “grayed-out” items in the left frame are IDE disk drive parameters automatically detected from the firmware of the selected IDE disk drive. The drive parameters are listed as follows: Device: Lists the device type (e.g.
Page 114 PCIE-9450 PICMG 1.3 CPU Card Type [Auto] Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) is complete. Not Installed BIOS is prevented from searching for an IDE disk drive on the specified channel.
Page 115 PCIE-9450 PICMG 1.3 CPU Card Auto BIOS auto detects the LBA mode control on the specified EFAULT channel. Block (Multi Sector Transfer) [Auto] Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the device supports multi-sector transfers.
Page 116 PCIE-9450 PICMG 1.3 CPU Card PIO mode 4 selected with a maximum transfer rate of 16.6MBps (This setting generally works with all hard disk drives manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the specifications of the drive.) DMA Mode [Auto] Use the DMA Mode BIOS selection to adjust the DMA mode options.
Page 117 PCIE-9450 PICMG 1.3 CPU Card UDMA2 Ultra DMA mode 2 selected with a maximum data transfer rate of 33.3MBps Ultra DMA mode 3 selected with a maximum data transfer UDMA3 rate of 44MBps (To use this mode, it is required that an 80-conductor ATA cable is used.)
Page 118: Floppy Configuration
PCIE-9450 PICMG 1.3 CPU Card 6.3.3 Floppy Configuration Use the Floppy Configuration menu to configure the floppy disk drive connected to the system. BIOS Menu 6: IDE Master and IDE Slave Configuration Floppy A/B Use the Floppy A/B option to configure the floppy disk drive. Options are listed below: Disabled 360 KB 51/4”...
Page 119: Super Io Configuration
PCIE-9450 PICMG 1.3 CPU Card 6.3.4 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 7) to set or change the configurations for the FDD controllers, parallel ports and serial ports. BIOS Menu 7: Super IO Configuration OnBoard Floppy Controller [Enabled] Use the OnBoard Floppy Controller to enable or disable the floppy controller.
Page 120 PCIE-9450 PICMG 1.3 CPU Card 3E8/IRQ4 Serial Port 1 I/O port address is 3E8 and the interrupt address is IRQ4 Serial Port 1 I/O port address is 2E8 and the interrupt 2E8/IRQ3 address is IRQ3 Serial Port2 Address [2F8/IRQ3] Use the Serial Port2 Address option to select the Serial Port 2 base address.
Page 121 PCIE-9450 PICMG 1.3 CPU Card Parallel Port I/O port address is 378 Parallel Port I/O port address is 278 Parallel Port I/O port address is 3BC Parallel Port Mode [Normal] Use the Parallel Port Mode option to select the mode the parallel port operates in.
Page 122: Hardware Health Configuration
PCIE-9450 PICMG 1.3 CPU Card 6.3.5 Hardware Health Configuration The Hardware Health Configuration menu (BIOS Menu 8) shows the operating temperature, fan speeds and system voltages. BIOS Menu 8: Hardware Health Configuration CPU Fan Target Temperature [Disabled] Use the CPU Fan Target Temperature to specify a CPU operating temperature threshold that, when reached, generates a warning signal.
Page 123: Acpi Configuration
PCIE-9450 PICMG 1.3 CPU Card The following system parameters and values are shown. The system parameters that are monitored are: System Temperatures: The following system temperatures are monitored System Temperature CPU Temperature Fan Speeds: The following cooling fan speeds are monitored...
Page 124: General Acpi Configuration
PCIE-9450 PICMG 1.3 CPU Card ACPI Aware O/S [Yes] Use the ACPI Aware O/S option to enable the system to configure ACPI power saving options. ACPI can only be implemented if the system OS complies with the ACPI standard. Windows 98, Windows 2000, and Windows XP all comply with ACPI.
Page 125: Apm Configuration
PCIE-9450 PICMG 1.3 CPU Card appears off. The CPU is stopped; RAM is refreshed; the system is running in a low power mode. S3 (STR) The system enters a S3(STR) sleep state. The CPU has no power; RAM is in slow refresh; the power supply is in a reduced power mode.
Page 126 PCIE-9450 PICMG 1.3 CPU Card Disabled Disables the Advanced Power Management (APM) feature Enables the APM feature Enabled EFAULT Restore on AC Power Loss [Last State] Use the Restore on AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.
Page 127: Remote Access Configuration
PCIE-9450 PICMG 1.3 CPU Card Resume on Lan [Disabled] The Resume on Lan BIOS option specifies if the system is roused from a suspended or standby state when there is activity on the LAN. Disabled Wake event not generated by LAN activity...
Page 128: Bios Menu 12: Remote Access Configuration
PCIE-9450 PICMG 1.3 CPU Card BIOS Menu 12: Remote Access Configuration Remote Access [Disabled] Use the Remote Access option to enable or disable access to the remote functionalities of the system. Disabled Remote access is disabled. EFAULT Remote access configuration options shown below...
Page 129: Usb Configuration
PCIE-9450 PICMG 1.3 CPU Card 6.3.9 USB Configuration Use the USB Configuration menu (BIOS Menu 13) to read USB configuration information and configure the USB settings. BIOS Menu 13: USB Configuration USB Configuration The USB Configuration field shows the system USB configuration. The items listed are: Module Version: x.xx.x-xx.x...
Page 130 PCIE-9450 PICMG 1.3 CPU Card 8 USB Ports Eight USB ports are enabled EFAULT USB 2.0 Controller [Enabled] Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller Disabled USB 2.0 controller disabled USB 2.0 controller enabled...
Page 131: Usb Mass Storage Device Configuration
PCIE-9450 PICMG 1.3 CPU Card 6.3.9.1 USB Mass Storage Device Configuration Use the USB Mass Storage Device Configuration menu (BIOS Menu 14) to configure USB mass storage class devices. BIOS Menu 14: USB Mass Storage Device Configuration USB Mass Storage Reset Delay [20 Sec] Use the USB Mass Storage Reset Delay option to set the number of seconds POST waits for the USB mass storage device after the start unit command.
Page 132 PCIE-9450 PICMG 1.3 CPU Card Device ## The Device## field lists the USB devices that are connected to the system. Emulation Type [Auto] Use the Emulation Type BIOS option to specify the type of emulation BIOS has to provide for the USB device.
Page 133: Pci/Pnp
PCIE-9450 PICMG 1.3 CPU Card 80h or above. CDROM Assumes the CD-ROM is formatted as bootable media. All the devices that support block sizes greater than 512 bytes can only be booted using this option. 6.4 PCI/PnP Use the PCI/PnP menu (BIOS Menu 15) to configure advanced PCI and PnP settings.
Page 134 PCIE-9450 PICMG 1.3 CPU Card Clear NVRAM [No] Use the Clear NVRAM option to specify if the NVRAM (Non-Volatile RAM) is cleared when the power is turned off. System does not clear NVRAM during system boot EFAULT System clears NVRAM during system boot Plug &...
Page 135 PCIE-9450 PICMG 1.3 CPU Card Allocate IRQ to PCI VGA [Yes] Use the Allocate IRQ to PCI VGA option to restrict the system from giving the VGA adapter card an interrupt address. Assigns an IRQ to a PCI VGA card if card requests IRQ...
Page 136 PCIE-9450 PICMG 1.3 CPU Card OffBoard PCI/ISA IDE Card [Auto] Use the Off Board PCI/ISA IDE Card BIOS option to select the OffBoard PCI/ISA IDE Card. Auto The location of the Off Board PCI IDE adapter card is EFAULT automatically detected by the AMIBIOS.
Page 137 PCIE-9450 PICMG 1.3 CPU Card Available The specified IRQ is available to be used by EFAULT PCI/PnP devices The specified IRQ is reserved for use by Legacy ISA Reserved devices Available IRQ addresses are: IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10...
Page 138: Boot
PCIE-9450 PICMG 1.3 CPU Card DM Channel 7 Reserved Memory Size [Disabled] Use the Reserved Memory Size BIOS option to specify the amount of memory that should be reserved for legacy ISA devices. No memory block reserved for legacy ISA devices...
Page 139: Boot Settings Configuration
PCIE-9450 PICMG 1.3 CPU Card 6.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 17) to configure advanced system boot options. BIOS Menu 17: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process.
Page 140 PCIE-9450 PICMG 1.3 CPU Card AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed. Force BIOS The system forces third party BIOS to display EFAULT during system boot.
Page 141: Boot Device Priority
PCIE-9450 PICMG 1.3 CPU Card using system resources. Enabled Allows the system to use a PS/2 mouse. EFAULT Auto The system auto-adjusts PS/2 mouse support. Boot From LAN Support [Disabled] The BOOT From LAN Support option enables the system to be booted from a remote system.
Page 142: Removable Drives
PCIE-9450 PICMG 1.3 CPU Card BIOS Menu 18: Boot Device Priority Settings 6.5.3 Removable Drives Use the Removable Drives menu (BIOS Menu 19) to specify the boot sequence of the available FDDs. When the menu is opened, the FDDs connected to the system are listed...
Page 143: Security
PCIE-9450 PICMG 1.3 CPU Card BIOS Menu 19: Removable Drives 6.6 Security Use the Security menu (BIOS Menu 20) to set system and user passwords. BIOS Menu 20: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed.
Page 144: Chipset
PCIE-9450 PICMG 1.3 CPU Card Change User Password Use the Change User Password to set or change a user password. The default for this option is Not Installed. If a user password must be installed, select this field and enter the password.
Page 145: Northbridge Configuration
PCIE-9450 PICMG 1.3 CPU Card BIOS Menu 21: Chipset 6.7.1 NorthBridge Configuration Use the NorthBridge Configuration menu (BIOS Menu 22) to configure the northbridge chipset. BIOS Menu 22:NorthBridge Chipset Configuration Initiate Graphic Adapter [PEG/PCI] Use the Initiate Graphic Adapter option to select the graphics controller used as the primary boot device.
Page 146 PCIE-9450 PICMG 1.3 CPU Card of PCI graphics controller, a PCI express (PEG) controller or an IGD. Configuration options are listed below: PEG/IGD PEG/PCI EFAULT PCI/PEG PCI/IGD Internal Graphics Mode Select [Enable, 8MB] Use the Internal Graphic Mode Select option to specify the amount of system memory that can be used by the Internal graphics device.
Page 147: Southbridge Chipset Configuration
PCIE-9450 PICMG 1.3 CPU Card PEG Force X1 [Disabled] Use the PEG Force x1 option to convert a PCI express X16 slot into a PCI express X1 slot. Disabled PCI express X16 slot runs in normal mode EFAULT PCI express X16 slot runs in PCI express X1 mode Enabled 6.7.2 SouthBridge Chipset Configuration...
Page 148 PCIE-9450 PICMG 1.3 CPU Card ASF Support [Enabled] Use the ASF Support option to control the Alert Standard Format (ASF) function. Auto The ASF controller is auto-detected, activated and allowed to communicate with a remote management server. Disabled The ASF controller is disabled.
Page 149: Exit
PCIE-9450 PICMG 1.3 CPU Card Enabled The onboard audio controller is automatically detected and enabled. The onboard audio controller is disabled. Disabled EFAULT Spread Spectrum Mode [Disabled] Use the Spread Spectrum option to reduce the EMI. Excess EMI is generated when the system clock generator pulses have extreme values.
Page 150 PCIE-9450 PICMG 1.3 CPU Card Save Changes and Exit Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program. Discard Changes and Exit Use the Discard Changes and Exit option to exit the BIOS configuration setup program without saving the changes made to the system.
Page 151: Software Drivers
PCIE-9450 PICMG 1.3 CPU Card Chapter Software Drivers Page 131...
Page 152: Available Software Drivers
IDE controller Installation instructions are given below. 7.2 Driver CD Auto-run All the drivers for the PCIE-9450 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.
Page 153: Figure 7-1: Introduction Screen
The driver main menu appears on the screen. Figure 7-1: Introduction Screen Step 3: Select PCIE-9450 from the main menu shown in Figure 7-1. Step 4: A new screen with a list of available drivers appears (Figure 7-2). Figure 7-2: Available Drivers Step 5: Select the driver to install from the list in Figure 7-2.
Page 154: Chipset Driver Installation
PCIE-9450 PICMG 1.3 CPU Card 7.3 Chipset Driver Installation To install the chipset driver, please follow the steps below. Step 1: Select the INF driver from the list in Figure 7-2. Step 2: A new window opens (Figure 7-3). Figure 7-3: Chipset Driver Installation Program Step 3: Double-click the infinst_Autol.exe icon.
Page 155: Figure 7-5: Chipset Driver Installation License Agreement
PCIE-9450 PICMG 1.3 CPU Card Step 6: The license agreement in Figure 7-5 appears. Figure 7-5: Chipset Driver Installation License Agreement Step 7: Click Y to continue the setup. Step 8: The Readme file in Figure 7-6 appears. Figure 7-6: Chipset Driver Readme File Information...
Page 156: Intel Graphics Media Accelerator Driver
PCIE-9450 PICMG 1.3 CPU Card Step 10: After the driver installation process is complete, a confirmation screen (Figure 7-7) appears. Step 0: Figure 7-7: Chipset Driver Installation Complete Step 1: Click F to start the driver installation. INISH 7.4 Intel Graphics Media Accelerator Driver...
Page 157: Figure 7-8: Select The Operating System
PCIE-9450 PICMG 1.3 CPU Card Figure 7-8: Select the Operating System Step 4: Double-click the appropriate operating system folder. Step 5: A new window appears (Figure 7-9). Figure 7-9: VGA Driver Step 6: Double-click the installation program icon to continue the installation process.
Page 158: Figure 7-10: Intel® Graphics Media Accelerator Installshield Wizard
PCIE-9450 PICMG 1.3 CPU Card Figure 7-10: Intel® Graphics Media Accelerator InstallShield Wizard Step 8: Read the Readme file information and click N to begin extracting files (Figure 7-11). Figure 7-11: InstallShield Wizard Extracting Files Page 138...
Page 159: Figure 7-12: Intel® Graphics Media Accelerator Driver Welcome Screen
PCIE-9450 PICMG 1.3 CPU Card Step 9: The Graphics Media Accelerator Driver Welcome screen appears (Figure 7-12). Figure 7-12: Intel® Graphics Media Accelerator Driver Welcome Screen Step 10: Click N and a license agreement appears (Figure 7-13). Figure 7-13: Intel® Graphics Media Accelerator Driver License Agreement...
Page 160: Figure 7-14: Intel® Graphics Media Accelerator Driver Installing Notice
PCIE-9450 PICMG 1.3 CPU Card Step 11: Read the license agreement. To accept the terms and conditions stipulated in the license agreement shown, click Y and the installation notice appears (Figure 7-14). Figure 7-14: Intel® Graphics Media Accelerator Driver Installing Notice...
Page 161: Broadcom Lan Driver (For Gbe Lan) Installation
PCIE-9450 PICMG 1.3 CPU Card 7.5 Broadcom LAN Driver (for GbE LAN) Installation To install the Broadcom LAN driver, please follow the steps below. Step 1: Open Windows Control Panel (Figure 7-16). Figure 7-16: Windows Control Panel Step 2: Double-click the System icon (Figure 7-17).
Page 162: Figure 7-17: System Icon
PCIE-9450 PICMG 1.3 CPU Card Figure 7-17: System Icon Step 3: Double-click the Device Manager tab (Figure 7-18). Page 142...
Page 163: Figure 7-18: Device Manager Tab
PCIE-9450 PICMG 1.3 CPU Card Figure 7-18: Device Manager Tab Step 4: A list of system hardware devices appears (Figure 7-19). Page 143...
Page 164: Figure 7-19: Device Manager List
PCIE-9450 PICMG 1.3 CPU Card Figure 7-19: Device Manager List Step 5: Double-click the listed device that has question marks next to it (this means Windows does not recognize the device). Step 6: The Device Driver Wizard appears (Figure 7-20).
Page 165: Figure 7-20: Search For Suitable Driver
PCIE-9450 PICMG 1.3 CPU Card Figure 7-20: Search for Suitable Driver Step 7: Select “Search for a suitable driver for my device (recommended),” and click to continue. Step 8: Select “Specify a Location” in the Locate Driver Files window (Figure 7-21).
Page 166: Realtek Ac`97 Audio Driver (Alc665) Installation
PCIE-9450 PICMG 1.3 CPU Card Figure 7-22: Location Browsing Window Step 11: Select the proper OS folder under the “X:\3-LAN\BROADCOM BCM57xx Drivers” directory in the Locate File window, where “X:\” is the system CD drive. Step 12: Click O to continue. The driver is installed.Step 0:...
Page 167: Figure 7-23: Select The Audio Codec
PCIE-9450 PICMG 1.3 CPU Card Figure 7-23: Select the Audio CODEC Step 3: Double-click the ALC665 folder. Step 4: Double-click the Setup.exe program icon in Figure 7-24. Page 147...
Page 168: Figure 7-24: Locate The Setup Program Icon
PCIE-9450 PICMG 1.3 CPU Card Figure 7-24: Locate the Setup Program Icon Step 5: The InstallShield Wizard is prepared to guide the user through the rest of the process (Figure 7-25). Figure 7-25: Preparing Setup Screen Step 6: Once initialized, the InstallShield Wizard welcome screen appears (Figure 7-26).
Page 169: Figure 7-26: Installshield Wizard Welcome Screen
PCIE-9450 PICMG 1.3 CPU Card Figure 7-26: InstallShield Wizard Welcome Screen Step 7: Click N to continue the installation. Step 8: The install shield starts to install the new software as shown in Figure 7-27. Figure 7-27: Audio Driver Software Configuration...
Page 170: Figure 7-28: Audio Driver Digital Signal
PCIE-9450 PICMG 1.3 CPU Card Figure 7-28: Audio Driver Digital Signal Step 10: Click Y to continue the installation process. The driver installation begins as shown in Figure 7-29. Figure 7-29: Audio Driver Installation Step 11: After the driver installation process is complete, a confirmation screen appears (Figure 7-30).
Page 171: Realtek Hd Audio Driver (Alc883) Installation
PCIE-9450 PICMG 1.3 CPU Card Figure 7-30: Restart the Computer Step 12: The confirmation screen offers the option of restarting the computer now or later. For the settings to take effect, the computer must be restarted. Click F INISH restart the computer.
Page 172: Sata Raid Driver
PCIE-9450 PICMG 1.3 CPU Card 7.8 SATA RAID Driver To install the Intel® Matrix Storage Manager driver, please follow the steps below: Step 1: Select SATA from the list in Figure 7-2. Step 2: A new window opens (Figure 7-31).
Page 173: Figure 7-32: Sata Raid Setup Program Icon
PCIE-9450 PICMG 1.3 CPU Card Figure 7-32: SATA RAID Setup Program Icon Page 153...
Page 174: Figure 7-33: Installshield Wizard Setup Screen
PCIE-9450 PICMG 1.3 CPU Card Step 5: Figure 7-33 shows the InstallShield Wizard preparing to guide the user through the rest of the process. Figure 7-33: InstallShield Wizard Setup Screen Page 154...
Page 175: Figure 7-34: Matrix Storage Manager Setup Screen
PCIE-9450 PICMG 1.3 CPU Card Step 6: Figure 7-34 shows the Matrix Storage Manager software configuring the installation process. Figure 7-34: Matrix Storage Manager Setup Screen Page 155...
Page 176: Figure 7-35: Matrix Storage Manager Welcome Screen
PCIE-9450 PICMG 1.3 CPU Card Step 7: Figure 7-35 shows the Matrix Storage Manager welcome screen. Figure 7-35: Matrix Storage Manager Welcome Screen Step 8: Click N and a warning appears (Figure 7-36). Read the warning carefully and decide whether or not to continue the installation process.
Page 177: Figure 7-37: Matrix Storage Manager License Agreement
PCIE-9450 PICMG 1.3 CPU Card Step 9: Click N and a license agreement appears (Figure 7-37). Figure 7-37: Matrix Storage Manager License Agreement Page 157...
Page 178: Figure 7-38: Matrix Storage Manager Readme File
PCIE-9450 PICMG 1.3 CPU Card Step 10: Read the license agreement. To accept the terms and conditions stipulated in the license agreement shown, click Y and the Readme information file shown in Figure 7-38 appears. Figure 7-38: Matrix Storage Manager Readme File...
Page 179: Figure 7-39: Matrix Storage Manager Setup Complete
PCIE-9450 PICMG 1.3 CPU Card Step 12: After the driver installation process is complete, a confirmation screen appears (Figure 7-39). Figure 7-39: Matrix Storage Manager Setup Complete Step 13: The confirmation screen offers the option of restarting the computer now or later.
Page 180: Ide Controller Installation
PCIE-9450 PICMG 1.3 CPU Card 7.9 IDE Controller Installation To install the IDE controller, please follow the steps below. Step 1: Open Windows Control Panel (Figure 7-40). Figure 7-40: Access Windows Control Panel Page 160...
Page 181: Figure 7-41: Double Click The System Icon
PCIE-9450 PICMG 1.3 CPU Card Step 2: Double-click the System icon (Figure 7-41). Figure 7-41: Double Click the System Icon Page 161...
Page 182: Figure 7-42: Double Click The Device Manager Tab
PCIE-9450 PICMG 1.3 CPU Card Step 3: Double-click the Device Manager tab (Figure 7-42). Figure 7-42: Double Click the Device Manager Tab Page 162...
Page 183: Figure 7-43: Device Manager List
PCIE-9450 PICMG 1.3 CPU Card Step 4: A list of system hardware devices appears (Figure 7-43). Figure 7-43: Device Manager List Step 5: Double-click the listed device that has question marks next to it. (This means Windows does not recognize the device).
Page 184: Figure 7-44: Search For Suitable Driver
PCIE-9450 PICMG 1.3 CPU Card Step 6: The Device Driver Wizard appears (Figure 7-44). Click N to continue. Figure 7-44: Search for Suitable Driver Step 7: Select “Specify a Location” in the Locate Driver Files window (Figure 7-45). Click N to continue.
Page 185: Figure 7-46: Location Browsing Window
PCIE-9450 PICMG 1.3 CPU Card Step 8: Select the proper OS folder under the “X:\7-IDE\IT8211 v1.3.2.8” directory (Figure 7-46) in the location browsing window, where “X:\” is the system CD drive. Figure 7-46: Location Browsing Window Step 9: Click OK to continue. A driver files location menu window appears. Click N continue.
Page 186 PCIE-9450 PICMG 1.3 CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 166...
Page 187: Abios Options
PCIE-9450 PICMG 1.3 CPU Card Appendix BIOS Options Page 167...
Page 188 PCIE-9450 PICMG 1.3 CPU Card System Overview ......................88 System Time [xx:xx:xx]....................88 System Date [xx/xx/xx]....................89 ATA/IDE Configurations [Compatible]................91 Legacy IDE Channels [PATA Pri, SATA Sec]..............92 IDE Master and IDE Slave ....................92 Auto-Detected Drive Parameters ...................93 Type [Auto]........................94 ZIP .............................94 LS-120 ..........................94 LBA/Large Mode [Auto] ....................94...
Page 189 PCIE-9450 PICMG 1.3 CPU Card Resume on Lan [Disabled] ..................107 Resume On RTC Alarm [Disabled]................107 RTC Alarm Date (Days) ....................107 System Time........................107 Remote Access [Disabled] ..................108 Serial Port Number ....................... 108 Serial Port Mode ......................108 Flow Control........................
Page 190 PCIE-9450 PICMG 1.3 CPU Card Bootup Num-Lock [On] ....................120 PS/2 Mouse Support [Enabled] ................... 120 Boot From LAN Support [Disabled]................121 Change Supervisor Password..................123 Change User Password ....................124 Clear User Password....................124 Boot Sector Virus Protection [Disabled]..............124 Initiate Graphic Adapter [PEG/PCI]................
Page 191: Bdio Interface
PCIE-9450 PICMG 1.3 CPU Card Appendix DIO Interface Page 171...
Page 192: Dio Interface Introduction
PCIE-9450 PICMG 1.3 CPU Card B.1 DIO Interface Introduction The DIO connector on the PCIE-9450 is interfaced to GPIO ports on the Winbond Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.
Page 193: Assembly Language Samples
PCIE-9450 PICMG 1.3 CPU Card B.3 Assembly Language Samples B.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...
Page 194 PCIE-9450 PICMG 1.3 CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 174...
Page 195: Cwatchdog Timer
PCIE-9450 PICMG 1.3 CPU Card Appendix Watchdog Timer Page 175...
Page 196 PCIE-9450 PICMG 1.3 CPU Card NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
Page 197 PCIE-9450 PICMG 1.3 CPU Card NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...
Page 198 PCIE-9450 PICMG 1.3 CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 178...
Page 199: Daddress Mapping
PCIE-9450 PICMG 1.3 CPU Card Appendix Address Mapping Page 179...
Page 200: Address Map
PCIE-9450 PICMG 1.3 CPU Card D.1 Address Map I/O address Range Description 000-01F DMA Controller 020-021 Interrupt Controller 040-043 System time 060-06F Keyboard Controller 070-07F System CMOS/Real time Clock 080-09F DMA Controller 0A0-0A1 Interrupt Controller 0C0-0DF DMA Controller 0F0-0FF Numeric data processor...
Page 201: Irq Mapping Table
PCIE-9450 PICMG 1.3 CPU Card D.3 IRQ Mapping Table IRQ0 System Timer IRQ8 RTC clock IRQ1 Keyboard IRQ9 ACPI IRQ2 Available IRQ10 IRQ3 COM2 IRQ11 LAN/USB2.0/SATA IRQ4 COM1 IRQ12 PS/2 mouse IRQ5 SMBus Controller IRQ13 IRQ6 IRQ14 Primary IDE IRQ7...
Page 202 PCIE-9450 PICMG 1.3 CPU Card THIS PAGE IS INTENTIONALLY LEFT BLANK Page 182...
Page 203: Matrix Storage Manager
PCIE-9450 PICMG 1.3 CPU Card Appendix ® Intel Matrix Storage Manager Page 183...
Page 204: Introduction
PCIE-9450 PICMG 1.3 CPU Card E.1 Introduction The Intel® ICH9DO chipset can provide data protection for serial ATA (SATA) disks via the Intel® Matrix Storage Manager using one of three fault-tolerant RAID levels: RAID 1, 5 or 10. When using two hard drives, matrix RAID allows RAID 0 and RAID 1 functions to be combined, where critical files can be stored on RAID 1, and RAID 0 can be used for non-critical items such as software.
Page 205: Features And Benefits
PCIE-9450 PICMG 1.3 CPU Card CAUTION! Do not accidentally disconnect the SATA drive cables. Carefully route the cables within the chassis to avoid system down time. E.2 Features and Benefits Supports RAID levels 0, 1, 5 and 10 Supports connectivity to two or more disk drives...
Page 206: Raid Configuration
PCIE-9450 PICMG 1.3 CPU Card Step 3: Save and Exit BIOS. After the SATA support option is enabled, save and exit the BIOS. Step 4: Reboot the system. Reboot the system after saving and exiting the BIOS. Step 5: Press Ctrl+I. During the system boot process, press Ctrl+I when prompted to enter the RAID configuration software.
Page 207 PCIE-9450 PICMG 1.3 CPU Card Figure E-1: Matrix Storage Manager Main Menu Step 2: Name the RAID volume. Enter a name for the RAID volume, or press E NTER accept the default volume name. Upper and lower case alphabetic, numeric, space, and underscore characters are all applicable for naming an array.
Page 208 PCIE-9450 PICMG 1.3 CPU Card NOTE: RAID 0 and RAID1 levels require a minimum of two hard drives. RAID 10 level requires a minimum of four hard drives. RAID5 level requires a minimum of three hard drives. Figure E-3: Choose the Raid Level Step 4: Select the Stripe Size.
Page 209 PCIE-9450 PICMG 1.3 CPU Card Figure E-4: Select the Stripe Size Step 5: Enter the Volume Capacity. Enter the volume capacity, or press E NTER accept the default capacity. See Figure E-5. Figure E-5: Enter the Volume Capacity Step 6: Create the RAID Volume.
Page 210 PCIE-9450 PICMG 1.3 CPU Card Figure E-6: Create the RAID Volume Step 7: Create RAID Volume Verification. After reading the warning, press Y to create the RAID volume as specified, or N to return to the Create RAID Volume menu.
Page 211: Deleting A Raid Volume
PCIE-9450 PICMG 1.3 CPU Card E.4.2 Deleting a RAID Volume WARNING! All data stored on the member drives of a RAID volume are destroyed during the RAID deletion process. Make sure any data to be saved has been moved or backed up before deleting a RAID volume.
Page 212 PCIE-9450 PICMG 1.3 CPU Card Step 2: Select RAID Volume to be Deleted. Use the arrow keys to highlight the RAID volume to be deleted and press E . See Figure E-9. NTER Figure E-9: Select RAID Volume to be Deleted Step 3: Delete Volume Verification.
Page 213: Resetting A Disk To Non-Raid
PCIE-9450 PICMG 1.3 CPU Card Figure E-11: Non-RAID Disks E.4.3 Resetting a Disk to Non-RAID WARNING! All data stored on the disk drive of a RAID volume is destroyed when resetting it to non-RAID. Make sure any data to be saved has been moved or backed up before resetting a disk to non-RAID.
Page 214 PCIE-9450 PICMG 1.3 CPU Card Figure E-12: Reset Disk to Non-RAID Menu Step 2: Select Disks to Reset. Use the arrow keys to scroll through the disk drives and press S to select which drives are to be reset as non-RAID. After all the...
Page 215: Exiting The Matrix Storage Manager
PCIE-9450 PICMG 1.3 CPU Card Figure E-14: Reset Disk Verification Step 4: Disk Drive and RAID Volume Status. After the disk drives have been reset, the Matrix Storage Manager Main menu is shown indicating the status of the RAID volumes and disk drives. See Figure E-15.
Page 216 PCIE-9450 PICMG 1.3 CPU Card Figure E-16: Exit Menu Step 2: Exit Verification. Press Y to exit the Matrix Storage Manager, or N to return to the Main menu. See Figure E-17. Step 0: Figure E-17: Exit Verification Page 196...
Page 217: Fexternal Ac'97 Audio Codec
PCIE-9450 PICMG 1.3 CPU Card Appendix External AC’97 Audio CODEC Page 197...
Page 218: Introduction
PCIE-9450 PICMG 1.3 CPU Card F.1 Introduction The motherboard comes with an onboard Realtek ALC850 CODEC. Realtek ALC850 is a AC'97 2.3 compatible stereo audio CODEC with a variable sampling rate and four 16-bit two-channel DACs and a stereo 16-bit ADC.
Page 219: Sound Effect Configuration
PCIE-9450 PICMG 1.3 CPU Card Figure F-1: Control Panel Sound Effect Manager F.2 Sound Effect Configuration F.2.1 Accessing the Sound Effects Manager To access the Sound Effect Manager, please do the following: Step 1: Install the ALC850 audio CODEC driver.
Page 220: Sound Effect Manager Configuration Options
PCIE-9450 PICMG 1.3 CPU Card Figure F-3: Sound Effects Manager (ALC850) NOTE: The Sound Effect Manager shown in Figure F-3 is for the RealTek ALC850 audio CODEC. Different CODECs may have different sound manager appearances. The following section describes the different configuration options in the Sound Effect Manager.
Page 221 PCIE-9450 PICMG 1.3 CPU Card NOTE: The Karaoke Mode is configured in the Sound Effect menu. To access Karaoke configuration settings, click on the Sound Effect menu tab. Sound Effect Karaoke Mode Equalizer Speaker Configuration Speaker Test S/PDIF-In S/PDIF-Out Connector Sensing...
Page 222 PCIE-9450 PICMG 1.3 CPU Card The Key adjustment up or down arrow icons enables users to define a key that fits a certain vocal range. Equalizer Selection - Preset equalizer settings enable easy audio range settings. Ten frequency bands can be configured.
Page 223: Hazardous Materials Disclosure
PCIE-9450 PICMG 1.3 CPU Card Appendix Hazardous Materials Disclosure Page 203...
Page 224: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury
PCIE-9450 PICMG 1.3 CPU Card G.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
Page 225 PCIE-9450 PICMG 1.3 CPU Card Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly...
Page 226 PCIE-9450 PICMG 1.3 CPU Card 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符合中国 RoHS 标准规定的限量要求。本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元件将会单独标示出来。部件名称有毒有害物质或元素铅汞镉六价铬多溴联苯多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体显示印刷电路板金属螺帽电缆组装风扇组装电力供应组装电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。...
Page 227: Hindex
PCIE-9450 PICMG 1.3 CPU Card Index Page 207...
Page 228 PCIE-9450 PICMG 1.3 CPU Card IDE Configuration ......91 IDE Master, IDE Slave ....92 NorthBridge Configuration... 125 +12V ATX power supply connector..38 Remote Access Configuration..107 location and pinouts ......38 Removable Drives......122 SouthBridge Configuration... 127 Super IO Configuration....99 Advanced Power Management ..
Page 229 PCIE-9450 PICMG 1.3 CPU Card digital input/output......40 specifcations........69 fans..........41 Drivers floppy disk ........42 Broadcom LAN Driver ....141 IDE..........45 Chipset Driver....... 134 infrared interface......47 IDE Controller ......160 keyboard.......... 47 Intel Graphics Media Accelerator parallel port ........
Page 230 PCIE-9450 PICMG 1.3 CPU Card location and pinouts ......44 IrDA ..........100 FSB ............. 90 jumper ..........70 graphics and memory controller hub .. 12 clear CMOS ........71 Graphics Media Accelerator ....14 jumper configuration....... 70 jumper settings ........ 70 hard disk drives SATA..........
Page 231 PCIE-9450 PICMG 1.3 CPU Card RS-232 .......... 51, 77 cable connection......77 Operating Temperature ....... 24 COM 2 location and pinouts ... 51 connector location and pinouts ..51 dual cable ........77 serial port devices ......51 parallel port ......... 22, 101 RS-232 serial port devices ....
Page 232 PCIE-9450 PICMG 1.3 CPU Card USB 1.1........... 52 USB 2.0........... 52 unpacking..........30 USB 1.1..........52 unpacking checklist......31 USB 2.0..........52 unpacking precautions ....30 USB connector, internal...... 52 location and pinouts ......52 connection ........83 USB..........52, 79 cable ..........

IEI Technology PCIE-9450 User Manual

1 Introduction

Figure 1-1: PCIE-9450 Overview

Table 1-1: Technical Specifications

2 Detailed Specifications

Figure 2-1: PCIE-9450 Dimensions (MM)

Figure 2-2: External Interface Panel Dimensions (MM)

Figure 2-3: Data Flow Block Diagram

Table 2-1: Supported Intel® Core™ 2 Duo Processors

Table 2-2: Supported Intel® Pentium® 4 Processors

Celeron ® D Processors

Table 2-3: Supported Intel® Pentium® D Processors

Table 2-4: Supported Intel

Table 2-7: Compatible IEI Backplanes

Table 2-8: Compatible IEI Chassis

3 Unpacking

Table 3-1: Package List Contents

Table 3-2: Optional Components

4 Connector Pinouts

Figure 4-1: Connector and Jumper Locations
