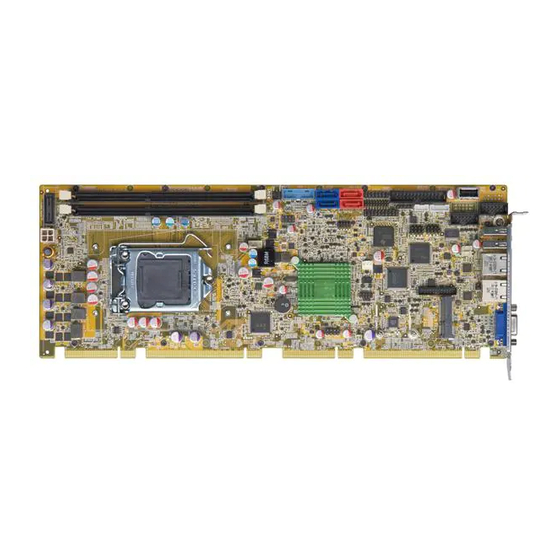

PCIE-H810 PICMG 1.3 CPU Card
MODEL:
PCIE-H810
Full-Size PICMG 1.3 CPU Card Supports 4th Generation
®
®
®
LGA1150 Intel
Core™ i7/i5/i3, Pentium
or Celeron
CPU,
®
Intel
H81 Chipset, DDR3, VGA, iDP, Dual PCIe GbE,
SATA 6Gb/s, mSATA, RS-232, HD Audio and RoHS
User Manual
Page i
Rev. 1.02 – February 14, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIE-H810 and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology PCIE-H810

Summary of Contents for IEI Technology PCIE-H810

  • Page 1 PCIE-H810 PICMG 1.3 CPU Card MODEL: PCIE-H810 Full-Size PICMG 1.3 CPU Card Supports 4th Generation ® ® ® LGA1150 Intel Core™ i7/i5/i3, Pentium or Celeron CPU, ® Intel H81 Chipset, DDR3, VGA, iDP, Dual PCIe GbE, SATA 6Gb/s, mSATA, RS-232, HD Audio and RoHS...
  • Page 2 PCIE-H810 PICMG 1.3 CPU Card Revision Date Version Changes February 14, 2019 1.02 Modified Figure 3-27: USB 2.0 Connector Pinout Locations December 18, 2015 1.01 Updated Section 1.6: Technical Specifications Modified Table 3-14: Internal DisplayPort Connector Pinouts March 2, 2015 1.00...
  • Page 3 PCIE-H810 PICMG 1.3 CPU Card Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
  • Page 4 PCIE-H810 PICMG 1.3 CPU Card Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    PCIE-H810 PICMG 1.3 CPU Card Table of Contents 1 INTRODUCTION ......................1 1.1 I ......................2 NTRODUCTION 1.2 F ........................2 EATURES 1.3 C ......................3 ONNECTORS 1.4 D ....................... 4 IMENSIONS 1.5 D ........................ 6 1.6 T ..................7...
  • Page 6 PCIE-H810 PICMG 1.3 CPU Card 3.2.11 I C Connector ....................27 3.2.12 Infrared Connector ..................28 3.2.13 Internal DisplayPort Connector ..............28 3.2.14 Keyboard and Mouse Connector ..............29 3.2.15 LAN LED Connectors ..................30 3.2.16 Parallel Port Connector ................31 3.2.17 PCIe Mini Slot ....................
  • Page 7 PCIE-H810 PICMG 1.3 CPU Card 4.8.4 mSATA Mode Selection ..................61 4.8.5 USB Power Selection ..................61 4.9 C .................... 62 HASSIS NSTALLATION 4.9.1 Airflow ......................62 4.9.2 CPU Card Installation ..................62 4.10 I ............63 NTERNAL ERIPHERAL EVICE ONNECTIONS 4.10.1 SATA Drive Connection .................
  • Page 8 PCIE-H810 PICMG 1.3 CPU Card 5.4.2 System Agent (SA) Configuration ..............98 5.4.2.1 Graphics Configuration ................98 5.4.2.2 NB PCIe Configuration ................101 5.4.2.3 Memory Configuration ................102 5.5 B ........................103 5.6 S ....................... 105 ECURITY 5.7 S & E ......................
  • Page 9 List of Figures Figure 1-1: PCIE-H810 ........................2 Figure 1-2: Connectors ........................3 Figure 1-3: PCIE-H810 Dimensions (mm) ..................4 Figure 1-4: External Interface Panel Dimensions (mm) .............. 5 Figure 1-5: Data Flow Diagram ...................... 6 Figure 3-1: Connectors and Jumpers ..................16 Figure 3-2: +12V Power Connector Pinout Location ..............
  • Page 10 PCIE-H810 PICMG 1.3 CPU Card Figure 3-26: TPM Connector Location ..................41 Figure 3-27: USB 2.0 Connector Pinout Locations ..............42 Figure 3-28: USB 2.0 Connector (Type A) Pinout Location ............43 Figure 3-29: USB 3.1 Gen 1 Connector Location ..............44 Figure 3-30: External Peripheral Interface Connector ..............
  • Page 11 PCIE-H810 PICMG 1.3 CPU Card List of Tables Table 1-1: PCIE-H810 Specifications .................... 9 Table 2-1: Packing List ......................... 12 Table 2-2: Optional Items ......................14 Table 3-1: Peripheral Interface Connectors ................18 Table 3-2: Rear Panel Connectors ....................18 Table 3-3: +12V Power Connector Pinouts ................
  • Page 12 PCIE-H810 PICMG 1.3 CPU Card Table 3-28: TPM Connector Pinouts ................... 41 Table 3-29: USB 2.0 Connector Pinouts ..................42 Table 3-30: USB 2.0 Connector (Type A) Pinouts ..............43 Table 3-31: USB 3.1 Gen 1 Connector Pinouts ................44 Table 3-32: LAN Pinouts ......................
  • Page 13 PCIE-H810 PICMG 1.3 CPU Card BIOS Menus BIOS Menu 1: Main ........................68 BIOS Menu 2: Advanced ......................70 BIOS Menu 3: ACPI Configuration ....................70 BIOS Menu 4: RTC Wake Settings ....................71 BIOS Menu 5: TPM Configuration ....................73 BIOS Menu 6: CPU Configuration ....................

  • Page 15: Introduction

    PCIE-H810 PICMG 1.3 CPU Card Chapter Introduction Page 1...

  • Page 16: Introduction

    Ethernet controllers. The integrated Intel H81 chipset supports two SATA 6Gb/s and two SATA 3Gb/s drives. In addition, the PCIE-H810 includes VGA and iDP interfaces for dual independent display. Two USB 3.1 Gen 1 by pin header, two USB 2.0 on the rear panel, four USB 2.0 by pin header, one USB 2.0 by internal Type A connector, four USB 2.0 by backplane pin header...

  • Page 17: Connectors

    Stiffener bars prevent the PCB bending and damage of components on the solder side  TPM V1.2 hardware security function supported by the TPM module  High Definition Audio  RoHS compliant 1.3 Connectors The connectors on the PCIE-H810 are shown in the figure below. Figure 1-2: Connectors Page 3...

  • Page 18: Dimensions

    PCIE-H810 PICMG 1.3 CPU Card 1.4 Dimensions The main dimensions of the PCIE-H810 are shown in the diagram below. Figure 1-3: PCIE-H810 Dimensions (mm) Page 4...

  • Page 19: Figure 1-4: External Interface Panel Dimensions (Mm)

    PCIE-H810 PICMG 1.3 CPU Card Figure 1-4: External Interface Panel Dimensions (mm) Page 5...

  • Page 20: Data Flow

    PCIE-H810 PICMG 1.3 CPU Card 1.5 Data Flow Figure 1-5 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-5: Data Flow Diagram Page 6...

  • Page 21: Technical Specifications

    PCIE-H810 PICMG 1.3 CPU Card 1.6 Technical Specifications The PCIE-H810 technical specifications are listed below. Specification/Model PCIE-H810 PICMG 1.3 Form Factor ® ® 4th generation LGA1150 Intel Core™ i7/i5/i3, Pentium CPU Supported ® Celeron ® Intel Memory Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3/DDR3L SDRAM DIMMs support up to 16 GB ®...
  • Page 22 PCIE-H810 PICMG 1.3 CPU Card One PCIe Mini slot (PCIe Mini and mSATA co-lay) Expansions PCI signal by ITE IT8892 (PCIe to PCI bridge) 4 x PCI link via golden finger 16-lane PCIe link from CPU via golden finger: Support one PCIe x16 slot on the backplane...

  • Page 23: Table 1-1: Pcie-H810 Specifications

    PCIE-H810 PICMG 1.3 CPU Card One via 20-pin header Two USB 3.1 Gen 1 (5 Gb/s) ports by pin header USB Ports Two USB 2.0 ports on rear IO Four USB 2.0 ports by two pin headers One USB 2.0 port by internal Type A connector Four USB 2.0 ports (signal to backplane)

  • Page 24: Packing List

    PCIE-H810 PICMG 1.3 CPU Card Chapter Packing List Page 10...

  • Page 25: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the PCIE-H810 is unpacked, please do the following:  Follow the anti-static guidelines above.

  • Page 26: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the PCIE-H810 was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com.
  • Page 27 PCIE-H810 PICMG 1.3 CPU Card Item and Part Number Image RS-422/485 cable, 200 mm, P=2.0 (P/N: 32205-003800-300-RS) Dual-port USB 3.1 Gen 1 cable with bracket (P/N: 19800-010500-200-RS) Dual-port USB 2.0 cable with bracket, 300 mm, P=2.54 (P/N: 19800-003100-300-RS) KB/MS cable with bracket, 220 mm, P=2.0...

  • Page 28: Table 2-2: Optional Items

    PCIE-H810 PICMG 1.3 CPU Card Item and Part Number Image LGA1150 cooler kit, high-performance compatible, 54W (P/N: CF-1150SF-R10) DisplayPort to HDMI converter board (for IEI iDP connector) (P/N: DP-HDMI-R10) DisplayPort to LVDS converter board (for IEI iDP connector) (P/N: DP-LVDS-R10)

  • Page 29: Connectors

    PCIE-H810 PICMG 1.3 CPU Card Chapter Connectors Page 15...

  • Page 30: Peripheral Interface Connectors

    PCIE-H810 PICMG 1.3 CPU Card 3.1 Peripheral Interface Connectors This chapter details all the jumpers and connectors. 3.1.1 PCIE-H810 Layout The figures below show all the connectors and jumpers. Figure 3-1: Connectors and Jumpers Page 16...

  • Page 31: Peripheral Interface Connectors

    PCIE-H810 PICMG 1.3 CPU Card 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label +12V power connector 4-pin Molex power CPU12V1 connector Audio kit connector 10-pin header J_AUDIO1 Battery connector 2-pin wafer...

  • Page 32: External Interface Panel Connectors

    PCIE-H810 PICMG 1.3 CPU Card Connector Type Label SMBus connector 4-pin wafer SPI flash connector 8-pin header JSPI1 SPI flash connector (EC) 8-pin header JSPI2 TPM connector 20-pin header TPM1 USB 2.0 connector (Type A) Type A USB4 USB 2.0 connectors...

  • Page 33: Internal Peripheral Connectors

    PCIE-H810 PICMG 1.3 CPU Card 3.2 Internal Peripheral Connectors The section describes all of the connectors on the PCIE-H810. 3.2.1 +12V Power Connector CN Label: CPU12V1 4-pin Molex power connector, p=4.2 mm CN Type: CN Location: See Figure 3-2 CN Pinouts: See Table 3-3 This connector provides power to the CPU.

  • Page 34: Battery Connector

    PCIE-H810 PICMG 1.3 CPU Card This connector connects to an external audio kit. Figure 3-3: Audio Kit Connector Location Description Description HDA_SYNC HDA_BIT_CLK HDA_SDOUT HDA_SPKR HDA_SDIN HDA_RST# HDA_VCC HDA_GND HDA_+12V HDA_GND Table 3-4: Audio Kit Connector Pinouts 3.2.3 Battery Connector CAUTION: Risk of explosion if battery is replaced by an incorrect type.

  • Page 35: Chassis Intrusion Connector

    PCIE-H810 PICMG 1.3 CPU Card This is connected to the system battery. The battery provides power to the system clock to retain the time when power is turned off. Figure 3-4: Battery Connector Location Description Battery+ Table 3-5: Battery Connector Pinouts 3.2.4 Chassis Intrusion Connector...

  • Page 36: Ddr3 Dimm Slots

    PCIE-H810 PICMG 1.3 CPU Card Description +3.3VSB CHASSIS OPEN Table 3-6: Chassis Intrusion Connector Pinouts 3.2.5 DDR3 DIMM Slots CN Label: CHA_DIMM1, CHB_DIMM1 CN Type: DDR3 DIMM slot CN Location: See Figure 3-6 The DIMM slots are for DDR3/DDR3L DIMM memory modules.

  • Page 37: Ec Debug Connector

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-7: Digital I/O Connector Location Description Description Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 3-7: Digital I/O Connector Pinouts 3.2.7 EC Debug Connector CN Label:...

  • Page 38: Fan Connector (Cpu)

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-8: EC Debug Connector Location Description Description EC_EPP_STB# EC_EPP_AFD# EC_EPP_PD0 EC_EPP_PD1 EC_EPP_INIT# EC_EPP_PD2 EC_EPP_SLIN# EC_EPP_PD3 EC_EPP_PD4 EC_EPP_PD5 EC_EPP_BUSY EC_EPP_PD6 EC_EPP_KSI5 EC_EPP_PD7 EC_EPP_KSI4 Table 3-8: EC Debug Connector Pinouts 3.2.8 Fan Connector (CPU) CN Label: CPU_FAN1 4-pin wafer, p=2.54 mm...

  • Page 39: Fan Connector (System)

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-9: CPU Fan Connector Location Description +12 V FANIO Table 3-9: CPU Fan Connector Pinouts 3.2.9 Fan Connector (System) CN Label: SYS_FAN1 CN Type: 3-pin wafer, p=2.54 mm See Figure 3-10 CN Location: CN Pinouts: See Table 3-10 The fan connector attaches to a system cooling fan.

  • Page 40: Front Panel Connector

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-10: System Fan Connector Location Description FANIO +12 V (PWM) Table 3-10: System Fan Connector Pinouts 3.2.10 Front Panel Connector CN Label: F_PANEL1 CN Type: 14-pin header, p=2.54 mm CN Location: See Figure 3-11...

  • Page 41: I 2 C Connector

    PCIE-H810 PICMG 1.3 CPU Card Function Description Function Description Power LED Speaker BEEP_PWR Power Button PWRBTN_SW# PC_BEEP Reset HDD LED EXTRST- SATA_LED# Table 3-11: Front Panel Connector Pinouts 3.2.11 I C Connector CN Label: CN Type: 4-pin wafer, p=1.25 mm...

  • Page 42: Infrared Connector

    PCIE-H810 PICMG 1.3 CPU Card 3.2.12 Infrared Connector CN Label: 5-pin header, p=2.54 mm CN Type: CN Location: See Figure 3-13 CN Pinouts: See Table 3-13 The infrared connector attaches to an infrared receiver for use with remote controls. Figure 3-13: Infrared Connector Location...

  • Page 43: Keyboard And Mouse Connector

    PCIE-H810 PICMG 1.3 CPU Card The DisplayPort connector supports HDMI, LVDS, VGA, DVI and DisplayPort graphics interfaces with up to 3840x2160 resolutions. Figure 3-14: Internal DisplayPort Connector Location Description Description LANE3N AUXP AUXN LANE0P AUX_CTRL_DET_D LANE1P LANE0N LANE1N LANE2P +3.3V...

  • Page 44: Lan Led Connectors

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-15: Keyboard and Mouse Connector Location Description +5 VCC Mouse Data Mouse Clock Keyboard Data Keyboard Clock GROUND Table 3-15: Keyboard and Mouse Connector Pinouts 3.2.15 LAN LED Connectors CN Label: LED_LAN1, LED_LAN2 CN Type: 2-pin header, p=2.54 mm...

  • Page 45: Parallel Port Connector

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-16: LAN LED Connector Locations Description +3.3V LAN1_LED_LINK#_ACT Table 3-16: LAN1 LED Connector (LED_LAN1) Pinouts Description +3.3V LAN2_LED_LINK#_ACT Table 3-17: LAN2 LED Connector (LED_LAN2) Pinouts 3.2.16 Parallel Port Connector CN Label: LPT1 CN Type: 26-pin box header, p=2.54 mm...

  • Page 46: Figure 3-17: Parallel Port Connector Location

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-17: Parallel Port Connector Location Description Description PPD0 ERROR PPD1 INIT PPD2 SLIN PPD3 PPD4 PPD5 PPD6 PPD7 BUSY SLCT Table 3-18: Parallel Port Connector Pinouts Page 32...

  • Page 47: Pcie Mini Slot

    PCIE-H810 PICMG 1.3 CPU Card 3.2.17 PCIe Mini Slot CN Label: PCIe Mini slot CN Type: CN Location: See Figure 3-18 CN Pinouts: See Table 3-19 The PCIe Mini slot is for installing a full-size or half-size PCIe Mini expansion card.

  • Page 48: Sata 3Gb/S Drive Connectors

    PCIE-H810 PICMG 1.3 CPU Card Description Description 1.5V SMB_CLK SATA_TX- SMB_DATA SATA_TX+ USB_DATA- USB_DATA+ +3.3V +3.3V +3.3V CLINK_CLK CLINK_DATA 1.5V CLINK_RST# MSATA_DET +3.3V Table 3-19: PCIe Mini Slot Pinouts 3.2.18 SATA 3Gb/s Drive Connectors CN Label: SATA3, SATA4 7-pin SATA drive connector...

  • Page 49: Sata 6Gb/S Drive Connectors

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-19: SATA 3Gb/s Drive Connector Location Description Description Table 3-20: SATA 3Gb/s Drive Connector Pinouts 3.2.19 SATA 6Gb/s Drive Connectors CN Label: S_ATA1, S_ATA2 CN Type: 7-pin SATA drive connector CN Location: See Figure 3-20...

  • Page 50: Serial Port Connectors, Rs-232

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-20: SATA 6Gb/s Drive Connector Location Description Description Table 3-21: SATA 6Gb/s Drive Connector Pinouts 3.2.20 Serial Port Connectors, RS-232 CN Label: COM1, COM3 CN Type: 10-pin box header, p=2.54 mm CN Location: See Figure 3-21...

  • Page 51: Serial Port Connector, Rs-422/485

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-21: Serial Port Connector Location Description Description Table 3-22: Serial Port Connector Pinouts 3.2.21 Serial Port Connector, RS-422/485 CN Label: COM2 CN Type: 4-pin wafer, p=2 mm CN Location: See Figure 3-22 See Table 3-23 CN Pinouts: This connector provides RS-422 or RS-485 communications.

  • Page 52: Smbus Connector

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-22: RS-422/485 Connector Location Description RXD422- RXD422+ TXD422+/TXD485+ TXD422-/TXD485- Table 3-23: RS-422/485 Connector Pinouts Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the DB-9 connector are listed below.

  • Page 53: Spi Flash Connector

    PCIE-H810 PICMG 1.3 CPU Card The SMBus (System Management Bus) connector provides low-speed system management communications. Figure 3-23: SMBus Connector Location Description SMB_DATA SMB_CLK Table 3-25: SMBus Connector Pinouts 3.2.23 SPI Flash Connector CN Label: JSPI1 CN Type: 8-pin header, p=2.54 mm...

  • Page 54: Spi Flash Connector (Ec)

    PCIE-H810 PICMG 1.3 CPU Card Description Description +3.3V SPI_CS# SPI_SO SPI_CLK SPI_SI Table 3-26: SPI Flash Connector Pinouts 3.2.24 SPI Flash Connector (EC) CN Label: JSPI2 CN Type: 8-pin header, p=2.54 mm CN Location: See Figure 3-25 CN Pinouts: See Table 3-27 The SPI flash connector is used to flash the EC ROM.

  • Page 55: Tpm Connector

    PCIE-H810 PICMG 1.3 CPU Card 3.2.25 TPM Connector CN Label: TPM1 20-pin header, p=2.54 mm CN Type: CN Location: See Figure 3-26 CN Pinouts: See Table 3-28 The TPM connector connects to a TPM module. Figure 3-26: TPM Connector Location...

  • Page 56: Usb 2.0 Connectors

    PCIE-H810 PICMG 1.3 CPU Card 3.2.26 USB 2.0 Connectors CN Label: USB2, USB3 8-pin header, p=2.54 mm CN Type: CN Location: See Figure 3-27 CN Pinouts: See Table 3-29 The USB 2.0 connectors connect to USB 2.0/1.1 devices. Each pin header provides two USB 2.0 ports.

  • Page 57: Usb 2.0 Connector (Type A)

    PCIE-H810 PICMG 1.3 CPU Card 3.2.27 USB 2.0 Connector (Type A) CN Label: USB4 USB Type A CN Type: CN Location: See Figure 3-28 CN Pinouts: See Table 3-30 The USB Type A connector connects to a USB 2.0/1.1 device.

  • Page 58: External Peripheral Interface Connector Panel

    PCIE-H810 PICMG 1.3 CPU Card Figure 3-29: USB 3.1 Gen 1 Connector Location Description Description USB_DATA+ USB3_RX- USB_DATA- USB3_RX+ USB3_TX+ USB3_TX- USB3_TX- USB3_TX+ USB3_RX+ USB_DATA- USB3_RX- USB_DATA+ Table 3-31: USB 3.1 Gen 1 Connector Pinouts 3.3 External Peripheral Interface Connector Panel The figure below shows the external peripheral interface connector (EPIC) panel.

  • Page 59: Ethernet Connectors

    CN Type: CN Location: See Figure 3-30 CN Pinouts: See Figure 3-31 and Table 3-32 The PCIE-H810 is equipped with two built-in RJ-45 Ethernet controllers. Each controller can connect to the LAN through one RJ-45 LAN connector. Description Description MDIA3-...

  • Page 60: Vga Connector

    PCIE-H810 PICMG 1.3 CPU Card The PCIE-H810 has two external USB 2.0 ports. The ports connect to both USB 2.0 and USB 1.1 devices. Description DATA- DATA+ GROUND Table 3-34: USB 2.0 Port Pinouts 3.3.3 VGA Connector CN Label: VGA1...

  • Page 61: Installation

    PCIE-H810 PICMG 1.3 CPU Card Chapter Installation Page 47...

  • Page 62: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PCIE-H810. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PCIE-H810 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
  • Page 63  Turn all power to the PCIE-H810 off: When working with the PCIE-H810, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system. Before and during the installation of the PCIE-H810 DO NOT: ...

  • Page 64: Socket Lga1150 Cpu Installation

    PCIE-H810 PICMG 1.3 CPU Card 4.3 Socket LGA1150 CPU Installation WARNING: CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure the correct cooling kit is properly installed.

  • Page 65: Figure 4-2: Remove Protective Cover

    PCIE-H810 PICMG 1.3 CPU Card Figure 4-2: Remove Protective Cover Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the socket contacts are free of foreign material. If any debris is found, remove it with compressed air.

  • Page 66: Figure 4-3: Insert The Socket Lga1150 Cpu

    PCIE-H810 PICMG 1.3 CPU Card Figure 4-3: Insert the Socket LGA1150 CPU Step 8: Close the CPU socket. Close the load plate and pull the load lever back a little to have the load plate be able to secure to the knob. Engage the load lever by pushing it back to its original position (Figure 4-4).

  • Page 67: Socket Lga1150 Cooling Kit Installation

    PCIE-H810 PICMG 1.3 CPU Card 4.4 Socket LGA1150 Cooling Kit Installation The cooling kit can be bought from IEI. The cooling kit has a heatsink and fan. WARNING: Do not wipe off (accidentally or otherwise) the pre-sprayed layer of thermal paste on the bottom of the heat sink. The thermal paste between the CPU and the heat sink is important for optimum heat dissipation.

  • Page 68: Dimm Installation

    PCIE-H810 PICMG 1.3 CPU Card Step 5: Connect the fan cable. Connect the cooling kit fan cable to the fan connector on the PCIE-H810. Carefully route the cable and avoid heat generating chips and fan blades. 4.5 DIMM Installation To install a DIMM, please follow the steps below and refer to Figure 4-6.

  • Page 69: Full-Size Pcie Mini Card Installation

    PCIE-H810 PICMG 1.3 CPU Card 4.6 Full-size PCIe Mini Card Installation The PCIe Mini slot allows installation of either a full-size or half-size PCIe Mini card. To install a full-size PCIe Mini card, please follow the steps below. Step 1: Locate the PCIe Mini slot.

  • Page 70: Figure 4-8: Removing The Retention Screw

    PCIE-H810 PICMG 1.3 CPU Card Figure 4-8: Removing the Retention Screw Step 4: Insert into the socket at an angle. Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card into the socket at an angle of about 20º (Figure 4-9).

  • Page 71: Half-Size Pcie Mini Card Installation

    PCIE-H810 PICMG 1.3 CPU Card Figure 4-10: Securing the Full-size PCIe Mini Card 4.7 Half-size PCIe Mini Card Installation The PCIe Mini card slot allows installation of either a full-size or half-size PCIe Mini card. To install a half-size PCIe Mini card, please follow the steps below.

  • Page 72: Figure 4-11: Removing The Retention Screw

    PCIE-H810 PICMG 1.3 CPU Card Figure 4-11: Removing the Retention Screw Step 3: Insert into the socket at an angle. Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card into the slot at an angle of about 20º...

  • Page 73: System Configuration

    PCIE-H810 PICMG 1.3 CPU Card Step 4: Secure the half-size PCIe Mini card. Secure the half-size PCIe Mini card with the retention screw previously removed (Figure 4-13). Step 0: Figure 4-13: Securing the Half-size PCIe Mini Card 4.8 System Configuration The system configuration should be performed before installation.

  • Page 74: Clear Cmos Button

    PCIE-H810 PICMG 1.3 CPU Card Setting Description 1-2 (down) ATX power mode (default) 2-3 (up) AT power mode Table 4-1: AT/ATX Power Mode Switch Settings 4.8.2 Clear CMOS Button To reset the BIOS, remove the on-board battery and press the clear CMOS button for three seconds or more.

  • Page 75: Msata Mode Selection

    PCIE-H810 PICMG 1.3 CPU Card 4.8.4 mSATA Mode Selection The jumper configures the PCIe Mini slot (CN4) to automatically detect mSATA device or to force mSATA to be enabled. Setting Description Open Auto-detect mSATA device (default) Short 1-2 Enable mSATA...

  • Page 76: Chassis Installation

    The PCIE-H810 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 77: Internal Peripheral Device Connections

    This section outlines the installation of peripheral devices to the onboard connectors. 4.10.1 SATA Drive Connection The PCIE-H810 is shipped with four SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors.

  • Page 78: Figure 4-19: Sata Power Drive Connection

    PCIE-H810 PICMG 1.3 CPU Card Step 4: Connect the SATA power cable (optional). Connect the SATA power connector to the back of the SATA drive. See Figure 4-19. Figure 4-19: SATA Power Drive Connection Page 64...

  • Page 79: Bios

    PCIE-H810 PICMG 1.3 CPU Card Chapter BIOS Page 65...

  • Page 80: Introduction

    PCIE-H810 PICMG 1.3 CPU Card 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 81: Getting Help

    PCIE-H810 PICMG 1.3 CPU Card Function Page Dn Move to the next page Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu...

  • Page 82: Main

    PCIE-H810 PICMG 1.3 CPU Card 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.

  • Page 83: Advanced

    PCIE-H810 PICMG 1.3 CPU Card  System Overview The system overview lists a brief summary of the BIOS. The fields in system overview cannot be changed. The items shown in the system overview include:  BIOS Information  Processor Information ...

  • Page 84: Acpi Settings

    PCIE-H810 PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit > ACPI Settings System ACPI Parameters > RTC Wake Settings > Trusted Computing > CPU Configuration > SATA Configuration ---------------------- : Select Screen...

  • Page 85: Rtc Wake Settings

    PCIE-H810 PICMG 1.3 CPU Card  ACPI Sleep State [S1 only (CPU Stop Clock)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used.  S1 only (CPU Stop The system enters S1 (POS) sleep state. The...
  • Page 86 PCIE-H810 PICMG 1.3 CPU Card  Wake system with Fixed Time [Disabled] Use the Wake system with Fixed Time option to enable or disable the system wake on alarm event.  Disabled The real time clock (RTC) cannot generate a wake...

  • Page 87: Trusted Computing

    PCIE-H810 PICMG 1.3 CPU Card 5.3.3 Trusted Computing Use the Trusted Computing menu (BIOS Menu 5) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.

  • Page 88: Cpu Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.3.4 CPU Configuration Use the CPU Configuration menu (BIOS Menu 6) to view detailed CPU specifications or enable the Intel Virtualization Technology. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced CPU Configuration...
  • Page 89 PCIE-H810 PICMG 1.3 CPU Card  Active Processor Cores [All] Use the Active Processor Cores BIOS option to enable numbers of cores in the processor package.  Enable all cores in the processor package. EFAULT  Enable one core in the processor package.

  • Page 90: Sata Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.3.5 SATA Configuration Use the SATA Configuration menu (BIOS Menu 7) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.

  • Page 91: Usb Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.3.6 USB Configuration Use the USB Configuration menu (BIOS Menu 8) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 92: F81866 Super Io Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.3.7 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 9) to set or change the configurations for the serial ports and parallel port. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
  • Page 93 PCIE-H810 PICMG 1.3 CPU Card 5.3.7.1.1 Serial Port 1 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enable the serial port Enabled EFAULT ...
  • Page 94 PCIE-H810 PICMG 1.3 CPU Card  Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.  Auto The serial port IO port address and interrupt address EFAULT are automatically detected.
  • Page 95 PCIE-H810 PICMG 1.3 CPU Card  IO=2D0h; Serial Port I/O port address is 2D0h and the interrupt IRQ=11 address is IRQ11  Serial Port I/O port address is 2D0h and the interrupt IO=2D0h; address is IRQ10, 11 IRQ=10, 11 ...
  • Page 96 PCIE-H810 PICMG 1.3 CPU Card  IO=2C0h; Serial Port I/O port address is 2C0h and the interrupt IRQ=10, 11 address is IRQ10, 11  Serial Port I/O port address is 2C8h and the interrupt IO=2C8h; address is IRQ10, 11 IRQ=10, 11 5.3.7.1.5 Serial Port 5 Configuration...

  • Page 97: Irda Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.3.7.2 IrDA Configuration Use the IrDA Configuration menu (BIOS Menu 11) to configure the infrared port. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced IrDA Configuration Enable or Disable Serial Port (COM)
  • Page 98 PCIE-H810 PICMG 1.3 CPU Card  IO=2D0h; Infrared port I/O port address is 2D0h and the IRQ=10, 11 interrupt address is IRQ10, 11  Infrared port I/O port address is 2D8h and the IO=2D8h; interrupt address is IRQ10, 11 IRQ=10, 11 ...

  • Page 99: Parallel Port Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.3.7.3 Parallel Port Configuration Use the Parallel Port Configuration menu (BIOS Menu 12) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Parallel Port Configuration Enable or Disable...

  • Page 100: Iwdd H/W Monitor

    PCIE-H810 PICMG 1.3 CPU Card  IO=278h; Parallel Port I/O port address is 278h and the IRQ=5, 7 interrupt address is IRQ5, 7  Parallel Port I/O port address is 3BCh and the IO=3BCh; interrupt address is IRQ5, 7 IRQ=5, 7 ...

  • Page 101: Smart Fan Mode Configuration

    PCIE-H810 PICMG 1.3 CPU Card  PC Health Status The following system parameters and values are shown. The system parameters that are monitored are:  System Temperatures: CPU Temperature System Temperature  Fan Speeds: CPU Fan Speed System Fan Speed ...

  • Page 102: Serial Port Console Redirection

    PCIE-H810 PICMG 1.3 CPU Card  CPU_FAN1 Smart Fan Control/SYS_FAN1 Smart Fan Control [Auto Mode] Use the CPU_FAN1 Smart Fan Control/SYS_FAN1 Smart Fan Control option to configure the CPU/System Smart Fan.  Auto Mode The fan adjusts its speed using Auto Mode EFAULT settings.

  • Page 103: Bios Menu 15: Serial Port Console Redirection

    PCIE-H810 PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection [Disabled] Enable or Disable > Console Redirection Settings COM2 Console Redirection [Disabled] > Console Redirection Settings --------------------- : Select Screen COM3 ↑...
  • Page 104 PCIE-H810 PICMG 1.3 CPU Card  Bits per second [115200] Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side. Long or noisy lines may require lower speeds.  9600 Sets the serial port transmission speed at 9600.

  • Page 105: Iei Feature

    PCIE-H810 PICMG 1.3 CPU Card  Stop Bits [1] Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit.

  • Page 106: Chipset

    PCIE-H810 PICMG 1.3 CPU Card  Auto Recovery Function [Disabled] Use the Auto Recovery Function BIOS option to enable or disable the auto recovery function of the IEI One Key Recovery.  Disabled Auto recovery function disabled EFAULT  Auto recovery function enabled Enabled 5.4 Chipset...

  • Page 107: Pch-Io Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.4.1 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 18) to configure the PCH parameters. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Auto Power Button Status [Disable (ATX)] Select AC power state...

  • Page 108: Table 5-2: Bios Options And Configured Usb Ports

    PCIE-H810 PICMG 1.3 CPU Card  PCIEX16 Power [1 x16 PCIE] Use the PCIEX16 Power BIOS option to configure the PCIe x16 channel mode on the backplane.  1 x16 PCIE Sets the PCIe x16 slot as one PCIe x16 EFAULT ...

  • Page 109: Pci Express Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.4.1.1 PCI Express Configuration Use the PCI Express Configuration menu (BIOS Menu 19) to configure the PCI Express slots on the backplane. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset PCI Express Configuration PCIEX4_1 Settings.
  • Page 110 PCIE-H810 PICMG 1.3 CPU Card  PCIe Speed [Auto] Use this option to select the support type of the PCI Express slot. The following options are available:  Auto Default  Gen1  Gen2  Detect Non-Compliance Device [Disabled] Use the Detect Non-Compliance Device option to enable or disable detecting if a non-compliance PCI Express device is connected to the PCI Express slot.

  • Page 111: Pch Azalia Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.4.1.2 PCH Azalia Configuration Use the PCH Azalia Configuration menu (BIOS Menu 21) to configure the PCH Azalia settings. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset PCH Azalia Configuration Control Detection of the Azalia device.

  • Page 112: System Agent (Sa) Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.4.2 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 22) to configure the System Agent (SA) parameters. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset VT-d [Disabled] Check to enable VT-d function on MCH.

  • Page 113: Bios Menu 23: Graphics Configuration

    PCIE-H810 PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Graphics Configuration Select which of IGFX/PEG/PCI Graphics Primary Display [Auto] device should be Primary DVMT Pre-Allocated [256M] Display Or select SG for DVMT Total Gfx Mem [MAX] Switchable Gfx.

  • Page 114: Bios Menu 24: Lcd Control

    PCIE-H810 PICMG 1.3 CPU Card  DVMT Total Gfx Mem [MAX] Use the DVMT Total Gfx Mem option to select DVMT5.0 total graphic memory size used by the internal graphic device. The following options are available:  128M  256M ...

  • Page 115: Nb Pcie Configuration

    PCIE-H810 PICMG 1.3 CPU Card 5.4.2.2 NB PCIe Configuration Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset NB PCIe Configuration Configure PEG0 B0:D1:F0 PEG0 Not Present Gen1-Gen2 (PCIEX16_1 PEG0 – Gen X [Auto] Slot) Enable PEG [Enabled]...

  • Page 116: Memory Configuration

    PCIE-H810 PICMG 1.3 CPU Card  Detect Non-Compliance Device [Disabled] Use the Detect Non-Compliance Device option to enable or disable detecting if a non-compliance PCI Express device is connected to the PCI Express port.  Disabled Disables to detect if a non-compliance PCI...

  • Page 117: Boot

    PCIE-H810 PICMG 1.3 CPU Card 5.5 Boot Use the Boot menu (BIOS Menu 27) to configure system boot options. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Boot Configuration Select the keyboard...
  • Page 118 PCIE-H810 PICMG 1.3 CPU Card  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  OEM Logo displayed instead of POST messages Enabled EFAULT ...

  • Page 119: Security

    PCIE-H810 PICMG 1.3 CPU Card 5.6 Security Use the Security menu (BIOS Menu 28) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description...

  • Page 120: Bios Menu 29: Save & Exit

    PCIE-H810 PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Save Changes and Reset Exit the system after Discard Changes and Reset saving the changes. Restore Defaults...

  • Page 121: Software Drivers

    PCIE-H810 PICMG 1.3 CPU Card Chapter Software Drivers Page 107...

  • Page 122: Available Drivers

    PCIE-H810 PICMG 1.3 CPU Card 6.1 Available Drivers All the drivers for the PCIE-H810 are available on IEI Resource Download Center (https://download.ieiworld.com). Type PCIE-H810 and press Enter to find all the relevant software, utilities, and documentation. Figure 6-1: IEI Resource Download Center 6.2 Driver Download...
  • Page 123 PCIE-H810 PICMG 1.3 CPU Card Step 7: Click the driver file name on the page and you will be prompted with the  following window. You can download the entire ISO file ( ), or click the small  arrow to find an individual driver and click the file name to download (...

  • Page 124: A Regulatory Compliance

    PCIE-H810 PICMG 1.3 CPU Card Appendix Regulatory Compliance Page 110...
  • Page 125 PCIE-H810 PICMG 1.3 CPU Card DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply.

  • Page 126: Bbios Options

    PCIE-H810 PICMG 1.3 CPU Card Appendix BIOS Options Page 112...
  • Page 127 PCIE-H810 PICMG 1.3 CPU Card Below is a list of BIOS configuration options in the BIOS chapter. System Overview ......................... 69 System Date [xx/xx/xx] ......................69 System Time [xx:xx:xx] ....................... 69 ACPI Sleep State [S1 only (CPU Stop Clock)] ..............71 Wake system with Fixed Time [Disabled] ................
  • Page 128 PCIE-H810 PICMG 1.3 CPU Card Fan start PWM ........................88 Fan slope PWM ........................88 Console Redirection [Disabled] ..................89 Terminal Type [ANSI] ......................89 Bits per second [115200] ..................... 90 Data Bits [8] .......................... 90 Parity [None] ......................... 90 Stop Bits [1] ..........................
  • Page 129 PCIE-H810 PICMG 1.3 CPU Card Restore Defaults ........................106 Save as User Defaults .......................106 Restore User Defaults .......................106 Page 115...

  • Page 130: C Terminology

    PCIE-H810 PICMG 1.3 CPU Card Appendix Terminology Page 116...
  • Page 131 PCIE-H810 PICMG 1.3 CPU Card ® AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 132 PCIE-H810 PICMG 1.3 CPU Card DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module. The digital inputs and digital outputs are general control signals that control the on/off circuit of external devices or TTL devices.
  • Page 133 PCIE-H810 PICMG 1.3 CPU Card LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer. POST The Power-on Self Test (POST) is the pre-boot actions the system performs when the system is turned-on.

  • Page 134: D Digital I/O Interface

    PCIE-H810 PICMG 1.3 CPU Card Appendix Digital I/O Interface Page 120...
  • Page 135 PCIE-H810 PICMG 1.3 CPU Card The DIO connector on the PCIE-H810 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 8-bit digital inputs and 8-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.
  • Page 136 PCIE-H810 PICMG 1.3 CPU Card AH – 6FH Sub-function: AL – 9 :Set the digital port as OUTPUT :Digital I/O output value Assembly Language Sample 2 AX, 6F09H ;setting the digital port as output BL, 09H ;digital value is 09H...

  • Page 137: E Watchdog Timer

    PCIE-H810 PICMG 1.3 CPU Card Appendix Watchdog Timer Page 123...
  • Page 138 PCIE-H810 PICMG 1.3 CPU Card NOTE: The following discussion applies to DOS environment. Contact IEI support or visit the IEI website for specific drivers for other operating systems. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 139 PCIE-H810 PICMG 1.3 CPU Card NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 140: F Hazardous Materials Disclosure

    PCIE-H810 PICMG 1.3 CPU Card Appendix Hazardous Materials Disclosure Page 126...
  • Page 141 PCIE-H810 PICMG 1.3 CPU Card The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 142 PCIE-H810 PICMG 1.3 CPU Card 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T 11363-2006 (现由 GB/T 26572-2011 取代) 标准规定的限量要求以下。...

Table of Contents
